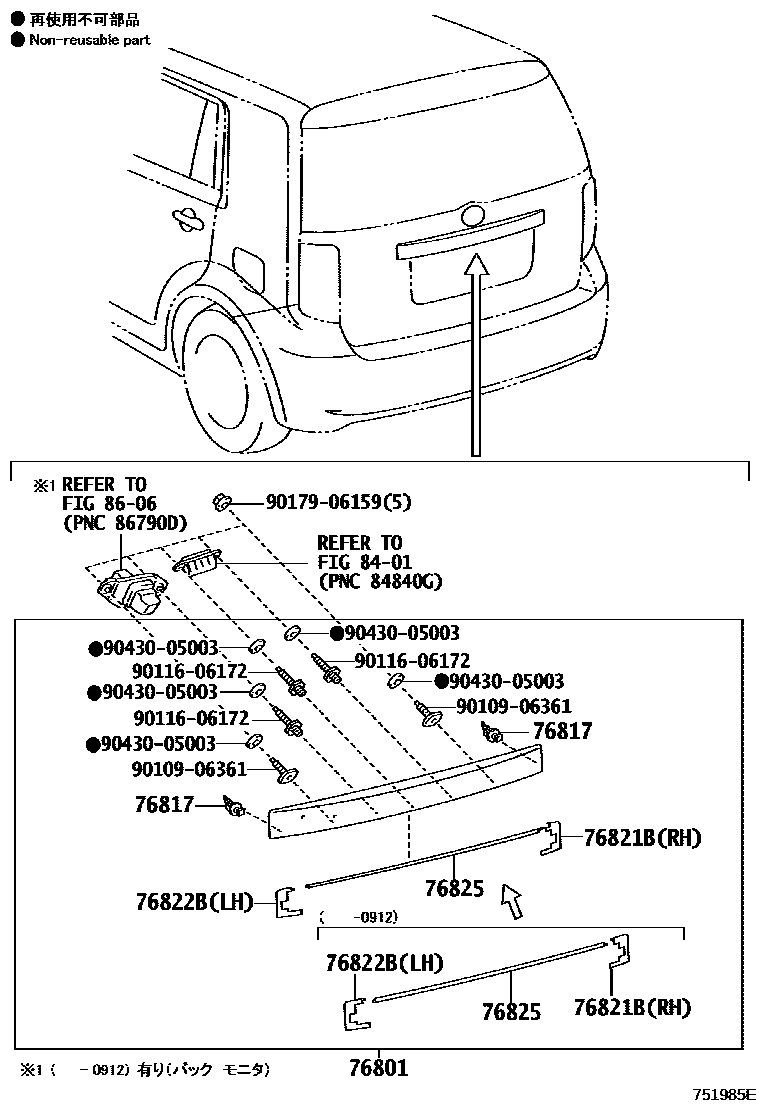

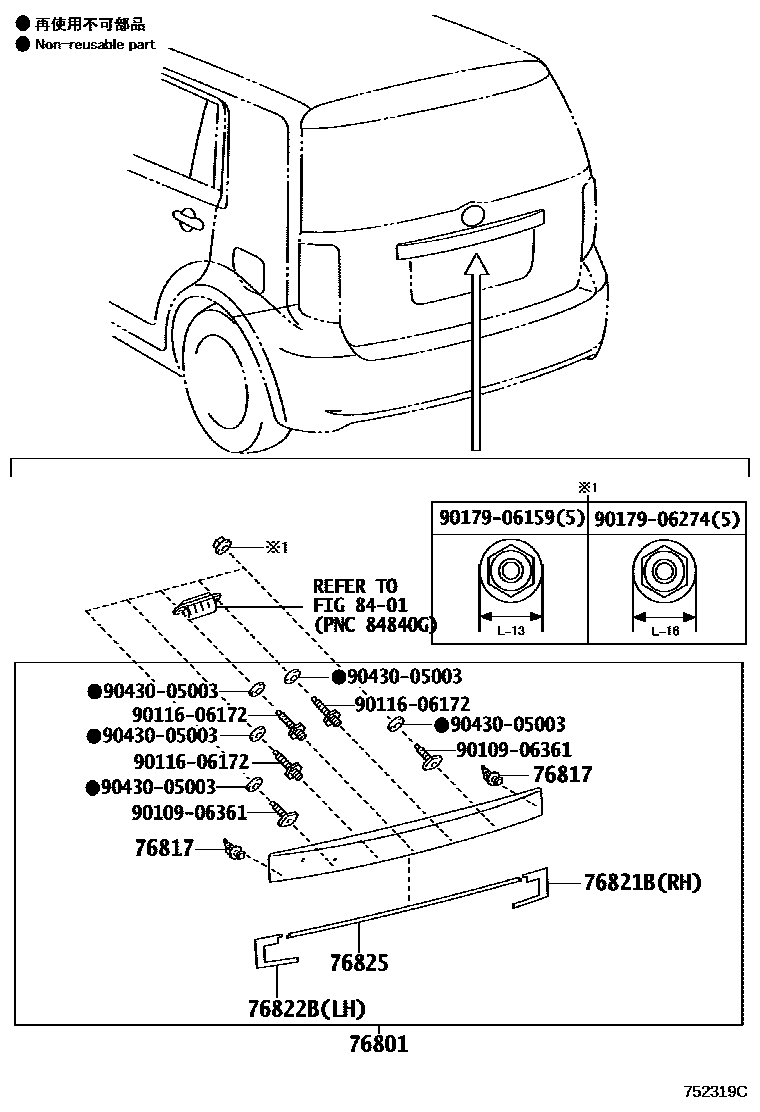

Toyota COROLLA 后防护条 — Figure 7504
Toyota COROLLA EPC diagram 7504, 后防护条, with 3 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

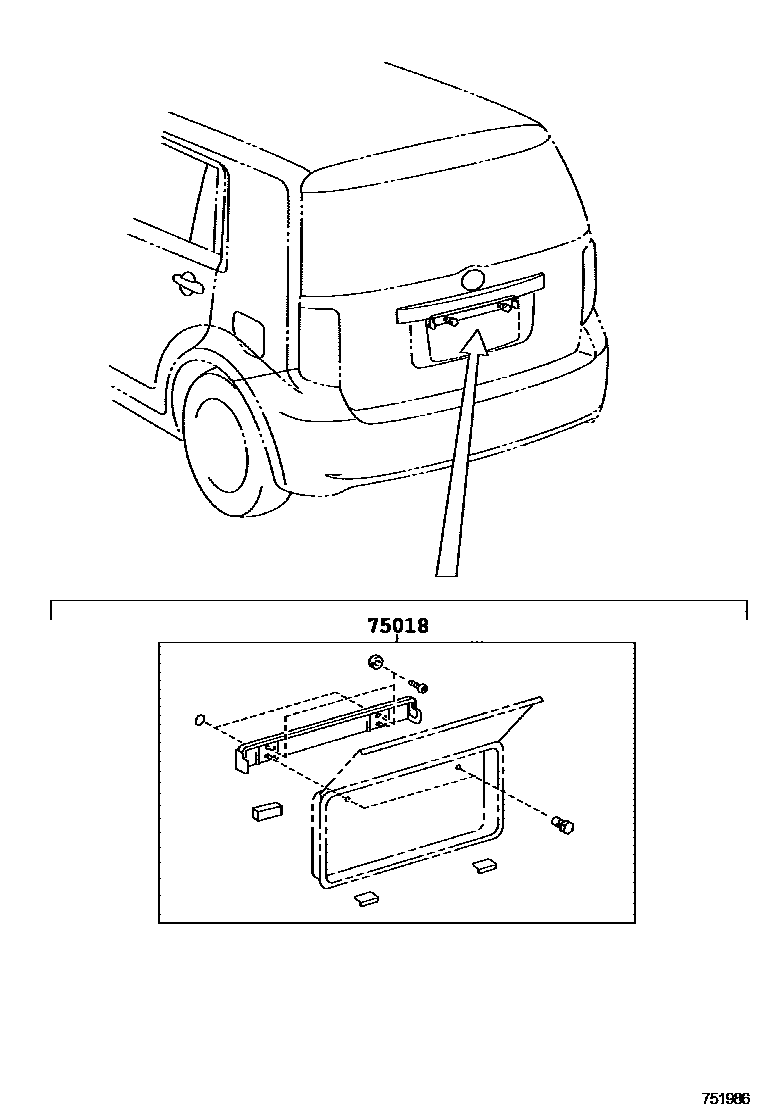

| 75018 | Rear license plate frame sub-assembly | 75010-48020 |
| 76801 | Rear door exterior decorative strip sub-assembly | 76801-12A10 · 76801-12A30 · 76801-12C00 |
| 76817 | Rear door exterior decorative strip clip | 76817-50010 |
| 76821B | Rear door right side decorative strip protective cover | 76821-12230 · 76821-12270 |
| 76822B | Rear door left side decorative strip protective cover | 76822-12090 · 76822-12120 |
| 76825 | Rear door exterior decorative strip protective cover | 76825-12060 · 76825-12110 |
