Toyota COROLLA 丰田徽标和铭牌(车外和车内) — Figure 7501

Toyota COROLLA EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 1 images and 10 PNC and OE references.

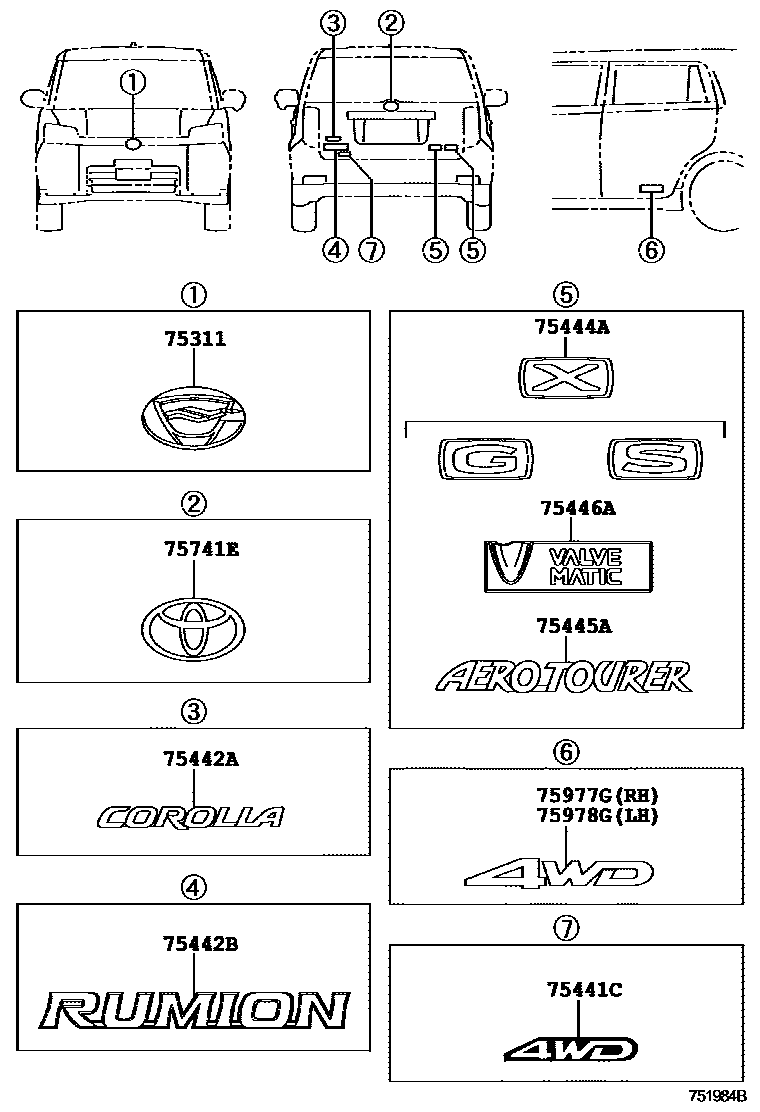

Toyota COROLLA 丰田徽标和铭牌(车外和车内) EPC diagram — 751984B
丰田徽标和铭牌(车外和车内) — 751984B (200710 – 999999)

PNC and OE references

PNCPart nameOE numbers
75311Radiator grille (or front panel) plate75311-12A90 · 75311-12B70
75441CBack door nameplate75441-12A80
75442ANo. 2 nameplate on back door75442-13260
75442BNo. 2 nameplate on back door75442-12A40
75444ANo. 4 nameplate on back door75444-12A40 · 75444-12A50 · 75444-13450
75445ANo. 5 nameplate on back door75444-12C20
75446ANo. 6 nameplate on back door75444-20A70
75741Elogo90975-02063
75977GRight rear door trim75987-12450
75978GLeft rear door trim75987-12450
