Toyota COROLLA 警示铭牌(车外和车内) — Figure 7403

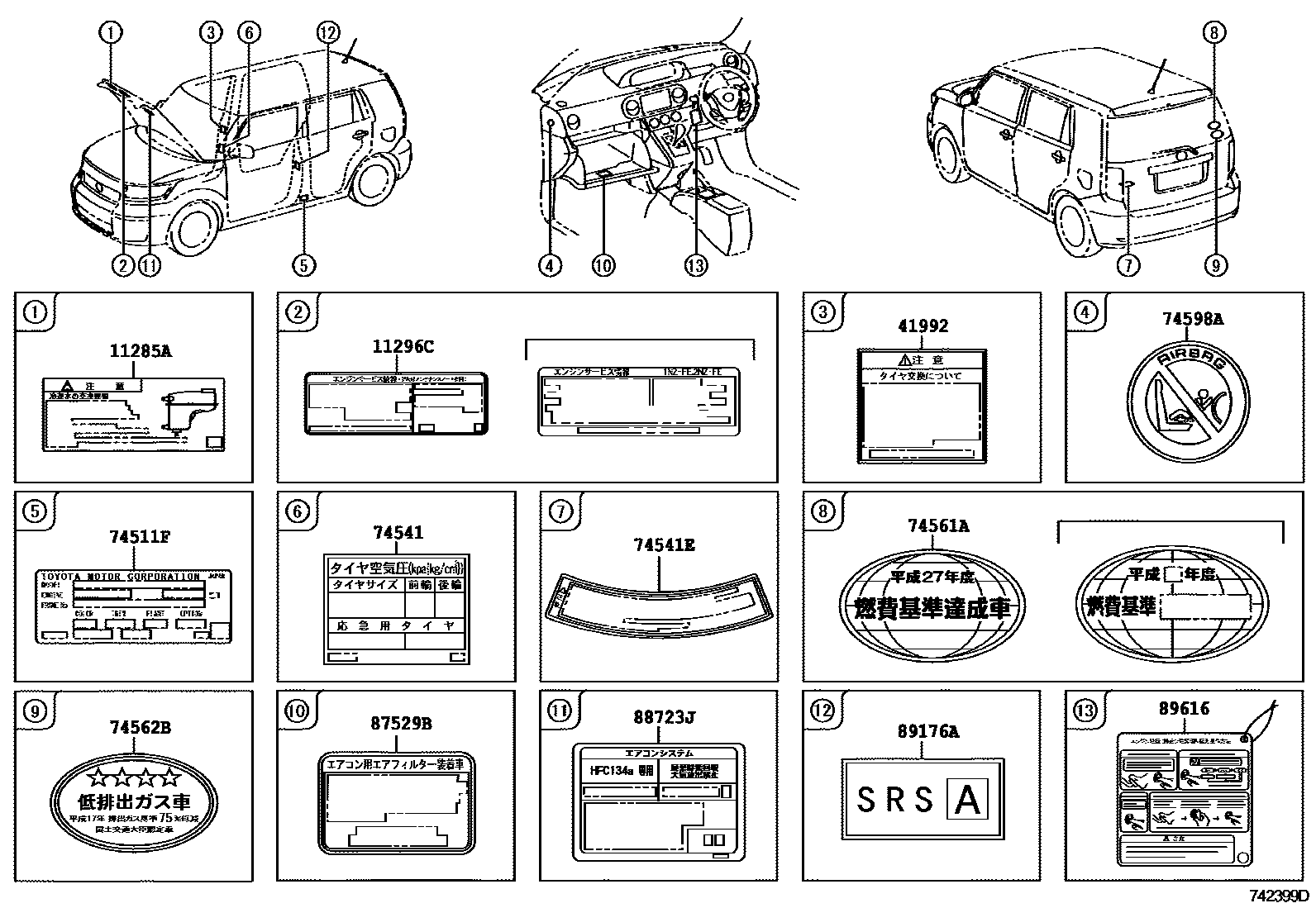

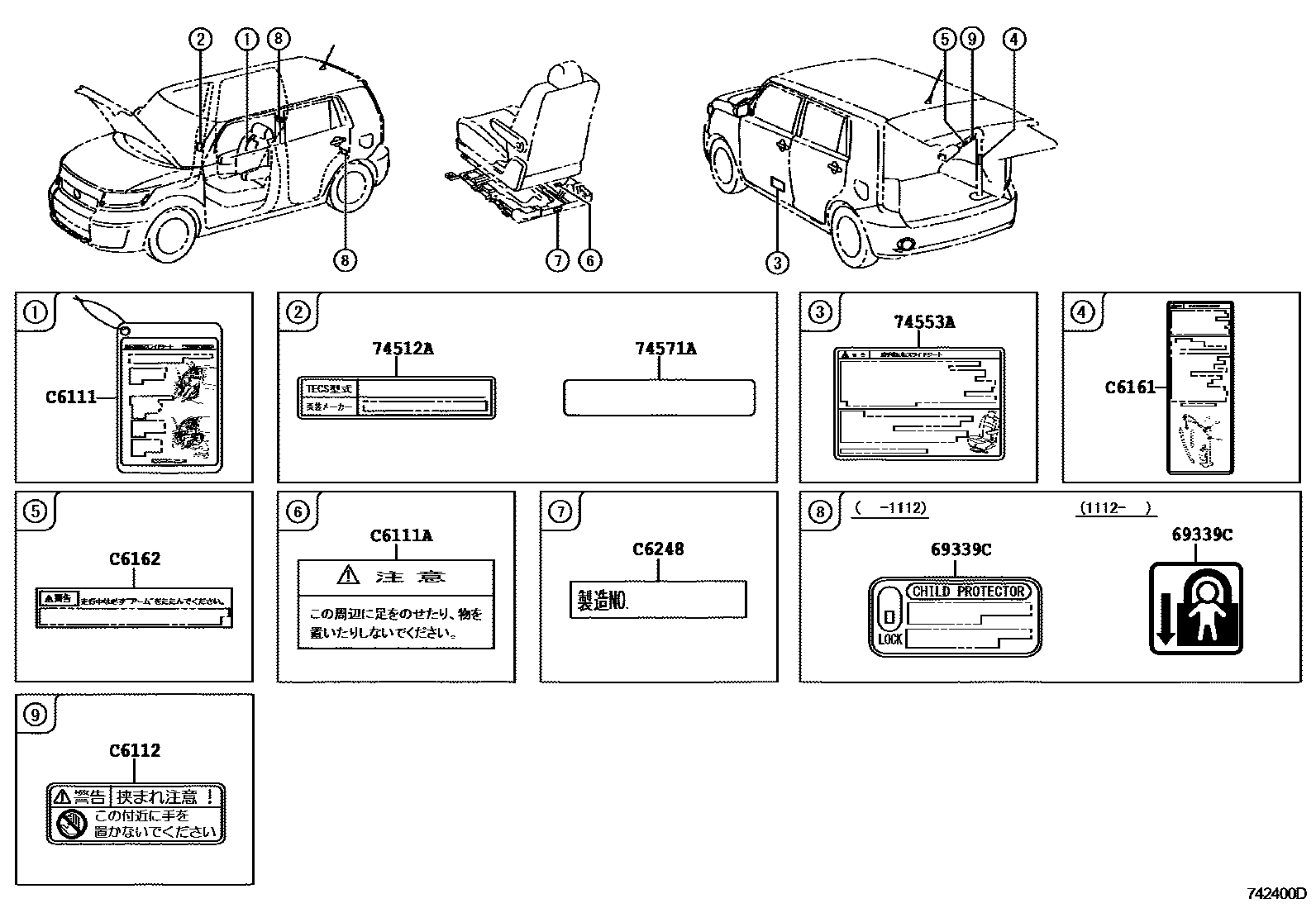

Toyota COROLLA EPC diagram 7403, 警示铭牌(车外和车内), with 2 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11285A | Coolant System Caution Labels | 11285-22090 |
| 11296C | Engine maintenance information label | 11296-21031 · 11296-21100 · 11296-37010 |
| 41992 | Differential attention label | 41992-33010 |
| 69339C | Child Restraint Information Label | 69339-12010 · 69339-33040 |
| 74511F | Nameplate (laser identification label) | 74511-2B300 |
| 74512A | Identification number plate | 74512-43010 · C6216-D3020 |
| 74541 | tire pressure warning plate | 42661-12B81 · 42661-12E40 · 42661-12G10 |
| 74541E | Small spare tire warning plate | 42668-20030 |
| 74553A | Front seat warning plate | C6161-D1070 |
| 74561A | fuel consumption information label | 74561-13010 · 74561-28010 · 74561-28020 · 74561-52030 · 74561-52040 · 74561-58010 |
| 74562B | Emission information label | 74562-47010 |
| 74571A | Label cover protective film | 74571-43010 · C6259-44010 |
| 74598A | Passenger air bag warning label | 74598-20010 · 74598-30040 |
| 87529B | Cabin filter information label | 87529-50020 |
| 88723J | Cooler No. 2 maintenance warning label | 88733-52020 · 88733-52021 |
| 89176A | Air bag deployment information label | 89176-32010 |
| 89616 | Button start information label | 89616-52010 |
| C6111 | Safety warning nameplate | C6111-D1050 |
| C6111A | Safety warning nameplate | C6111-22050 |
| C6112 | Safety Information Label No. 2 | C6112-D1170 |
| C6161 | Electric Lift Warning Label | C6161-12010 |
| C6162 | No. 2 Electric Lift Warning Label | C6162-18010 |
| C6248 | Body number label | C6248-D1170 |
