Toyota COROLLA battery holder — Figure 7402

Toyota COROLLA EPC diagram 7402, battery holder, with 1 images and 5 PNC and OE references.

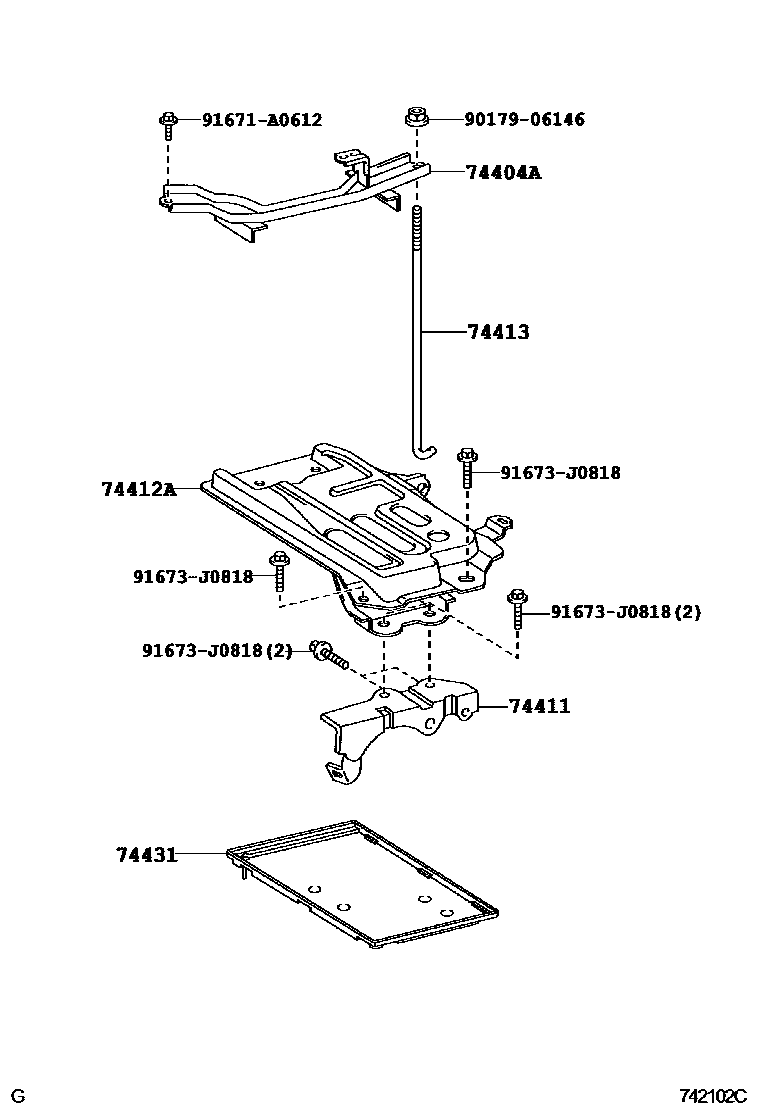

Toyota COROLLA battery holder EPC diagram — 742102C
battery holder — 742102C (200710 – 999999)

PNC and OE references

PNCPart nameOE numbers
74404ABattery clip sub-assembly74404-12470 · 74404-12471 · 74404-12480
74411battery holder74401-12010
74412ANo. 2 battery holder74410-12020
74413Battery clamp bolt74451-10061 · 74451-58011
74431battery tray74431-12110 · 74431-12130
