Toyota COROLLA 扶手和遮阳板 — Figure 7401

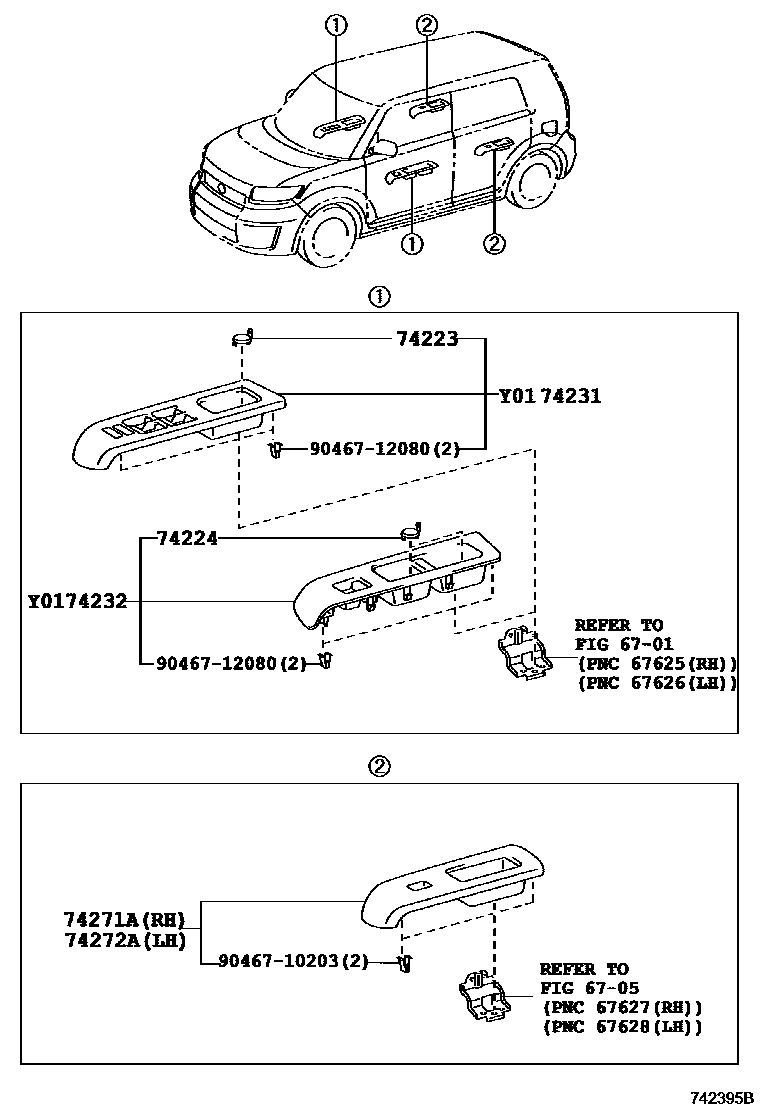

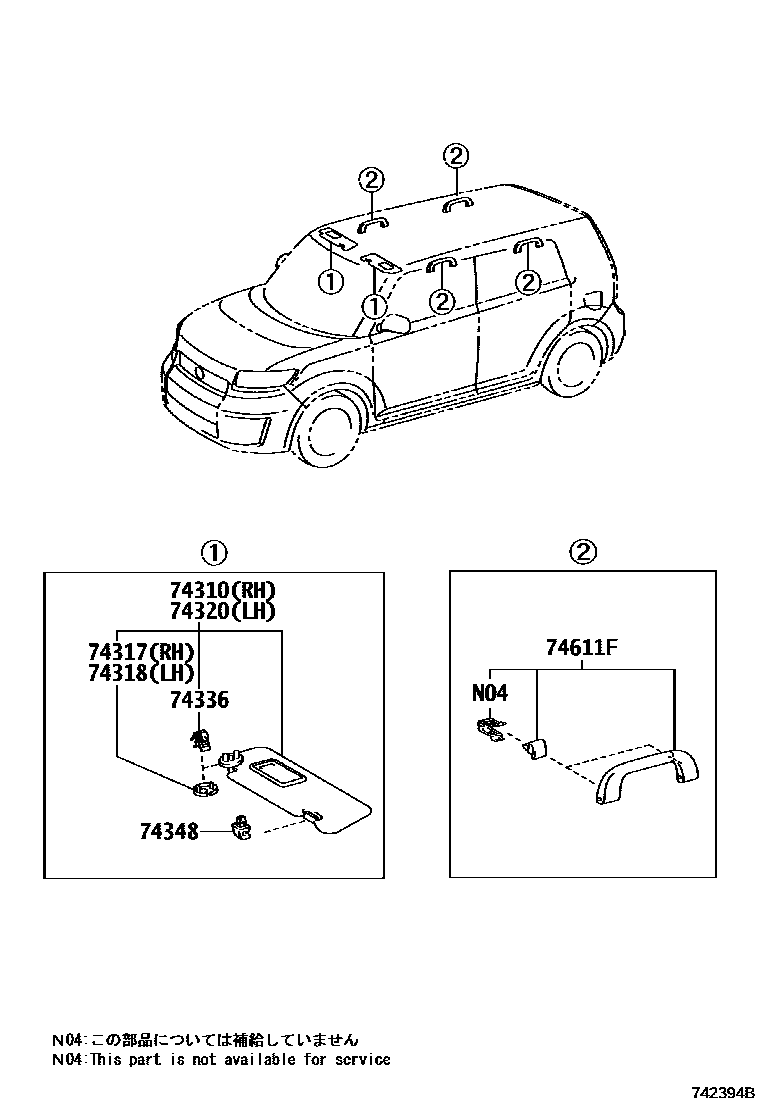

Toyota COROLLA EPC diagram 7401, 扶手和遮阳板, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 74231 | Right front armrest upper panel | 74231-12A50 · 74231-12A70 · 74231-12B20 |
| 74232 | Left front armrest upper panel | 74232-12740 · 74232-12760 · 74232-12810 |
| 74271A | Right rear door armrest upper panel | 74271-12320 · 74271-12330 · 74271-12380 |
| 74272A | Left rear door armrest upper panel | 74272-12320 · 74272-12330 · 74272-12380 |
| 74336 | Sun visor arm fixing clip | 74336-52010 |
