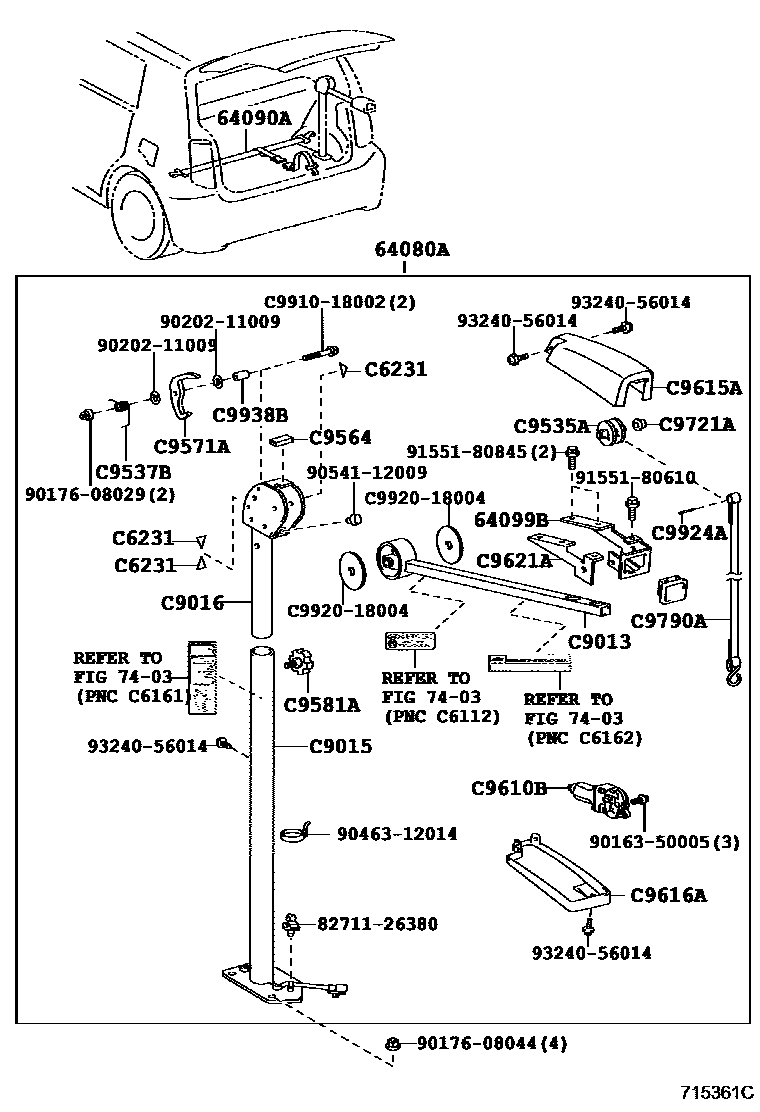

Toyota COROLLA 倾斜装置和电动举升机 — Figure 7105
Toyota COROLLA EPC diagram 7105, 倾斜装置和电动举升机, with 2 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64080A | Electric lift arm assembly | 64080-12030 |
| 64090A | No. 2 wheelchair safety belt assembly | 64090-12010 |
| 64099B | Electric lift arm guide rail base sub-assembly | 64099-D1010 |
| C6231 | side markers | C6231-18010 |

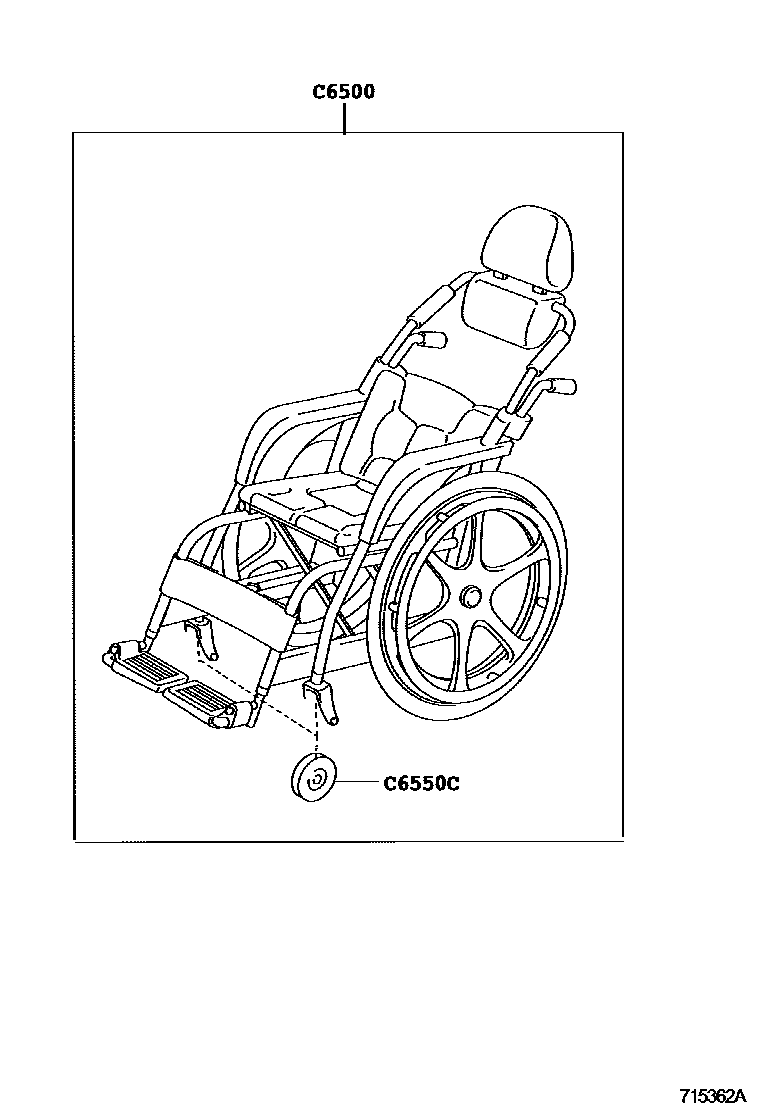

| C6550C | Front WELCAB wheelchair wheel assembly | C6550-26010 |
| C9013 | No. 1 electric lifter arm sub-assembly | C9013-12010 |
| C9015 | Electric lift column sub-assembly | C9015-12010 |
| C9016 | Electric lifter inner column sub-assembly | C9016-12010 |
| C9535A | Electric lift pulley | C9535-D1060 |
| C9537B | Electric lift return spring | C9537-D1010 |
| C9564 | Electric lifter cylinder head protection device | C9564-18010 |
| C9571A | Electric lift arm lock lever | C9571-18010 |
| C9581A | Electric lift lock handle | C9581-D1030 |
| C9610B | Electric lift motor assembly | C9610-18030 |
| C9615A | No. 1 electric lift motor cover | C9615-12020 · C9615-18020 |
| C9616A | No. 2 electric lift motor cover | C9616-12010 · C9616-D1020 |
| C9621A | Electric lift motor base | C9621-D1020 |
| C9721A | No. 2 winch No. 1 bearing | C9721-D1010 |
| C9790A | Winch belt assembly | C9790-18020 |
| C9924A | pin | C9924-18001 |
| C9938B | collar | C9938-18020 |
