Toyota COROLLA 后排座椅和座椅滑轨 — Figure 7102

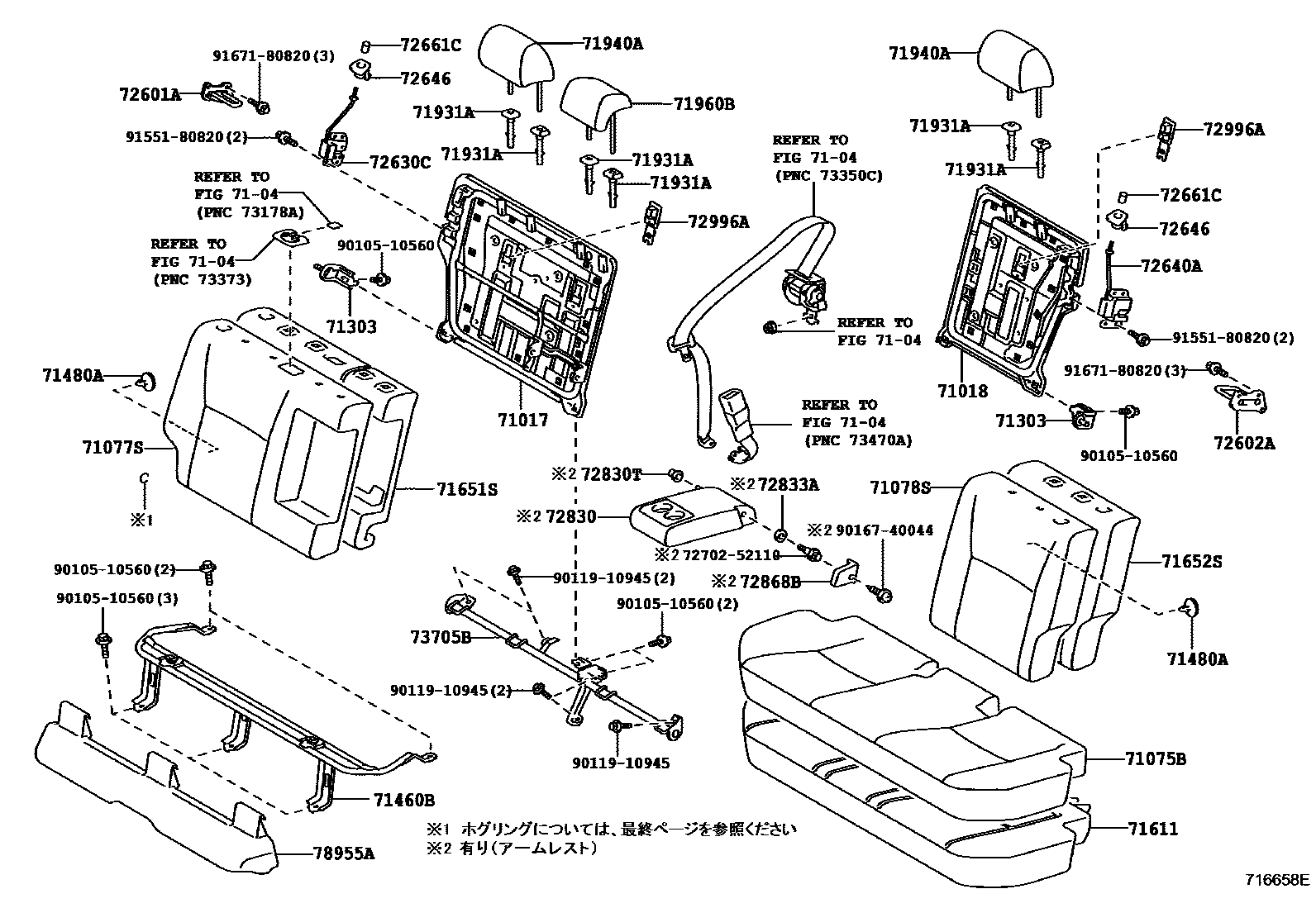

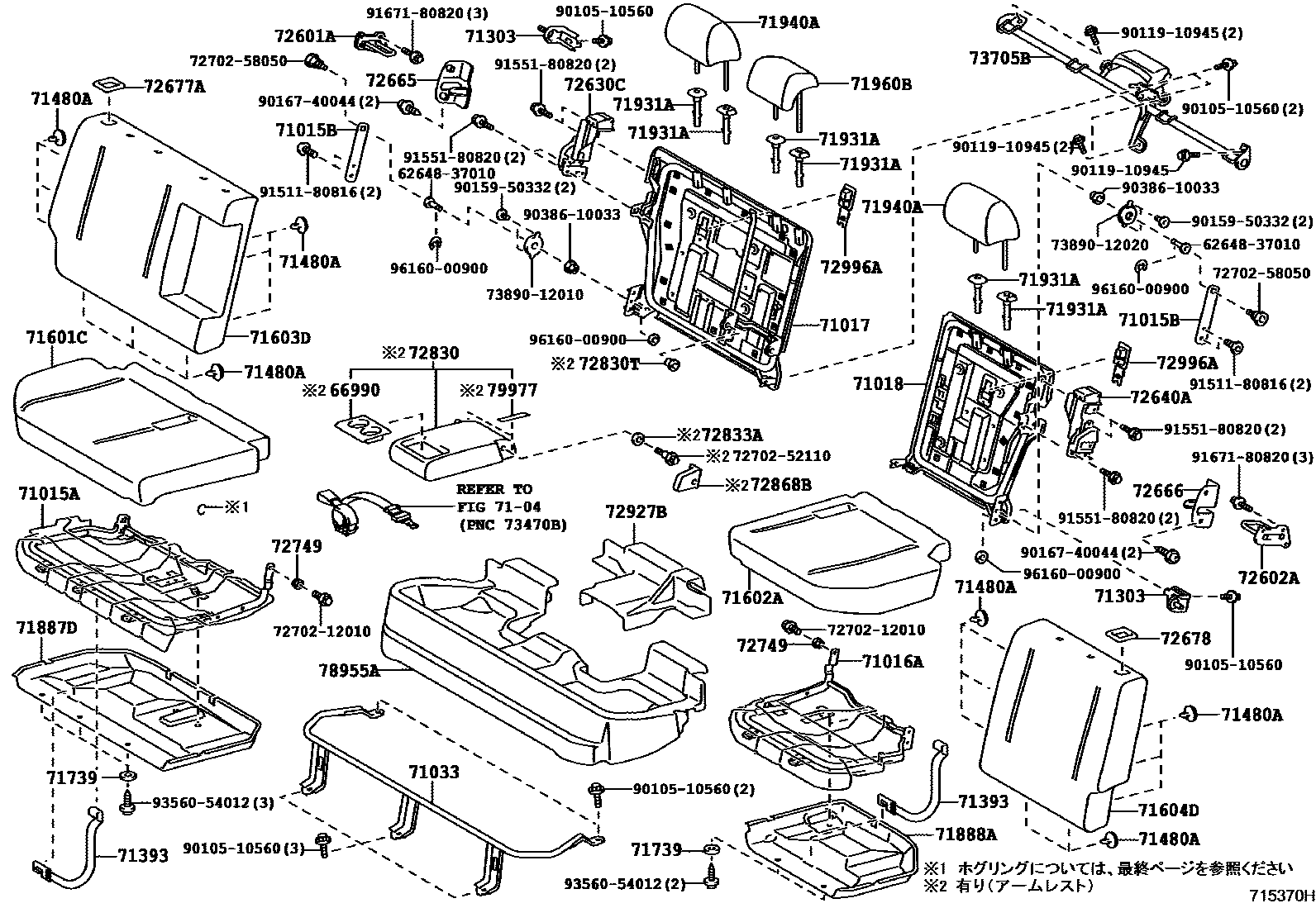

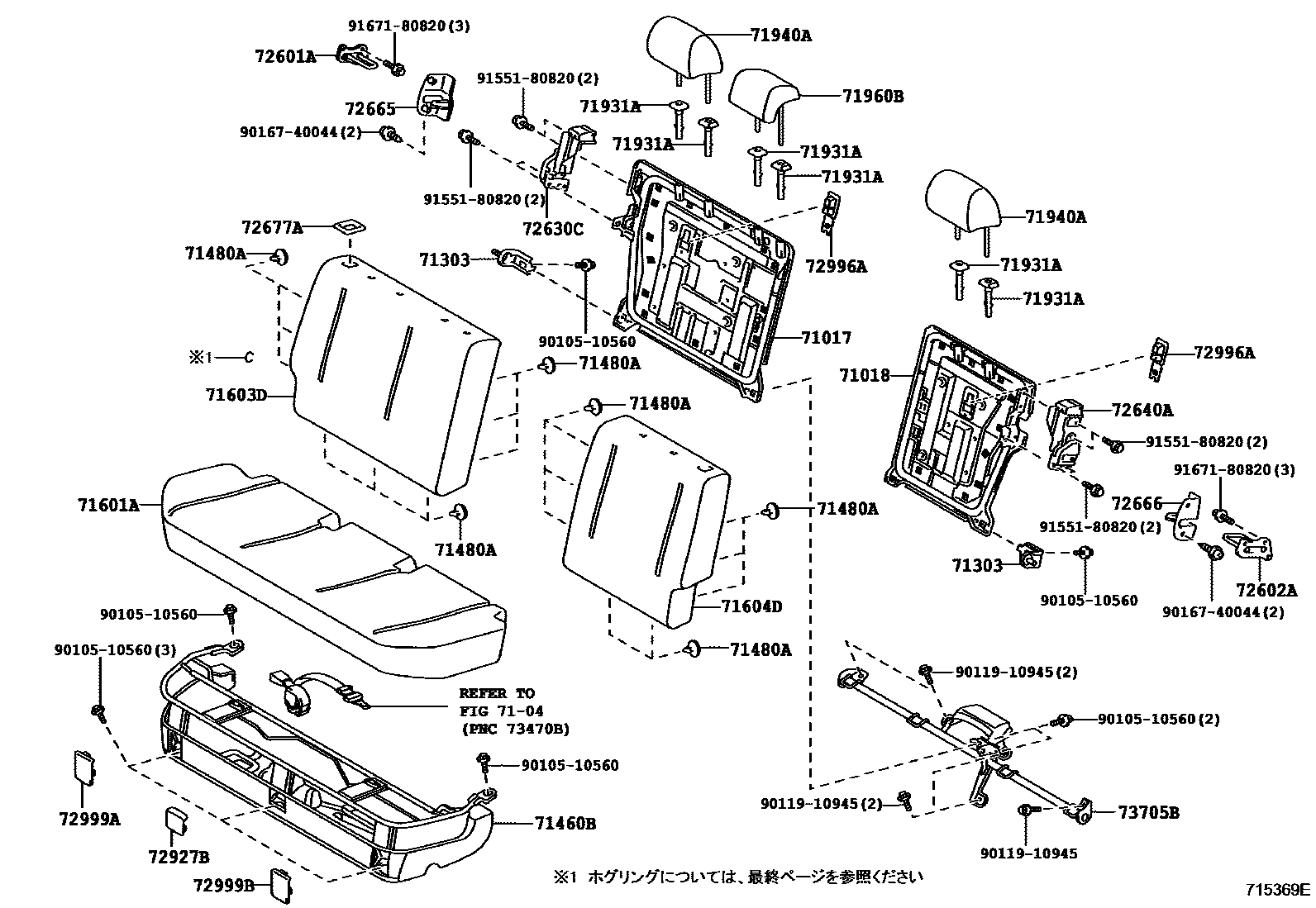

Toyota COROLLA EPC diagram 7102, 后排座椅和座椅滑轨, with 4 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71015A | Rear right seat cushion frame sub-assembly | 71015-12480 |
| 71015B | Rear seat cushion frame sub-assembly | 71211-12230 |
| 71016A | Rear left seat cushion frame sub-assembly | 71016-12030 |
| 71017 | Right rear seat back frame sub-assembly | 71017-12800 · 71017-12870 · 71017-12880 · 71017-12A00 · 71017-12A60 |
| 71018 | Rear left seat back frame sub-assembly | 71018-12410 · 71018-12420 · 71018-12440 |
| 71033 | Rear seat cushion and leg sub-assembly | 71033-12020 |
| 71303 | Rear seat back hinge sub-assembly | 71303-12190 |
| 71393 | Rear seat cushion straps | 71393-12030 |
| 71480A | Clip (for rear seat back) | 90467-09050 |
| 71611 | Rear seat cushion cushion | 71503-12270 · 71503-12280 · 71503-12320 · 71503-12330 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-12880 · 71651-12B30 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-12A10 |
| 71739 | seat support cushion | 71739-12020 · 71739-44010 |
| 71887D | Rear right seat cushion | 71887-12010 |
| 71888A | Rear left seat cushion | 71888-12030 |
| 72601A | Right rear seat back lock sub-assembly | 72601-12250 |
| 72602A | Rear left seat back lock sub-assembly | 72602-12080 |
| 72630C | Rear right seat back lock assembly | 72630-12340 · 72630-12341 |
| 72640A | Rear left seat back lock assembly | 72640-12310 · 72640-12311 |
| 72749 | Rear seat backrest tilt cushion | 72749-12010 |
| 72830T | Bushing (for rear seat center armrest) | 90386-08005 |
| 72833A | Seat center armrest inner panel | 72831-52010 |
| 72927B | Rear seat cushion lower cover | 72927-12020 |
| 73705B | Cross anchor bracket sub-assembly | 73705-12110 · 73705-12120 |
| 79977 | Seat back felt pad | 79977-12050 |
