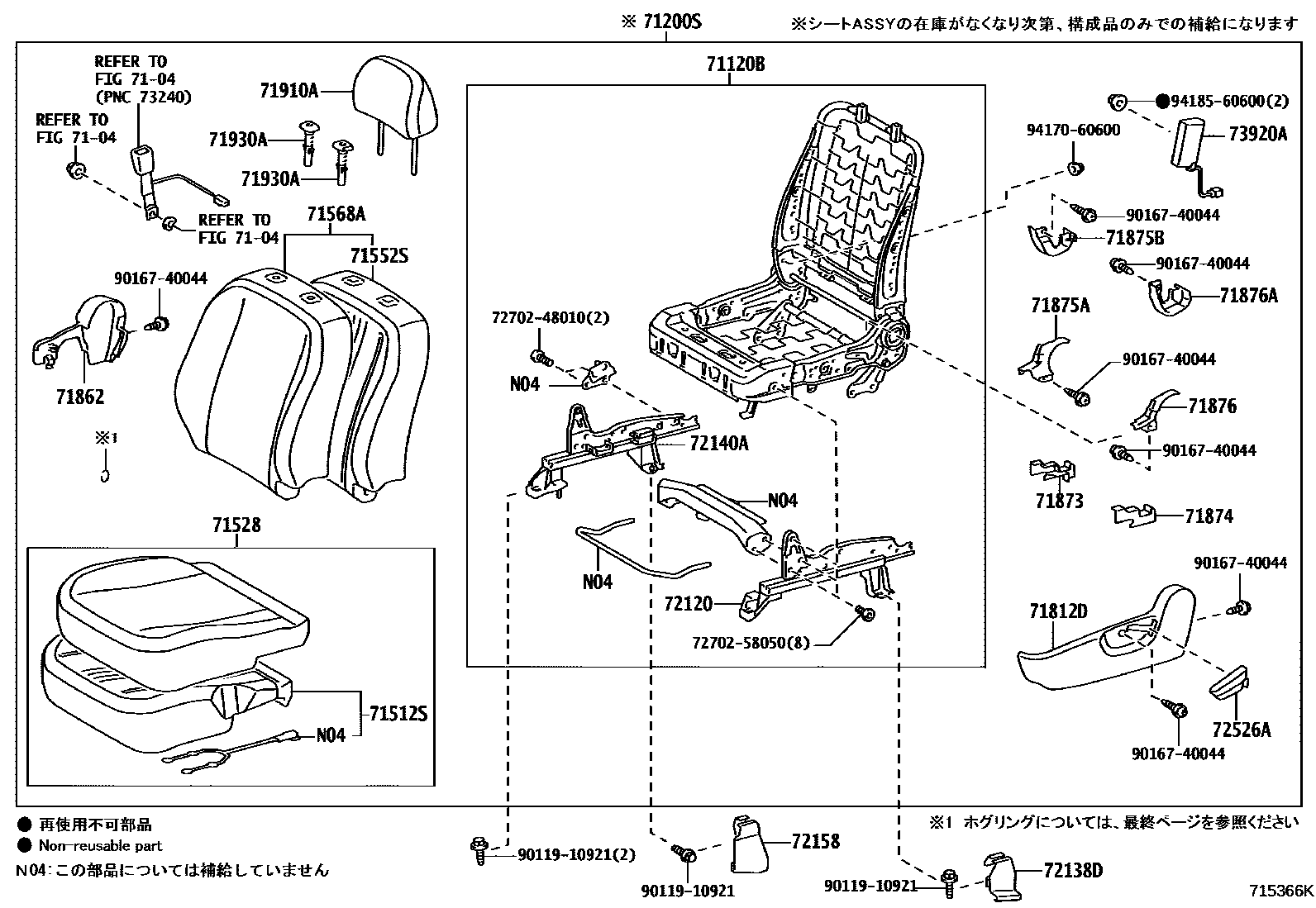

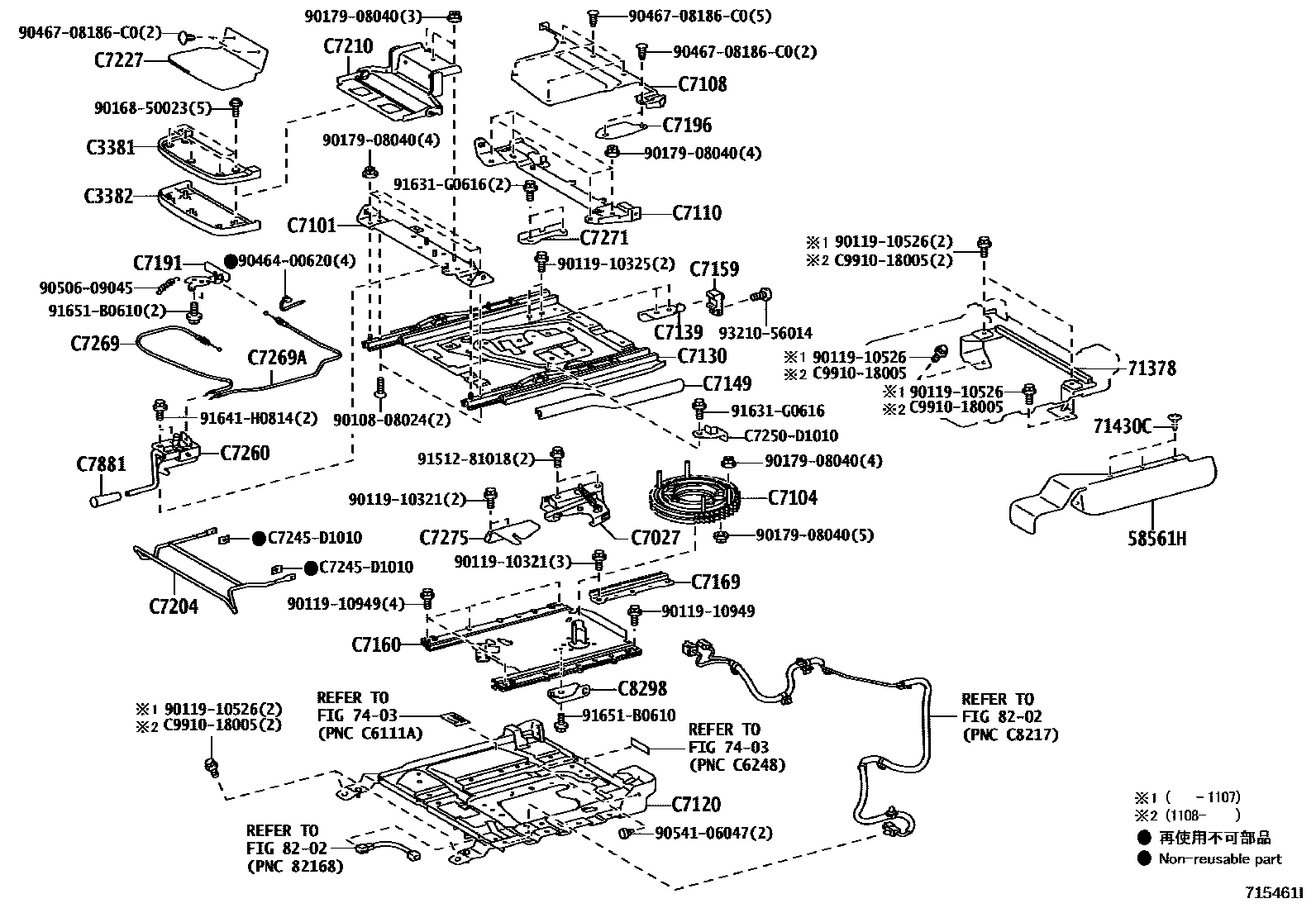

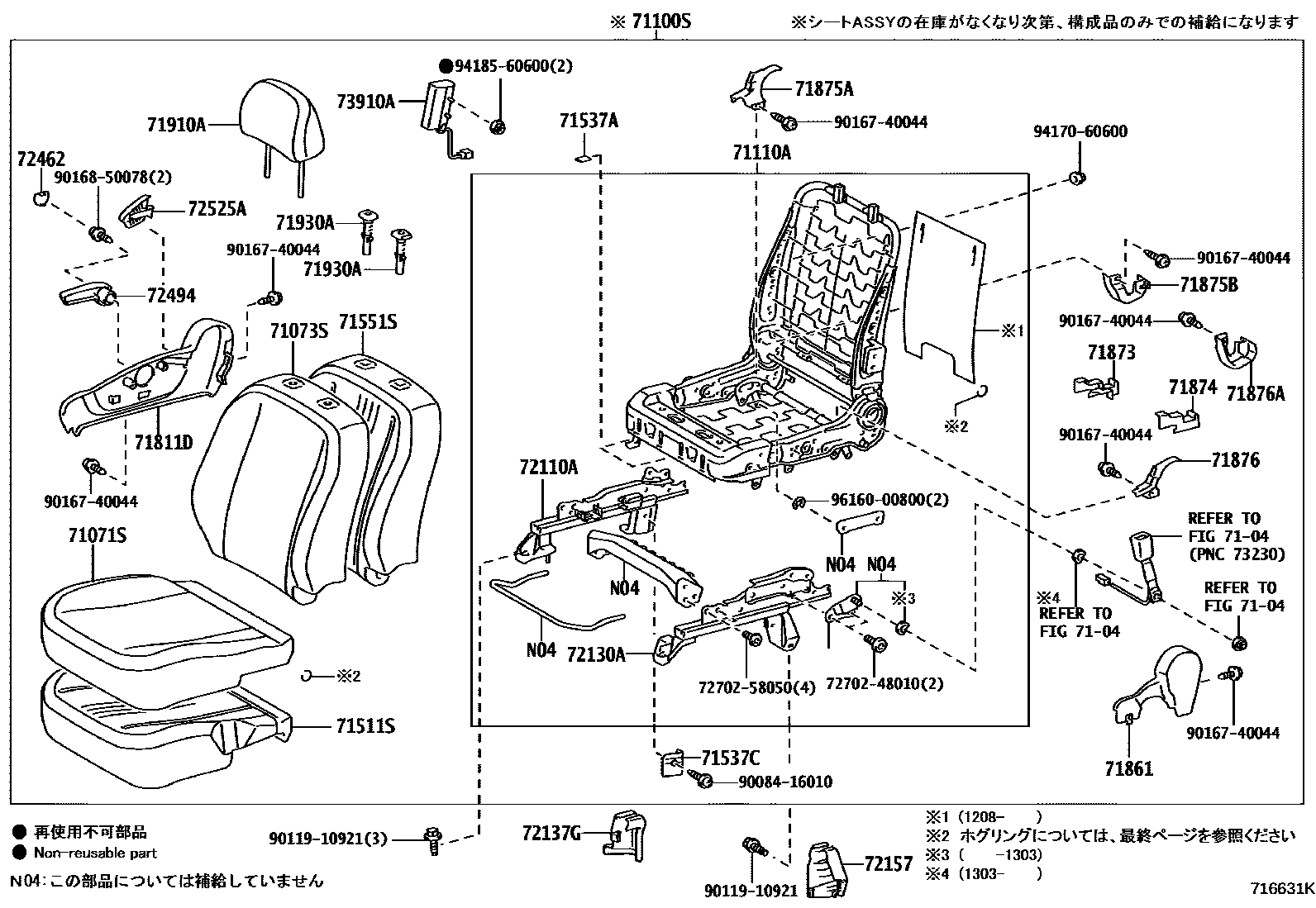

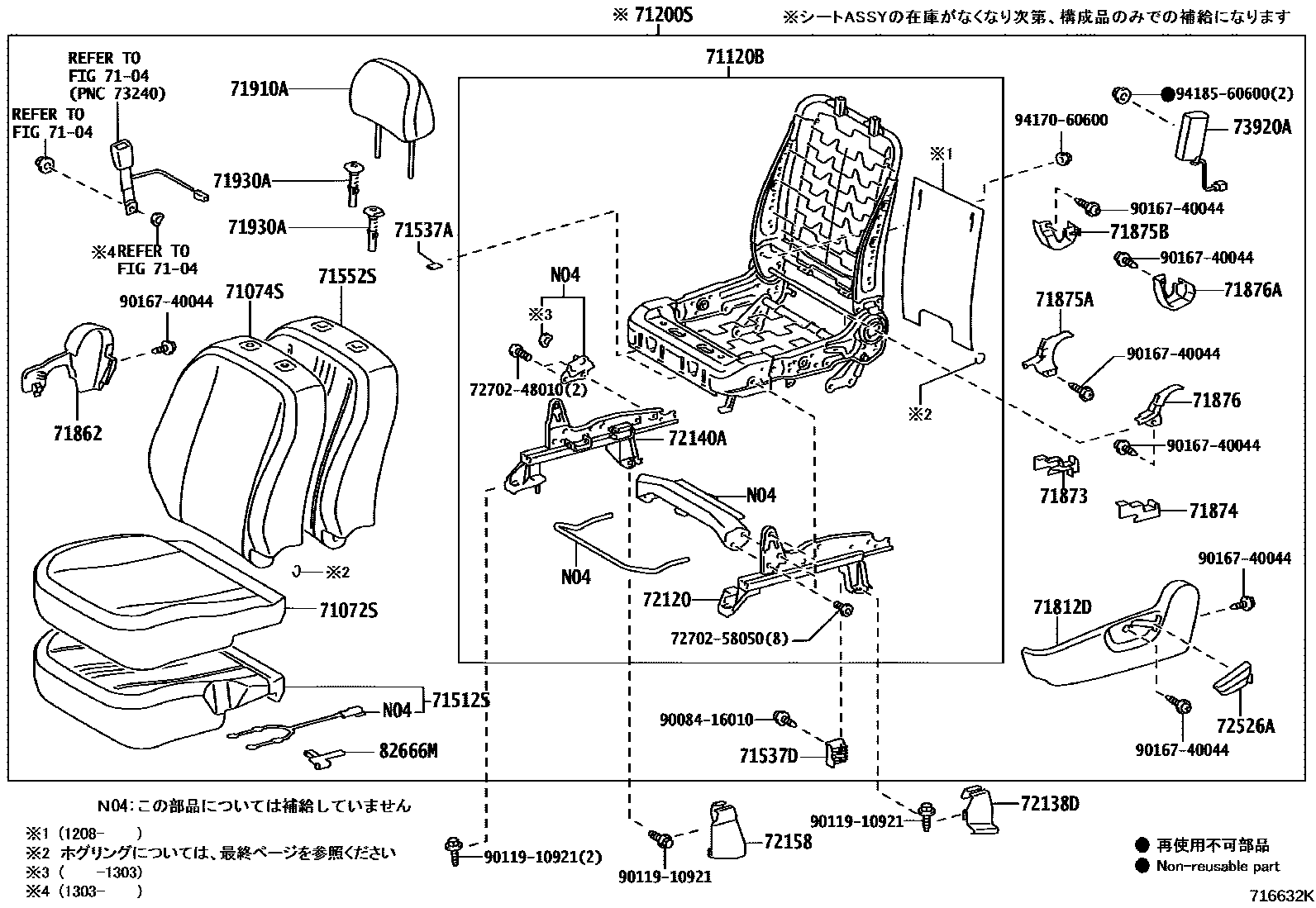

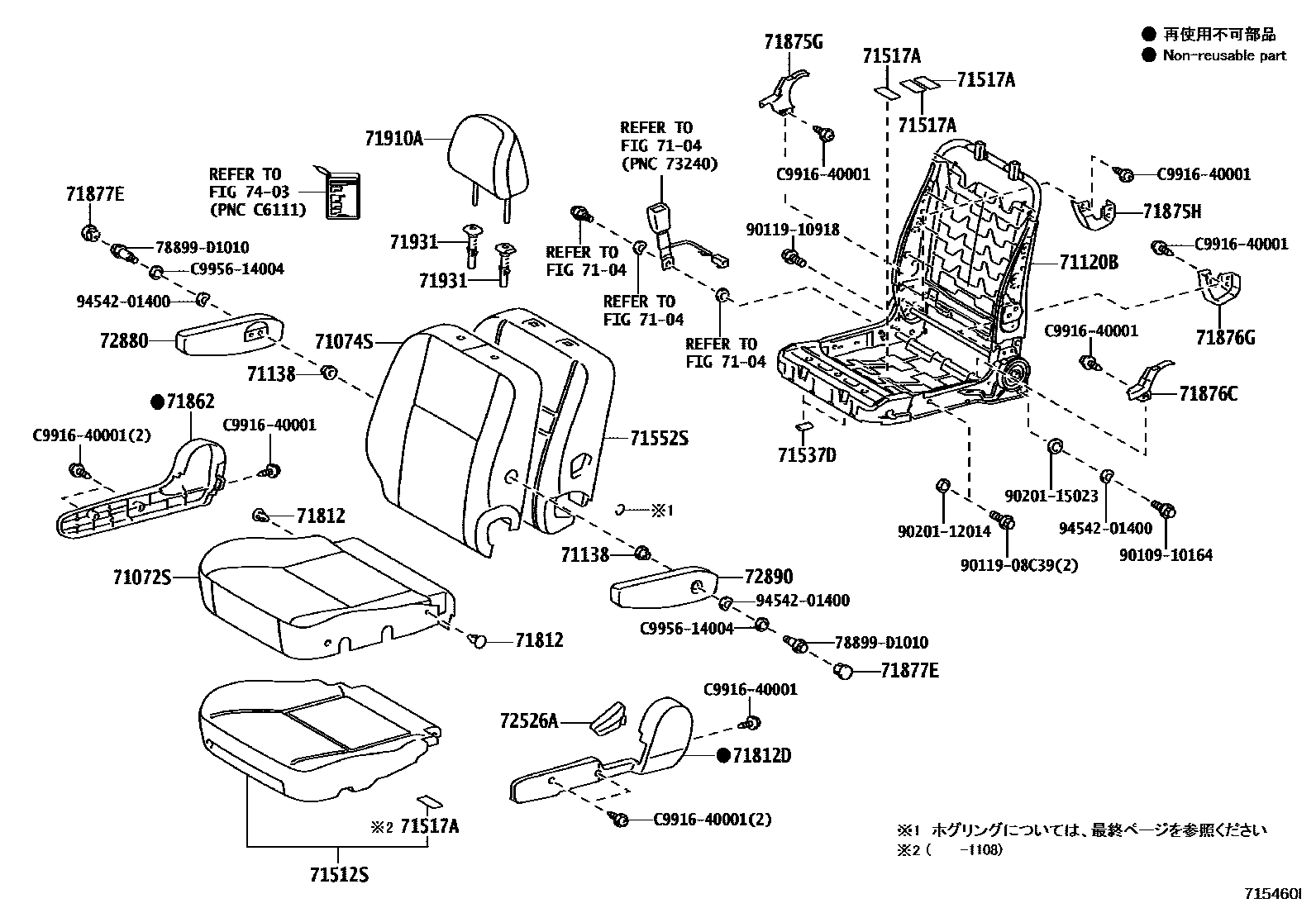

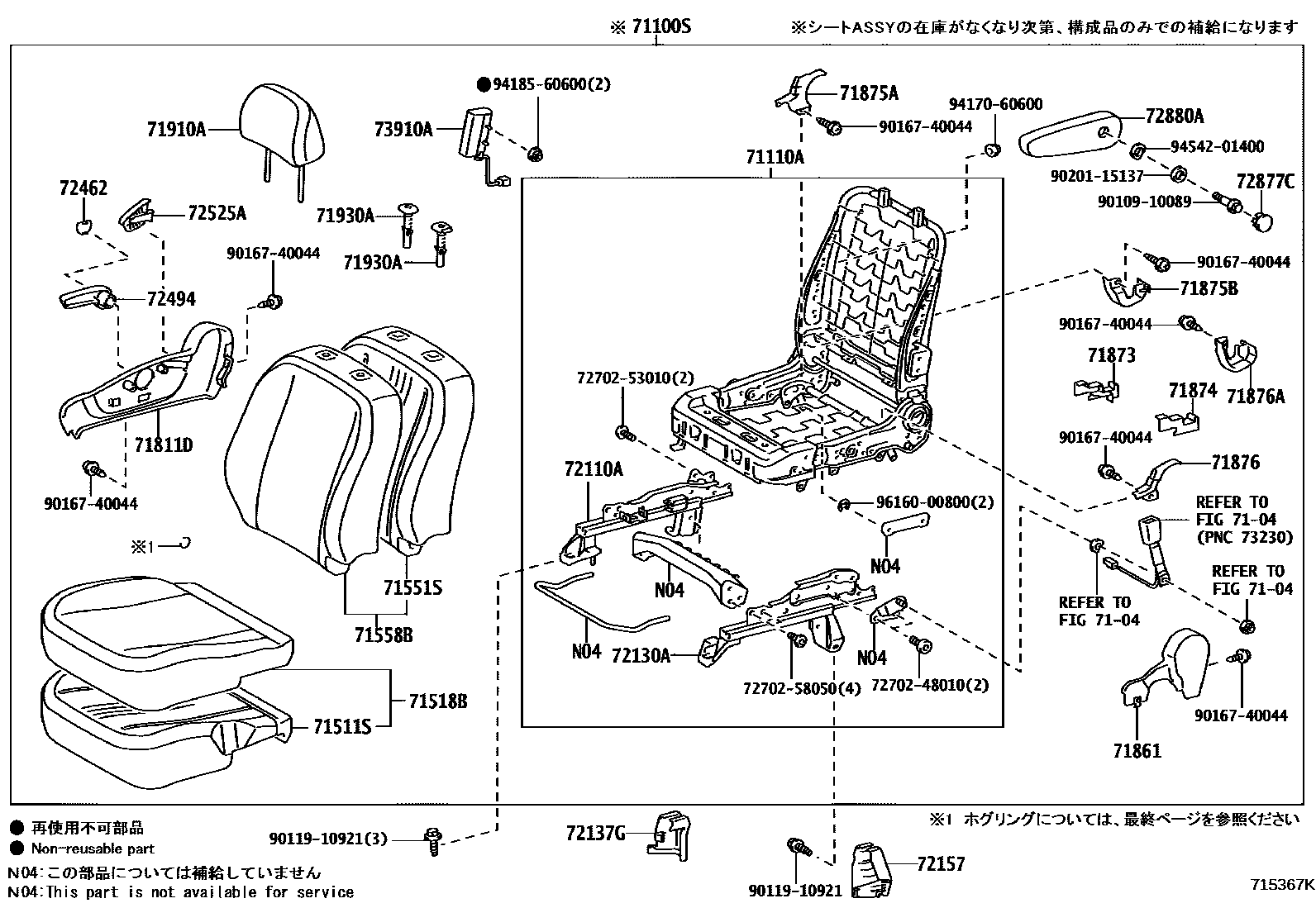

Toyota COROLLA 前排座椅和座椅滑轨 — Figure 7101
Toyota COROLLA EPC diagram 7101, 前排座椅和座椅滑轨, with 7 images and 50 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71110A | Front right seat (with adjuster) frame assembly | 71110-12350 · 71110-12360 · 71110-12410 · 71110-12411 · 71110-12412 · 71110-12600 · 71110-12601 · 71110-12602 |
| 71120B | Front left seat (with adjuster) frame assembly | 71120-12310 · 71120-12350 · 71120-12351 · 71120-12352 · 71120-12480 · 71120-12481 · 71120-12482 · 71120-D1071 |
| 71138 | Front seat fixed partition | 35469-D1030 |
| 71378 | Front left seat bracket | 79329-12020 |
| 71511S | Front right seat cushion cushion (for split seats) | 71511-12A00 |
| 71512S | Front left seat cushion cushion (for split seats) | 71502-12140 · 71512-D1020 · 78735-D1090 |
| 71517A | Front seat cushion face protector | 71517-D1020 |
| 71537A | Front seat cushion protective cover | 71537-26010 |
| 71537D | Front left seat cushion edge protective cover | 71537-26010 |
| 71551S | Front right seat back cushion (for split seats) | 71551-12B70 · 71551-12B80 · 71551-12C70 |
| 71552S | Front left seat back cushion (for split seats) | 71551-D1010 · 71552-12500 · 71552-12580 |
| 71812 | Clip (for front seat cushion cover) | 71769-60010 |
| 71873 | Front right seat cushion lower guard panel | 71873-42030 |
| 71874 | Front left seat cushion lower guard | 71874-42020 |
| 71875B | Right backrest tilt adjuster inner cover | 71875-58060 |
| 71875H | Right backrest recliner inner cover (for left seat) | 71875-58060 |
| 71876A | Left backrest tilt adjuster inner cover | 71876-58060 |
| 71876G | Left backrest recliner inner cover (for left seat) | 71876-58060 |
| 72110A | Front right seat outer slide rail assembly | 72110-12250 |
| 72120 | Front left seat outer slide rail assembly | 72120-12220 |
| 72130A | Front right seat inner slide rail assembly | 72130-12850 |
| 72140A | Front left seat inner slide rail assembly | 72140-12720 |
| 72880 | Right seat C-shaped armrest assembly | 72880-D1A80 |
| 72890 | Left seat C armrest assembly | 72890-D1B10 |
| 73910A | Front right seat airbag assembly | 73910-12120 |
| 73920A | Front left seat airbag assembly | 73920-12110 |
| 82666M | Connector holder | 82666-12420 |
| C7027 | WELCAB seat rotation lock sub-assembly | C7027-D1100 |
| C7101 | Front seat anchor bracket sub-assembly | C7101-D1010 |
| C7104 | Seat turntable sub-assembly | C7104-D1011 |
| C7108 | Turntable cover assembly | C7108-D1010 |
| C7110 | Rear seat anchor bracket sub-assembly | C7110-D1010 |
| C7120 | No. 1 WELCAB seat support | C7120-D1A10 |
| C7130 | Turntable plate assembly | C7130-D1010 |
| C7139 | hook bracket | C7139-D1010 · C7139-D1480 |
| C7149 | Left turntable plate edge protective cover | C7149-D1060 |
| C7159 | WELCAB seat leg stop block cushion pad | C7159-D1090 |
| C7160 | Sliding plate assembly | C7160-D1060 |
| C7169 | sliding plate rack gear | C7169-D1011 · C7169-D1040 |
| C7191 | Seat anchor linkage bracket | C7191-D1010 |
| C7196 | Turntable cover No. 1 | C7196-D1040 |
| C7204 | WELCAB seat slide handle sub-assembly | C7204-D1030 |
| C7210 | WELCAB seat footrest assembly | C7210-D1020 |
| C7260 | Seat rotation lock handle assembly | C7260-D1010 |
| C7269 | Seat rotation lock release cable | C7269-D1010 |
| C7269A | Seat 1 rotation lock release cable | C7269-D1020 |
| C7271 | Interlocking upper bracket | C7271-D1010 |
| C7275 | No. 1 lock plate | C7275-D1011 |
| C7881 | Control linkage handle | C7881-22040 |
| C8298 | WELCAB seat wire harness clip bracket | C8298-D1030 |
