Toyota COROLLA 锁芯组件 — Figure 6712

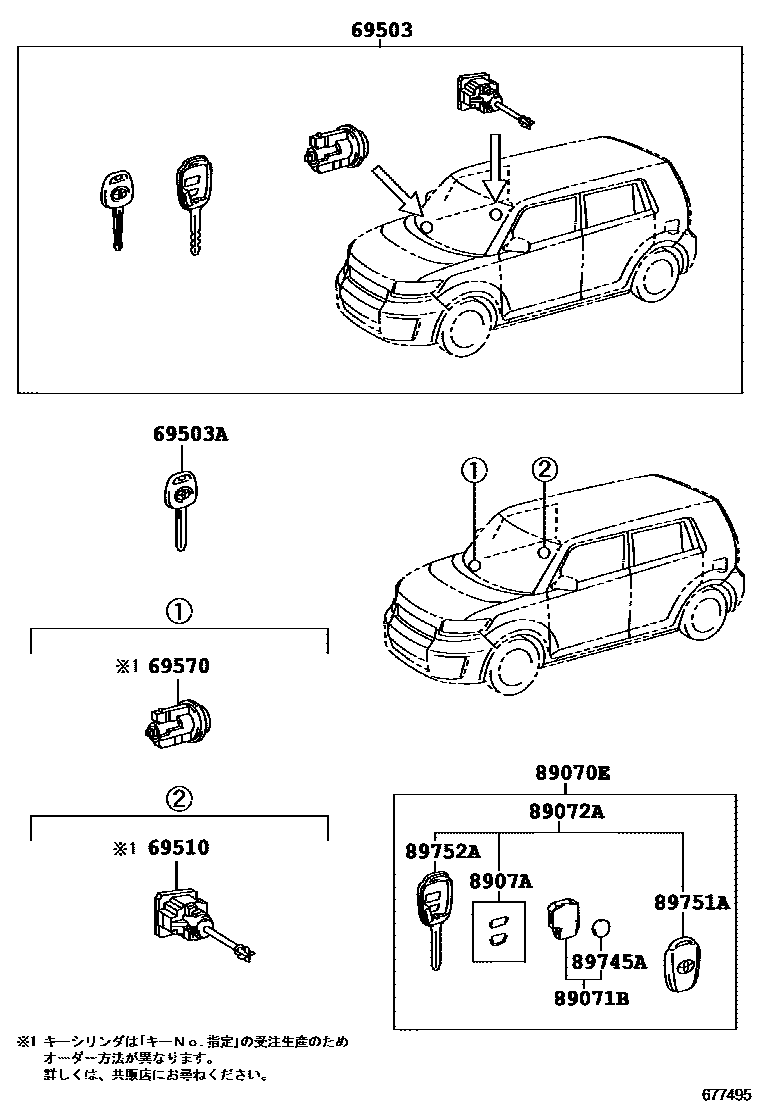

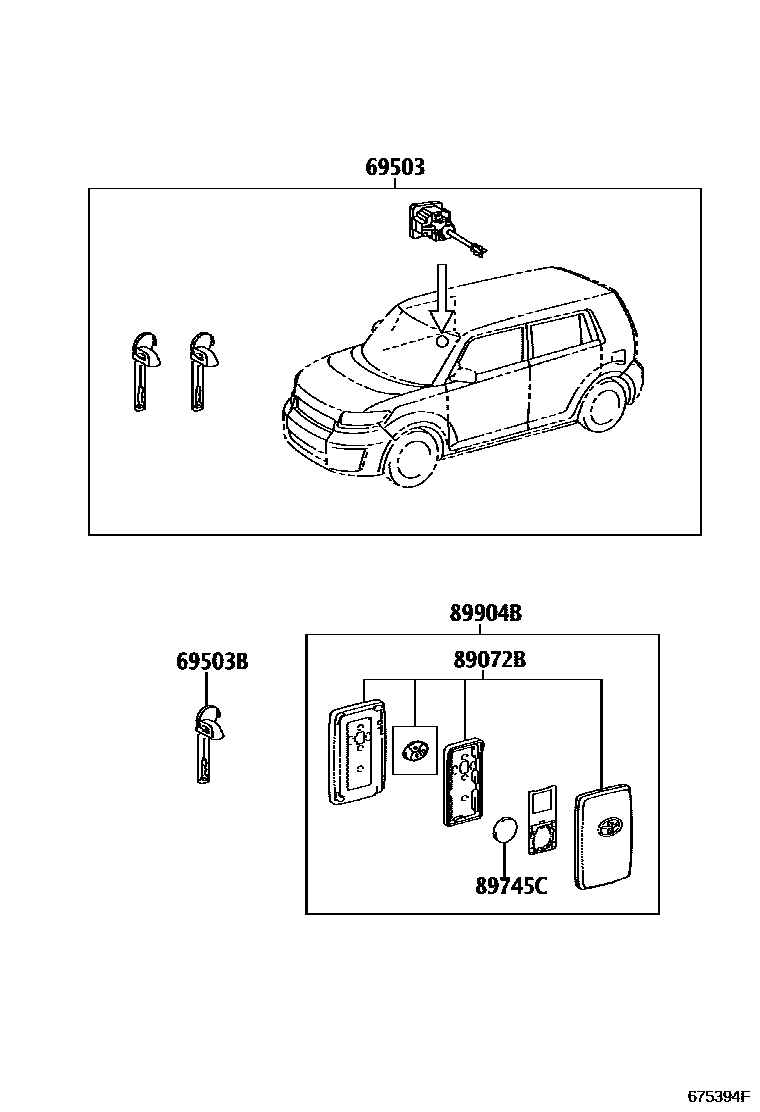

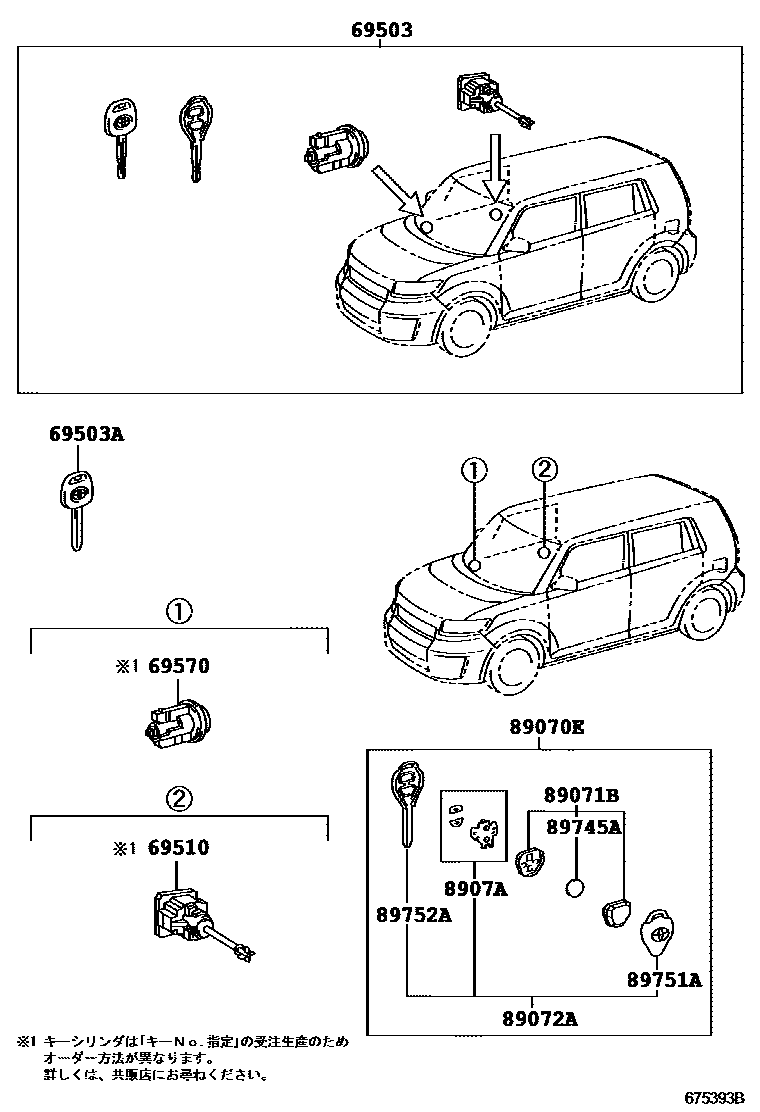

Toyota COROLLA EPC diagram 6712, 锁芯组件, with 3 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69503 | Door lock cylinder components | 69005-12D90 · 69005-12D91 · 69005-12E00 |
| 69503A | external tooth key | 90999-00199 |
| 69503B | internal tooth key | 69515-52110 |
| 69510 | Right front door lock cylinder assembly | 69510-58010 |
| 69570 | Ignition switch lock cylinder assembly | 69570-22130 |
| 89070E | Remote key assembly | 89070-12350 · 89070-12690 · 89070-26520 |
| 89071B | Remote key sub-assembly module assembly | 89071-12290 · 89071-28150 |
| 89072A | Remote key shell assembly | 89072-12100 · 89072-28380 · 89072-68050 |
| 89072B | Remote key shell assembly (for smart key) | 89072-12450 |
| 8907A | Transmitter switch assembly | 8907A-28010 · 8907A-52010 |
| 89745A | Transmitter battery | 89745-48030 |
| 89745C | Transmitter battery | 89745-52020 |
| 89751A | Transmitter housing cover | 89751-28070 · 89751-42090 · 89751-52140 |
| 89752A | transmitter housing | 89752-12080 · 89752-68080 |
| 89904B | Electronic key transmitter sub-assembly | 89904-12071 · 89904-12080 · 89904-12160 · 89904-12410 |
