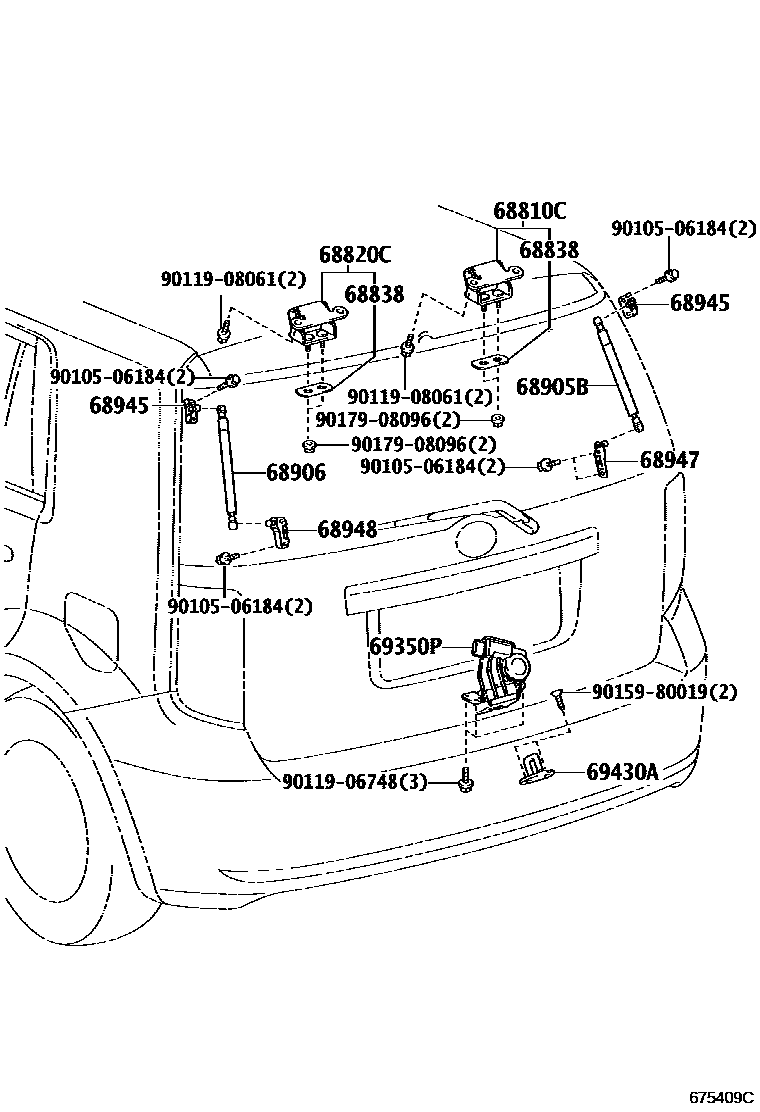

Toyota COROLLA 背门锁和背门把手 — Figure 6709
Toyota COROLLA EPC diagram 6709, 背门锁和背门把手, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68810C | Back door right hinge assembly | 68810-21050 |
| 68820C | Back door left hinge assembly | 68810-21050 |
| 68838 | Back door hinge No. 1 gasket | 68838-44020 |
| 68905B | Back door right side support rod sub-assembly | 68950-12520 · 68950-12521 · 68950-12580 · 68950-12581 |
| 68906 | Back door left support rod sub-assembly | 68960-12340 · 68960-12341 · 68960-12360 · 68960-12361 |
| 68945 | Back door right damping stay upper bracket | 68945-12060 |
| 68947 | Back door right damping strut lower bracket | 68947-12060 |
| 68948 | Rear door left damping strut lower bracket | 68948-12060 |
| 69350P | Toyota part | 69350-28150 |
| 69430A | Back door lower lock assembly | 69430-20160 · 69431-12030 |
