Toyota COROLLA 背门板和背门玻璃 — Figure 6708

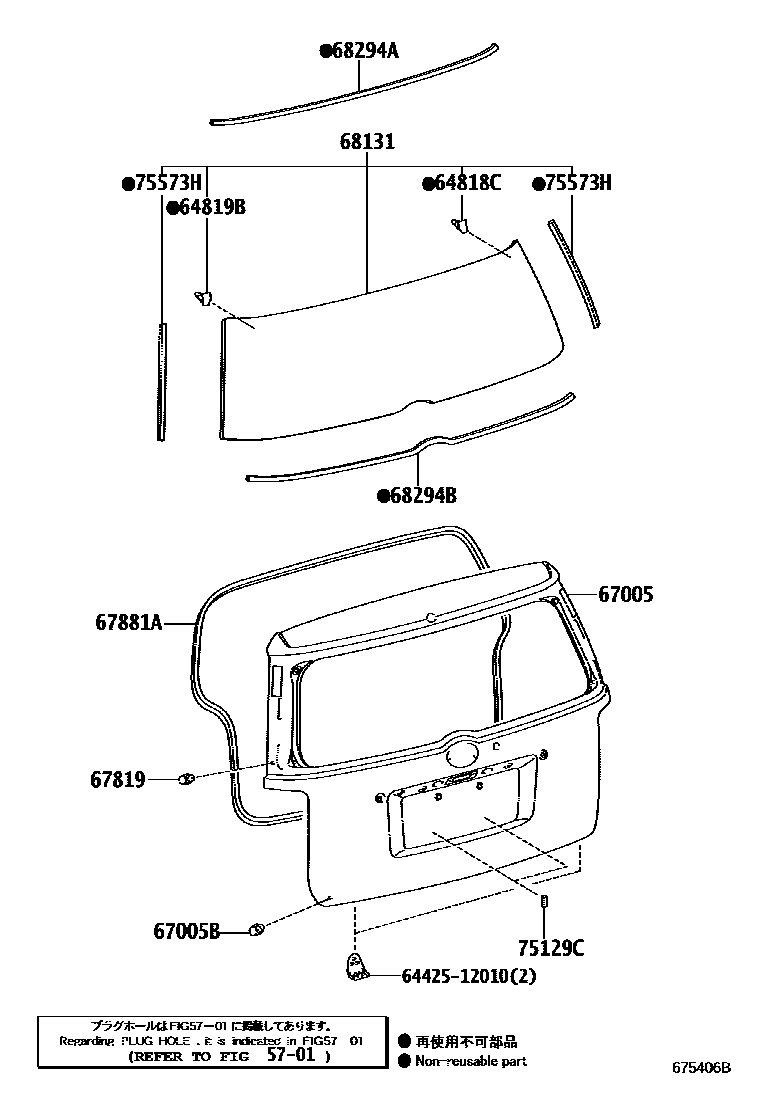

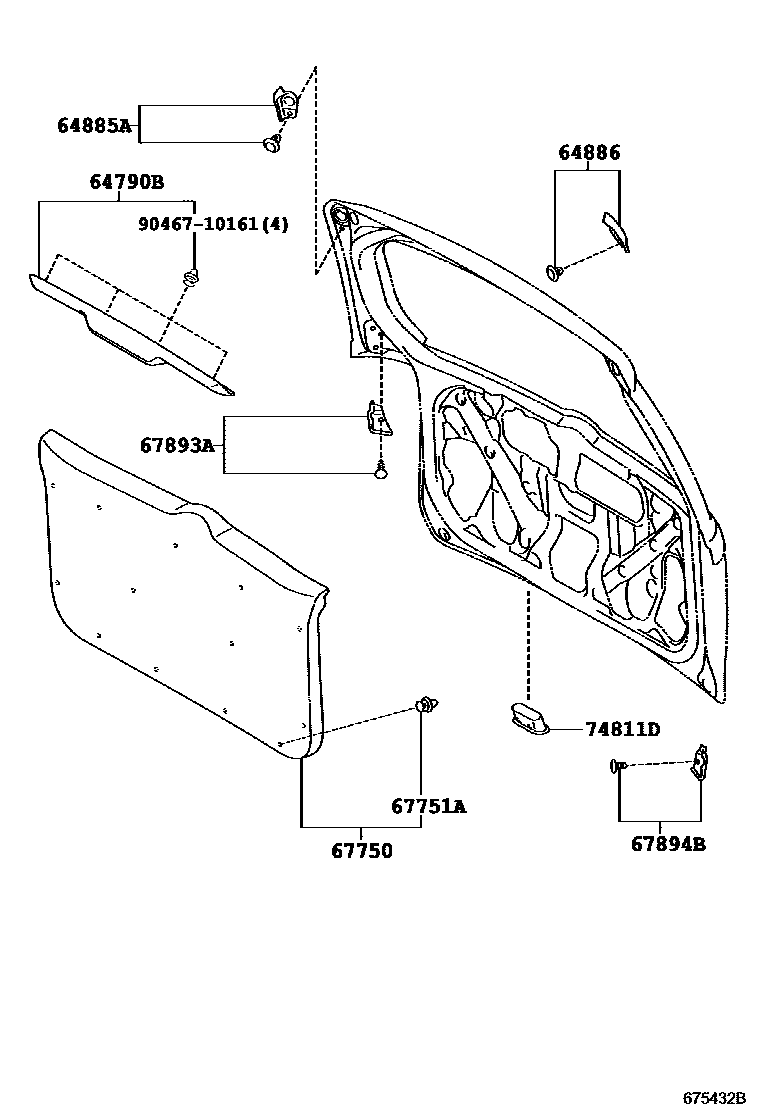

Toyota COROLLA EPC diagram 6708, 背门板和背门玻璃, with 2 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64818C | No. 1 back window glass spacer | 64818-12060 |
| 64819B | No. 2 back window glass spacer | 64819-12040 |
| 64885A | Rear window right glass slot | 64885-12020 |
| 64886 | Rear window left glass slot | 64886-12020 |
| 67005 | Rear door panel sub-assembly | 67005-12A90 · 67005-12B01 · 67005-12B10 · 67005-12B21 · 67005-12C10 · 67005-12C20 |
| 67005B | Cushion pad (for back door panel) | 90541-09142 |
| 67751A | Clip (for rear door trim panel) | 75867-33030 · 90467-10161 |
| 67819 | Rear door outer panel lining | 67819-12010 |
| 67881A | Back door seal | 67881-12300 |
| 67893A | Back door panel No. 1 protective piece | 67893-12020 · 67893-12021 |
| 67894B | Back door panel No. 2 protective piece | 67894-12020 · 67894-12021 |
| 68131 | back door glass | 68105-12350 · 68105-12360 |
| 68294A | Rear door glass adhesive seal | 64813-12200 |
| 68294B | Rear door glass adhesive seal | 64814-12010 |
| 75129C | rear license plate cushion | 75129-13020 · 75129-30010 |
| 75573H | Protective strip for rear window | 75573-12370 |
