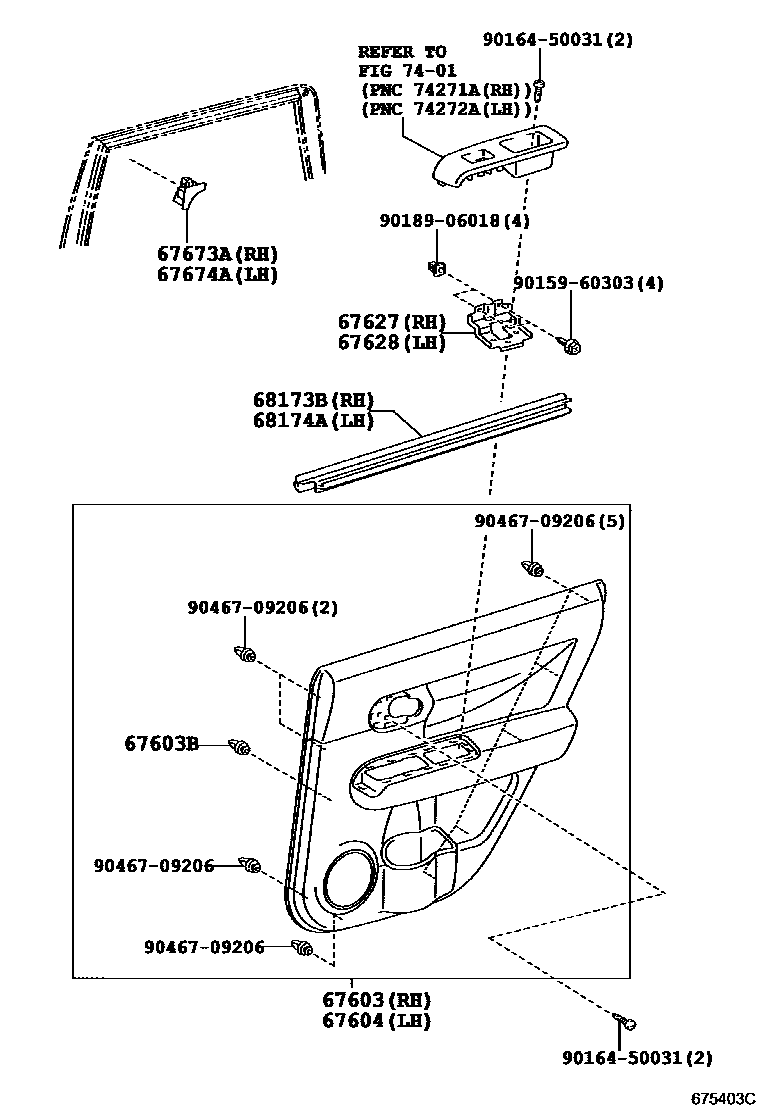

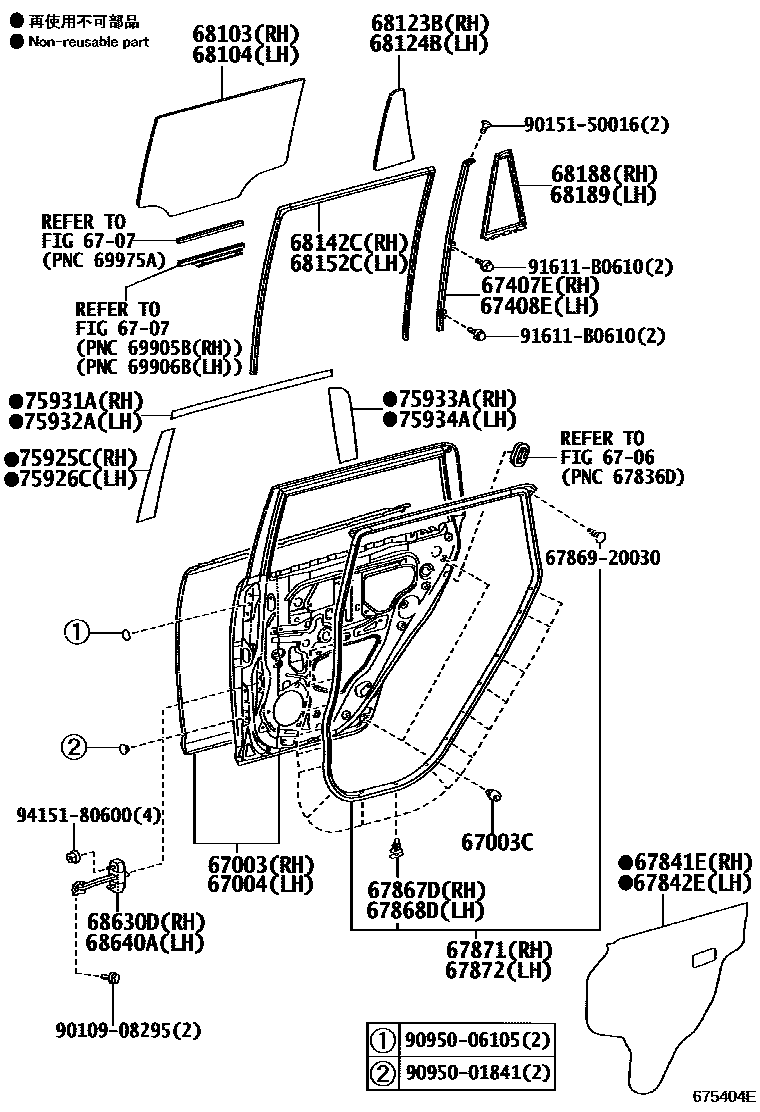

Toyota COROLLA 后门板和后门玻璃 — Figure 6705
Toyota COROLLA EPC diagram 6705, 后门板和后门玻璃, with 2 images and 34 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67003 | Right rear door panel sub-assembly | 67003-12A70 |
| 67003C | Rear door panel cushion | 67887-12020 · 90541-09137 |
| 67004 | Left rear door panel sub-assembly | 67004-12A70 |
| 67407E | Right rear door window divider sub-assembly | 67407-12310 |
| 67408E | Left rear door window divider sub-assembly | 67408-12310 |
| 67603B | Catch (for rear door trim panel) | 90467-09203 |
| 67627 | Right rear door trim panel bracket | 67625-12200 |
| 67628 | Left rear door trim panel bracket | 67625-12200 |
| 67673A | Right rear door frame decorative strip | 67673-48010 |
| 67674A | Left rear door frame decorative strip | 67674-48010 |
| 67841E | Right rear door access hole cover | 67841-12380 |
| 67842E | Left rear door access hole cover | 67842-12190 |
| 67867D | Right rear door seal strip fixing | 67867-12150 |
| 67868D | Left rear door seal strip fixing | 67867-12150 |
| 67871 | Right rear door sealing strip | 67871-12550 · 67871-12551 |
| 67872 | Left rear door sealing strip | 67872-12550 · 67872-12551 |
| 68103 | Right rear door glass sub-assembly | 68113-12800 |
| 68104 | Left rear door glass sub-assembly | 68114-12800 |
| 68123B | Right rear door corner window glass | 68123-12830 |
| 68124B | Left rear door corner window glass | 68124-12830 |
| 68142C | Right rear door glass lift slot | 68142-12310 |
| 68152C | Left rear door glass lift slot | 68152-12220 |
| 68173B | Right rear door glass inner sealing strip | 68173-12330 |
| 68174A | Left rear door glass inner sealing strip | 68174-12190 |
| 68188 | Right rear door corner window seal | 68188-12350 |
| 68189 | Left rear door corner window seal | 68189-12350 |
| 68630D | Right rear door opening limiter assembly | 68630-12150 · 68630-12151 |
| 68640A | Left rear door opening limiter assembly | 68630-12150 · 68630-12151 |
| 75925C | No. 3 right side light-blocking film | 75925-12040 |
| 75926C | No. 3 left shading film | 75926-12040 |
| 75931A | Outside upper right light-blocking film | 75931-12010 |
| 75932A | Outside upper left light-shielding film | 75932-12010 |
| 75933A | No. 5 right side light-shielding film | 75935-12010 |
| 75934A | No. 5 left shading film | 75936-12010 |
