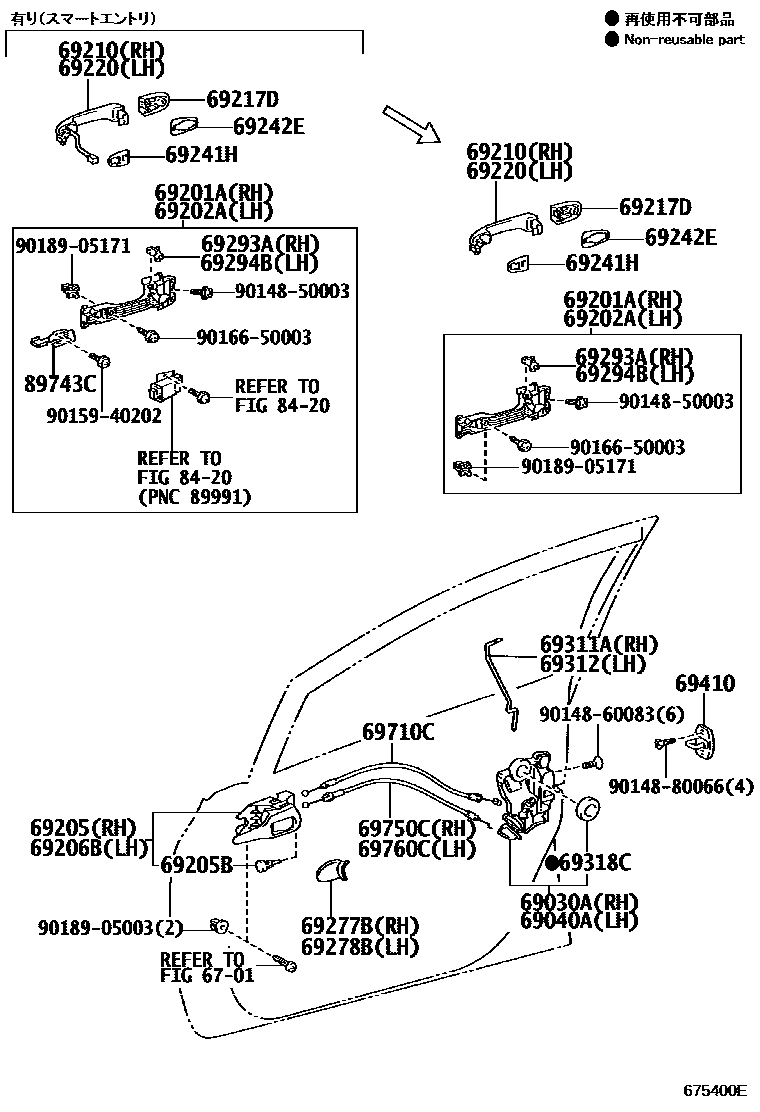

Toyota COROLLA 前门锁和车门把手 — Figure 6703
Toyota COROLLA EPC diagram 6703, 前门锁和车门把手, with 1 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69030A | Right front door lock assembly with motor | 69030-42210 |
| 69040A | Left front door door lock assembly with motor | 69040-12550 · 69040-12560 |
| 69201A | Right front door outer handle frame sub-assembly | 69201-52040 · 69201-52060 |
| 69202A | Left front door outer handle frame sub-assembly | 69202-52020 · 69202-52040 |
| 69205B | Cushion pad (for inner front door handle) | 90541-04027 |
| 69210 | Right front door outer handle assembly | 69210-12260 |
| 69217D | Front door outer handle cover | 69217-12010 · 69217-12050 |
| 69220 | Left front door outer handle assembly | 69210-12260 |
| 69241H | Front door exterior handle pad | 69241-42020 |
| 69242E | Front door rear outer handle pad | 69242-52020 |
| 69293A | Front door outer handle buckle | 69293-12030 |
| 69294B | Left front door outer handle buckle | 69293-12040 |
| 69311A | Right front door lock opening lever | 69311-12180 |
| 69312 | Left front door lock opening lever | 69312-12180 |
| 69318C | door lock harness seal | 69318-51010 |
| 69410 | Front door lock plate assembly | 69410-33010 |
| 69710C | Front door lock remote control cable assembly | 69710-12140 |
| 69750C | Right front door inner lock cable assembly | 69750-12170 |
| 69760C | Left front door inner lock cable assembly | 69750-12170 |
| 89743C | Electronic key harness bracket | 89743-47010 · 89743-47020 |
