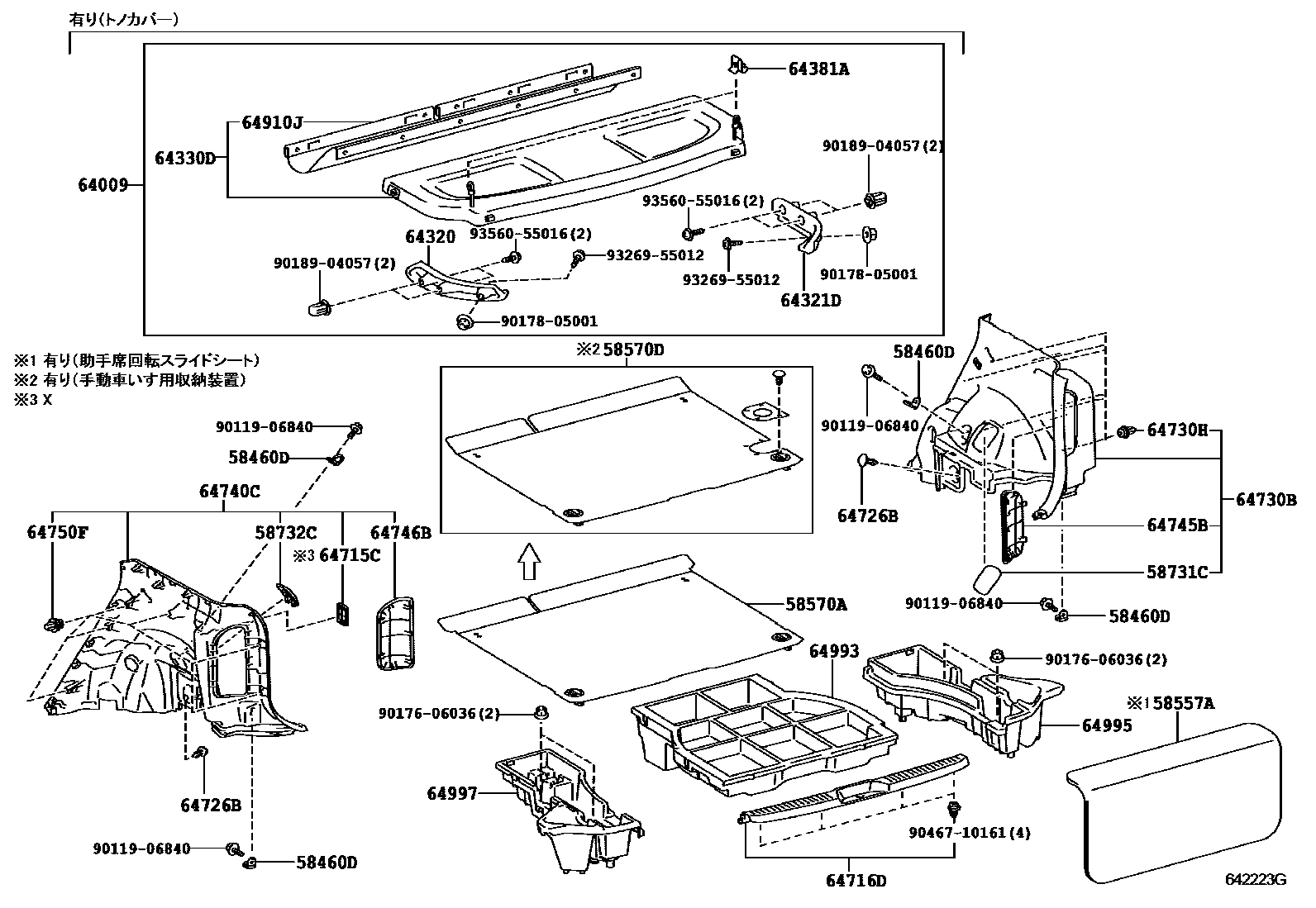

Toyota COROLLA 底板和底板装饰罩 — Figure 6404
Toyota COROLLA EPC diagram 6404, 底板和底板装饰罩, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58460D | Luggage fixing belt lock assembly | 58460-33020 |
| 58557A | rear pad | 58517-13010 |
| 64009 | Trunk cover assembly | 64009-12011 |
| 64320 | Glove box decorative panel left bracket | 64322-12220 |
| 64321D | Glove box decorative panel right bracket | 64321-12250 |
| 64330D | Glove box decorative panel assembly | 64330-12B70 |
| 64381A | Glove box decorative panel hanger | 64381-52010 |
| 64730H | Clip (for bottom panel side decorative panel) | 90467-10161 |
| 64750F | Clip (for bottom panel side decorative panel) | 90467-10161 |
| 64910J | Trunk cover assembly | 64910-12010 |
| 64993 | Bottom floor box | 64993-12020 · 64993-12030 · 64993-12031 |
