Toyota COROLLA 车顶内衬和消声垫 — Figure 6402

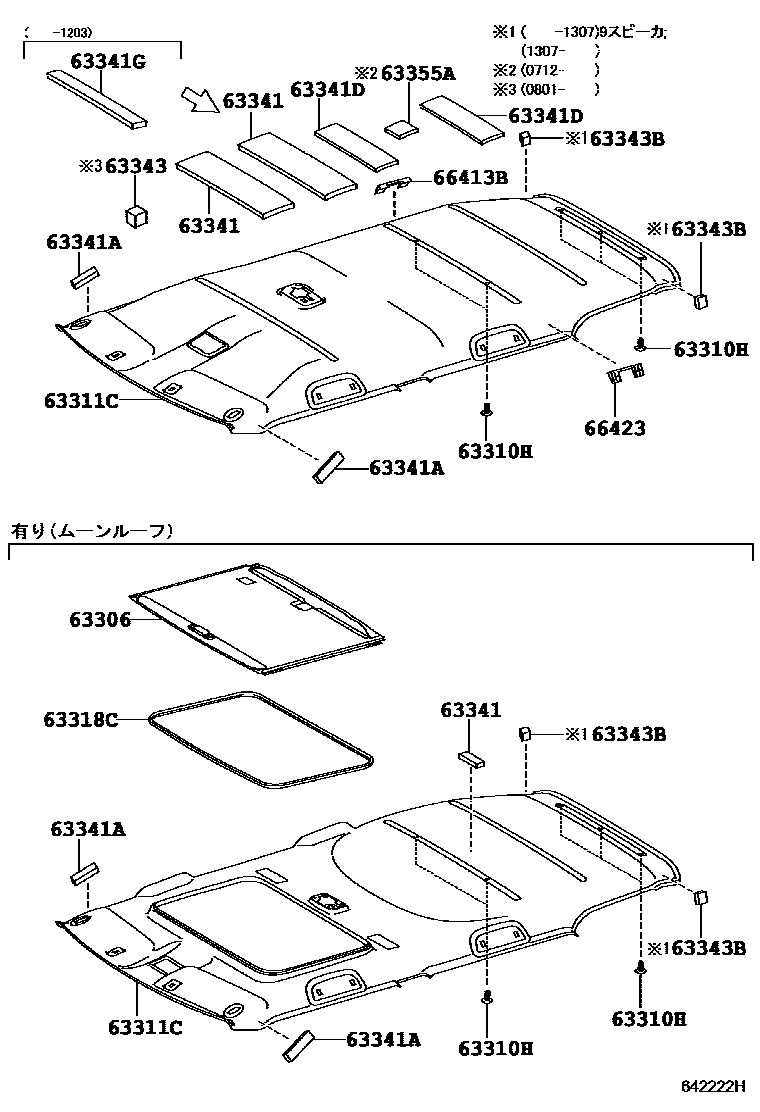

Toyota COROLLA EPC diagram 6402, 车顶内衬和消声垫, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63341 | No. 1 roof silencer mat | 63341-12240 · 63345-12030 |
| 63341A | No. 1 roof silencer | 69759-12120 |
| 63341D | Front roof silencer pad | 63341-12230 |
| 63341G | roof muffler mat | 63341-12270 |
| 63343 | No. 3 roof muffler pad | 63343-12170 |
| 63343B | Rear roof silencer pad | 63343-12180 · 63343-12181 |
| 63355A | No. 14 roof silencer mat | 63355-12050 |
| 66413B | Right front longitudinal member spacer | 66413-12060 |
| 66423 | Left front longitudinal member spacer | 66423-12060 |
