Toyota COROLLA 内饰板和车门防水胶条 — Figure 6401

Toyota COROLLA EPC diagram 6401, 内饰板和车门防水胶条, with 2 images and 16 PNC and OE references.

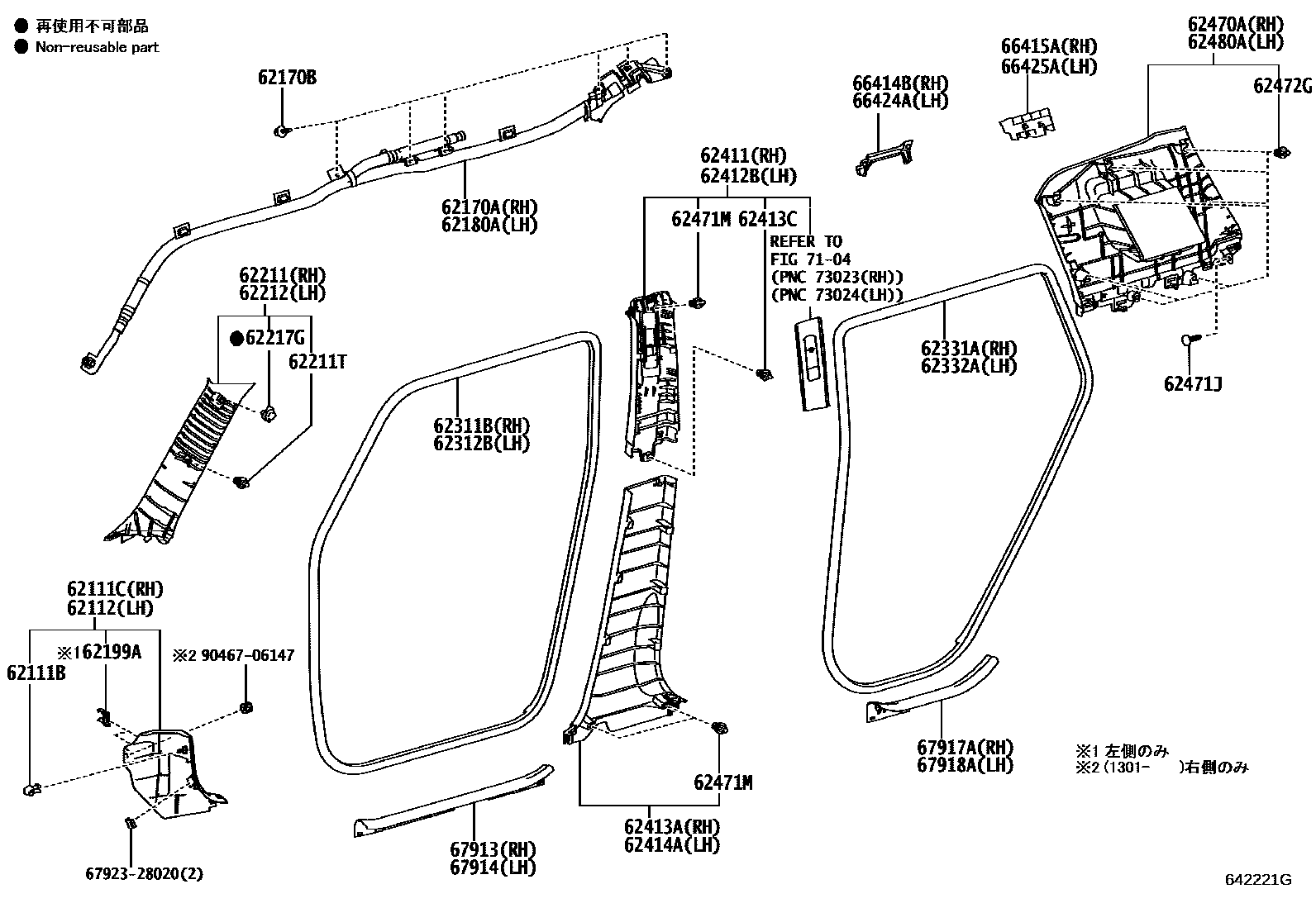

Toyota COROLLA 内饰板和车门防水胶条 EPC diagram — 642221G
内饰板和车门防水胶条 — 642221G (200710 – 999999)

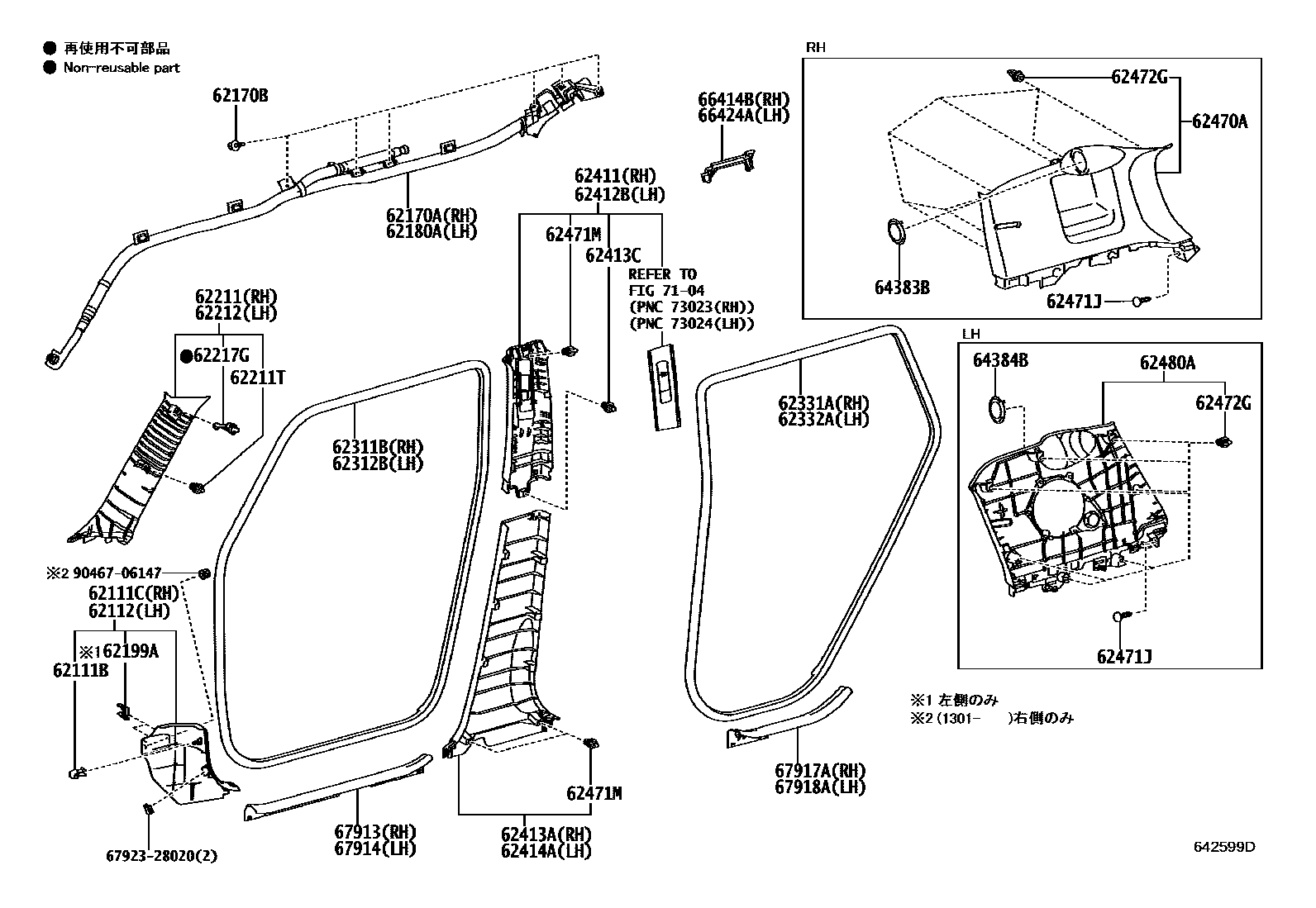

Toyota COROLLA 内饰板和车门防水胶条 EPC diagram — 642599D
内饰板和车门防水胶条 — 642599D (200710 – 999999)

PNC and OE references

PNCPart nameOE numbers
62111BClip (for cowl side trim panel)90467-10201
62170ARight curtain air bag assembly62170-12070
62170BBolts with washers90119-06869
62180ALeft curtain air bag assembly62180-12070
62199AToyota part90468-25003
62211TClip (for front pillar decorative panel)90467-10161
62217GFront pillar decorative plate clip90950-08004
62413CClip (for the decorative panel under the center pillar)90467-10161
62471Mclip90467-10167
62472GClips (for roof side trim panels)90467-10161
64383BRight rear speaker grille64383-12190 · 64383-12191
64384BLeft rear speaker grille64383-12190 · 64383-12191
66414BRight rear longitudinal member spacer66414-12070
66415ANo. 2 right rear longitudinal beam spacer66415-12020
66424ALeft rear longitudinal member spacer66424-12070
66425ANo. 2 left rear longitudinal beam spacer66425-12020
