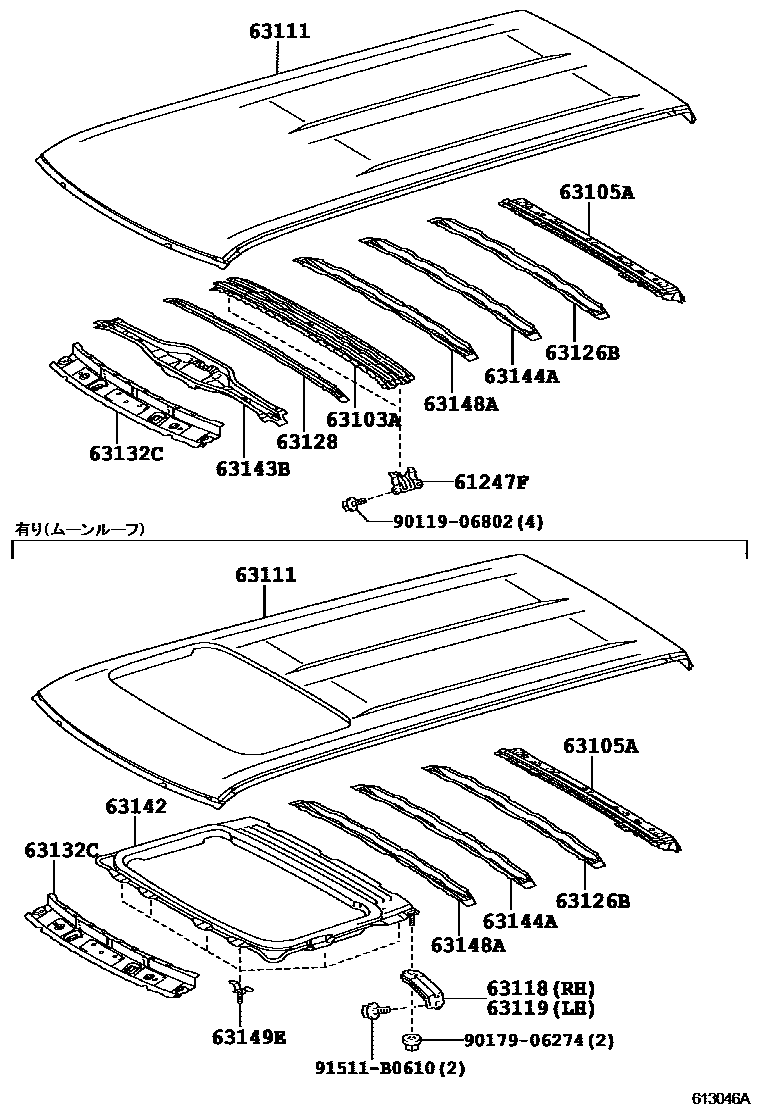

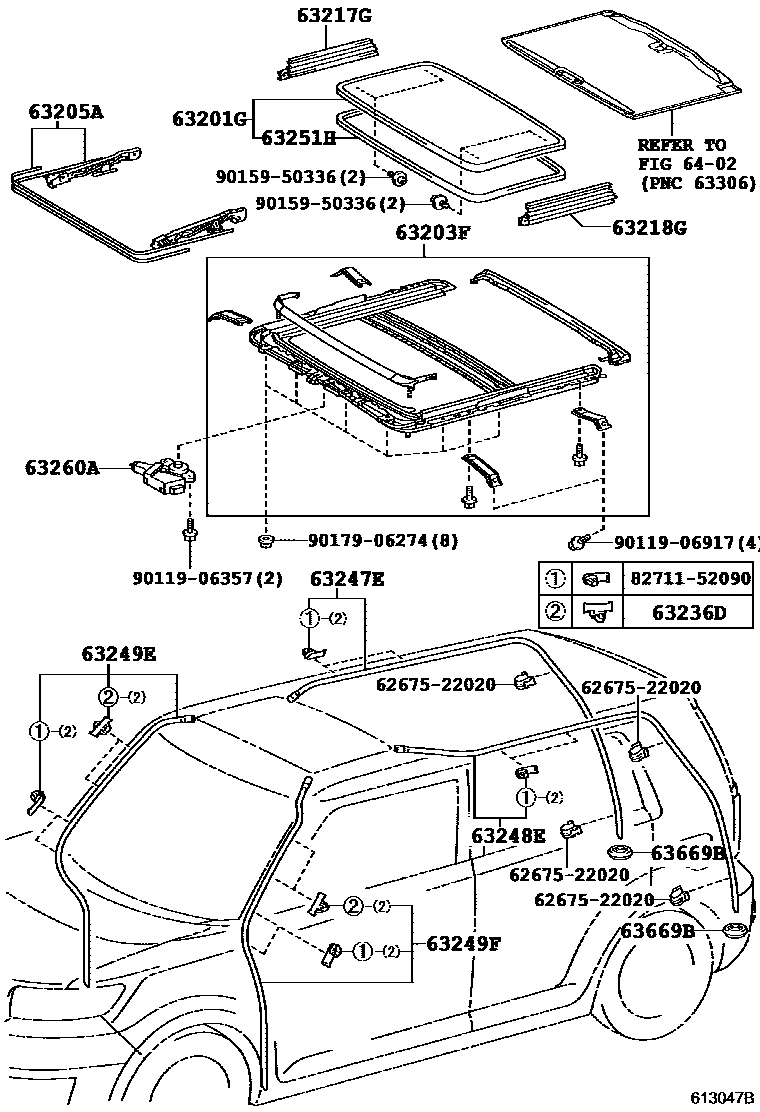

Toyota COROLLA 天窗板和背窗玻璃 — Figure 6104
Toyota COROLLA EPC diagram 6104, 天窗板和背窗玻璃, with 2 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 61247F | Roof inner longitudinal beam reinforcement | 61247-12090 |
| 63103A | Roof panel reinforcement sub-assembly | 63103-12140 |
| 63105A | Back door opening frame sub-assembly | 63105-12280 |
| 63111 | roof panel | 63111-12A20 · 63111-12A30 · 63111-12A50 · 63111-12A60 |
| 63118 | Right roof panel bracket | 63118-12130 |
| 63119 | Left roof panel bracket | 63118-12130 |
| 63126B | No. 2 rear roof panel reinforcement | 63126-12030 |
| 63128 | No. 6 roof panel reinforcement | 63128-12030 |
| 63132C | Windshield inner roof panel | 63132-12370 |
| 63142 | No. 2 roof panel reinforcement | 63142-12160 |
| 63143B | No. 3 roof panel reinforcement | 63143-12160 |
| 63144A | No. 4 roof panel reinforcement | 63144-12140 |
| 63148A | No. 7 roof panel reinforcement | 63148-12060 |
| 63149E | No. 2 roof panel reinforcement bracket | 63149-12040 |
| 63201G | Sliding sunroof glass sub-assembly | 63201-12300 |
| 63203F | Sliding sunroof frame sub-assembly | 63203-12180 |
| 63205A | Sliding sunroof transmission cable sub-assembly | 63205-60010 |
| 63217G | Right sliding sunroof trim | 63217-12080 · 63217-60050 |
| 63218G | Sliding sunroof trim, left | 63218-12090 · 63218-60050 |
| 63236D | Sliding skylight drain hose clamp | 63236-12010 |
| 63247E | Right rear sliding sunroof drain hose | 63249-12450 |
| 63248E | Left rear sliding sunroof drain hose | 63249-12460 |
| 63249E | Sliding skylight drain hose | 63249-12440 |
| 63249F | Sliding skylight drain hose | 63249-12470 |
| 63251H | Sliding skylight seal | 63251-12190 |
| 63260A | Sliding sunroof driving gear sub-assembly | 63260-12160 |
| 63669B | Sliding skylight drain seal | 90480-26020 |
