Toyota COROLLA 侧梁 — Figure 6101

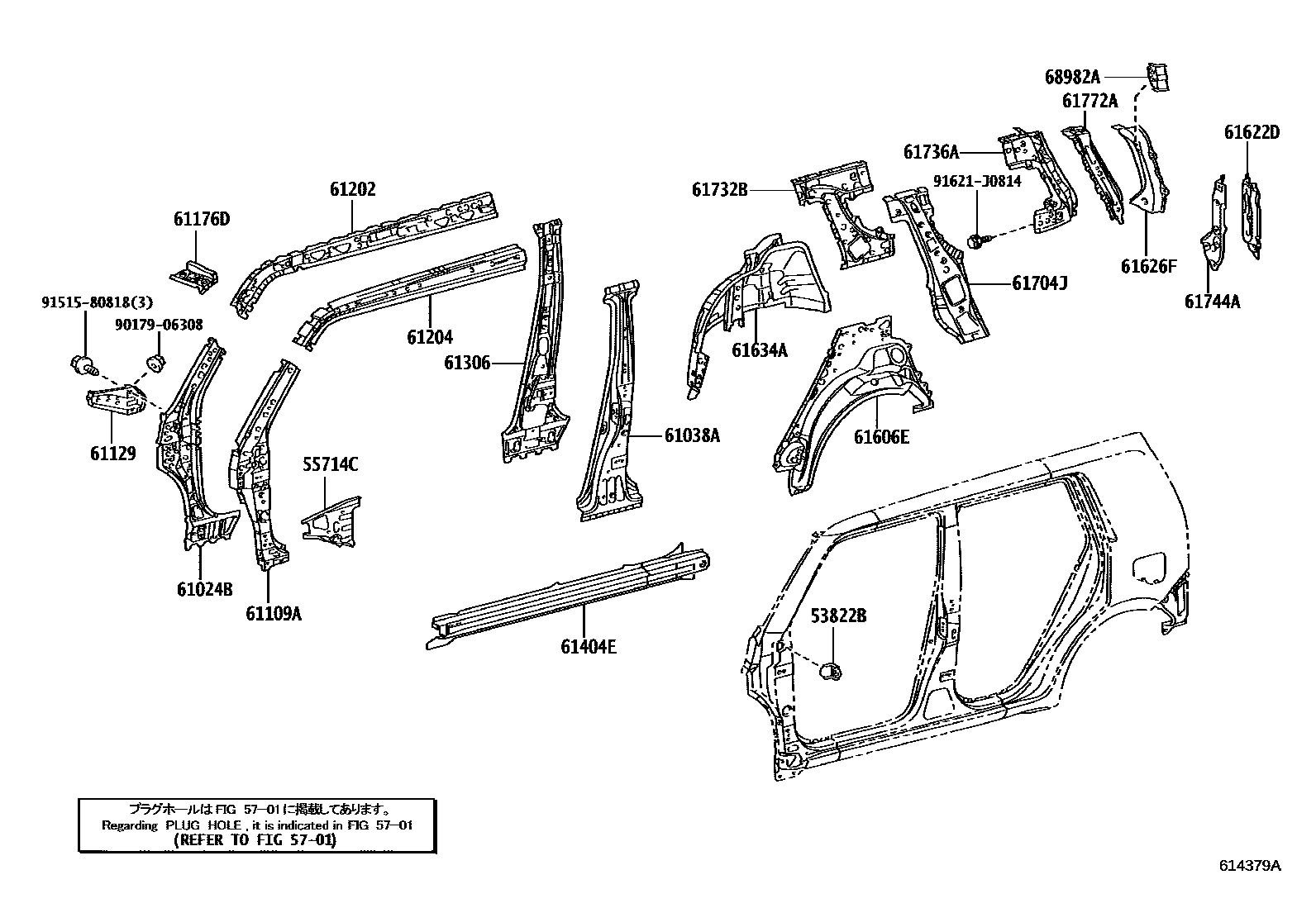

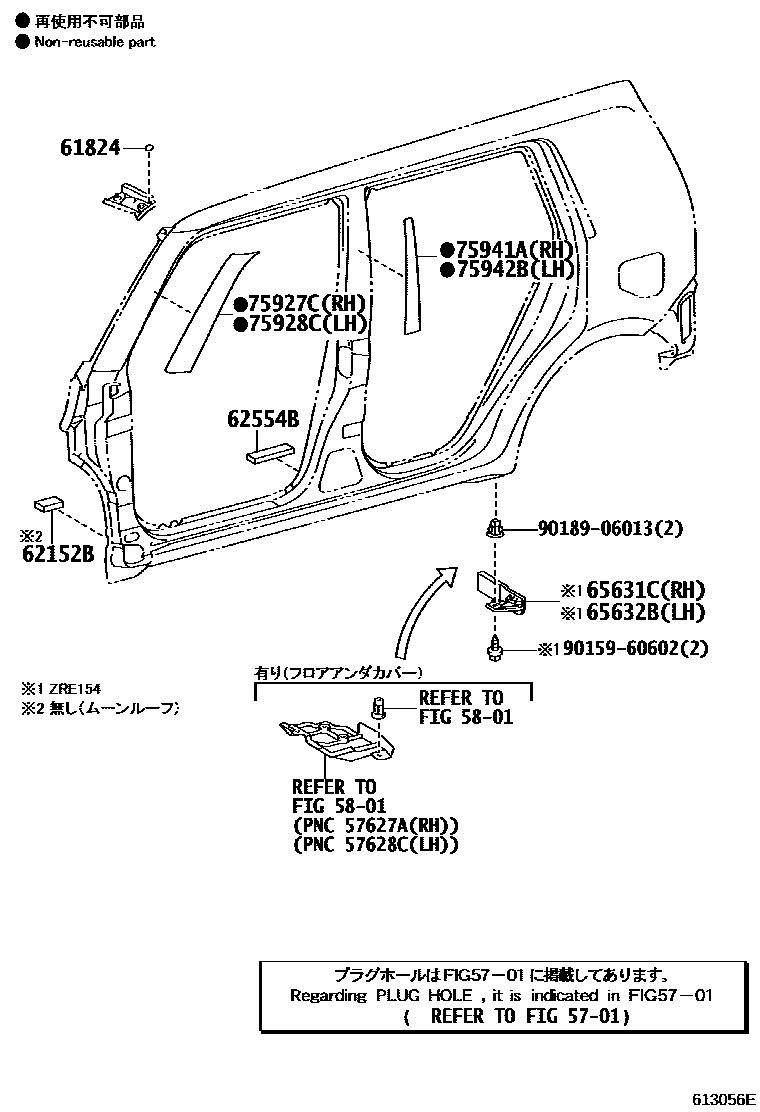

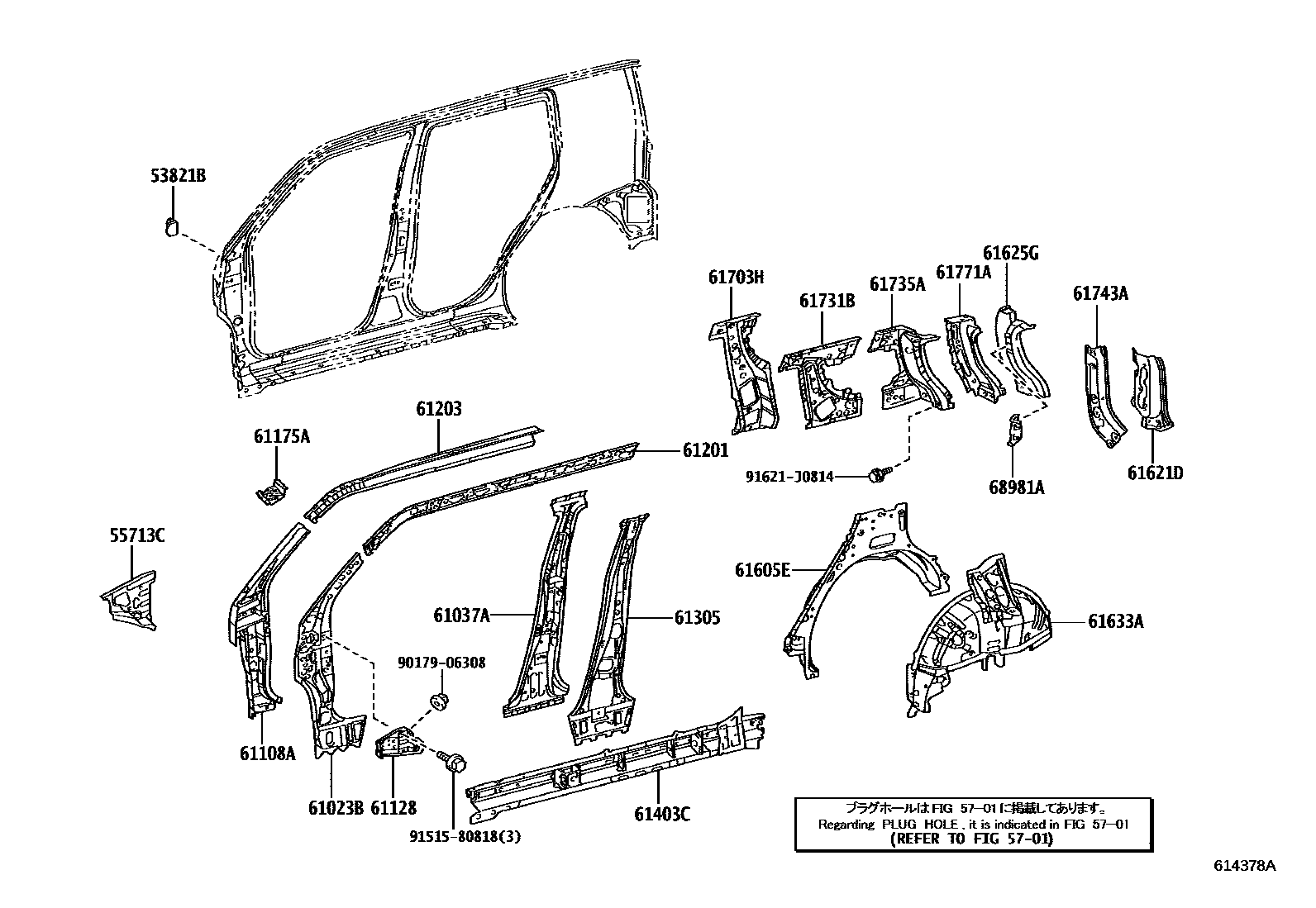

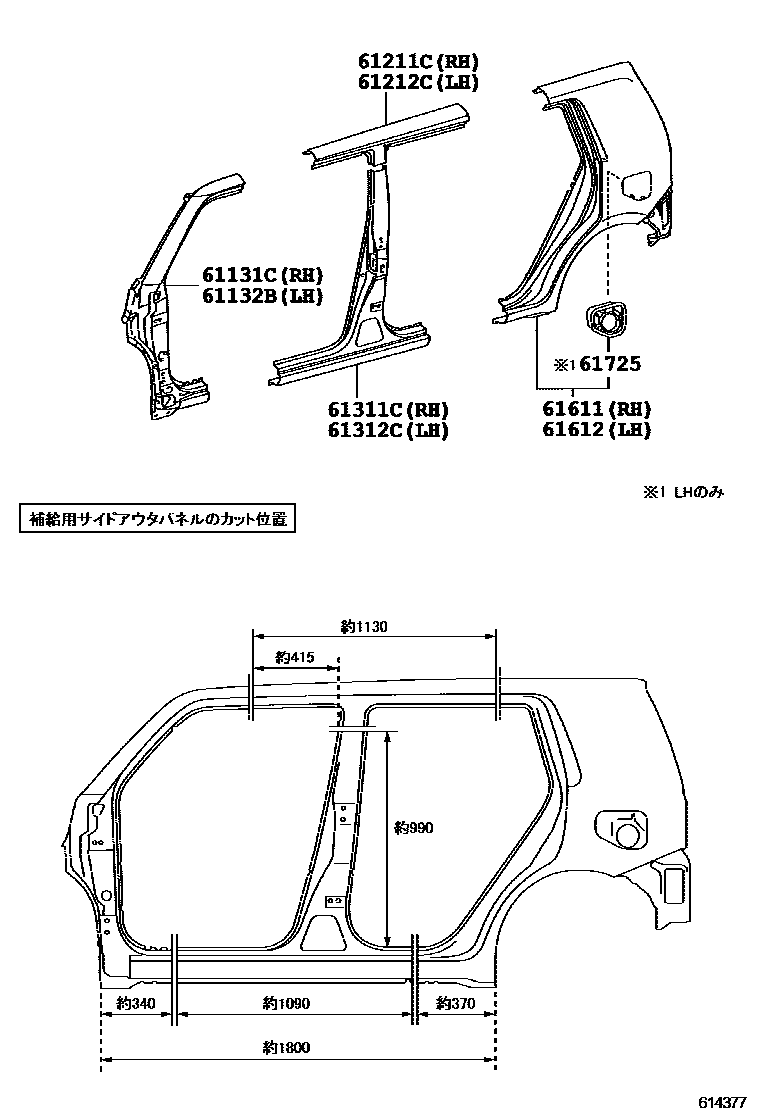

Toyota COROLLA EPC diagram 6101, 侧梁, with 4 images and 60 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53821B | Right front fender rear support | 53821-16010 |
| 53822B | Left front fender rear support | 53821-16010 |
| 55713C | Right front wall upper side panel | 55713-12130 |
| 55714C | Left front wall upper side panel | 55714-12130 |
| 61023B | Right body inner front pillar sub-assembly | 61023-12400 |
| 61024B | Left body inner front pillar sub-assembly | 61024-12400 |
| 61037A | Right body center pillar reinforcement sub-assembly | 61037-12913 |
| 61038A | Left body center pillar reinforcement sub-assembly | 61038-12913 |
| 61108A | Right body front pillar lower reinforcement sub-assembly | 61108-12293 · 61108-12294 |
| 61109A | Left side body front pillar lower reinforcement sub-assembly | 61109-12283 · 61109-12284 |
| 61128 | Right front wall side panel reinforcement | 61103-12250 |
| 61129 | Left front wall side panel reinforcement | 61104-12280 |
| 61131C | Right body outer front pillar | 61131-12780 · 61131-12790 |
| 61132B | Left body outer front pillar | 61132-12760 · 61132-12770 |
| 61175A | No. 2 right outer front pillar upper reinforcement | 61175-12250 |
| 61176D | No. 2 left body exterior front pillar reinforcement | 61176-12250 |
| 61201 | Roof right side longitudinal beam sub-assembly | 61201-12250 |
| 61202 | Roof left side longitudinal beam sub-assembly | 61202-12240 |
| 61203 | Roof right inner longitudinal beam sub-assembly | 61203-12320 · 61203-12321 |
| 61204 | Roof left inner longitudinal beam sub-assembly | 61204-12300 · 61204-12301 |
| 61211C | Roof right side rail | 61211-12520 |
| 61212C | Roof left side rail | 61212-12520 |
| 61305 | Right body center pillar lower reinforcement sub-assembly | 61305-12170 |
| 61306 | Left body center pillar lower reinforcement sub-assembly | 61306-12170 |
| 61311C | Right rear body front outer panel | 61311-12460 · 61311-12470 |
| 61312C | Left rear body front outer panel | 61312-12500 · 61312-12510 |
| 61403C | Right door outer sill reinforcement sub-assembly | 61403-12100 |
| 61404E | Left door outer sill reinforcement sub-assembly | 61404-12110 |
| 61605E | Right side hoarding | 61605-12190 |
| 61606E | left side panel | 61606-12180 |
| 61611 | Right side hoarding | 61601-12A90 · 61601-12B00 |
| 61612 | left side panel | 61602-12A90 · 61602-12B00 |
| 61621D | Back door right opening slot | 61621-12540 · 61621-12541 |
| 61622D | Rear door left opening slot | 61622-12540 · 61622-12541 |
| 61625G | Right rear side panel extension | 61625-12150 |
| 61626F | Extension on left side panel | 61626-12130 |
| 61633A | Right wheel housing lining panel | 61607-12B90 |
| 61634A | Left side wheel housing lining panel | 61608-12C00 |
| 61703H | Roof inner right reinforcement sub-assembly | 61703-12050 |
| 61704J | Roof inner left reinforcement sub-assembly | 61704-12120 |
| 61725 | Fuel inlet | 61725-12340 |
| 61731B | Roof right inner panel | 61731-12810 |
| 61732B | Roof left inner panel | 61732-12760 |
| 61735A | Right rear roof inner panel | 61735-12420 |
| 61736A | Left rear roof inner panel | 61736-12420 |
| 61743A | Rear door opening right reinforcement | 61743-12080 |
| 61744A | Rear door opening left reinforcement | 61744-12080 |
| 61771A | Back window opening right corner panel | 61771-12080 |
| 61772A | Rear window opening left corner panel | 61772-12080 |
| 61824 | Noise Control Panel No. 1 | 61824-12070 |
| 62152B | No. 2 silencer pad on cowl side | 62152-12050 |
| 62554B | No. 4 column pad | 62554-12180 |
| 65631C | Right rear wheel house front panel | 65631-12011 |
| 65632B | Left rear wheel house front panel | 65632-12011 |
| 68981A | Back door right side support rod fixing | 68981-12060 |
| 68982A | Back door left support rod fixing | 68982-12050 |
| 75927C | No. 4 right side light-blocking film | 75927-12010 |
| 75928C | No. 4 left shading film | 75928-12010 |
| 75941A | Right center pillar trim | 75941-12060 |
| 75942B | Left center pillar trim | 75942-12060 |
