Toyota COROLLA 中央扶手箱和支架 — Figure 5806

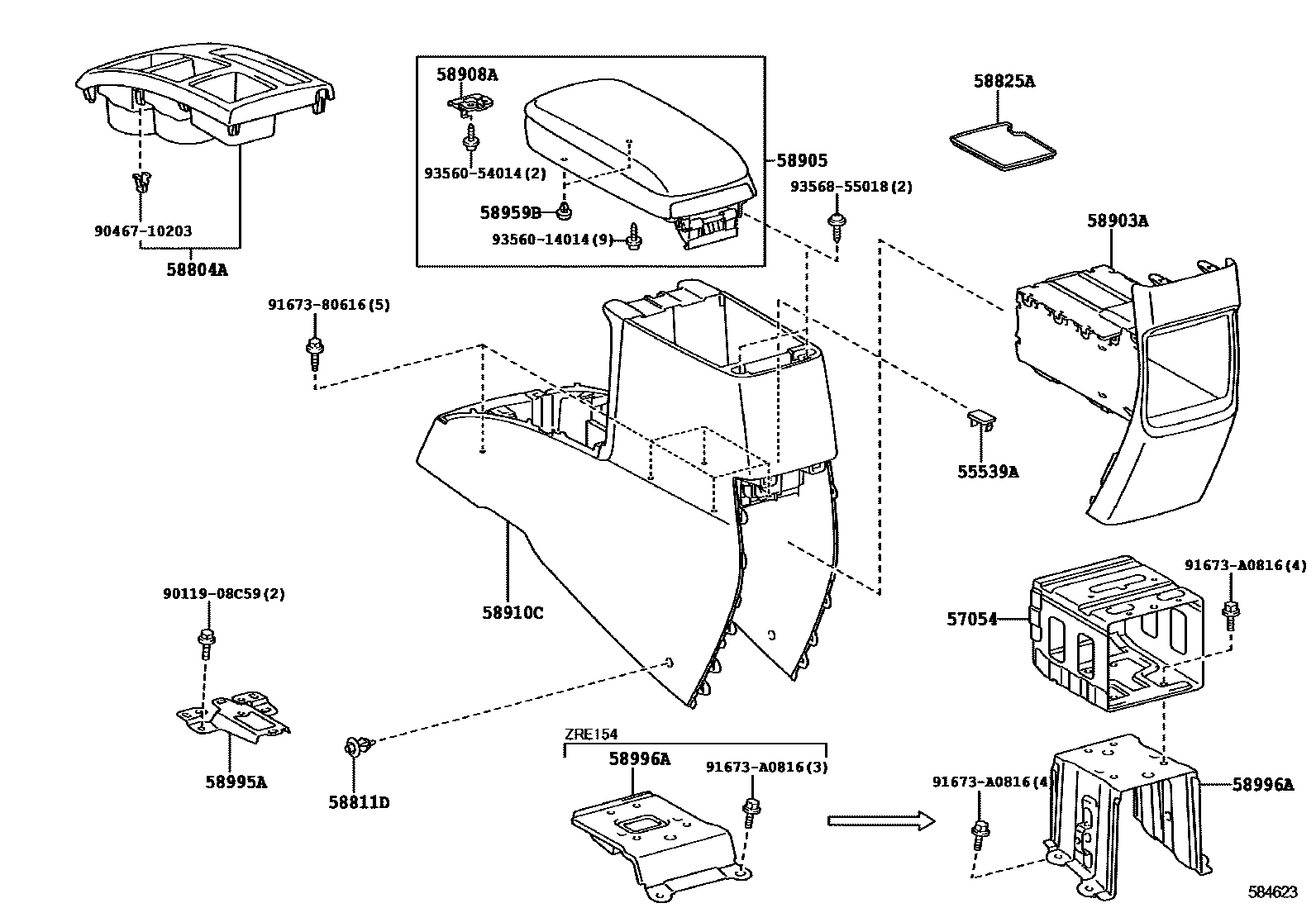

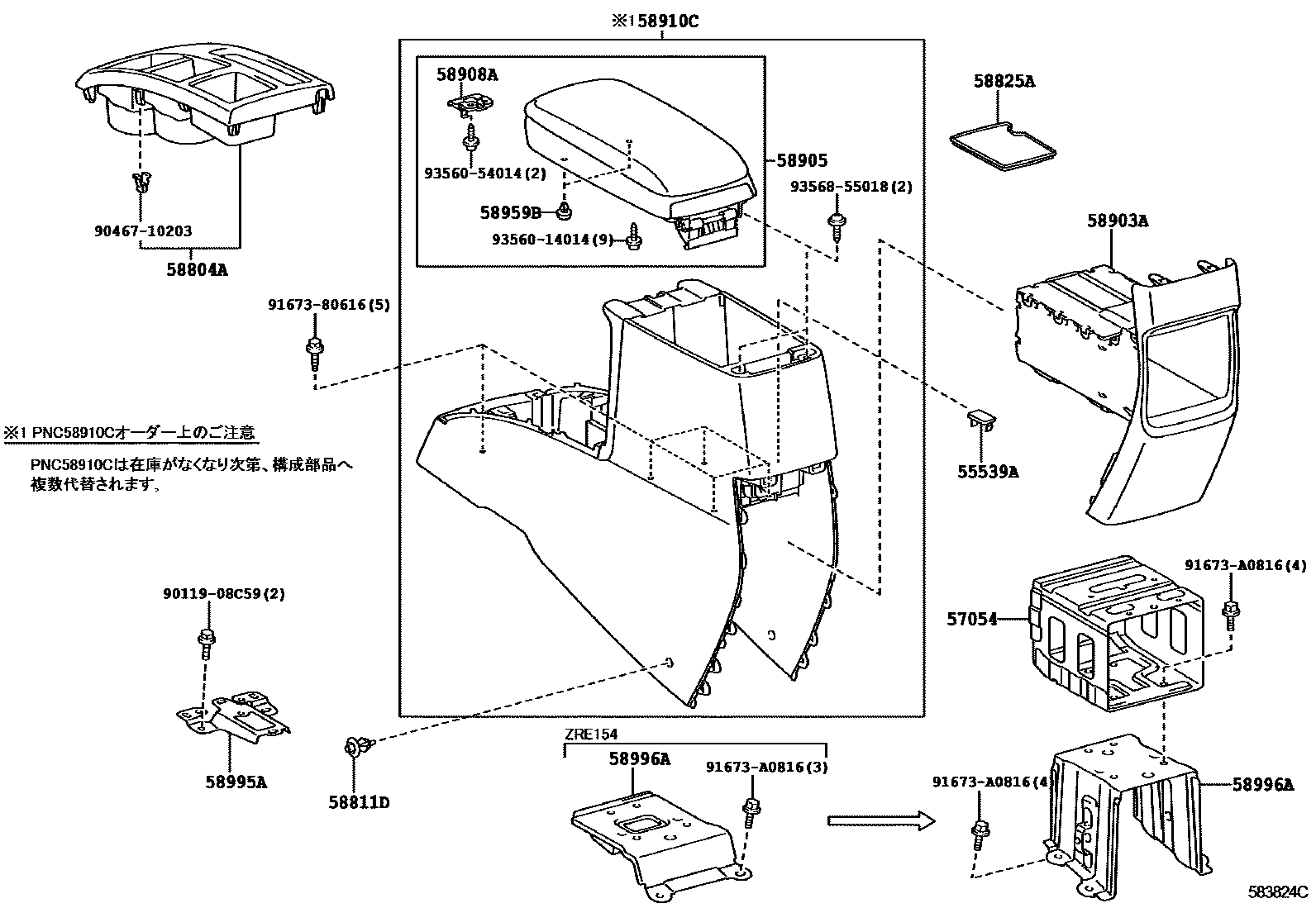

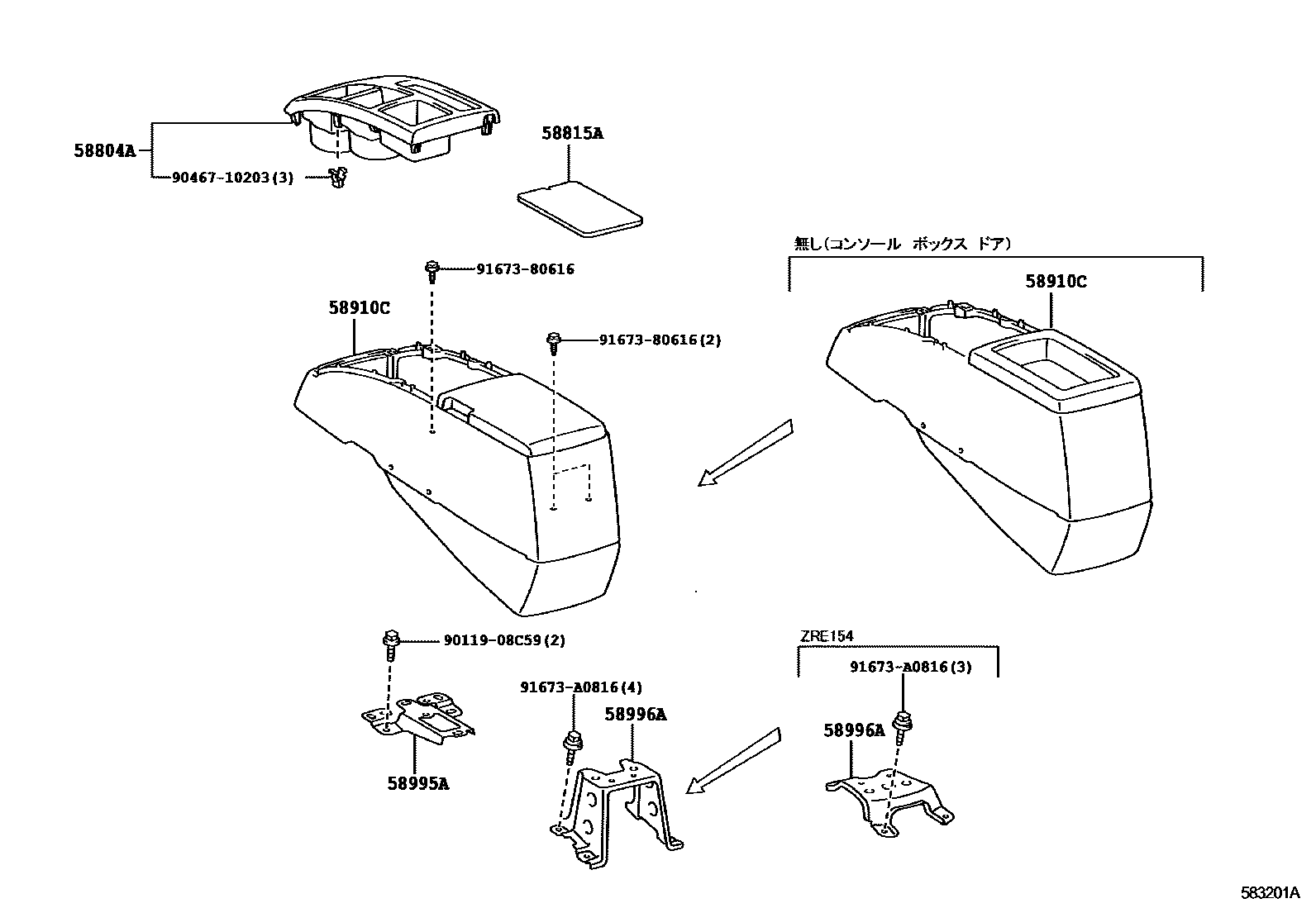

Toyota COROLLA EPC diagram 5806, 中央扶手箱和支架, with 3 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 57054 | No. 5 front longitudinal beam reinforcement sub-assembly | 57054-12040 |
| 58815A | Armrest box felt pad | 58815-12170 |
| 58908A | Armrest box lid lock assembly | 58908-12050 · 58908-12080 · 58908-32021 |
| 58959B | Armrest box cover cushion | 58959-60060 |
| 58995A | Armrest box No. 1 mounting bracket | 58995-12110 |
| 58996A | Armrest box No. 2 mounting bracket | 58996-12180 · 58996-12190 · 58996-12210 · 58996-12220 |
