Toyota COROLLA 地板垫和地毯 — Figure 5804

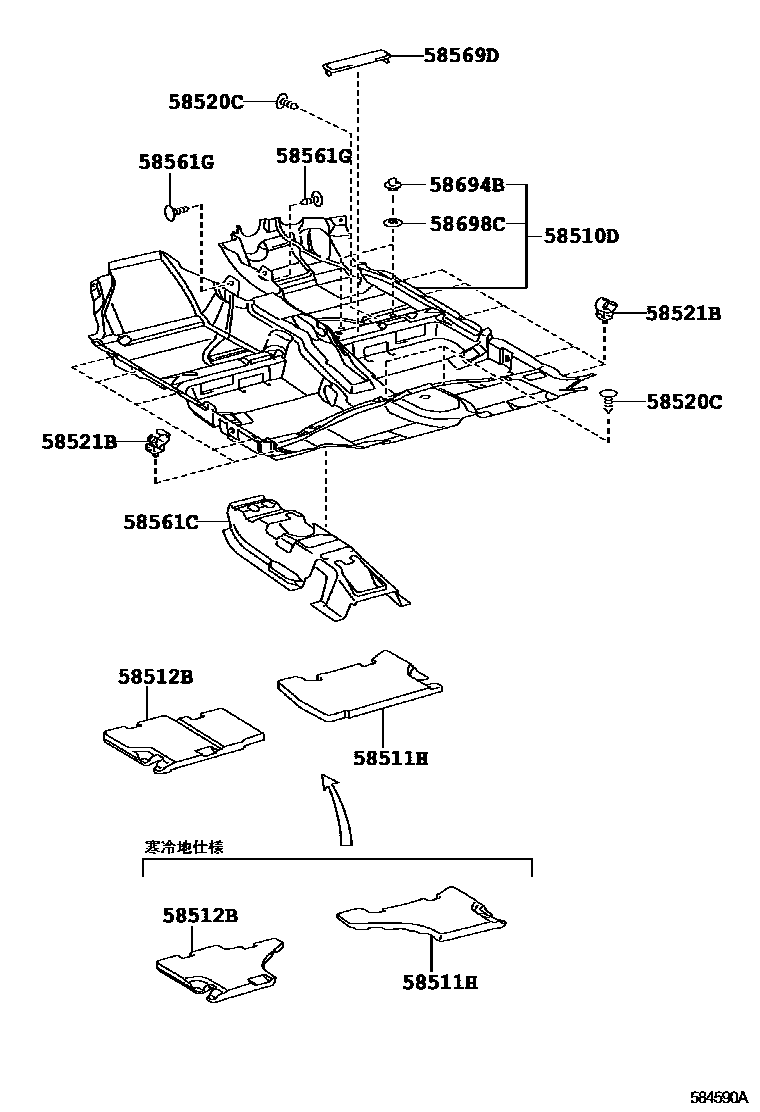

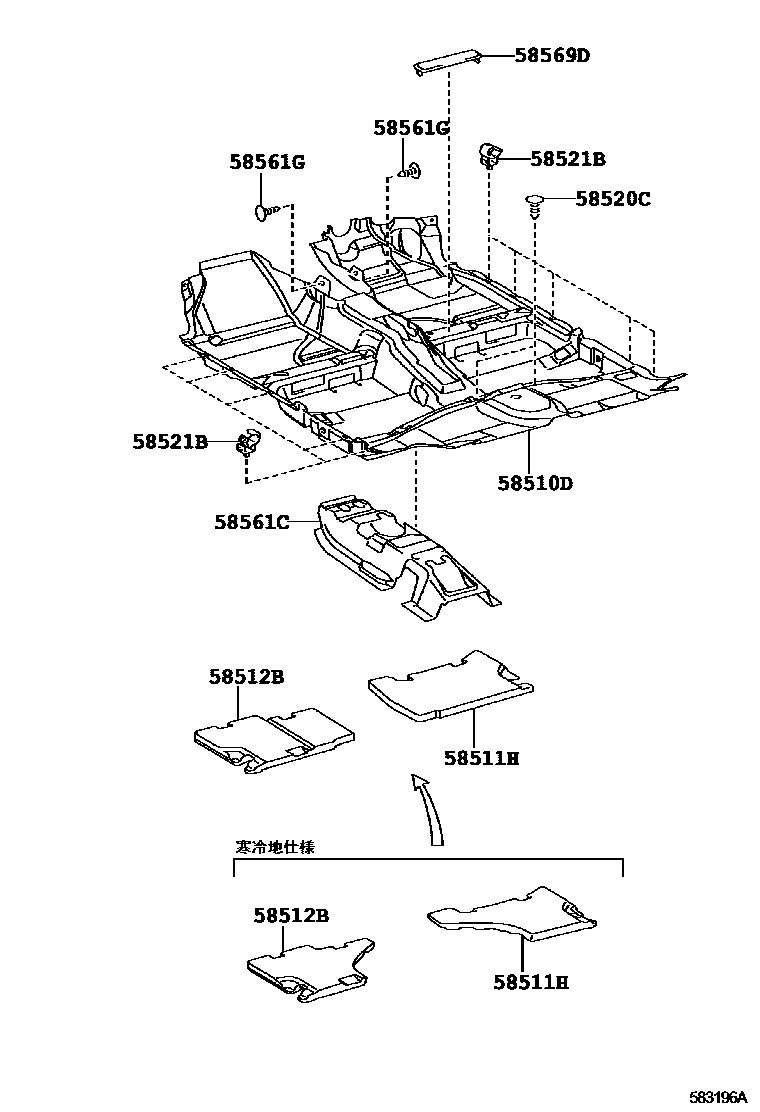

Toyota COROLLA EPC diagram 5804, 地板垫和地毯, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58511H | Front floor right mat | 58512-12251 · 58512-12260 |
| 58512B | Front floor left mat | 58511-12670 · 58511-12680 |
| 58521B | carpet hook | 58521-12140 |
| 58561C | Front floor silencer No. 1 | 58561-12040 · 58561-12041 · 58561-12050 · 58561-12051 |
| 58694B | Pad the fixing plate | 58694-76010 |
| 58698C | Fixing plate under the pad | 58698-76010 |
