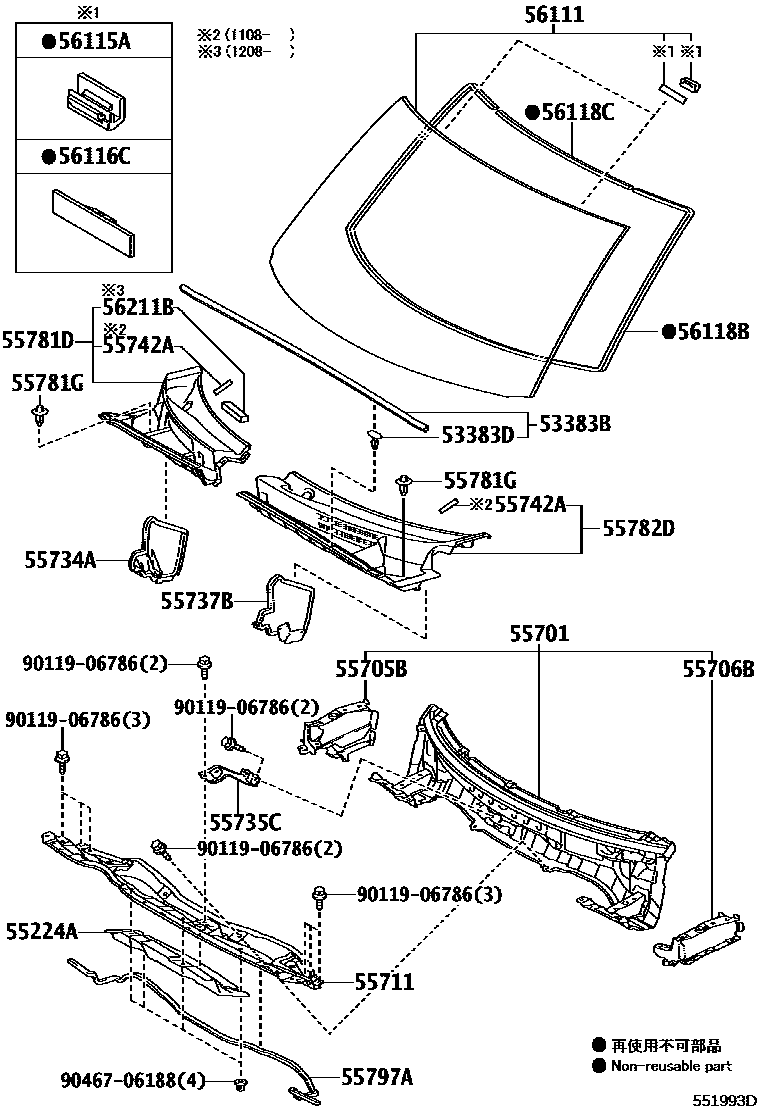

Toyota COROLLA 前围板和挡风玻璃 — Figure 5503
Toyota COROLLA EPC diagram 5503, 前围板和挡风玻璃, with 1 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53383B | Engine cover to cowl upper cover seal | 53383-12180 |
| 53383D | Clamp (for engine cover to cowl upper cover seal) | 67867-12150 |
| 55224A | No. 2 outer insulation pad for front wall | 55224-12040 |
| 55701 | Front apron sub-assembly | 55700-12B40 |
| 55705B | Right front wall upper side panel sub-assembly | 55705-12120 |
| 55706B | Left front wall upper side panel sub-assembly | 55706-12130 |
| 55711 | Front outer panel | 55701-12A90 |
| 55734A | Right waterproof cover | 55734-12190 |
| 55735C | Right front wall body-mounted reinforcement | 55735-12080 |
| 55737B | Heater duct splash guard seal No. 1 | 55737-12120 |
| 55742A | Heat insulation panel on front wall | 55743-12070 |
| 55781D | Ventilation grille on right front apron | 55708-12380 |
| 55782D | Ventilation grille on left front apron | 55709-12150 · 55709-12151 · 55709-12152 · 55709-12170 · 55709-12171 · 55709-12172 |
| 55797A | Front wall pumping device seal | 55797-12070 |
| 56111 | windshield | 56101-12480 · 56101-12500 |
| 56115A | Windshield block No. 1 | 56115-30100 |
| 56116C | Windshield block 2 | 56116-22050 |
| 56118B | Window Glass No. 2 Adhesive Sealing Strip | 56117-12320 |
| 56118C | Windshield limiter No. 2 | 56118-12080 |
| 56211B | windshield bumper | 75129-21010 |
