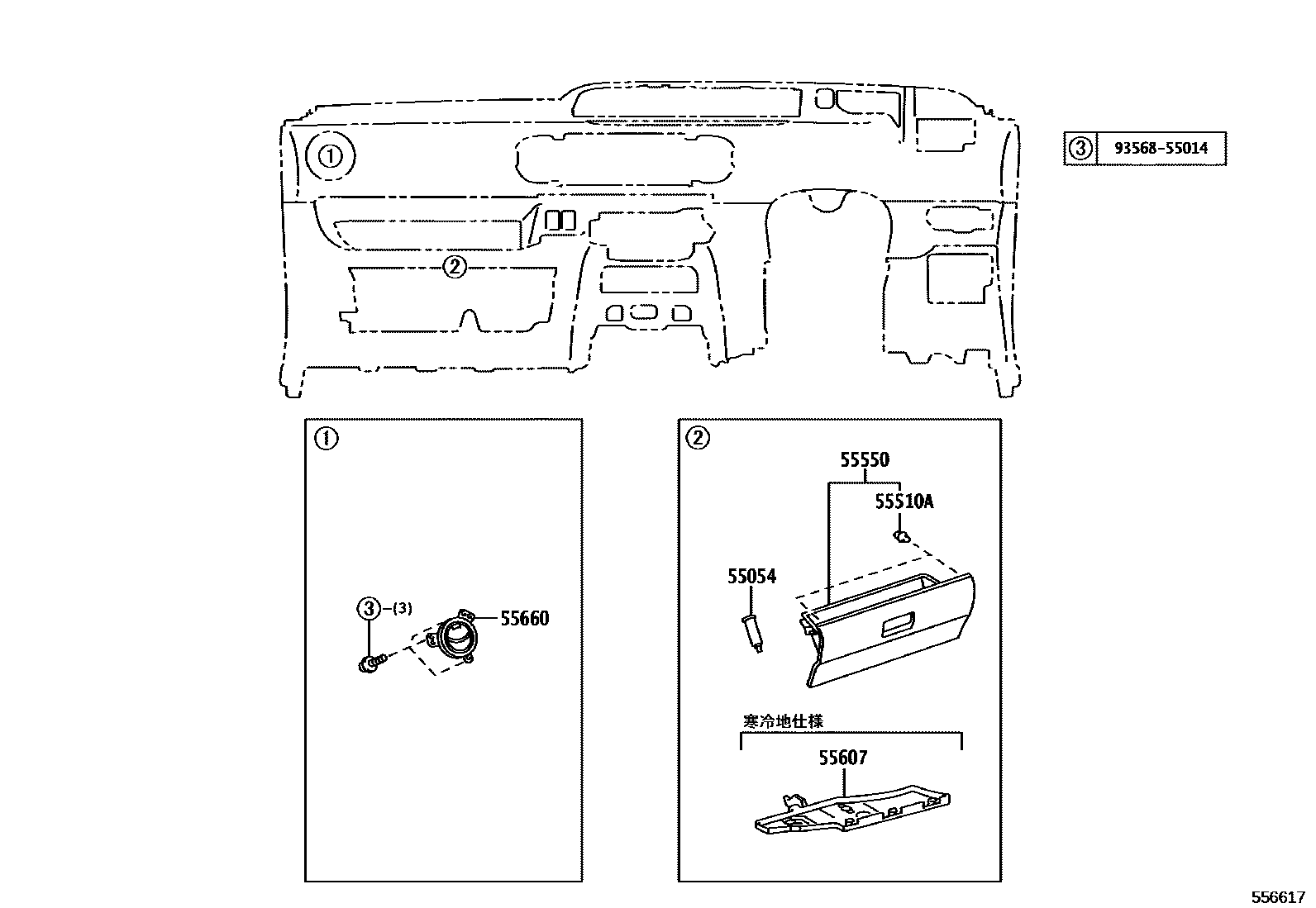

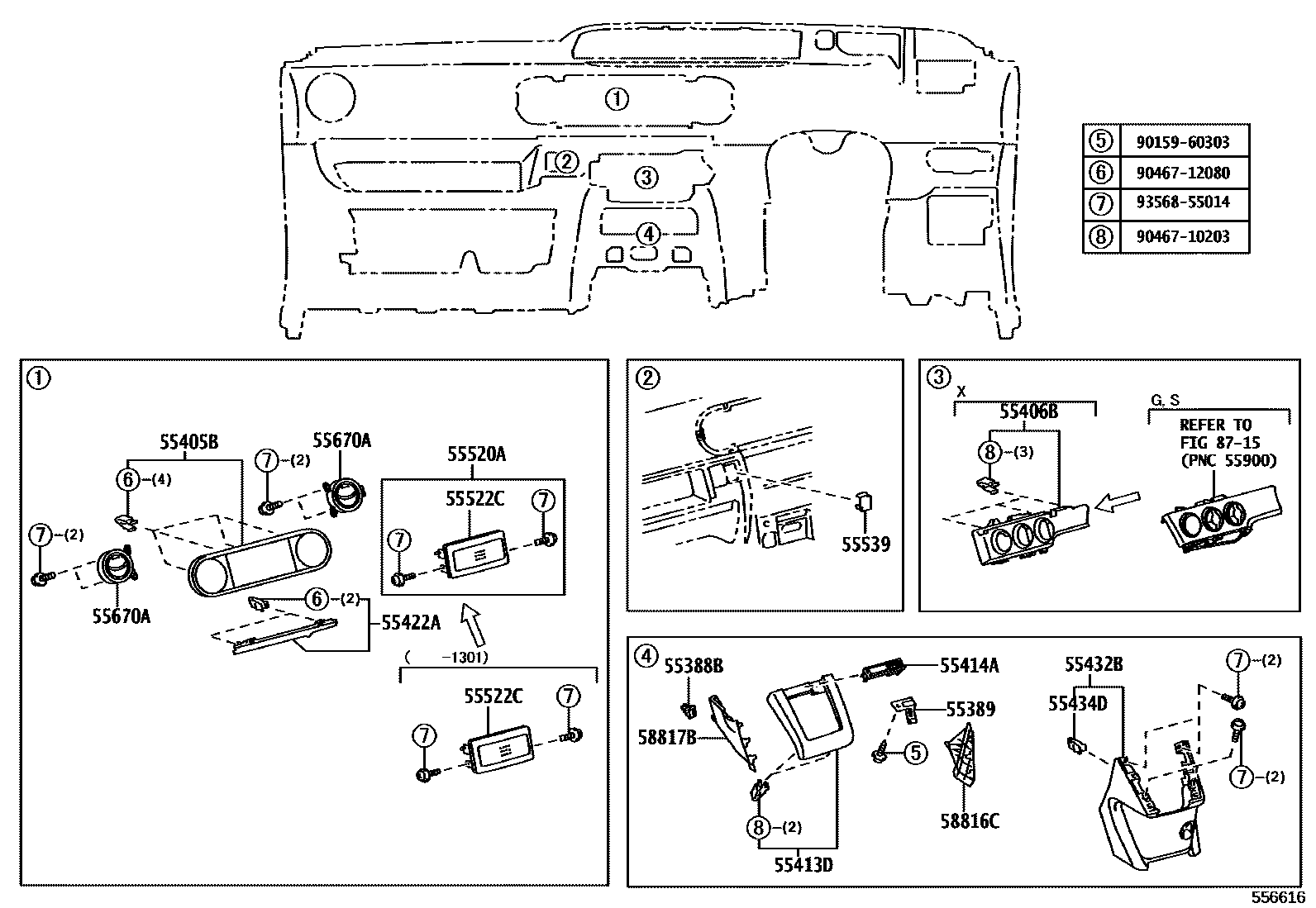

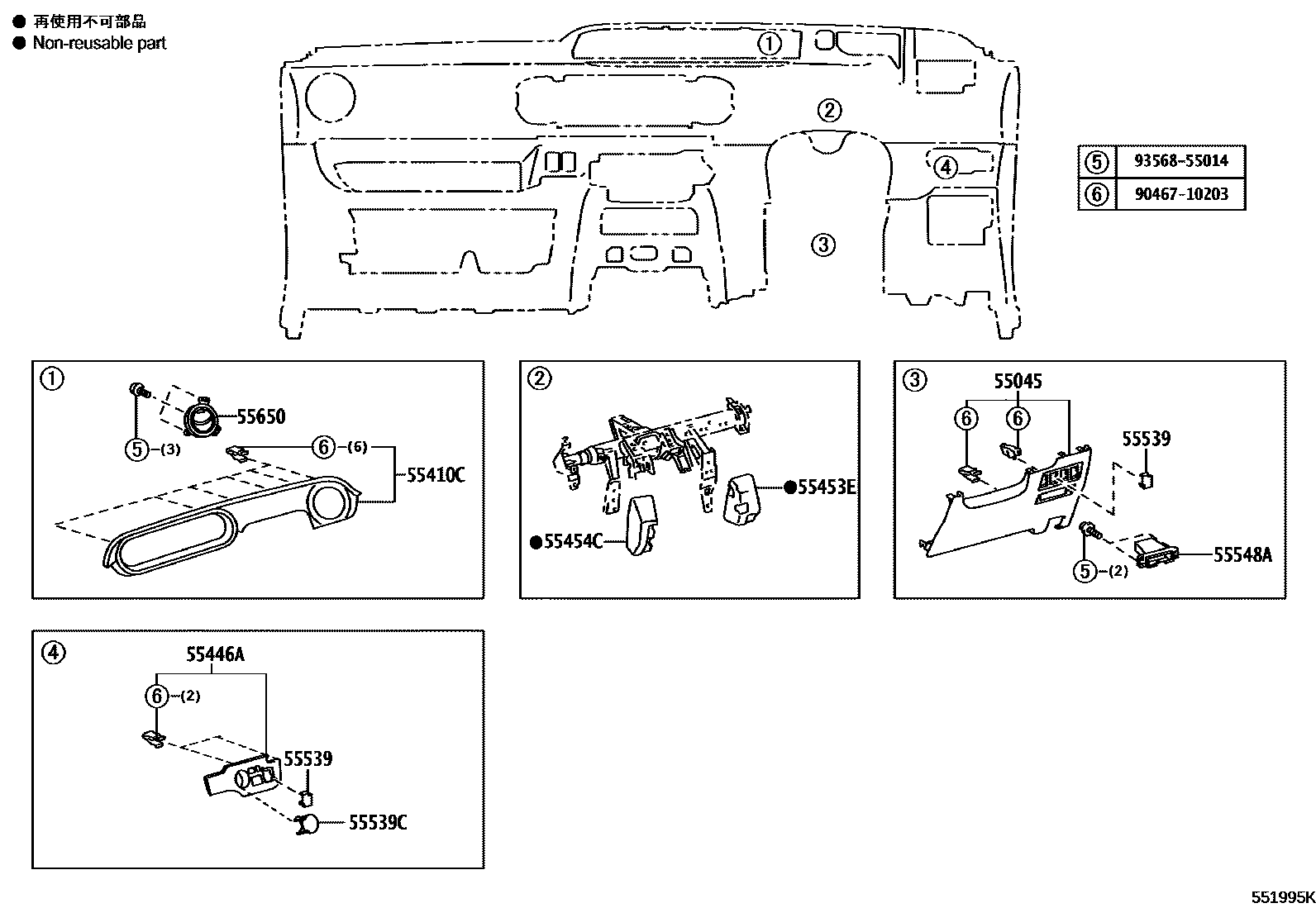

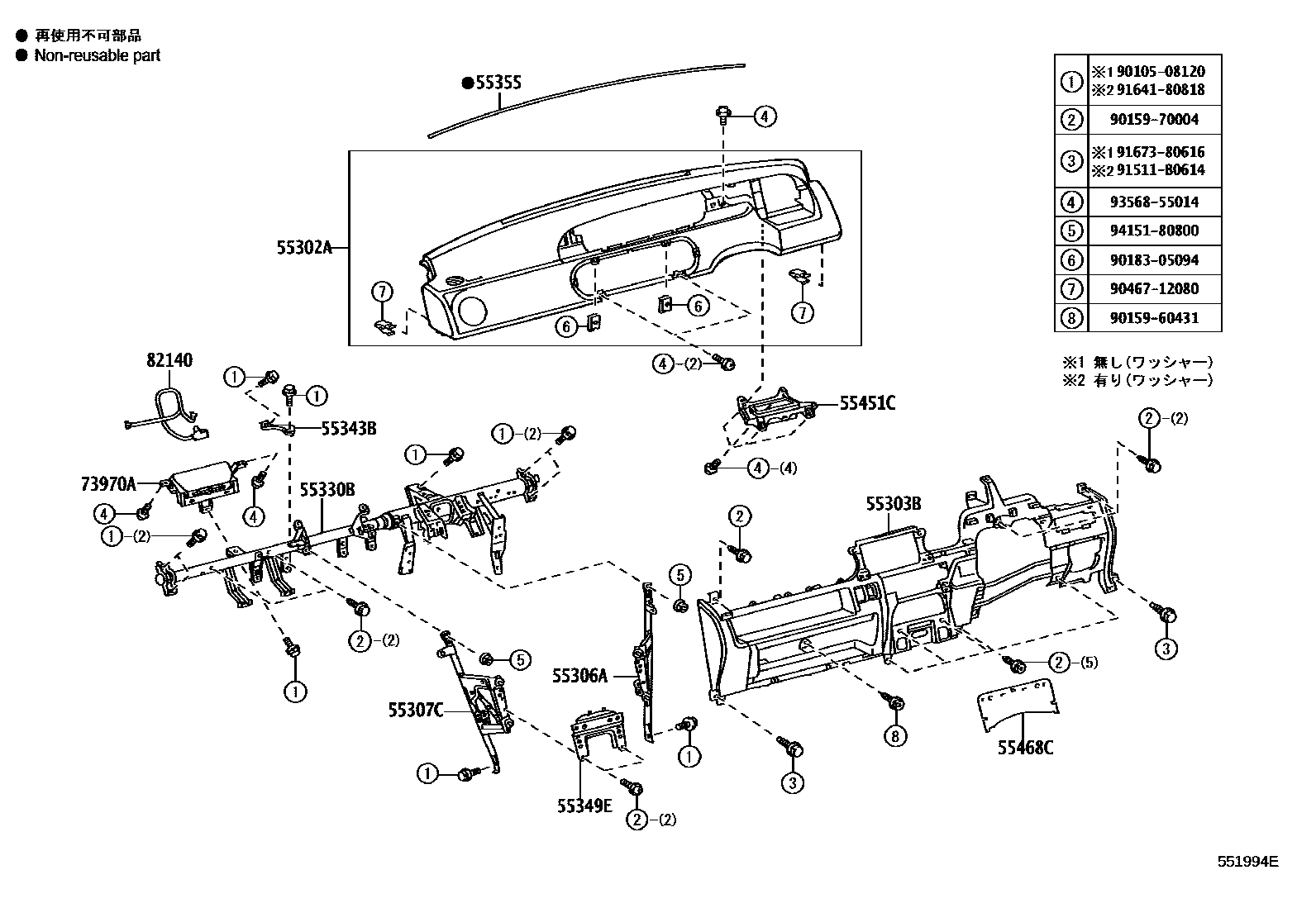

Toyota COROLLA 仪表板和手套箱 — Figure 5501
Toyota COROLLA EPC diagram 5501, 仪表板和手套箱, with 4 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55054 | Glove box cover stopper sub-assembly | 55054-12020 · 55054-33060 |
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55306-12440 |
| 55307C | Instrument panel No. 2 bracket sub-assembly | 55307-12370 |
| 55330B | Instrument panel reinforcement assembly | 55330-12790 |
| 55343B | Center bracket (dashboard to cowl) | 55343-12070 |
| 55349E | Dashboard lower bracket mounting bracket | 55349-12140 |
| 55355 | Dashboard No. 1 Cushion Pad | 55355-12160 |
| 55388B | Mounting bracket on the right side of the console | 55389-42020 |
| 55389 | Console left side mounting bracket | 55388-42020 |
| 55405B | Center instrument cluster decorative panel sub-assembly | 55405-12A80 · 55405-12B50 |
| 55406B | Center instrument cluster lower decorative panel sub-assembly | 55406-12500 · 55406-12560 |
| 55413D | Center instrument cluster lower decorative panel | 55413-12550 · 55413-12580 · 55413-12610 · 55413-12650 |
| 55414A | Instrument cluster end decorative panel | 55414-12220 · 55414-12230 · 55414-12240 · 55414-12250 |
| 55434D | Center dashboard lower decorative panel clip | 90467-10203 |
| 55446A | No. 1 switch hole seat | 55446-12190 · 55446-12210 · 55446-12260 · 55446-12310 |
| 55453E | Dashboard lower right pad | 55453-12110 |
| 55454C | Dashboard lower left pad | 55454-12060 |
| 55468C | Instrument cluster No. 1 decorative panel seal | 55468-12020 |
| 55510A | Cushion (for glovebox lid) | 55557-53030 |
| 55520A | Stereo system hole cover assembly | 55520-47020 |
| 55522C | radio opening cover | 55522-52020 |
| 55539C | Spare switch hole cover | 55539-12180 · 55539-12200 · 55539-12240 |
| 55607 | Instrument panel No. 2 bottom cover sub-assembly | 55607-12060 |
| 73970A | Dashboard passenger air bag assembly | 73970-12150 |
| 82140 | Instrument panel wiring harness assembly | 82140-1A200 |
