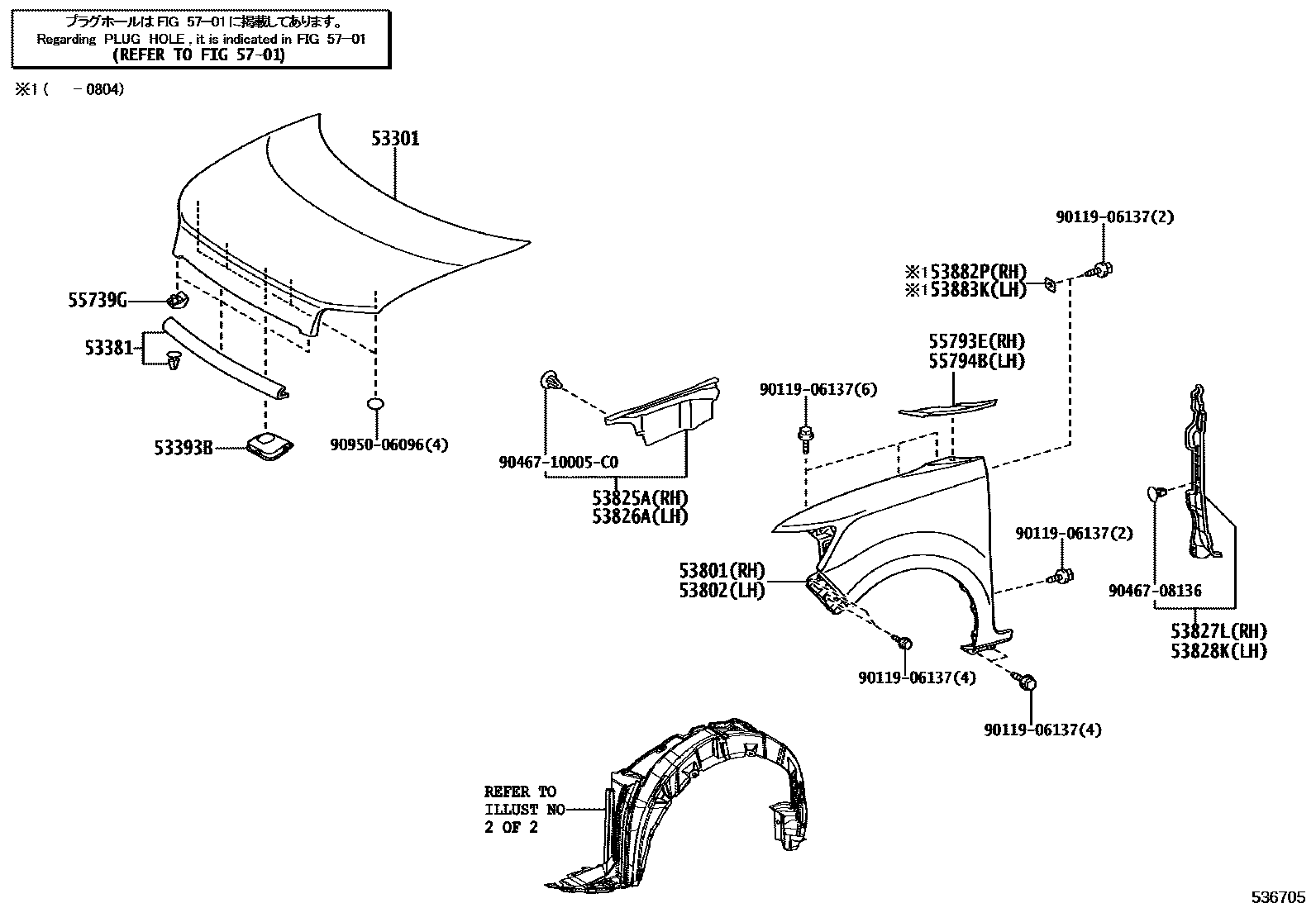

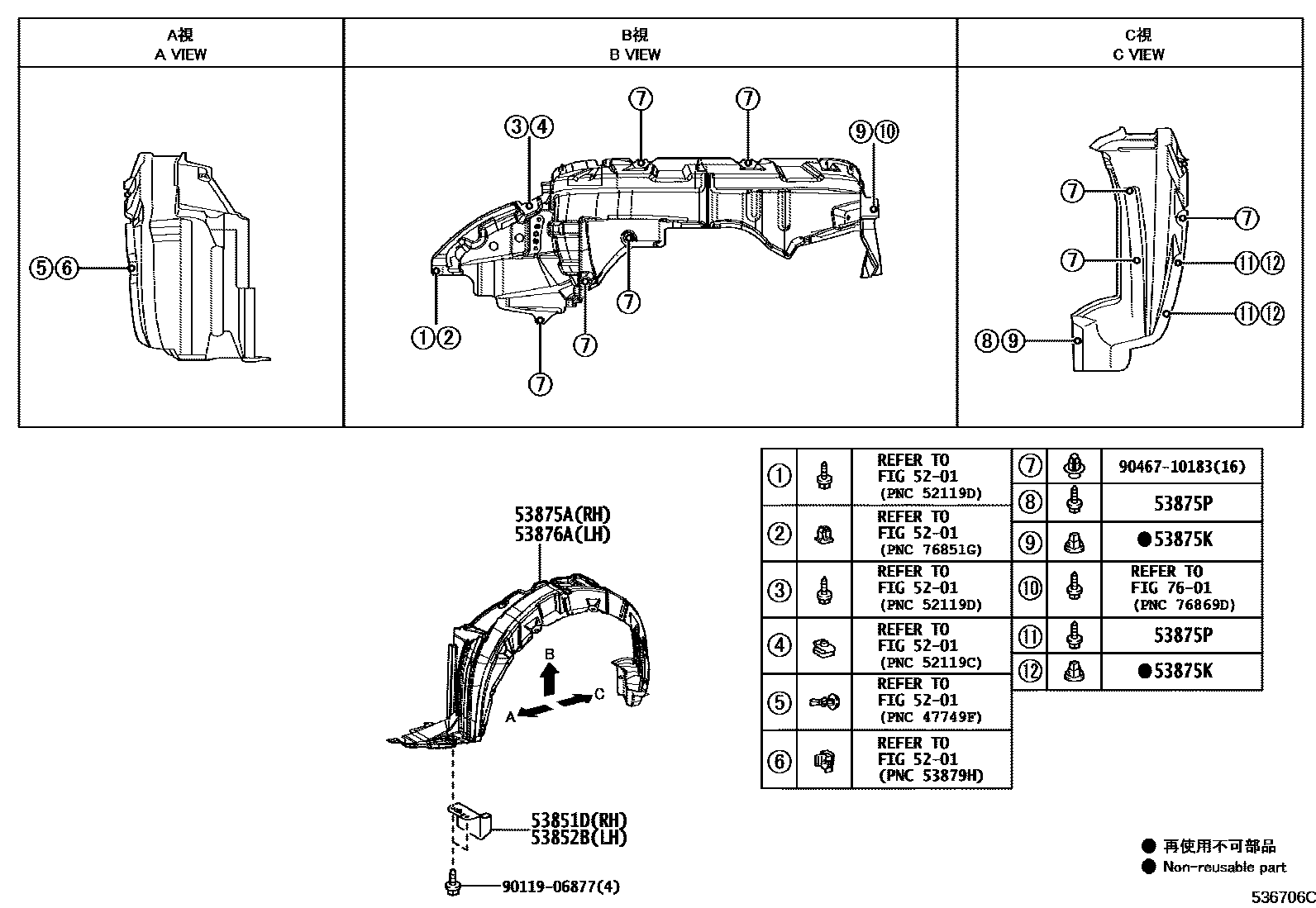

Toyota COROLLA 发动机盖和前翼子板 — Figure 5302
Toyota COROLLA EPC diagram 5302, 发动机盖和前翼子板, with 2 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53301 | Engine cover sub-assembly | 53301-12A60 |
| 53381 | Engine cover to radiator bracket seal | 53381-12250 |
| 53393B | Engine cover front protector | 53393-12030 |
| 53801 | Right front fender sub-assembly | 53801-12A40 · 53801-12A41 · 53801-12A50 · 53801-12A51 |
| 53802 | Left front fender sub-assembly | 53802-12A40 · 53802-12A41 · 53802-12A50 · 53802-12A51 |
| 53825A | Right front fender protection piece | 53825-12050 |
| 53826A | Protection piece on left front fender | 53826-12050 |
| 53827L | Right front fender side panel protector | 53827-12110 |
| 53828K | Left front fender side panel protector | 53828-12110 |
| 53851D | Right front fender outer panel pad | 53851-12130 |
| 53852B | Left front fender exterior panel pad | 53852-12120 |
| 53875A | Right front fender lining | 53875-12490 · 53875-12530 |
| 53875K | Toyota part | 90189-06013 |
| 53875P | Toyota part | 90159-60602 |
| 53876A | Left front fender lining | 53876-12470 · 53876-12510 |
| 53882P | Right front fender seal | 53882-16030 |
| 53883K | Left front fender seal | 53882-16030 |
| 55739G | Engine cover stop | 55738-12150 |
| 55793E | No. 2 right front wall upper reinforcement cover | 55793-12061 · 55793-12062 |
| 55794B | No. 2 left front wall upper reinforcement cover | 55794-12131 · 55794-12132 |
