Toyota COROLLA radiator grille — Figure 5301

Toyota COROLLA EPC diagram 5301, radiator grille, with 2 images and 3 PNC and OE references.

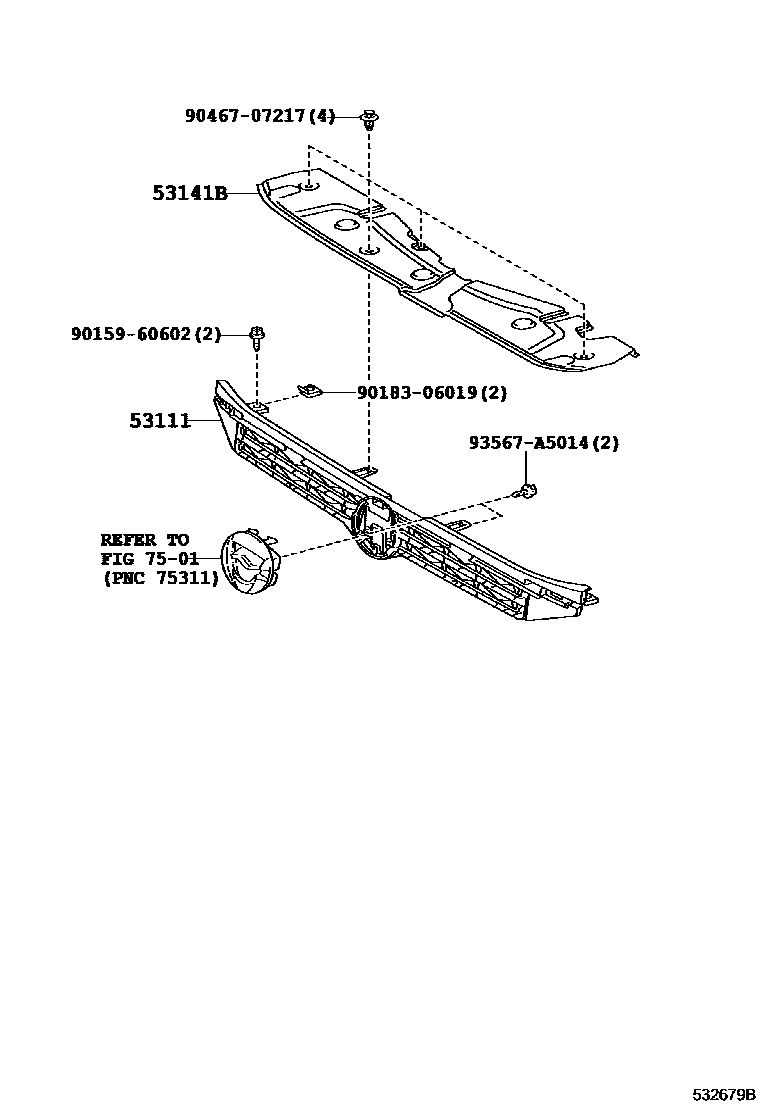

Toyota COROLLA radiator grille EPC diagram — 532679B
radiator grille — 532679B (200710 – 200912)

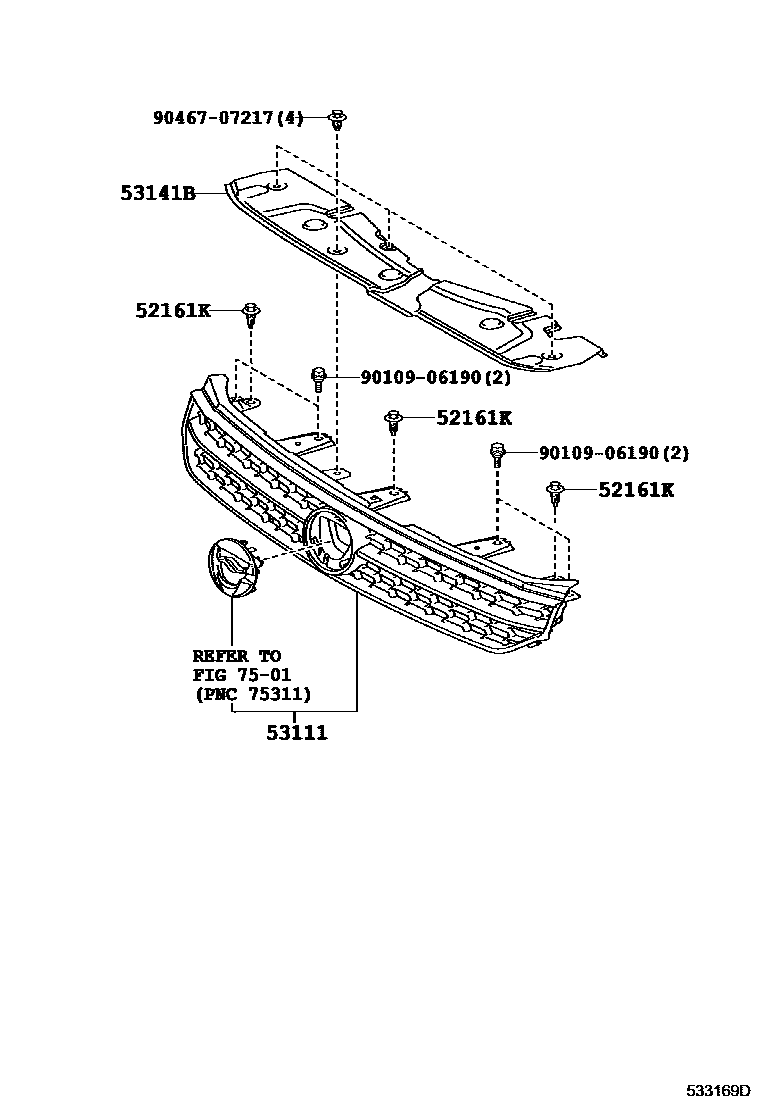

Toyota COROLLA radiator grille EPC diagram — 533169D
radiator grille — 533169D (200912 – 999999)

PNC and OE references

PNCPart nameOE numbers
52161Kfront bumper insert52161-16010
53111radiator grille53101-12A50 · 53111-12B60
53141BRadiator grille trim part 153141-12210 · 53141-12211
