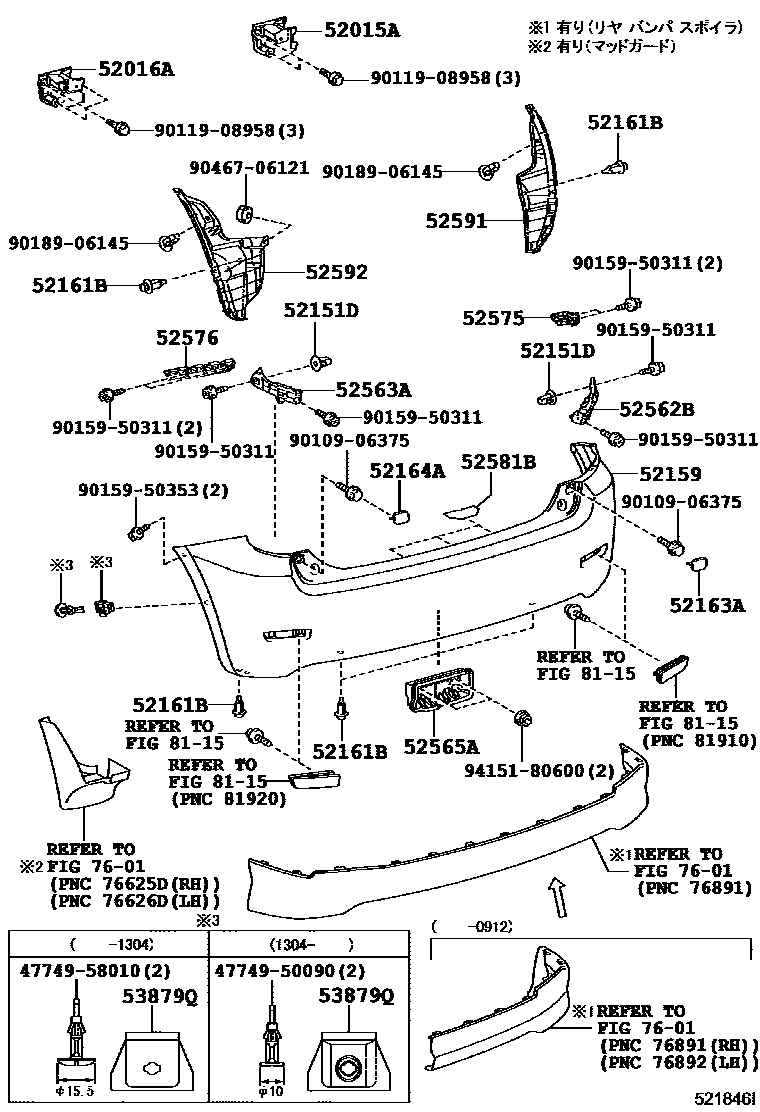

Toyota COROLLA 后保险杠及附件 — Figure 5202
Toyota COROLLA EPC diagram 5202, 后保险杠及附件, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52015A | Rear bumper right arm sub-assembly | 52015-12330 |
| 52016A | Rear bumper left arm sub-assembly | 52016-12300 |
| 52151D | Gasket (for rear bumper) | 90189-05184 · 90189-06118 |
| 52161B | Rear bumper insert | 52161-16010 |
| 52562B | Rear bumper upper right fixing bracket | 52562-12180 · 52562-12181 |
| 52563A | Rear bumper upper left fixing bracket | 52563-12080 · 52563-12081 |
| 52565A | Rear bumper lower fixing bracket | 52565-12190 |
| 52575 | Rear bumper right side fixing bracket | 52575-12180 |
| 52576 | Rear bumper left side fixing bracket | 52576-12180 |
| 52581B | rear bumper protector | 52581-13030 |
| 52591 | Rear bumper right seal | 52591-12240 |
| 52592 | Rear bumper left seal | 52592-12160 |
| 53879Q | Rear fender lining fixings | 53879-50020 · 53879-58010 |
