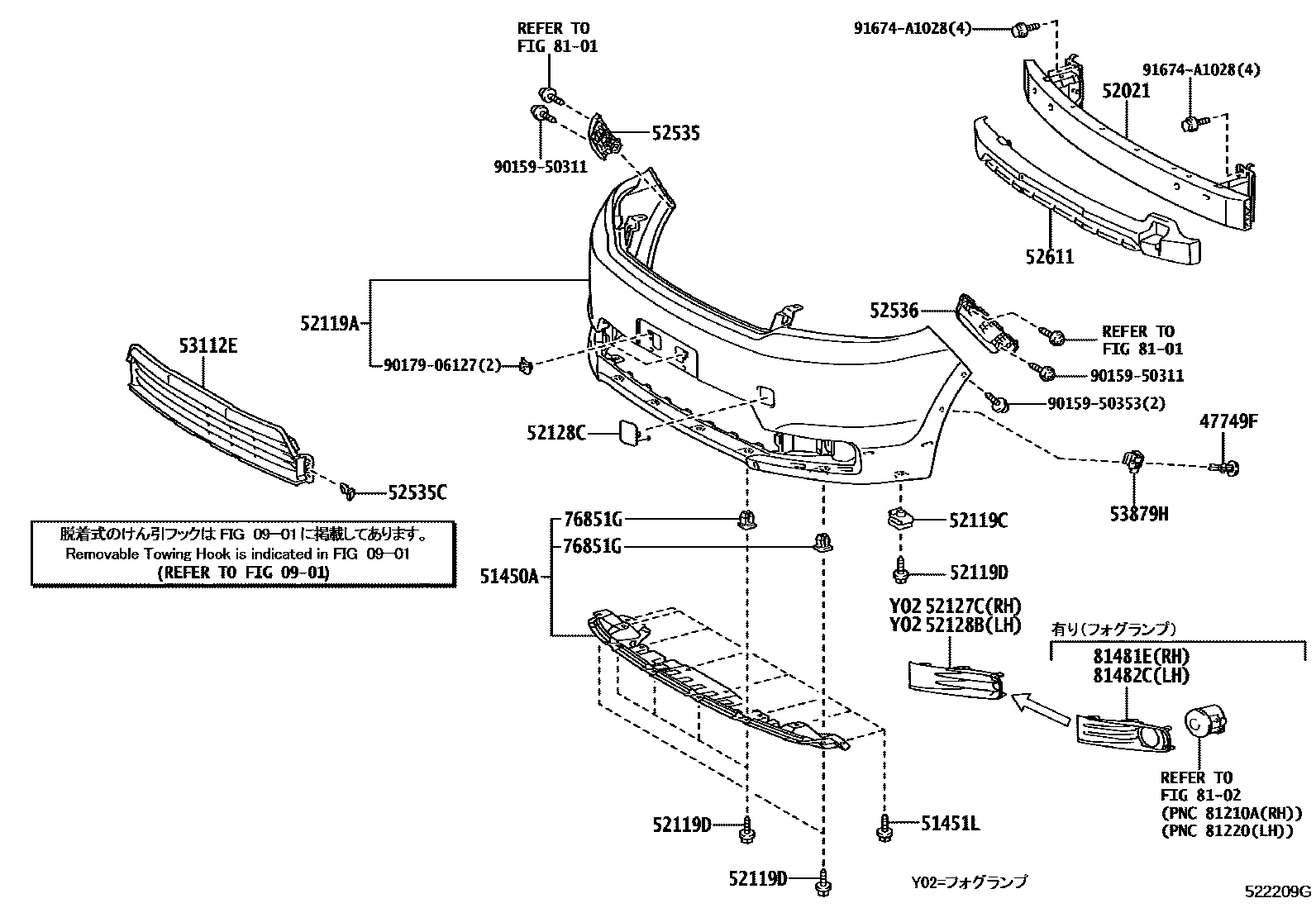

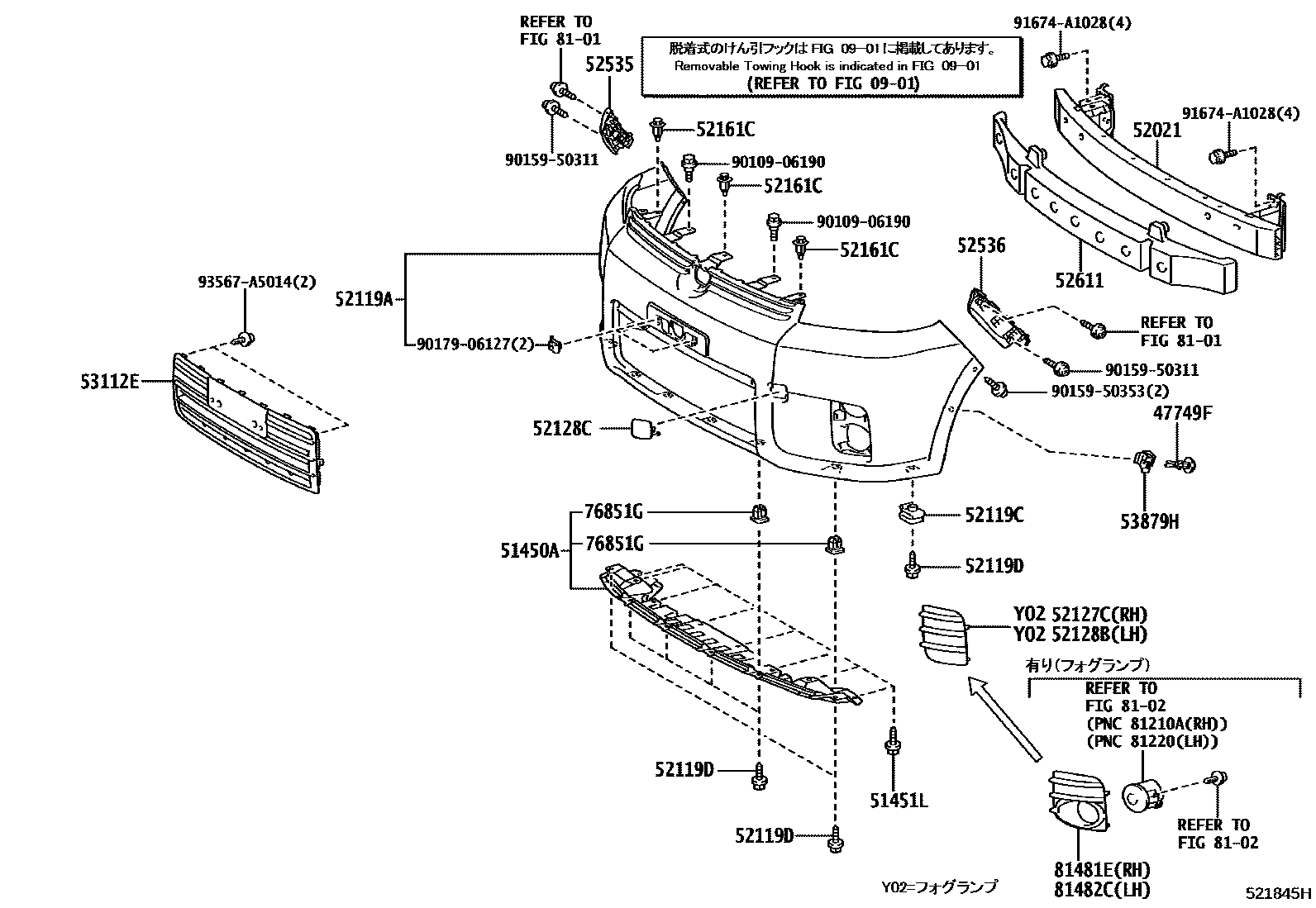

Toyota COROLLA 前保险杠及附件 — Figure 5201
Toyota COROLLA EPC diagram 5201, 前保险杠及附件, with 2 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47749F | Toyota part | 47749-50090 · 47749-58010 |
| 51450A | Transmission center bottom cover assembly | 51451-12090 |
| 51451L | Toyota part | 90119-06767 |
| 52021 | Front bumper reinforcement sub-assembly | 52021-12280 |
| 52119C | Toyota part | 90467-05114 |
| 52119D | Toyota part | 90159-60590 |
| 52127C | Front bumper hole cover | 81481-12130 · 81481-12200 |
| 52128B | Front bumper left hole cover | 81482-12090 · 81482-12150 |
| 52161C | front bumper insert | 52161-16010 |
| 52535 | Front bumper right side fixing bracket | 52535-12140 |
| 52535C | Front bumper side fixing bracket | 52535-28020 |
| 52536 | Front bumper left fixed bracket | 52536-12110 |
| 52611 | front bumper energy absorber | 52611-12240 · 52611-12280 |
| 53112E | No. 1 radiator lower grille | 53112-12180 · 53112-12250 |
| 53879H | Front fender lining fixing parts | 53879-50020 · 53879-58010 |
| 76851G | Toyota part | 90189-06193 |
| 81481E | Right fog light cover | 81481-12140 · 81481-12210 |
| 81482C | Left fog light cover | 81482-12100 · 81482-12160 |
