Toyota COROLLA 悬架横梁和发动机底罩 — Figure 5102

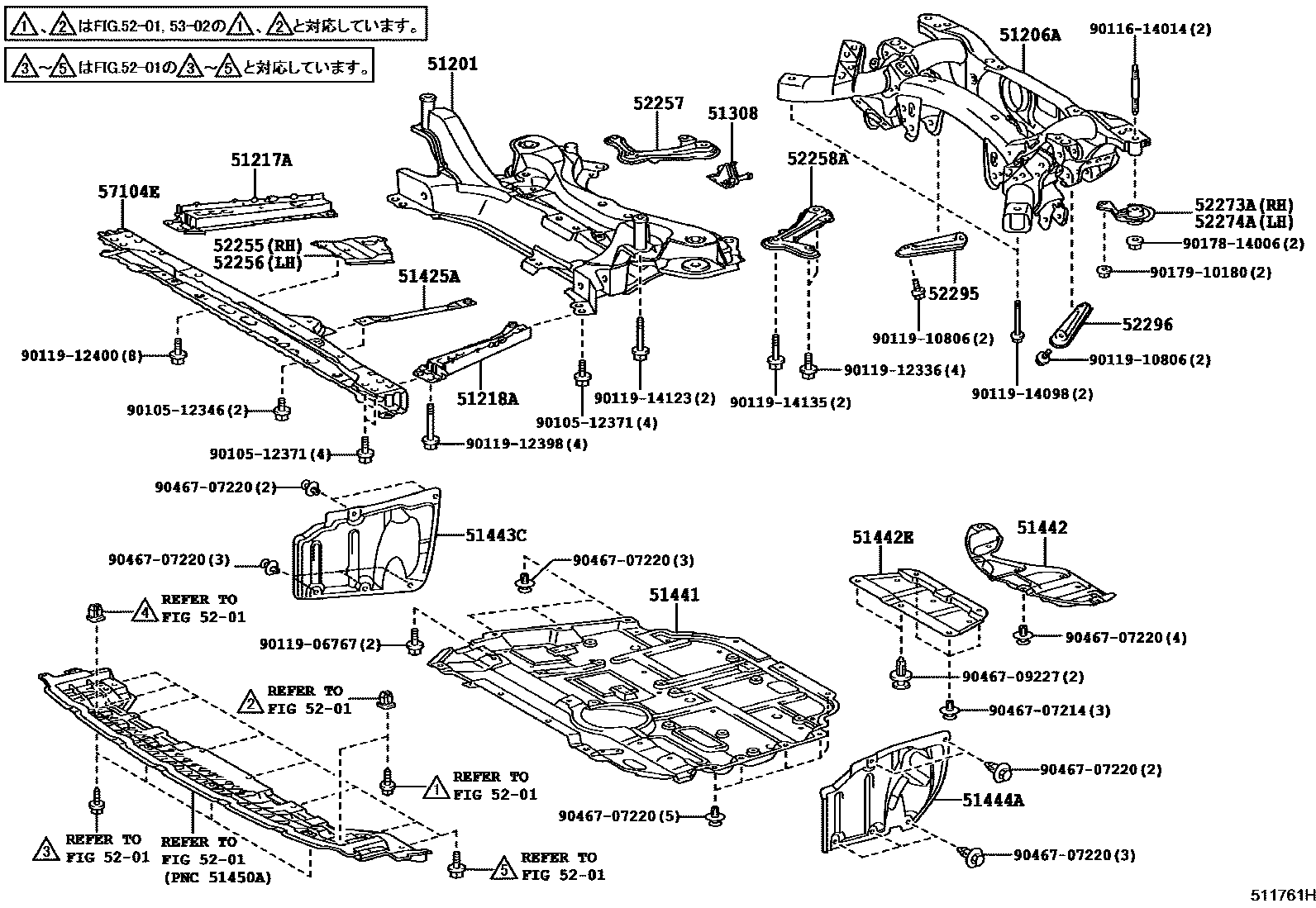

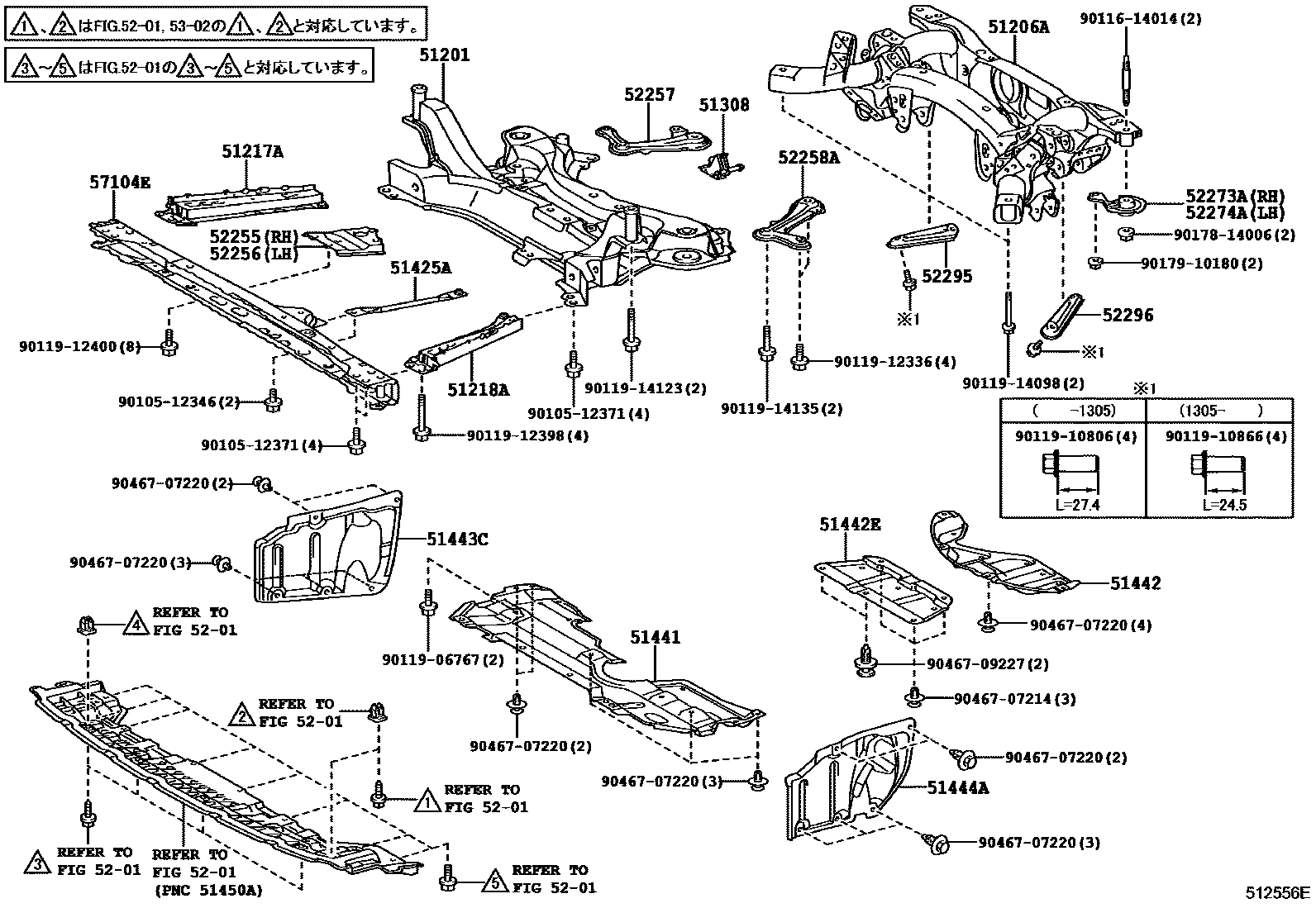

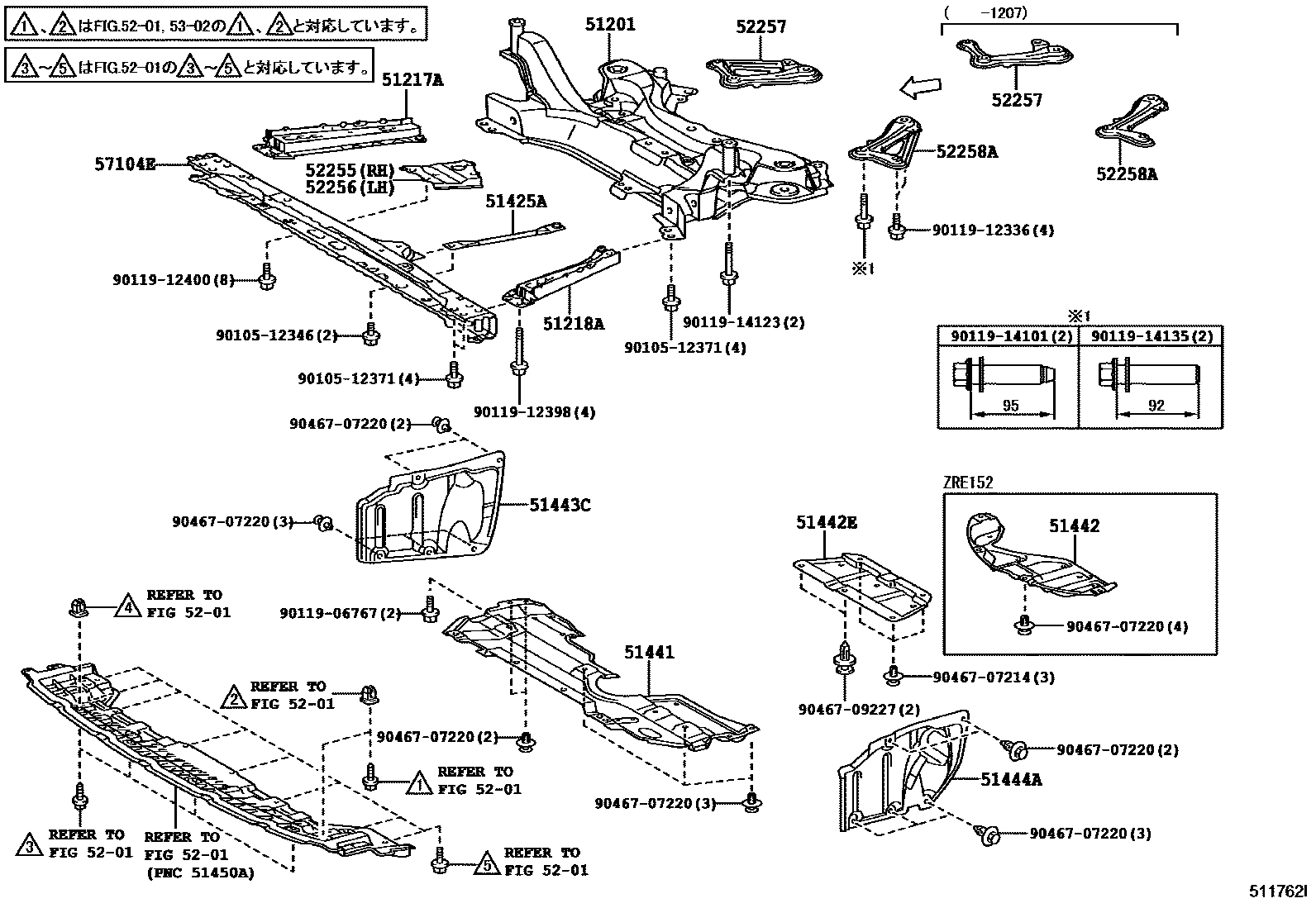

Toyota COROLLA EPC diagram 5102, 悬架横梁和发动机底罩, with 3 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51201 | Front suspension cross member sub-assembly | 51201-12441 · 51201-12442 · 51201-12451 |
| 51206A | Rear suspension cross member sub-assembly | 51206-12120 · 51206-12121 · 51206-12171 · 51206-12172 · 51206-12173 |
| 51217A | Right front suspension cross member reinforcement | 51107-12010 · 51107-28030 |
| 51218A | Left front suspension cross member reinforcement | 51108-12010 · 51108-28030 |
| 51308 | Exhaust pipe clamp bracket sub-assembly | 51308-12010 |
| 51425A | Engine front mounting bracket lower reinforcement | 51425-12060 · 51425-12070 |
| 51441 | No. 1 engine bottom cover | 51441-12221 · 51441-12270 |
| 51442 | No. 2 engine bottom cover | 51442-12210 |
| 51442E | No. 2 engine bottom cover | 51442-12270 |
| 51443C | Engine right rear bottom cover | 51443-12080 |
| 51444A | Engine left rear bottom cover | 51444-12050 |
| 52255 | Right front suspension cross member front bracket | 52255-12010 |
| 52256 | Left front suspension cross member front bracket | 52256-12010 |
| 52257 | Right front suspension cross member rear bracket | 52257-12010 · 52257-12011 · 52257-12020 · 52257-21040 |
| 52258A | Left front suspension cross member rear bracket | 52258-12010 · 52258-12011 · 52258-12020 · 52258-21040 |
| 52273A | Rear suspension cross member right lower stop | 52203-12020 |
| 52274A | Rear suspension cross member left lower stop | 52203-12020 |
| 52295 | Right rear suspension cross member bracket | 52295-12040 · 52295-42010 |
| 52296 | Left rear suspension cross member bracket | 52296-12010 · 52296-42010 |
| 57104E | Front cross member sub-assembly | 57104-12270 |
