Toyota COROLLA 制动配管和卡箍 — Figure 4708

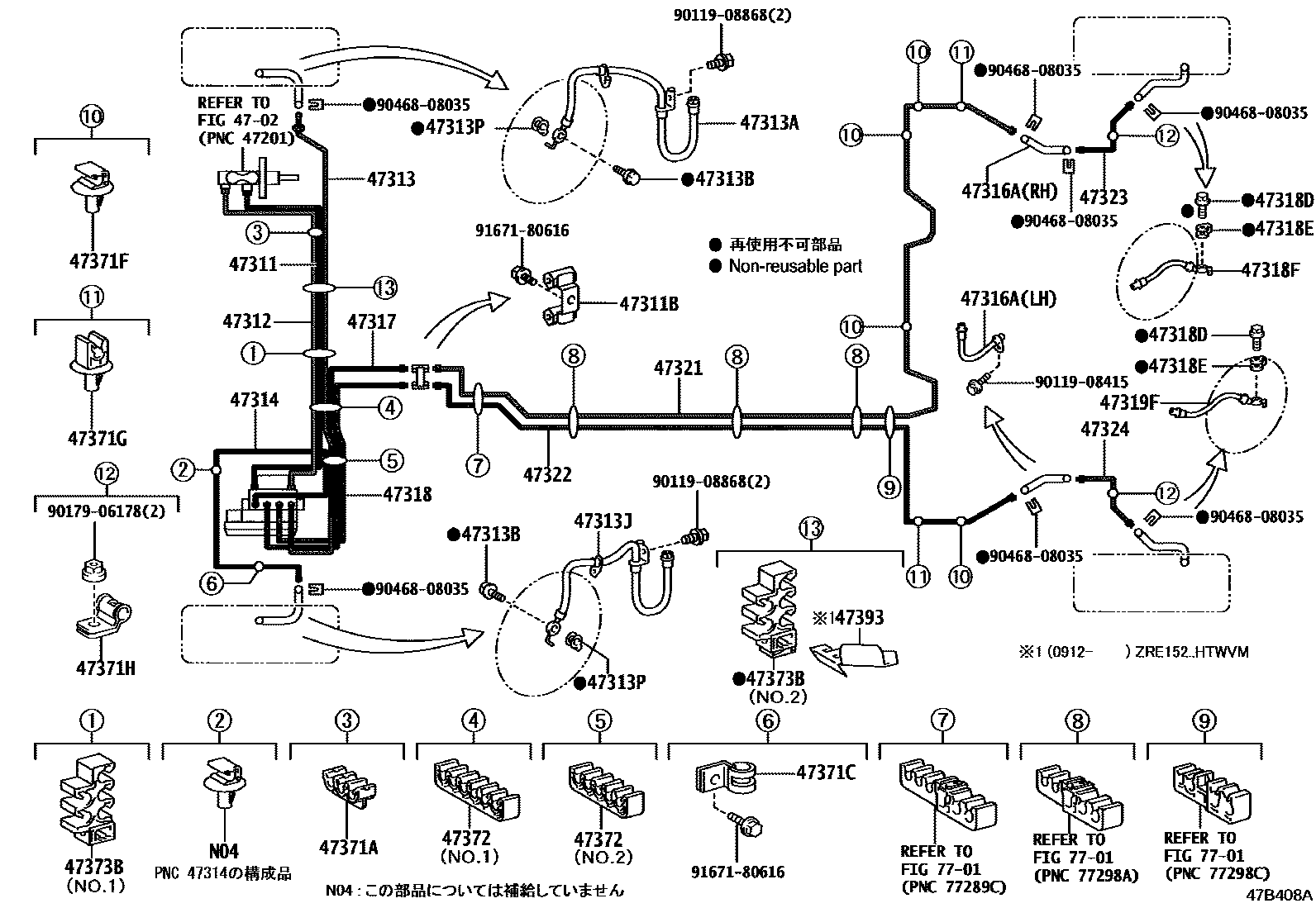

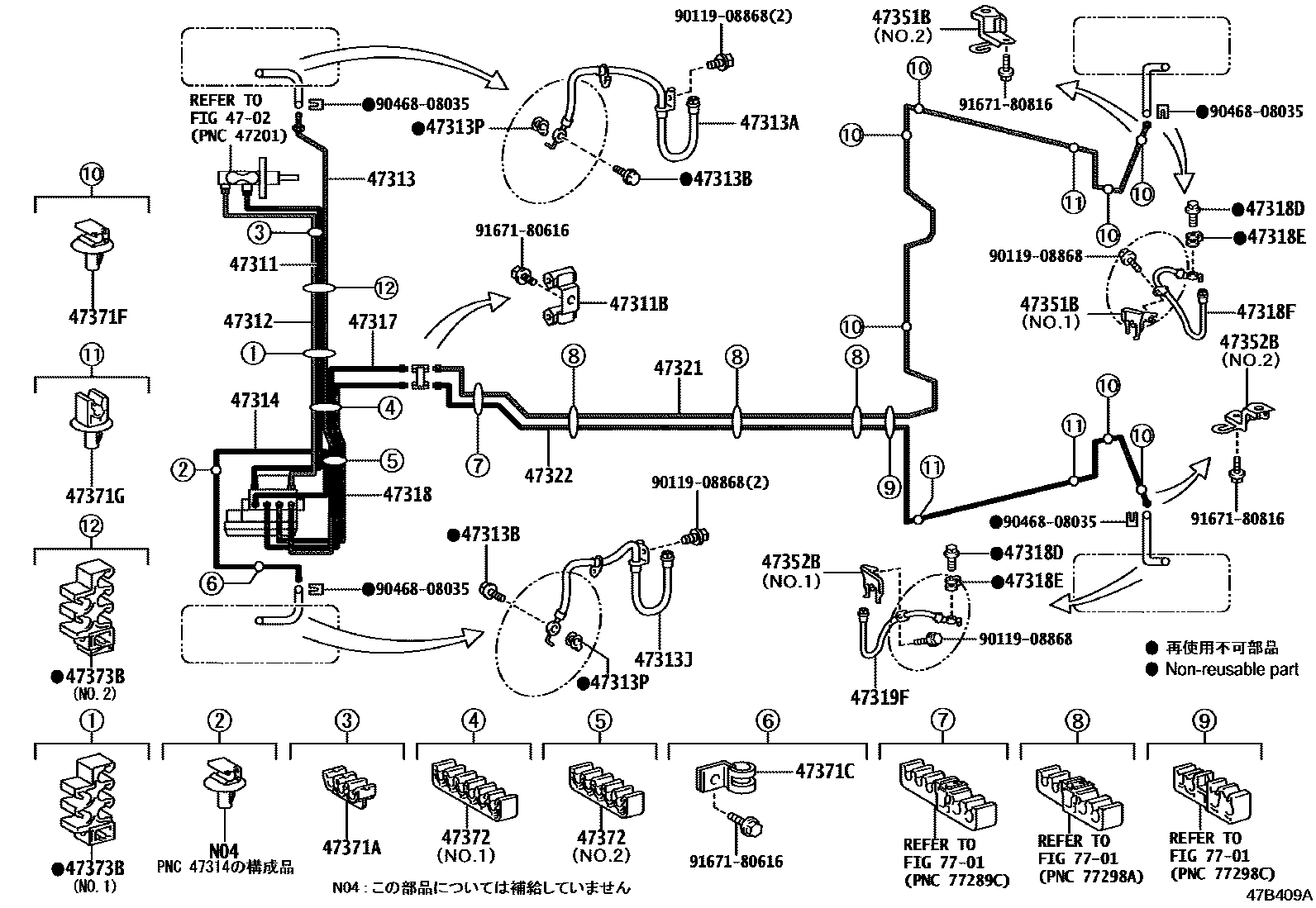

Toyota COROLLA EPC diagram 4708, 制动配管和卡箍, with 4 images and 33 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

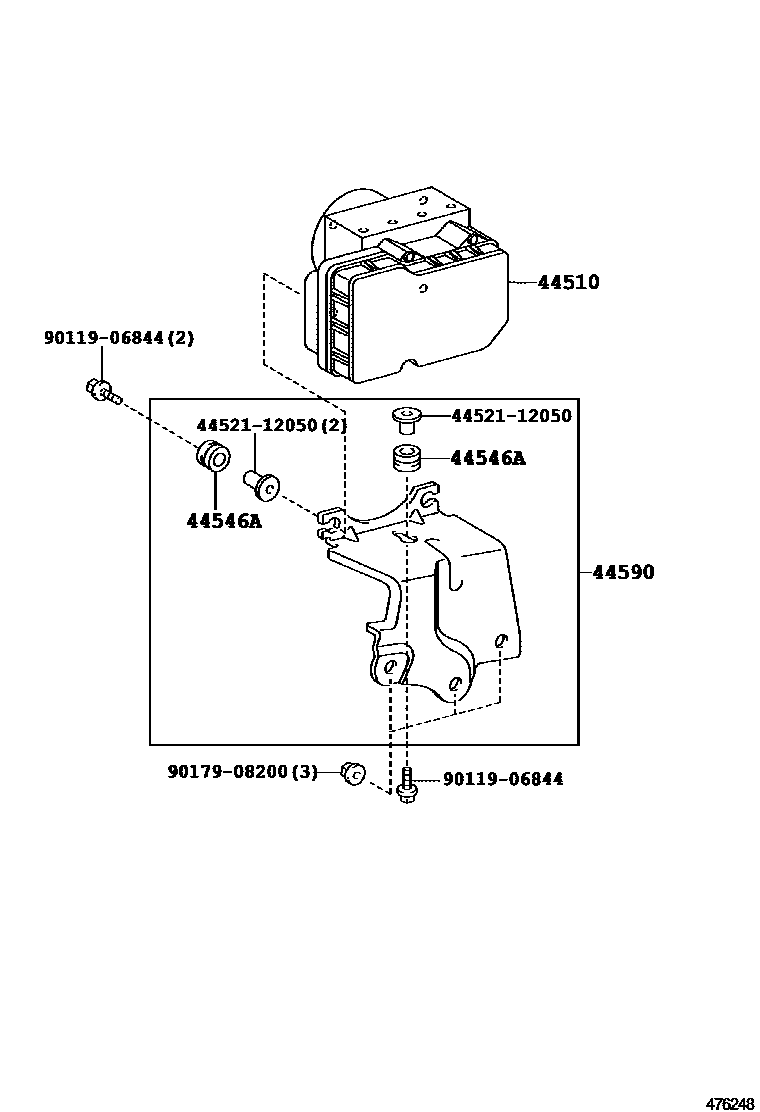

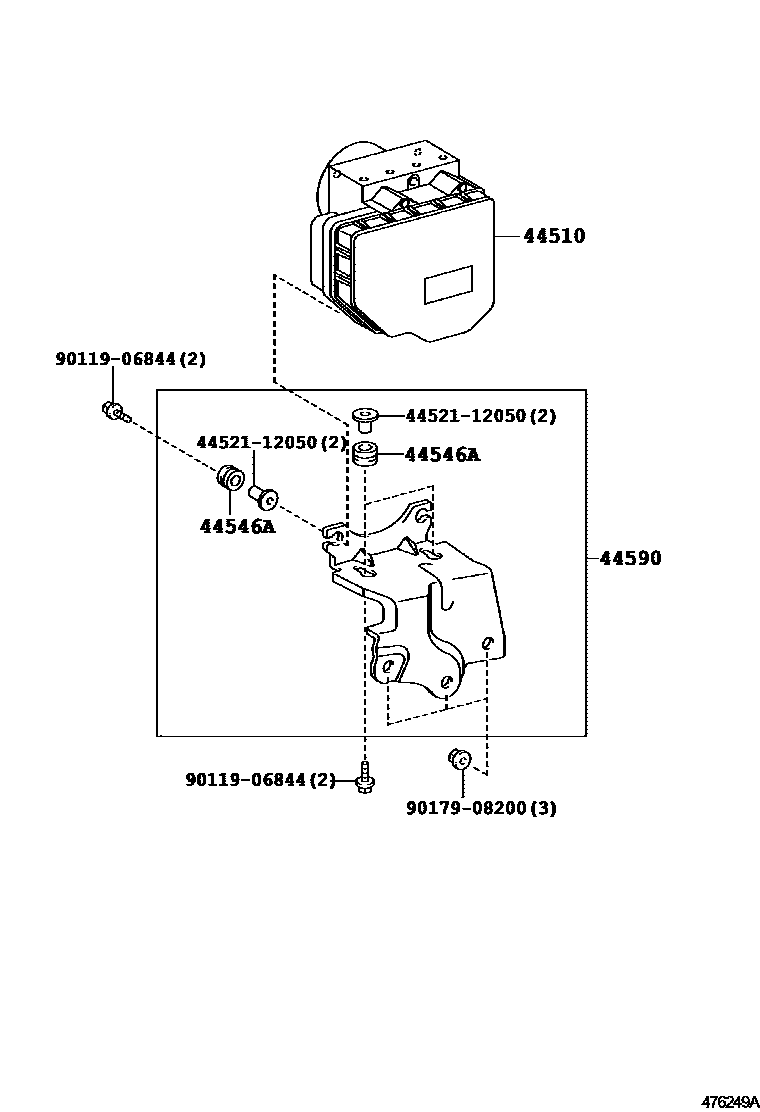

| 44510 | brake actuator assembly | 44050-12510 · 44050-12511 · 44050-12550 · 44050-12560 · 44050-12570 · 44050-12580 · 44050-12600 · 44050-12780 · 44050-12781 |
| 44546A | Brake actuator bolt cushion | 44546-12110 |
| 44590 | Brake actuator bracket assembly | 44590-12080 · 44590-12090 |
| 47311 | No. 1 front brake pipe | 47311-12A30 · 47311-12A40 |
| 47311B | No. 1 pipe joint (for front brake pipe) | 90412-10260 |
| 47312 | No. 2 front brake pipe | 47312-12560 · 47312-12570 |
| 47313 | No. 3 front brake pipe | 47313-12730 · 47313-12740 |
| 47313A | No. 1 front flexible hose | 90947-02E33 · 90947-02E35 · 90947-02G04 · 90947-02G30 |
| 47313B | Connector bolt (for front flex hose) | 90401-10058 |
| 47313J | No. 2 front flexible hose | 90947-02E34 · 90947-02E36 · 90947-02G31 · 90947-02G60 |
| 47313P | Gasket (for front flex hose) | 47389-50020 |
| 47314 | No. 4 front brake pipe | 47314-12610 · 47314-12620 |
| 47316A | Flexible hose (for rear brake pipe) | 90947-02E31 · 90947-02E32 · 90947-02F85 · 90947-02F86 |
| 47317 | No. 7 front brake pipe | 47317-12380 · 47317-12460 · 47317-12470 |
| 47318 | No. 8 front brake pipe | 47318-12520 · 47318-12600 · 47318-12610 |
| 47318D | Connector bolt (for rear flex hose) | 90401-10058 |
| 47318E | Gasket (for rear flex hose) | 47389-50020 |
| 47318F | Right rear flexible hose | 90947-02E30 · 90947-02E40 · 90947-02F87 · 90947-02G32 |
| 47319F | Left rear flexible hose | 90947-02E30 · 90947-02E41 · 90947-02F87 · 90947-02G33 |
| 47321 | No. 1 rear brake pipe | 47321-12290 · 47321-12320 · 47321-12430 · 47321-12450 |
| 47322 | No. 2 rear brake pipe | 47322-12450 · 47322-12470 · 47322-12590 · 47322-12610 |
| 47323 | No. 3 rear brake pipe | 47323-12230 · 47323-47050 |
| 47324 | No. 4 rear brake pipe | 47324-12190 · 47324-47050 |
| 47351B | No. 1 Flexible Hose Bracket | 47351-12210 · 47351-12220 |
| 47352B | No. 2 Flexible Hose Bracket | 47352-12180 · 47352-12190 |
| 47371A | No. 1 brake pipe clamp | 90464-00868 |
| 47371C | No. 7 brake pipe clamp | 90461-10781 · 90461-10843 |
| 47371F | No. 10 brake pipe clamp | 90949-01D17 |
| 47371G | No. 11 brake pipe clamp | 90949-01D29 |
| 47371H | No. 12 brake pipe clamp | 90461-10837 · 90461-10843 |
| 47372 | No. 2 brake pipe clamp | 90464-00890 · 90464-00900 |
| 47373B | No. 3 brake pipe clamp | 90949-01D45 · 90949-01D68 |
| 47393 | brake pipe heat shield | 47393-20030 |
