Toyota COROLLA 制动助力器和真空管 — Figure 4703

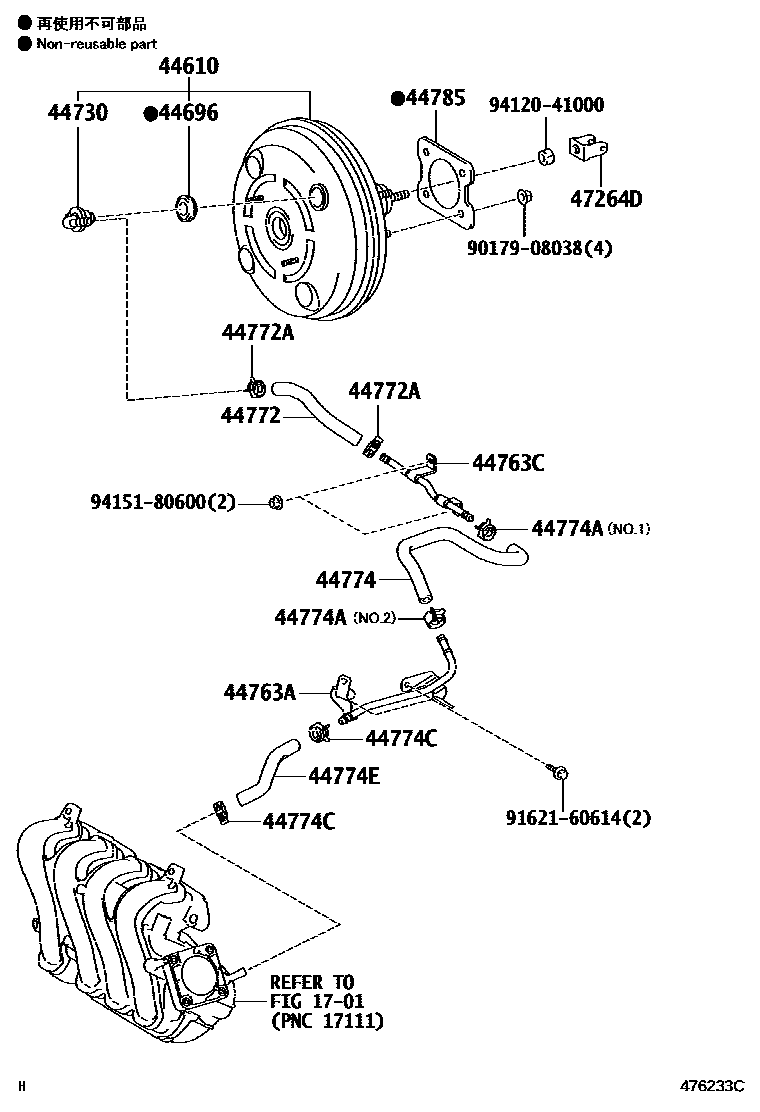

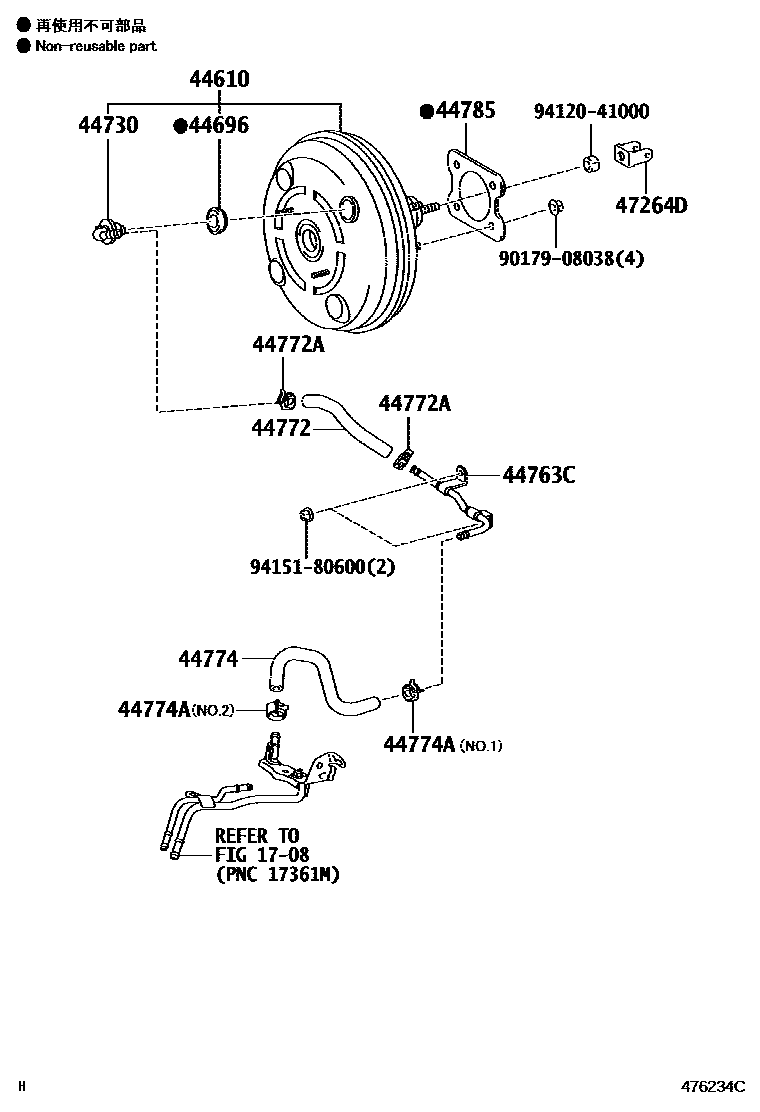

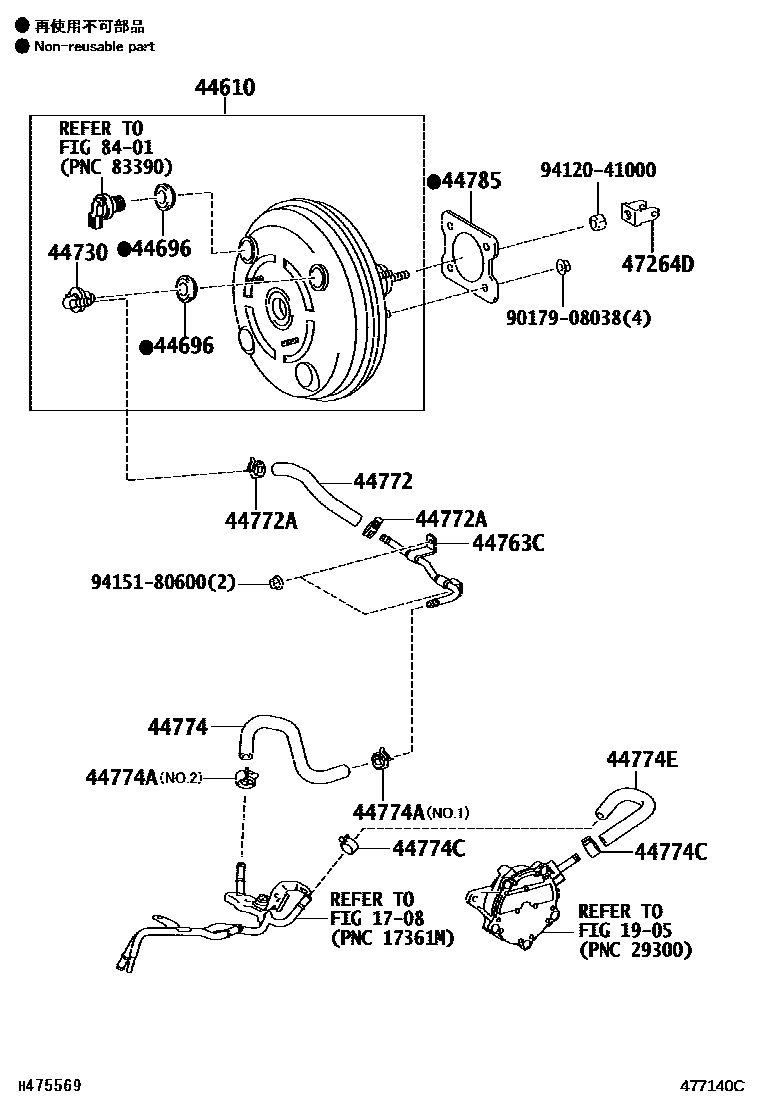

Toyota COROLLA EPC diagram 4703, 制动助力器和真空管, with 3 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44610 | brake booster assembly | 44610-12D60 · 44610-12D61 · 44610-12D70 · 44610-12D71 · 44610-12G80 · 44610-12G90 |
| 44696 | One-way valve seal | 90480-24439 |
| 44730 | Vacuum check valve assembly (for brake) | 44730-12070 |
| 44763A | Pipe No. 1 (hose to hose) | 44763-52030 |
| 44763C | Pipe No. 2 (hose to hose) | 44763-12420 · 44763-12440 |
| 44772 | Hoses (check valve to connector tube) | 44772-12600 |
| 44772A | Clip (for check valve to connector tube) | 90467-16014 · 96133-41500 |
| 44774 | Hoses (joints to connector tubes) | 44774-12560 · 44774-12600 · 44774-12601 · 44774-12820 |
| 44774A | Clip (for fitting to connector tube hose) | 90467-16014 · 96133-41500 |
| 44774C | Clip (for fitting to connector tube hose) | 96133-41500 · 96136-41801 |
| 44774E | Hoses (joints to connector tubes) | 44774-28320 · 44774-52070 |
| 44785 | brake booster pad | 44785-12040 |
| 47264D | Brake master cylinder push rod U-shaped clamp | 47264-63020 · 47264-68010 |
