Toyota COROLLA 前转向齿轮和连杆 — Figure 4505

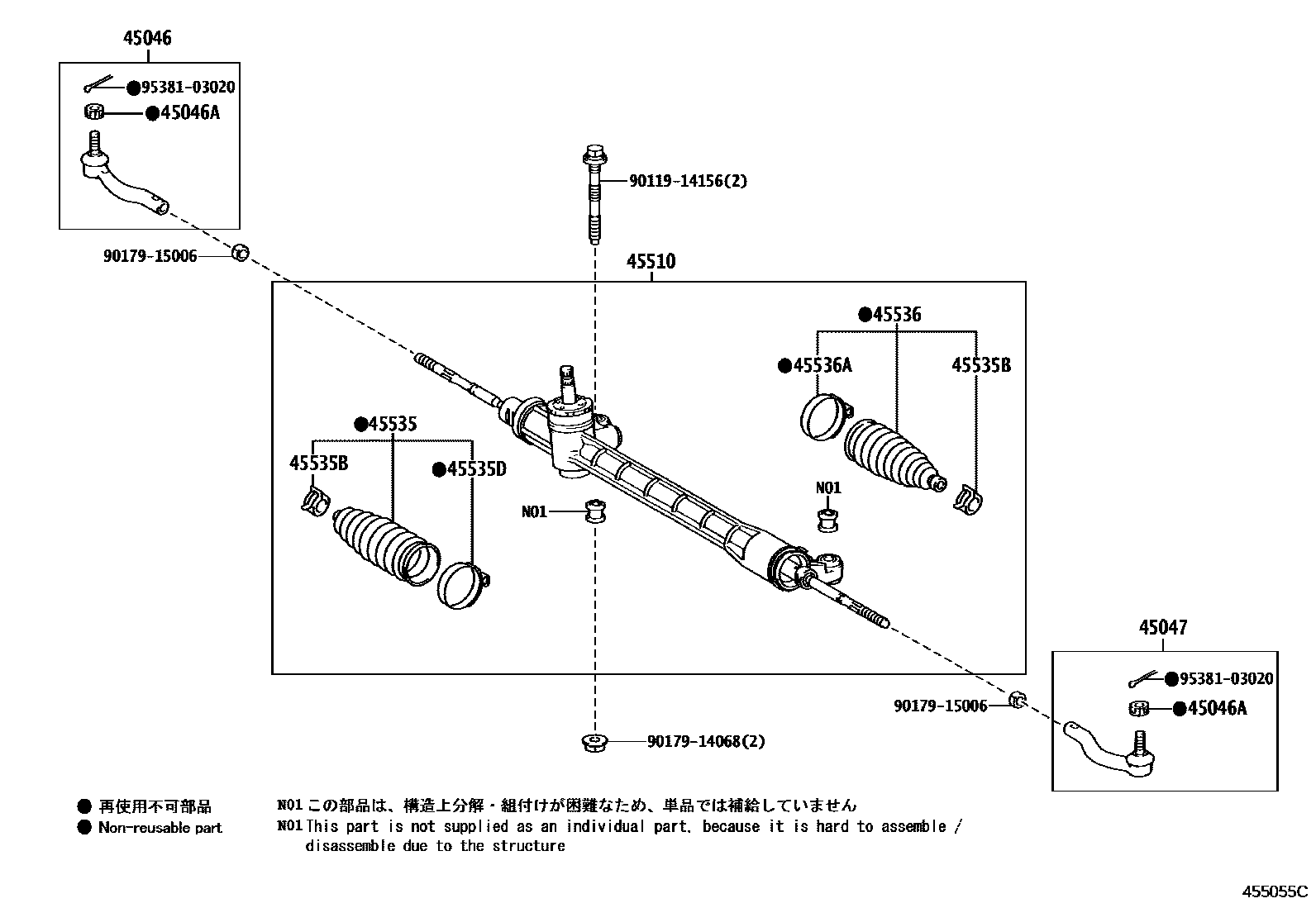

Toyota COROLLA EPC diagram 4505, 前转向齿轮和连杆, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45046 | Right tie rod end sub-assembly | 45046-19415 |
| 45046A | Castle nuts (for tie rod ends) | 90171-12028 |
| 45047 | Left tie rod end sub-assembly | 45047-19215 |
| 45510 | Steering gear assembly | 45510-12340 · 45510-12341 · 45510-12342 · 45510-12360 · 45510-12361 · 45510-12380 · 45510-12381 |
| 45535 | No. 1 steering rack dust cover | 45535-49015 |
| 45535B | Clamp (for steering rack dust boot) | 90467-19021 |
| 45535D | Clamp (for No. 1 steering rack dust boot) | 45538-47010 |
| 45536 | No. 2 steering rack dust cover | 45535-49015 |
| 45536A | Clamp (for No. 2 steering rack dust boot) | 45538-47010 |
