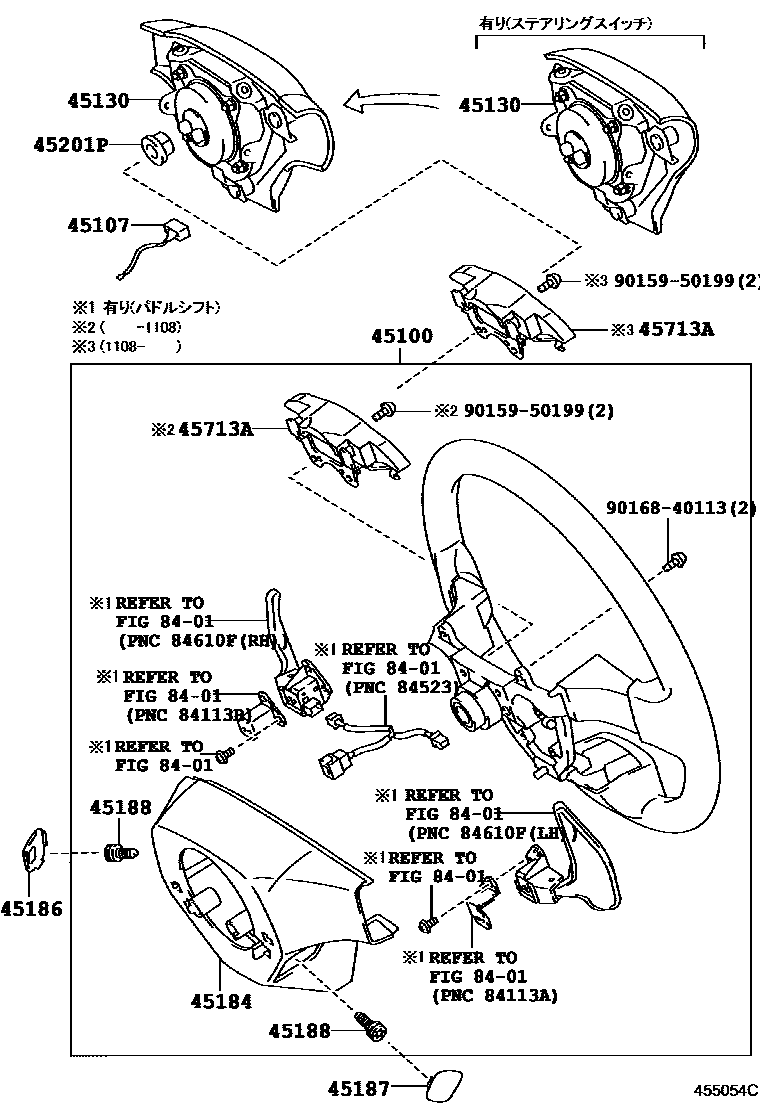

Toyota COROLLA Steering Wheel — Figure 4504
Toyota COROLLA EPC diagram 4504, Steering Wheel, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45107 | Speaker button wiring harness sub-assembly | 45107-48010 |
| 45188 | Steering wheel trim cover fixing screws | 45188-60010 |
| 45201P | Steering wheel fixing nut | 90179-12071 |
| 45713A | steering damper | 45713-12080 |
