Toyota COROLLA Steering Column & Shaft — Figure 4501

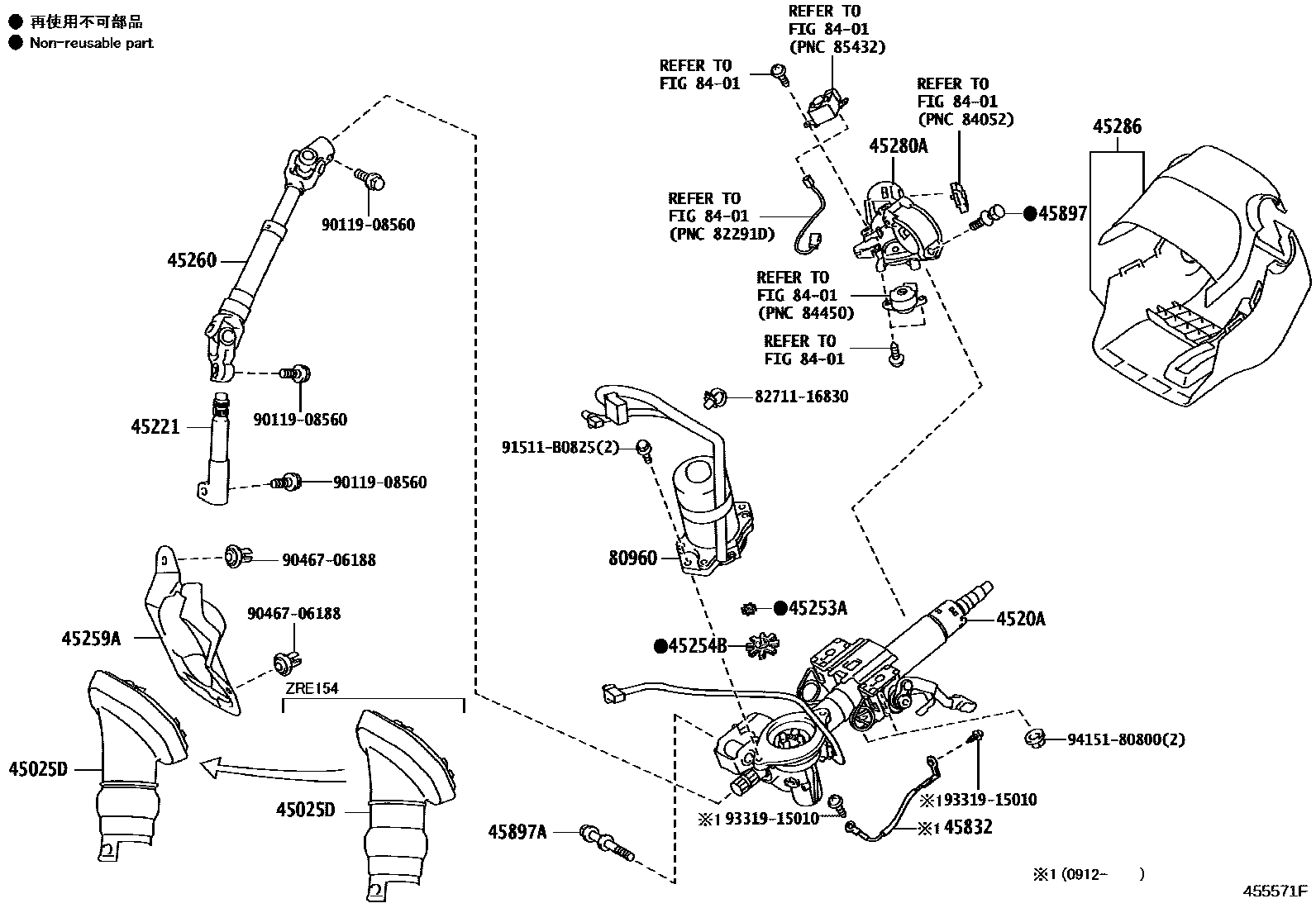

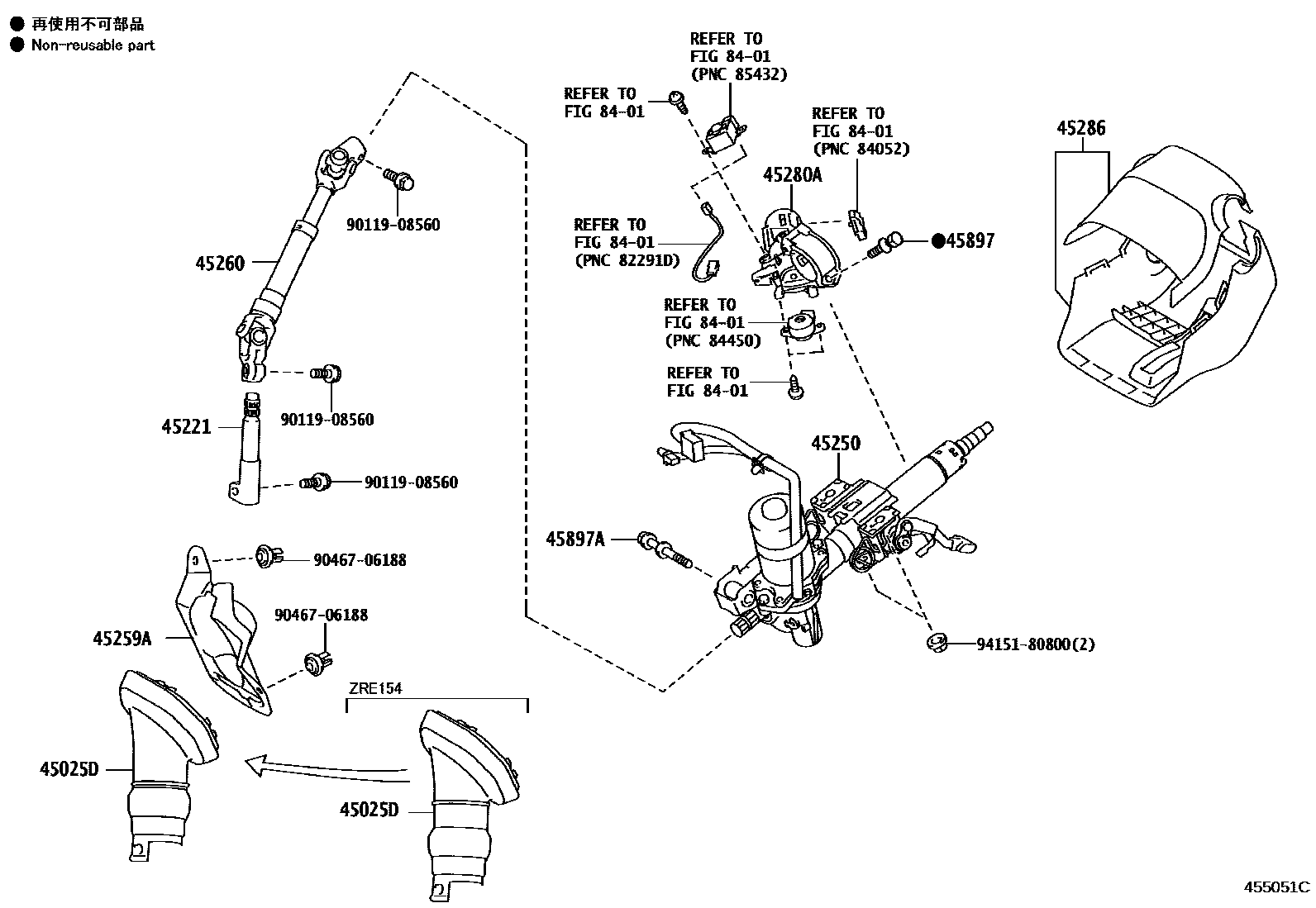

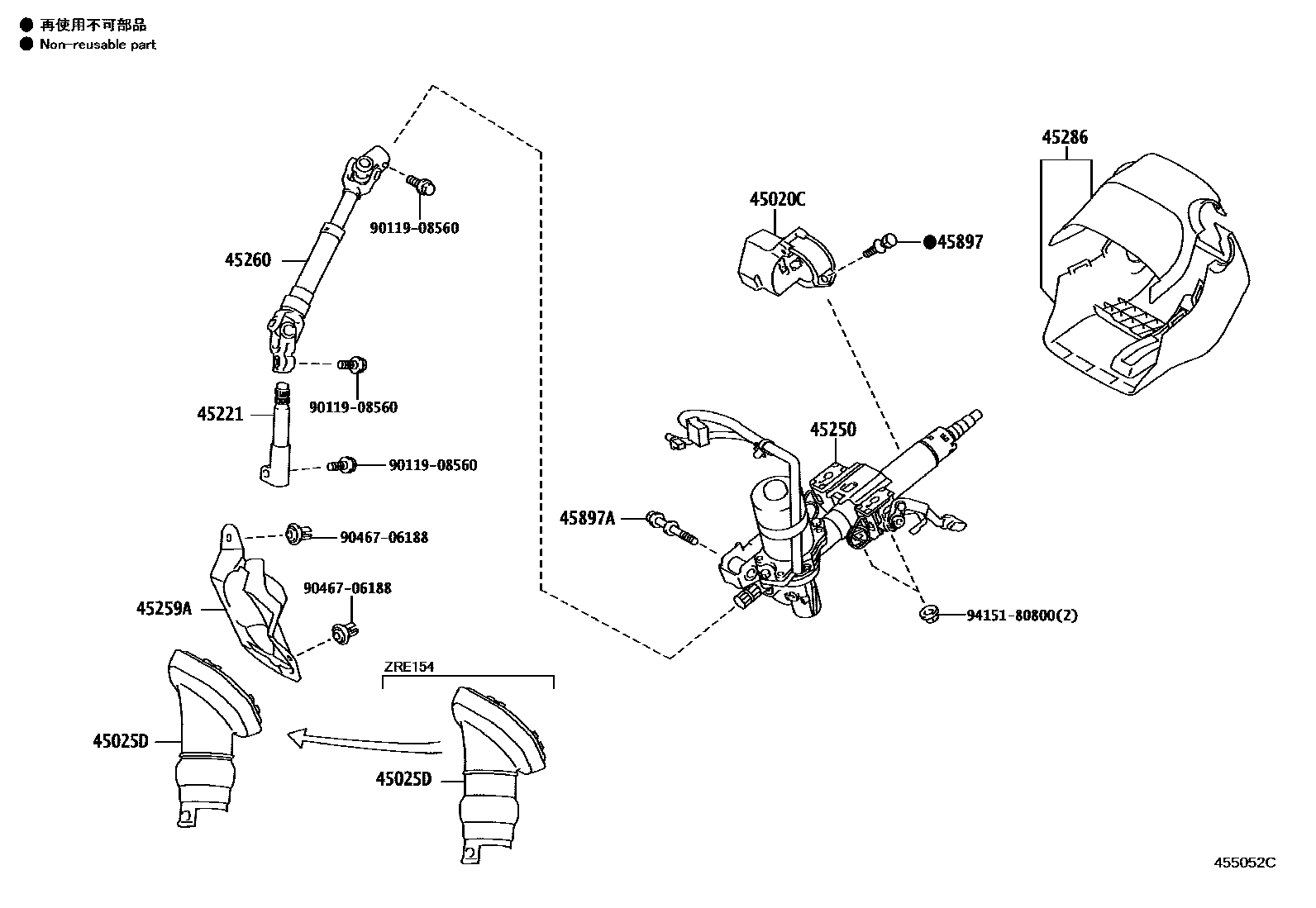

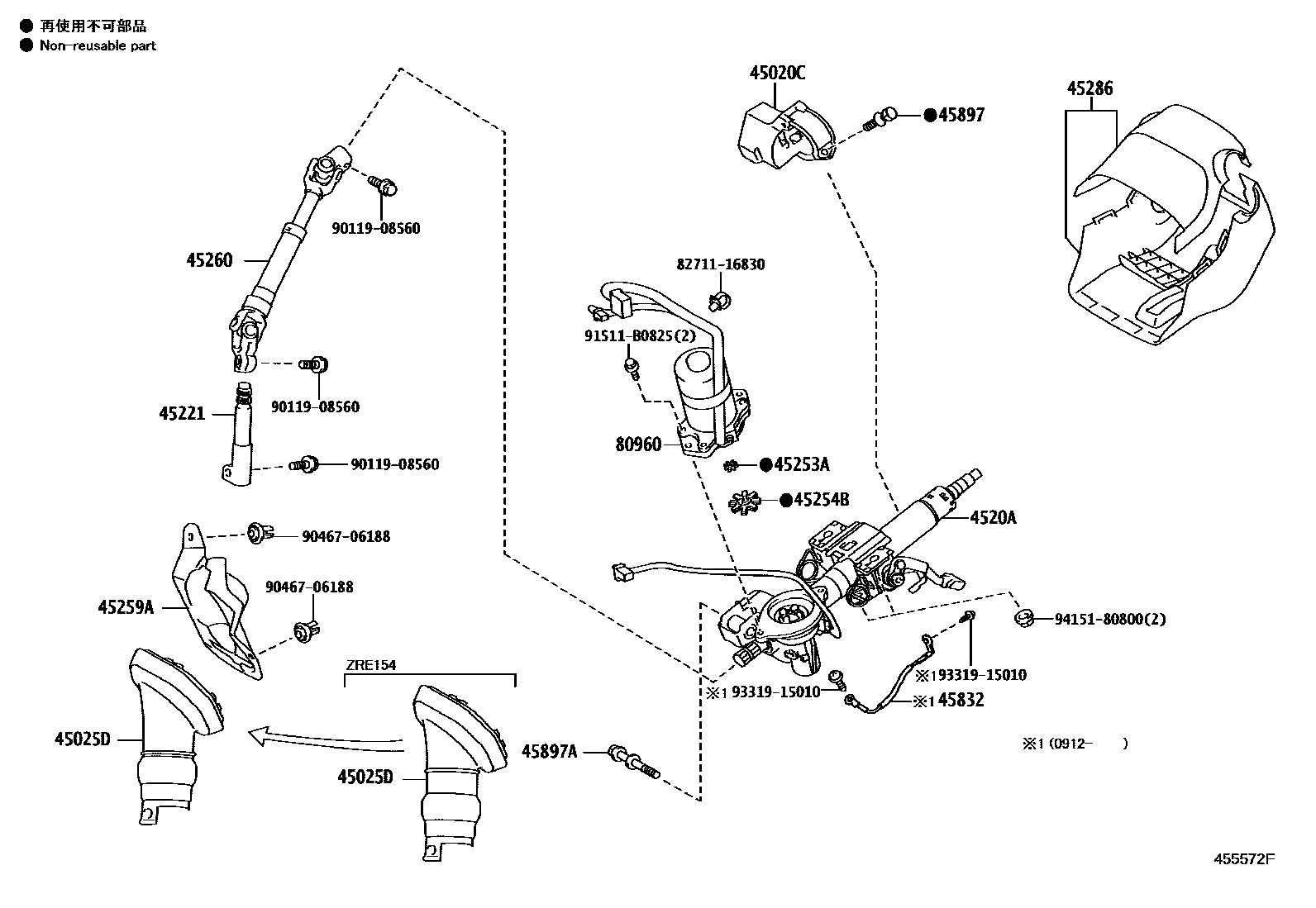

Toyota COROLLA EPC diagram 4501, Steering Column & Shaft, with 4 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45020C | Toyota part | 45020-42150 |
| 45025D | No. 1 steering column hole cover sub-assembly | 45025-12280 · 45025-12290 |
| 4520A | Electric steering column sub-assembly | 4520A-12010 · 4520A-12020 |
| 45221 | steering intermediate shaft | 45221-12330 · 45221-12340 |
| 45250 | Steering column assembly | 45250-12B41 · 45250-12B42 · 45250-12B51 · 45250-12B52 |
| 45253A | Electric steering motor shaft spacer | 45253-28130 |
| 45254B | Electric steering motor shaft shock absorber | 45254-28040 |
| 45259A | Steering column hole cover silencer plate | 45259-12050 · 45259-12060 · 45259-12120 · 45259-12130 |
| 45260 | No. 2 steering intermediate shaft assembly | 45260-12540 · 45260-12630 · 45260-12720 · 45260-76010 |
| 45280A | Steering column upper bracket assembly | 45280-42130 |
| 45832 | Tilt-adjustable steering bracket connection cable | 45832-21010 |
| 45897 | Steering lock fixing bolt | 45897-12020 |
| 45897A | Tilt-adjustable steering pawl retaining bolt | 45897-42010 · 90119-10981 |
| 80960 | Power steering motor assembly | 80960-12100 · 80960-12150 |
