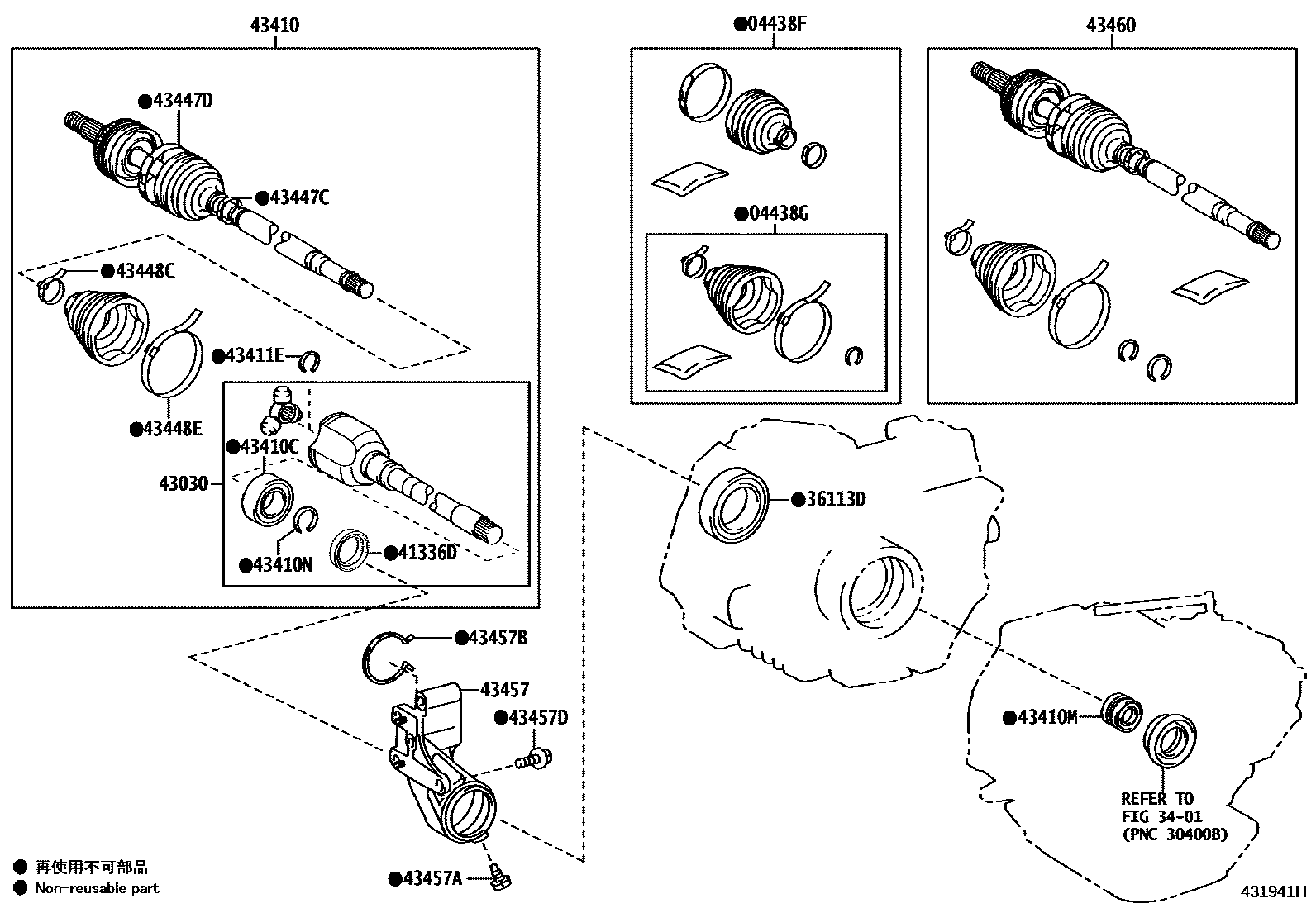

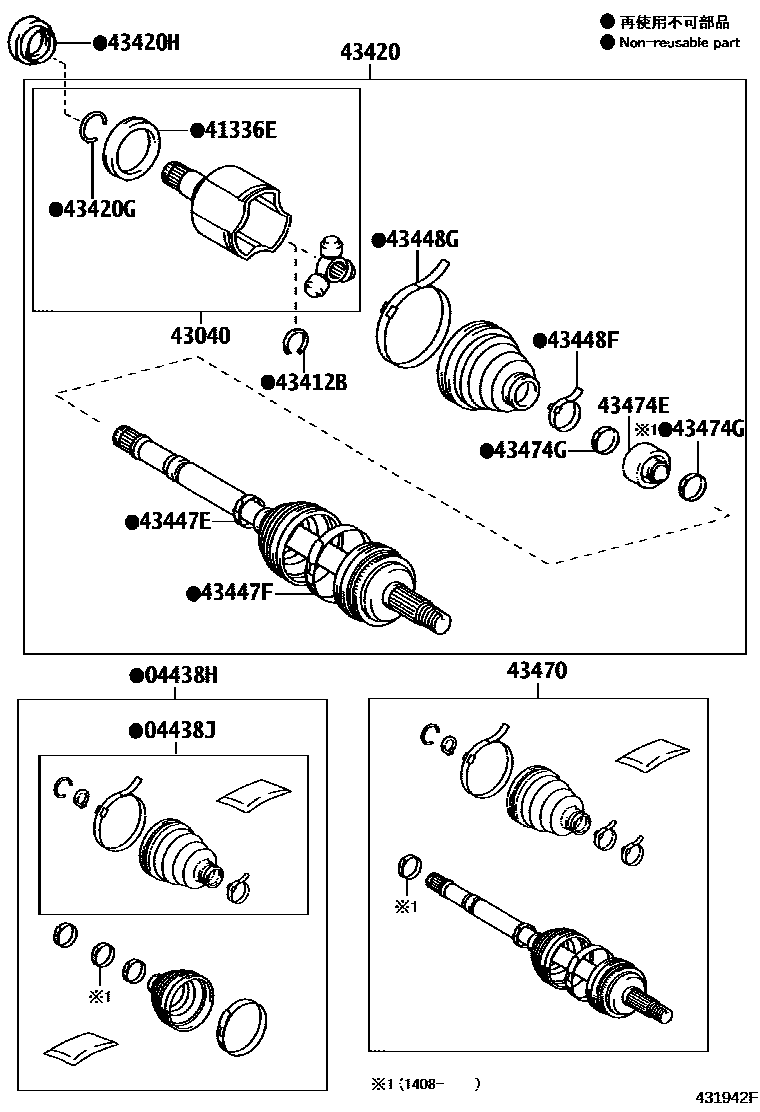

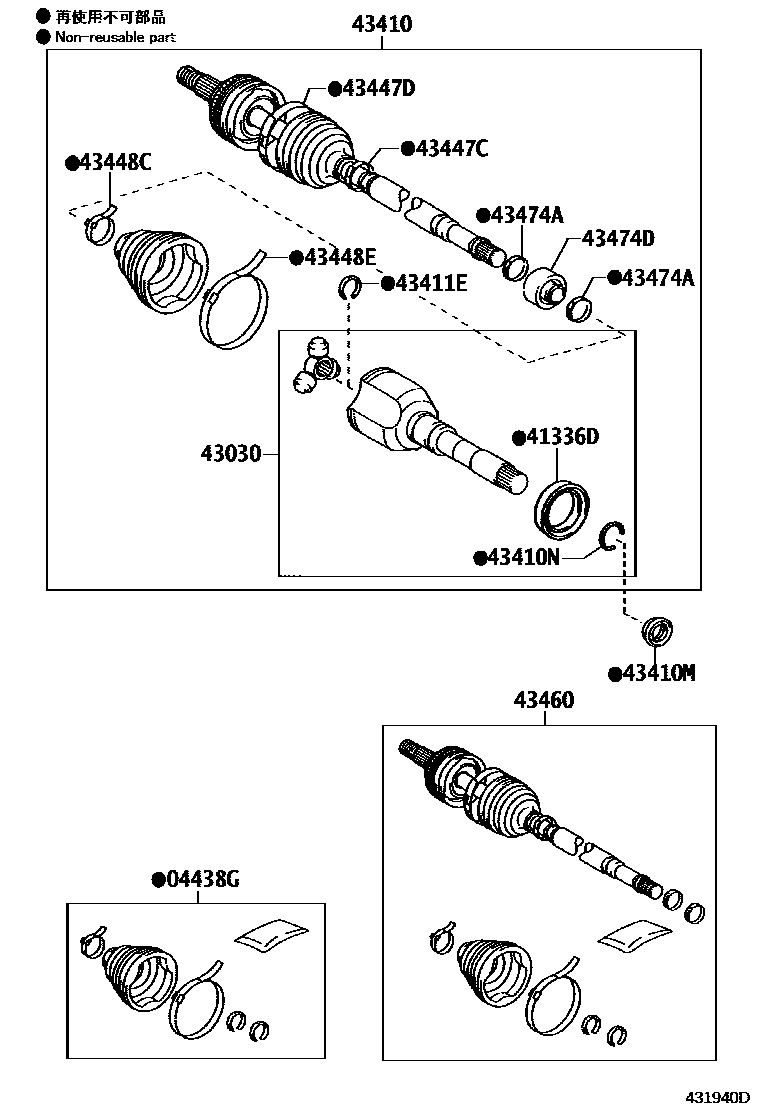

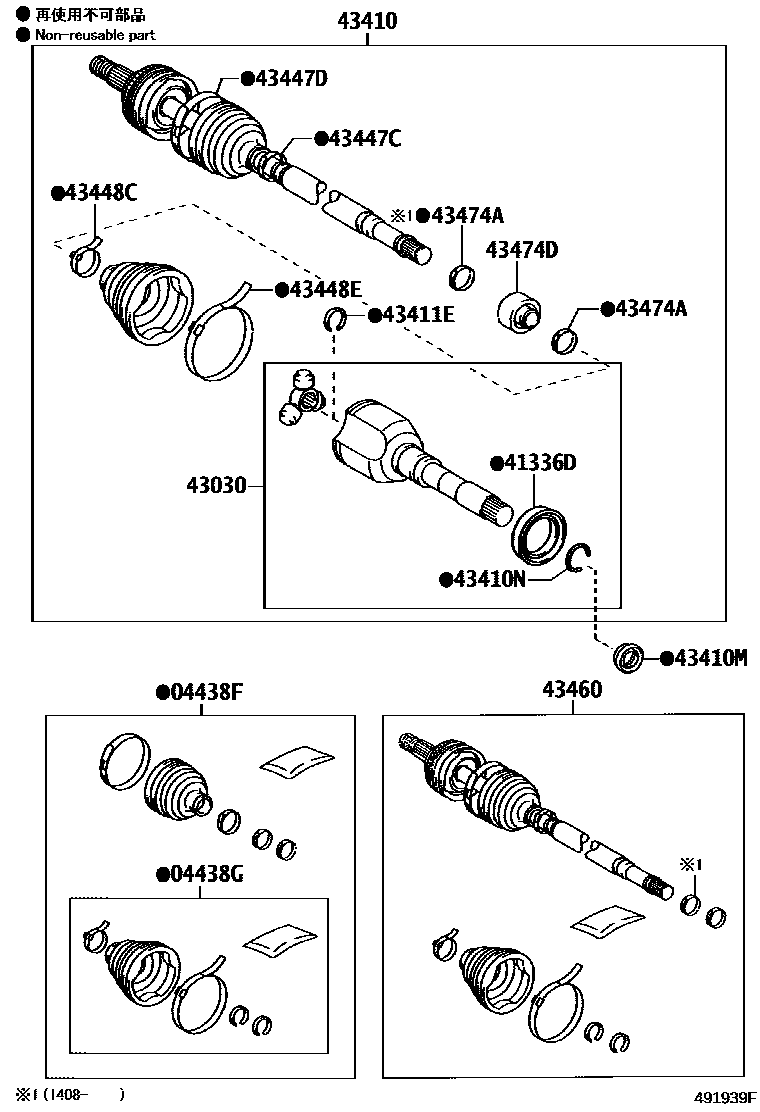

Toyota COROLLA Front Drive Shaft — Figure 4302
Toyota COROLLA EPC diagram 4302, Front Drive Shaft, with 5 images and 36 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04438F | Right front driveshaft inboard and outboard dust boot assembly | 04427-12530 · 04427-12540 · 04427-12760 · 04427-12762 · 04427-52671 · 04427-52820 · 04427-52890 · 04427-52891 |
| 04438G | Right front drive shaft inner universal joint dust boot assembly | 04437-12310 · 04437-12410 · 04437-12411 · 04437-52190 · 04437-52191 · 04437-52390 · 04438-12A00 · 04438-12A01 |
| 04438H | Left front driveshaft inboard and outboard dust boot assembly | 04427-12530 · 04427-12540 · 04427-52671 · 04427-52890 · 04427-52891 · 04428-12740 · 04428-12780 · 04428-12781 · 04428-52850 |
| 04438J | Left front drive shaft inner universal joint dust boot assembly | 04437-12310 · 04437-52190 · 04437-52191 · 04438-12A00 · 04438-12A01 |
| 36113D | Toyota part | 90311-35056 |
| 41336D | Right front driveshaft dust cover | 41336-12010 · 41336-12060 · 41336-52020 |
| 41336E | Left front driveshaft dust cover | 41336-12010 · 41336-12060 |
| 43030 | Right front drive shaft inner universal joint assembly | 43030-12130 · 43030-12131 · 43040-12120 · 43403-10011 |
| 43040 | Left front drive shaft inner universal joint assembly | 43040-12120 · 43403-10011 |
| 43410 | Right front driveshaft assembly | 43410-12740 · 43410-12760 · 43410-12780 |
| 43410C | Bearings (for front driveshaft) | 90363-36006 |
| 43410M | Toyota part | 90311-34035 · 90311-34046 · 90311-35055 · 90311-35069 · 90316-28003 |
| 43410N | Hole snap ring (for right front driveshaft) | 90520-33008 · 90521-26004 · 90521-27005 |
| 43411E | Inner shaft snap ring (for right front axle inner drive shaft) | 43425-12070 · 90520-22001 |
| 43412B | Inner shaft snap ring (for left front axle inner drive shaft) | 43425-12070 · 90520-22001 |
| 43420 | Left front drive shaft assembly | 43420-12680 · 43420-12700 |
| 43420G | Hole snap ring (for left front driveshaft) | 90521-26004 · 90521-27005 |
| 43420H | Toyota part | 90311-34036 · 90311-34043 · 90311-35054 · 90311-35068 |
| 43447C | Clamp (for the outer universal joint dust cover of the right front axle) | 42345-12230 · 42345-52260 |
| 43447D | No. 2 clip (for the universal joint dust cover on the outside of the right front axle) | 42345-12240 · 42345-52250 |
| 43447E | Clamp (for left front axle outer universal joint dust cover) | 42345-12230 · 42345-52260 |
| 43447F | No. 2 clip (for left front axle outer universal joint dust cover) | 42345-12240 · 42345-52250 |
| 43448C | Clamp (for the universal joint dust cover inside the right front axle) | 42345-12230 · 90949-01078 |
| 43448E | No. 2 clip (for the universal joint dust cover inside the right front axle) | 42345-12180 · 90949-01146 |
| 43448F | Clamp (for left front axle inner universal joint dust cover) | 42345-12230 · 90949-01078 |
| 43448G | Clamp No. 2 (for the universal joint dust cover inside the left front axle) | 42345-12180 · 90949-01146 |
| 43457 | drive shaft bearing bracket | 43457-12070 |
| 43457A | Bolts (for securing the No. 1 drive shaft bearing bracket) | 90119-10461 |
| 43457B | Hole snap ring (for drive shaft bearing bracket) | 90521-75002 |
| 43457D | Bolts (for securing the No. 2 drive shaft bearing bracket) | 90105-10381 |
| 43460 | Right front outer drive universal joint shaft assembly | 43460-80069 · 43460-80071 · 43460-80129 · 43460-80153 · 43460-80158 · 43460-80167 · 43470-80134 · 43470-80274 · 43470-80316 · 43470-80370 |
| 43470 | Left front outer drive universal joint shaft assembly | 43470-80129 · 43470-80134 · 43470-80295 · 43470-80317 · 43470-80346 · 43470-80347 · 43470-80368 |
| 43474A | Clamp (for securing driveshaft damper) | 42345-12100 · 42345-14010 |
| 43474D | Right front driveshaft shock absorber | 43474-12140 · 43474-52030 |
| 43474E | Left front driveshaft shock absorber | 43474-12170 |
| 43474G | Clamp (for left front driveshaft shock absorber) | 42345-14010 |
