Toyota COROLLA Transfer Case & Extension Housing — Figure 3609

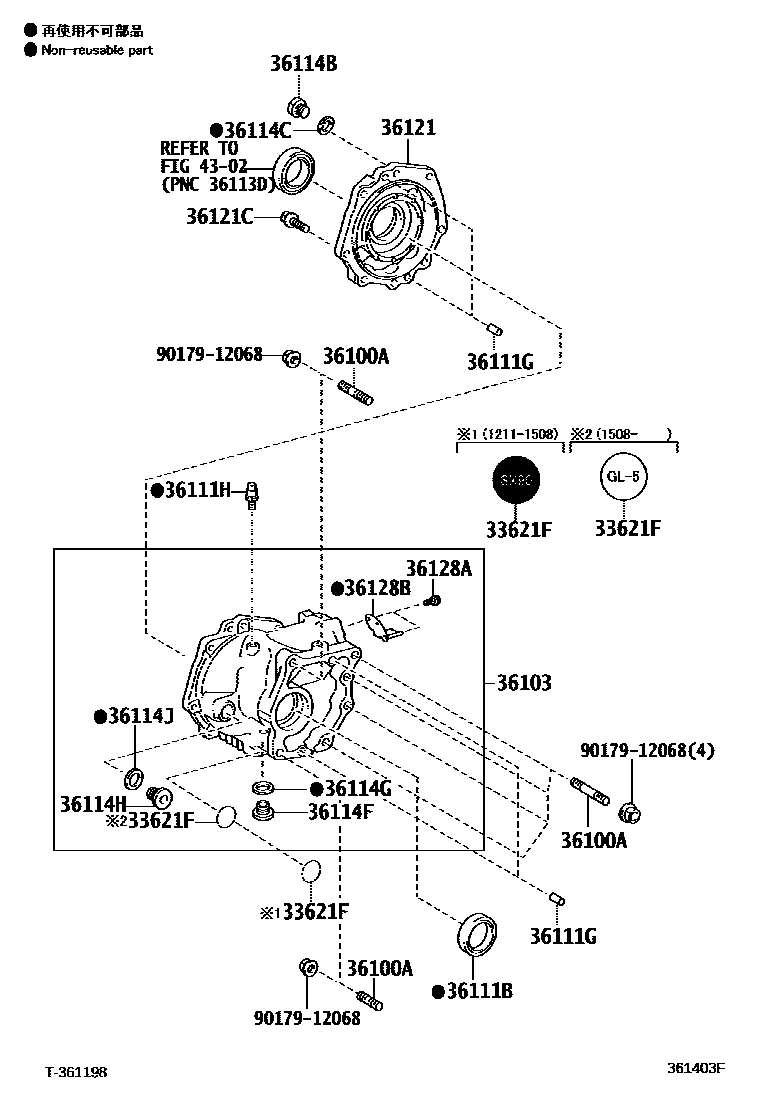

Toyota COROLLA EPC diagram 3609, Transfer Case & Extension Housing, with 1 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33621F | Transaxle oil information label | 33621-42040 · 33621-48020 |
| 36100A | Stud bolts (for securing transfer case and transaxle) | 90116-12028 · 90116-12034 · 90116-12041 |
| 36103 | Transfer case sub-assembly | 36103-42050 · 36103-42051 · 36103-52010 |
| 36111B | Oil seal (for transfer case) | 90311-49001 |
| 36111G | Direct sales (for transfer case) | 90250-10017 |
| 36111H | Breather plug (for transfer case) | 90930-03133 |
| 36114B | No. 1 screw plug (for transfer case) | 90341-18006 |
| 36114C | No. 1 gasket (for transfer case) | 12157-10010 |
| 36114F | Screw plug (for transfer case oil drain) | 90341-18051 |
| 36114G | Gasket (for transfer case drain plug) | 12157-10010 |
| 36114H | No. 2 screw plug (for transfer case) | 90341-18023 |
| 36114J | No. 2 gasket (for transfer case) | 12157-10010 |
| 36121 | No. 1 transfer case cover | 36121-52020 |
| 36121C | Hexagon head bolt with washer base (for transfer case cover) | 91552-81030 |
| 36128A | Bolt (for vent oil deflector) | 91621-60614 |
| 36128B | Air vent oil baffle | 36128-52010 |
