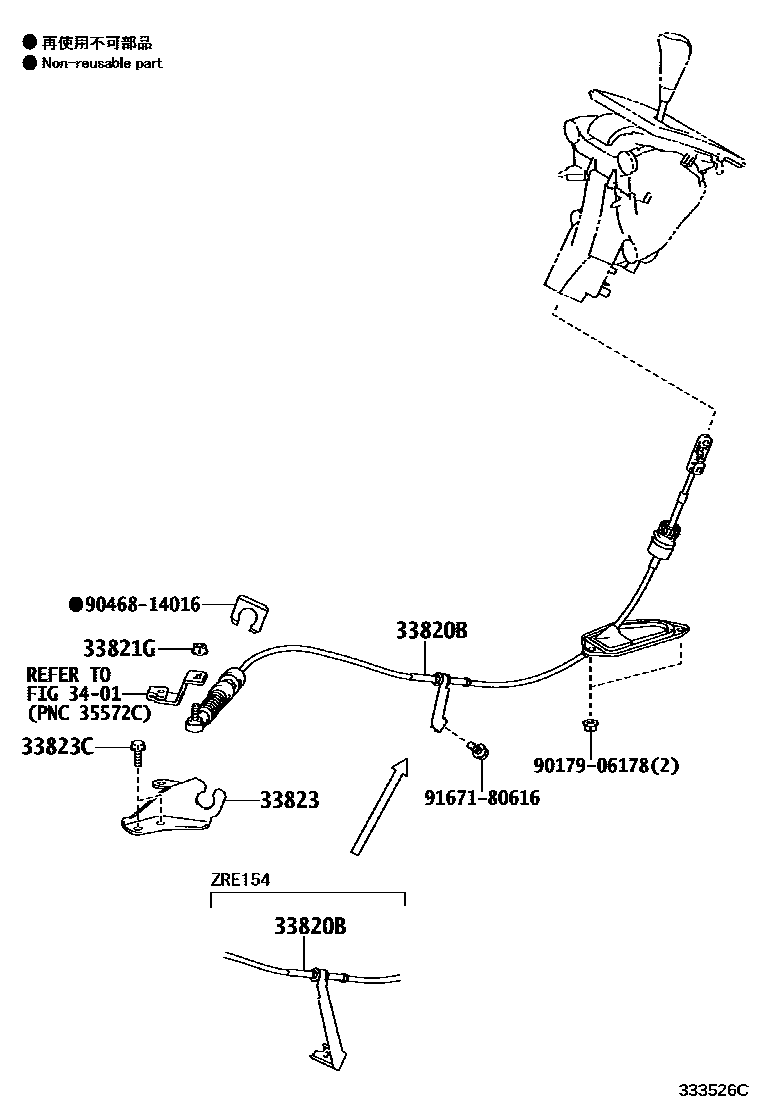

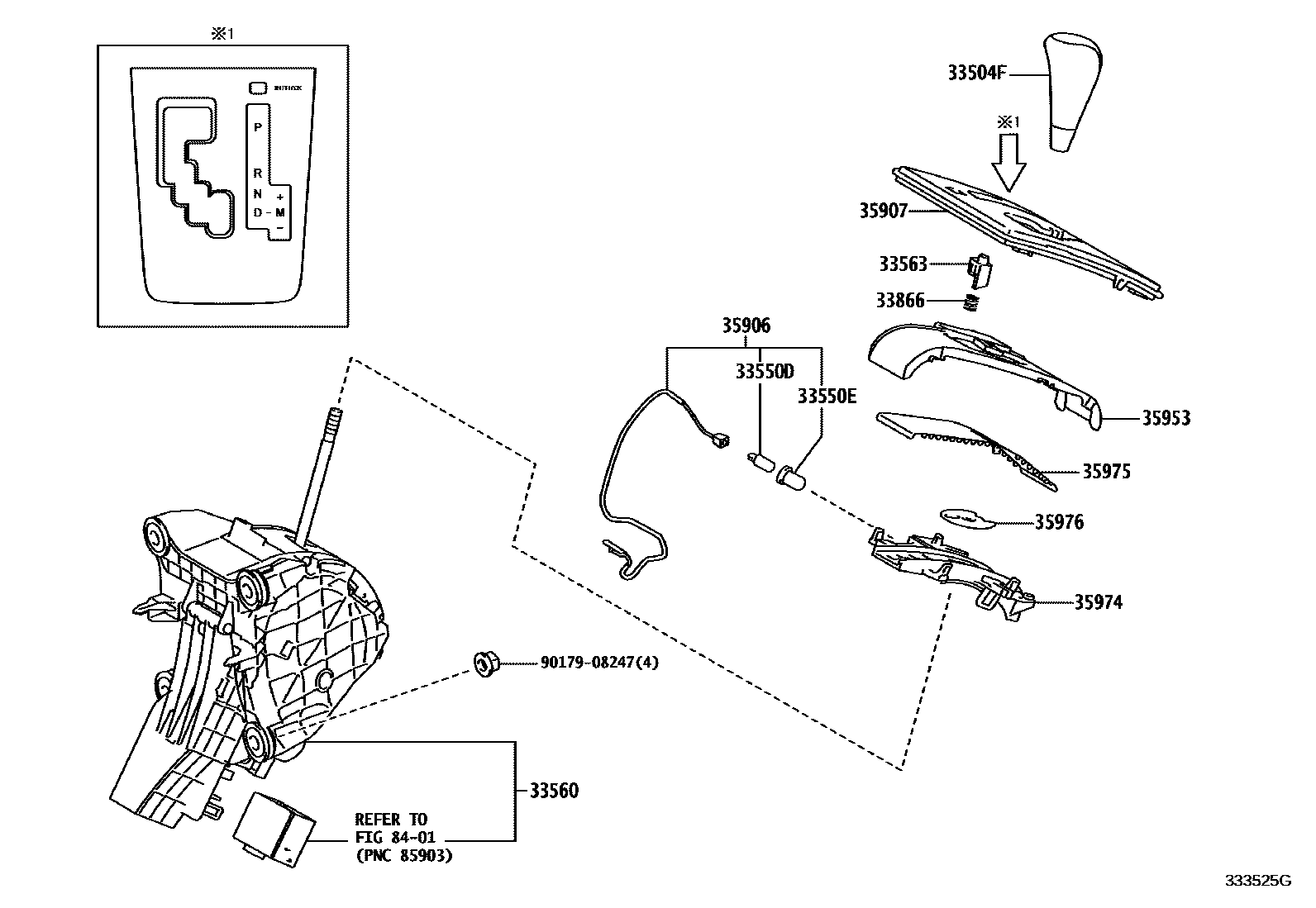

Toyota COROLLA Shift Lever & Retainer — Figure 3312
Toyota COROLLA EPC diagram 3312, Shift Lever & Retainer, with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33550D | position indicator light bulb | 90981-11018 |
| 33550E | position indicator cover | 35956-12020 |
| 33560 | Shift lock control unit assembly | 33560-12300 · 33560-12310 · 33560-12320 · 33560-12350 |
| 33563 | Shift lock release button | 33563-12280 |
| 33820B | Transmission control cable assembly | 33820-12D60 · 33820-12D70 · 33820-12G30 |
| 33821G | Nut (for transmission control cable) | 90179-08040 · 94151-80800 |
| 33823 | No. 1 transmission control cable bracket | 33823-12190 |
| 33823C | Bolt (for transmission control cable bracket) | 90119-08079 · 91611-B0816 |
| 33866 | Shift lock release spring | 33866-12050 |
| 35906 | Indicator light wiring harness sub-assembly | 35906-12280 |
| 35907 | Position indicator light housing sub-assembly (for floor shift) | 35907-12040 · 35907-12320 · 35907-12330 · 35907-12370 · 35907-12450 · 35907-12540 |
| 35953 | Position indicator light guide | 35953-12120 |
| 35974 | Position indicator light lower shell | 35974-12290 |
| 35975 | Slide cover (for position indicator light) | 35975-52090 |
| 35976 | Slide No. 2 (for position indicator light) | 35976-52090 |
