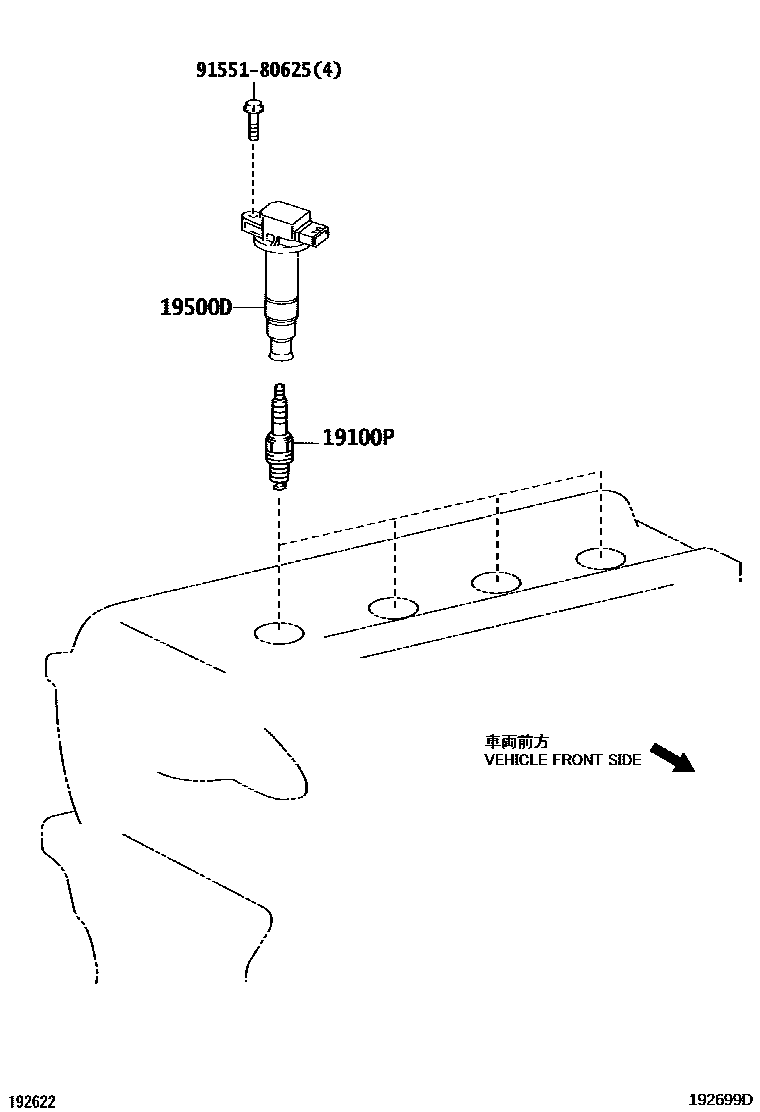

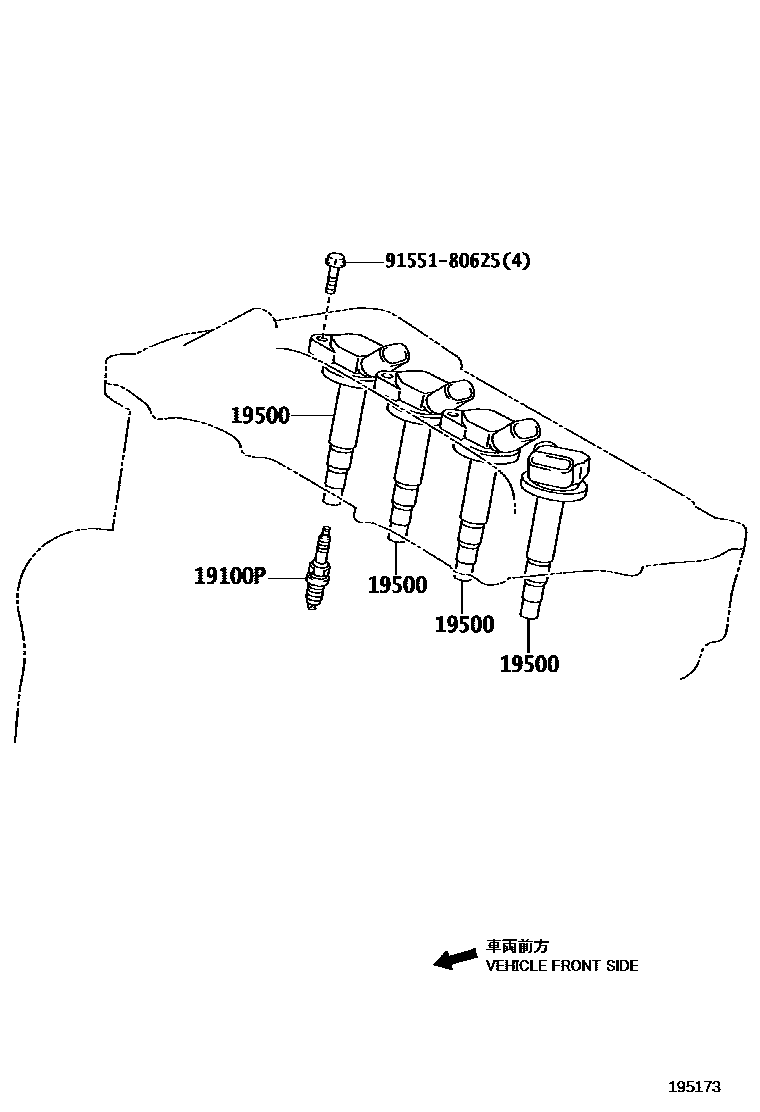

Toyota COROLLA 点火线圈和火花塞 — Figure 1901
Toyota COROLLA EPC diagram 1901, 点火线圈和火花塞, with 2 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 19100P | spark plug | 90919-01243 · 90919-01253 · 90919-01275 |
| 19500 | Ignition coil assembly | 90919-02252 · 90919-02258 |
| 19500D | No. 1 ignition coil | 90919-02248 · 90919-02260 |
