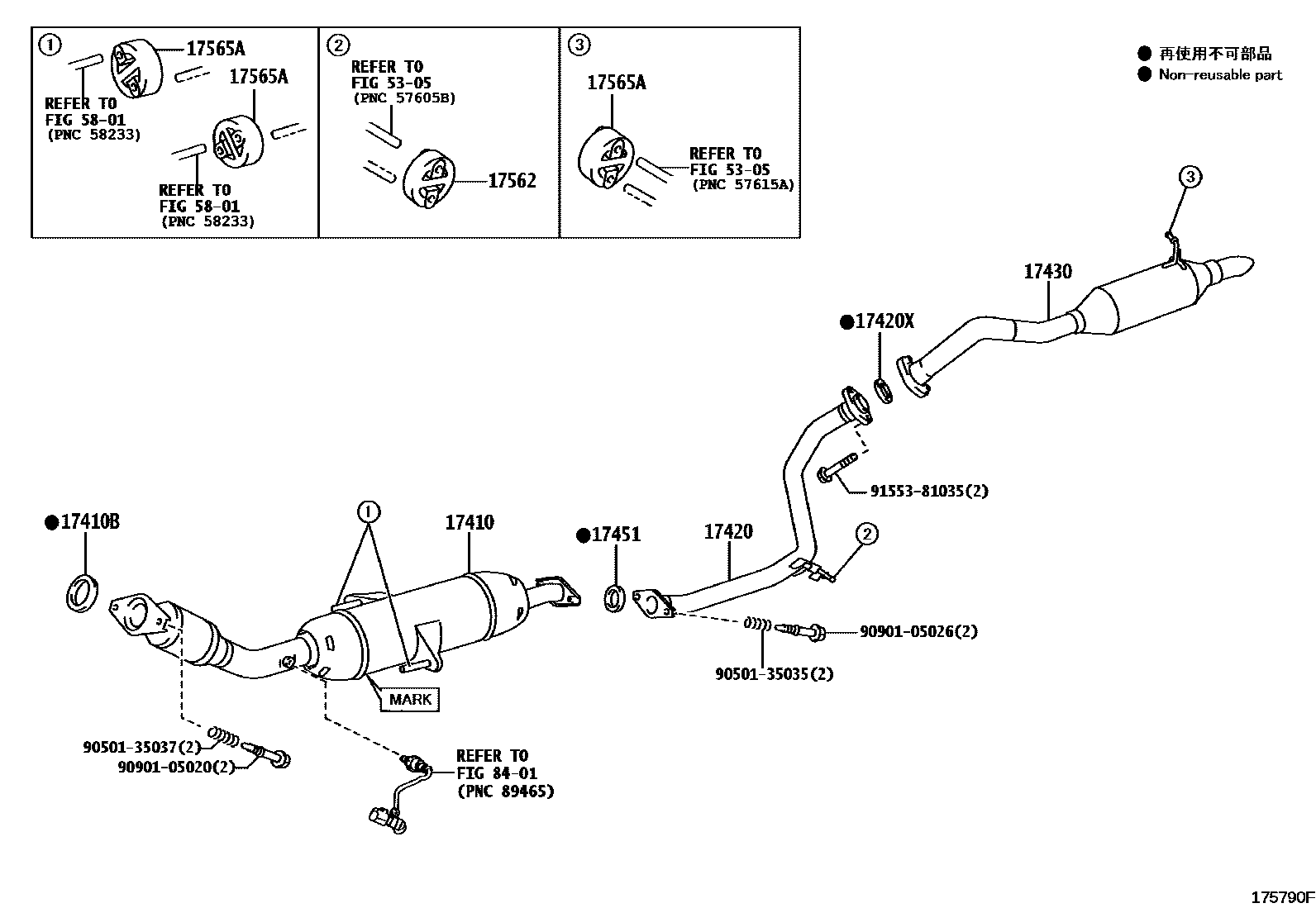

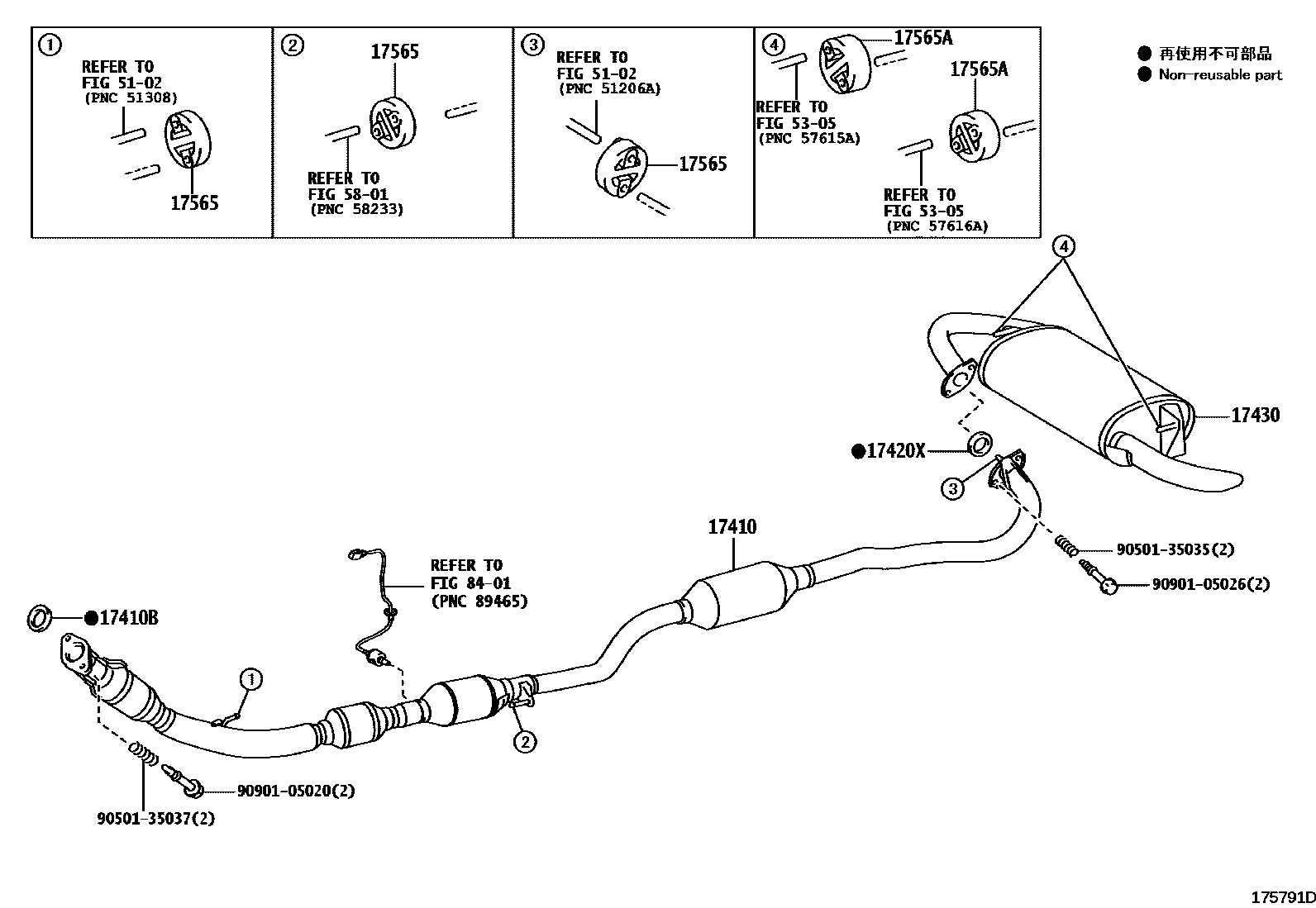

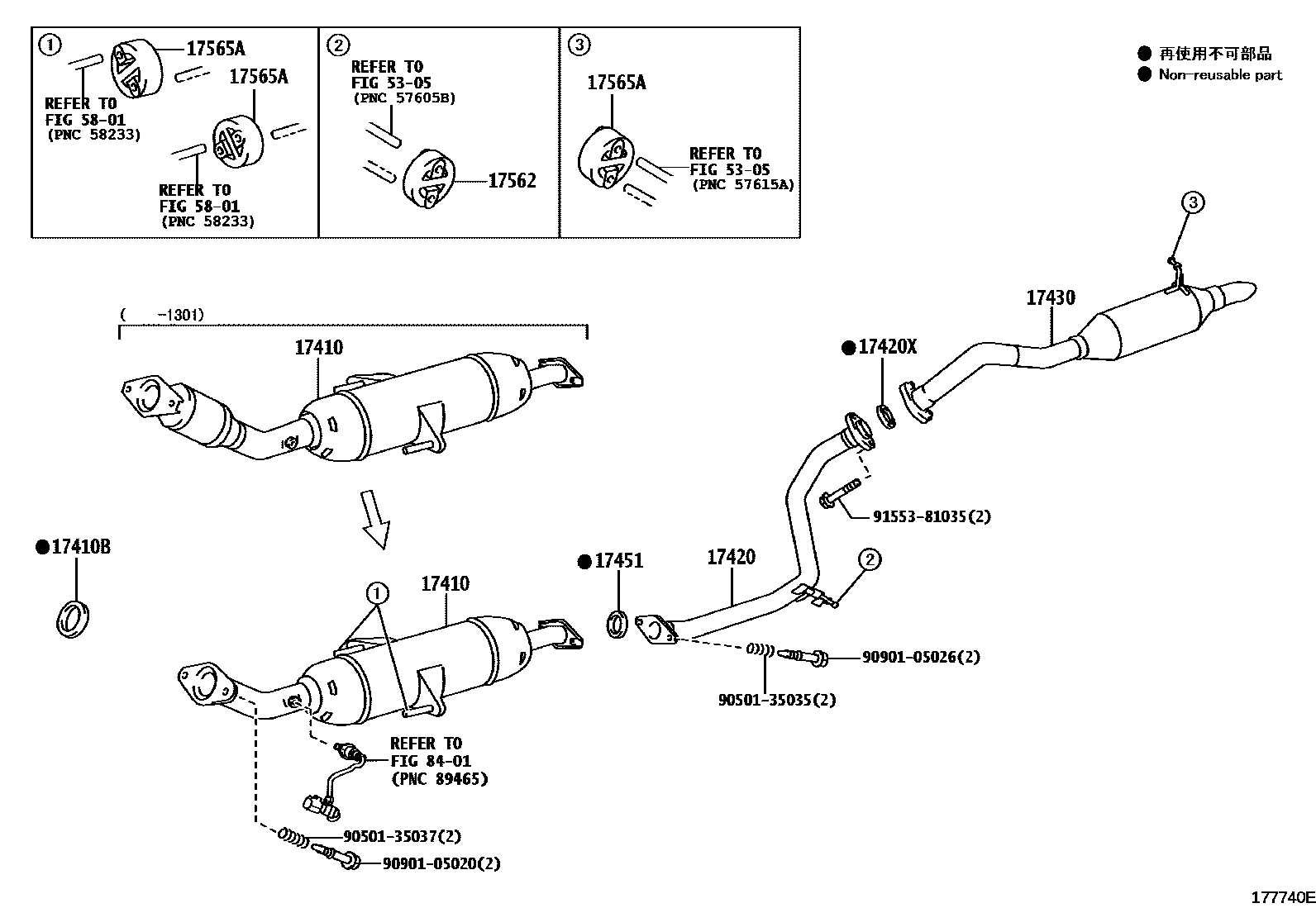

Toyota COROLLA Exhaust Pipe — Figure 1702
Toyota COROLLA EPC diagram 1702, Exhaust Pipe, with 3 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17410 | Front exhaust pipe assembly | 17410-21710 · 17410-21750 · 17410-21C60 · 17410-22581 · 17410-37170 · 17410-37290 · 17410-37340 · 17410-37610 · 17410-37831 |
| 17410B | Exhaust pipe gasket | 17451-21070 · 17451-28040 |
| 17420 | Central exhaust pipe assembly | 17420-21180 · 17420-22110 |
| 17420X | Center exhaust pipe liner | 17451-28030 · 17451-28031 · 17451-28032 · 90917-06044 · 90917-06089 |
| 17430 | Exhaust tailpipe assembly | 17430-21660 · 17430-21661 · 17430-22500 · 17430-22501 · 17430-22510 · 17430-37440 · 17430-37441 |
| 17451 | Exhaust pipe gasket | 17451-23041 · 17451-23042 · 17451-28030 · 17451-28031 · 17451-28032 |
| 17562 | No. 2 exhaust pipe lifting lug | 17565-22030 |
| 17565 | No. 5 exhaust pipe lifting lug | 17565-22030 |
| 17565A | No. 4 exhaust pipe lifting lug | 17565-22040 · 17565-28010 |
