Toyota COROLLA RADIATOR & WATER OUTLET — Figure 1603

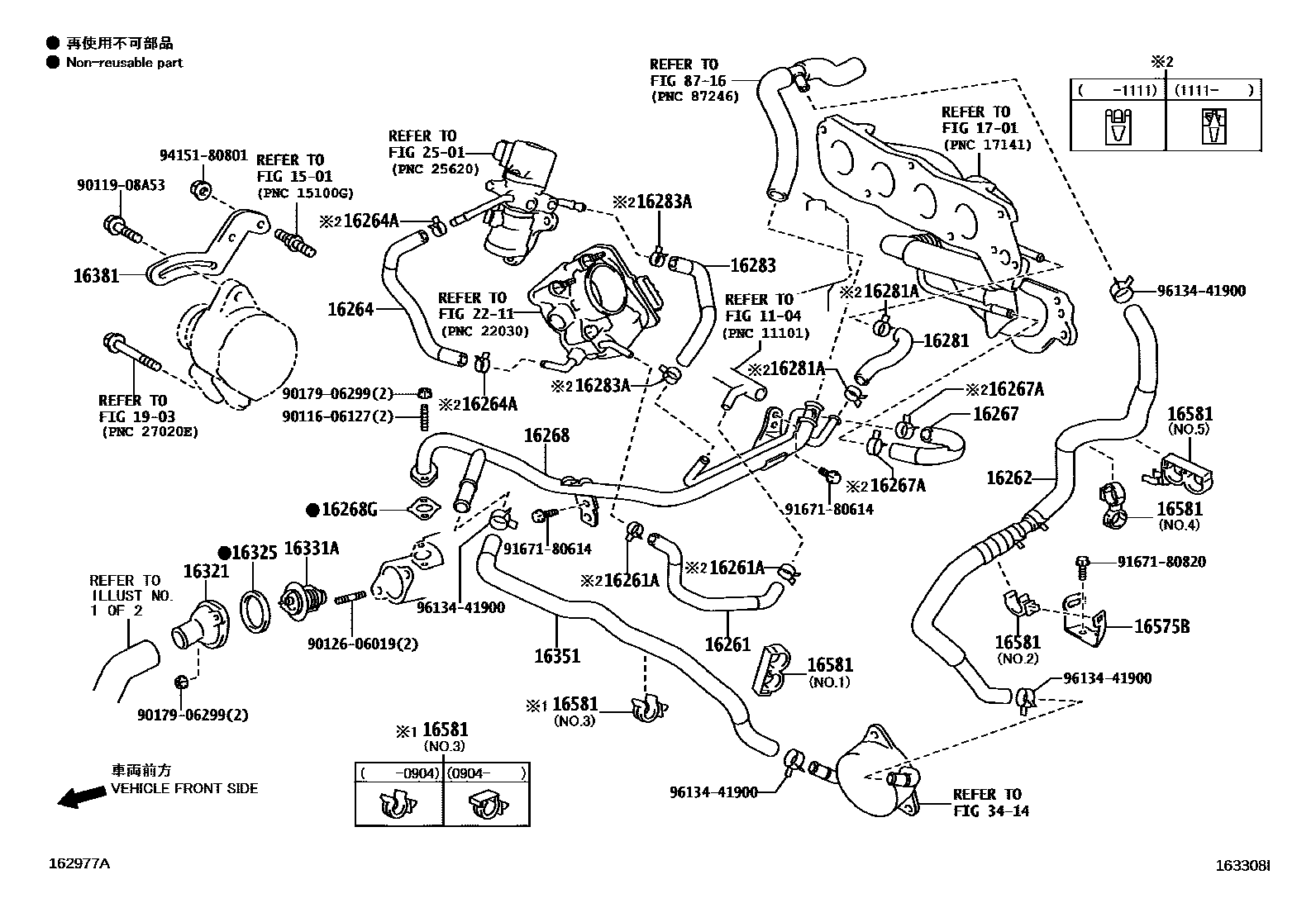

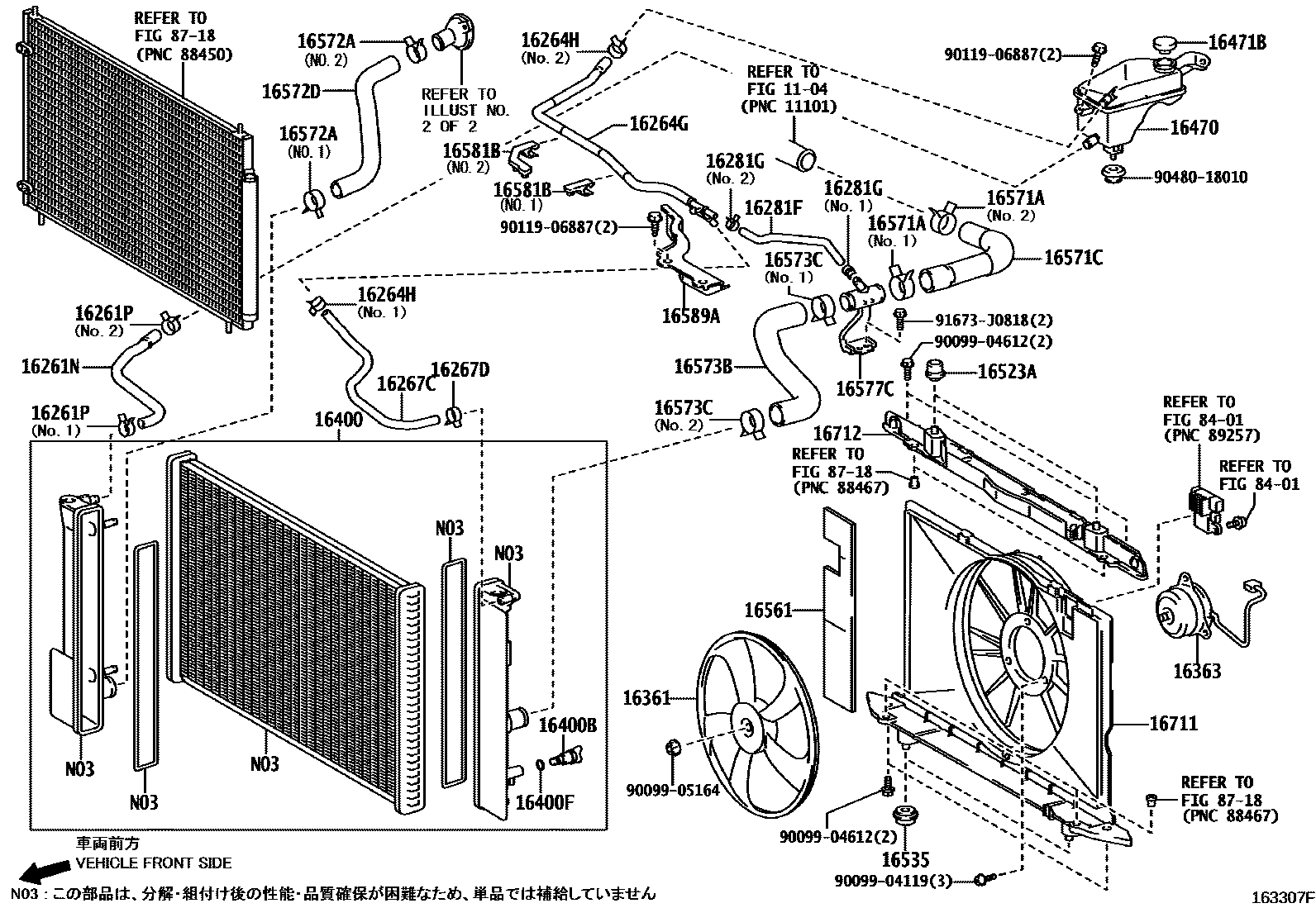

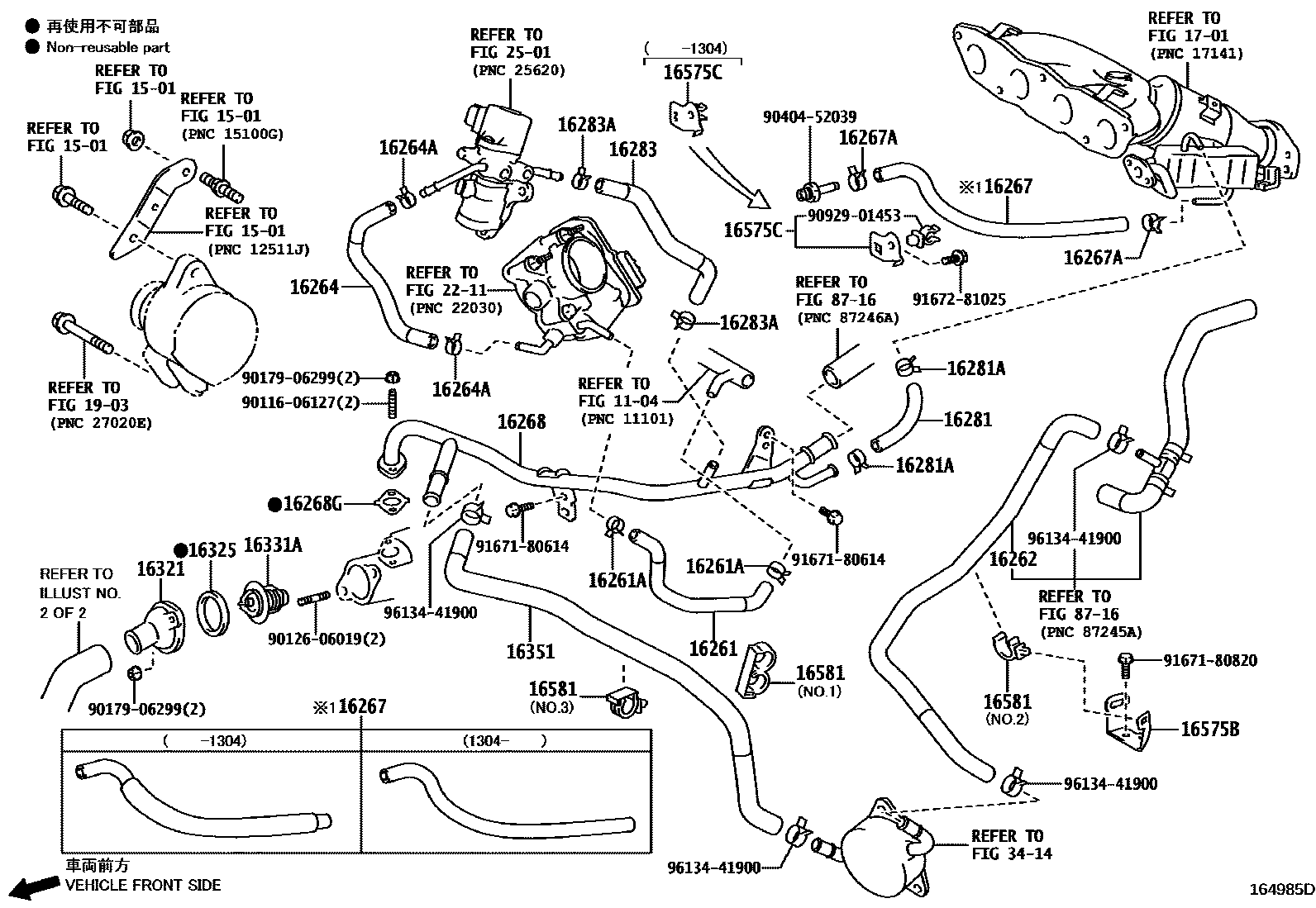

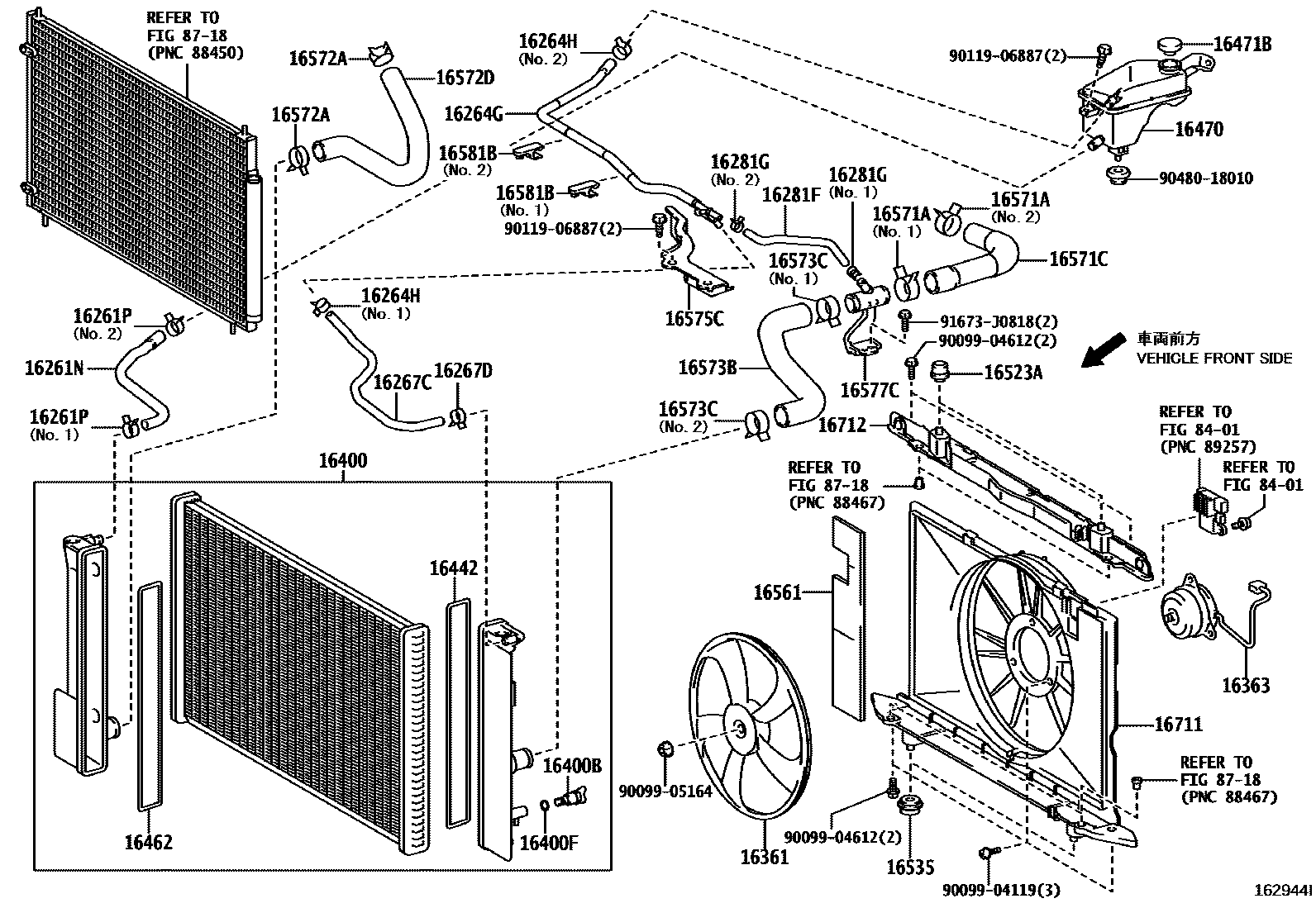

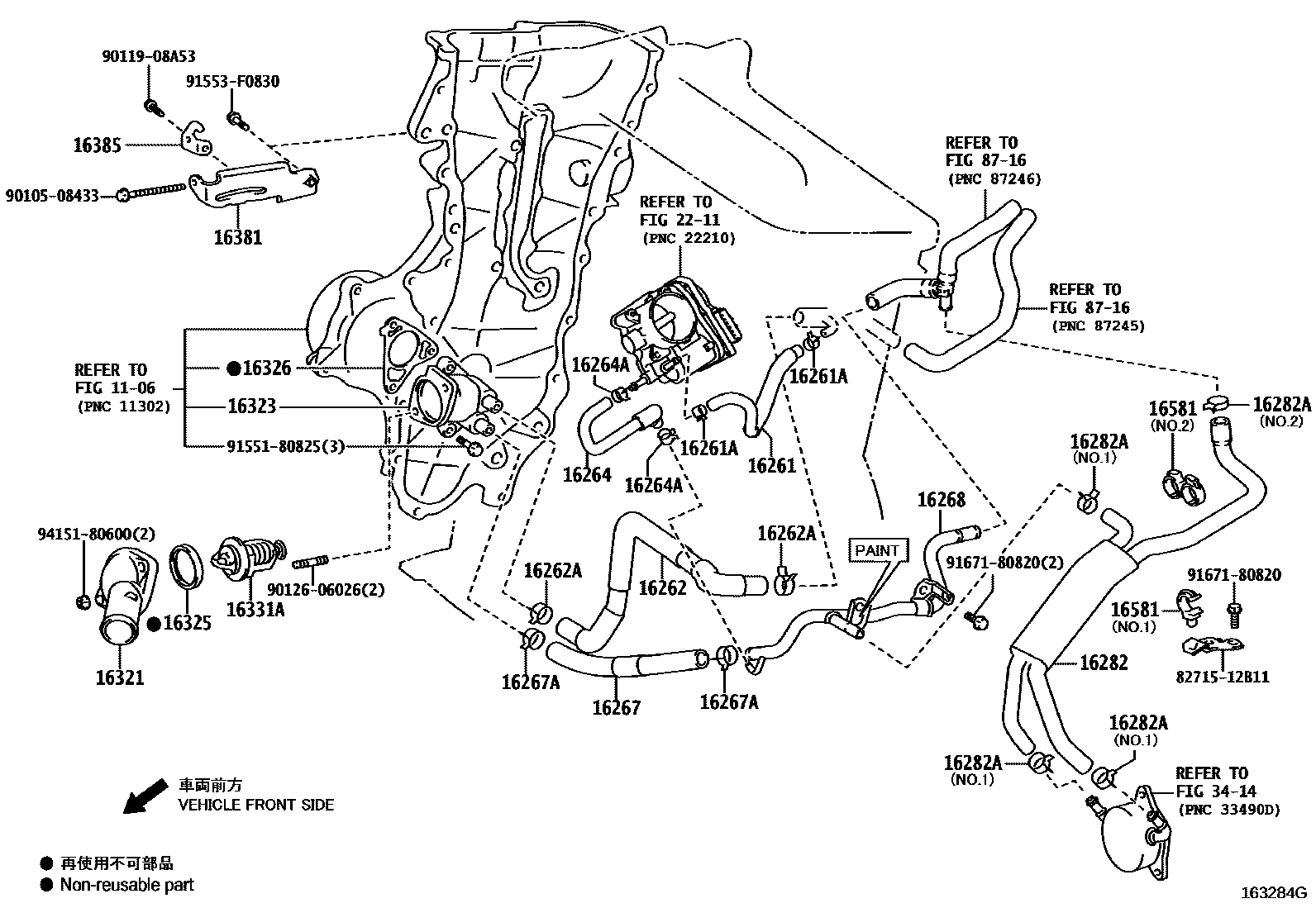

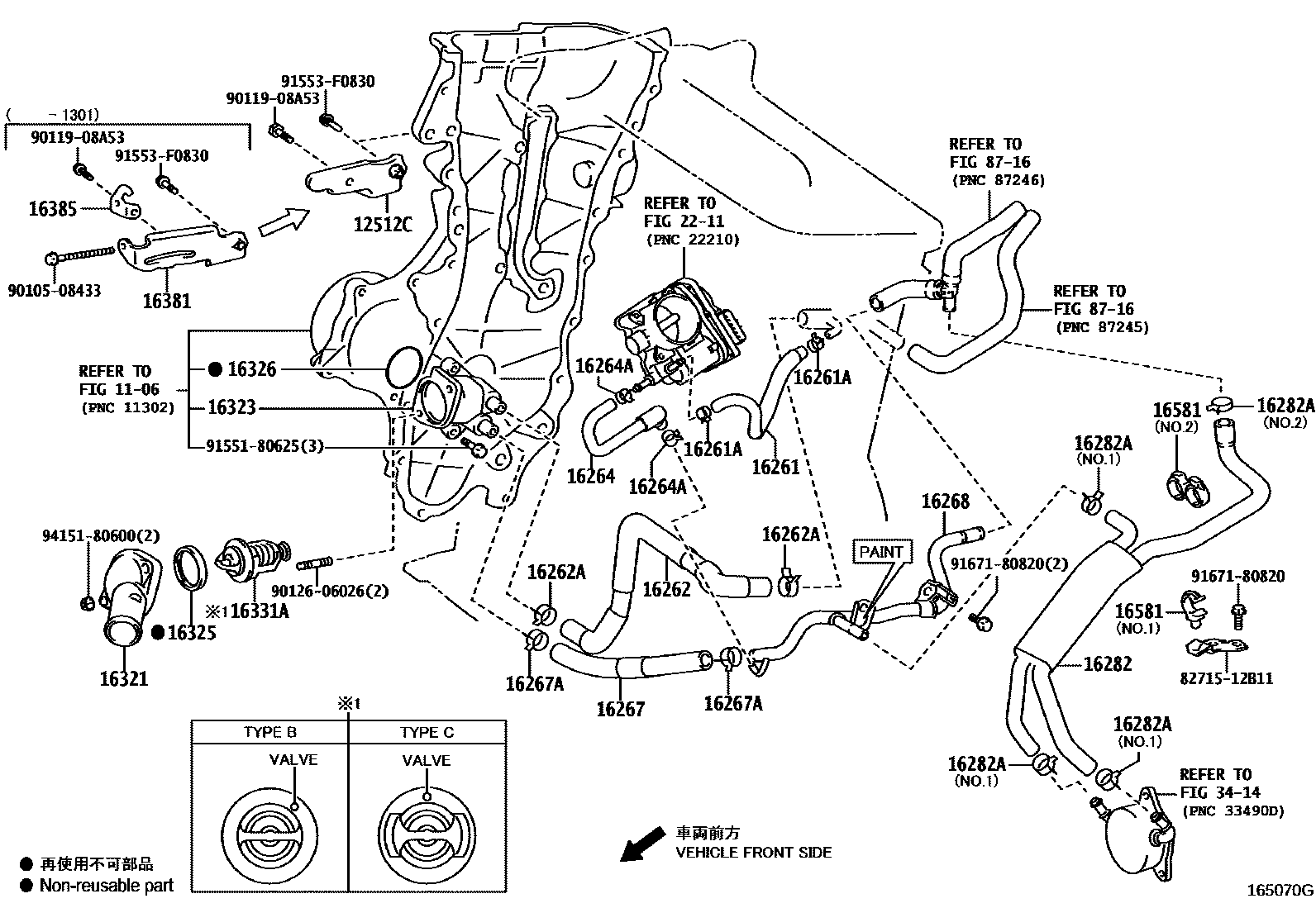

Toyota COROLLA EPC diagram 1603, RADIATOR & WATER OUTLET, with 6 images and 59 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12512C | No. 2 generator bracket | 12512-37010 |
| 16261 | HOSE, WATER BY-PASS | 16261-21070 · 16261-37021 · 16261-37022 · 16261-37051 · 16261-37052 |
| 16261A | CLAMP OR CLIP, WATER BY-PASS HOSE | 90467-13054 · 96136-41501 · 96137-41501 |
| 16261N | HOSE, WATER BY-PASS, NO.2 | 16261-21150 |
| 16261P | CLIP, WATER BY-PASS HOSE NO.2 | 96136-42201 · 96136-42501 · 96136-52201 · 96136-52501 |
| 16262 | water inlet hose | 16262-21030 · 16262-37010 |
| 16262A | Clamp (for water inlet hose) | 96136-42501 |
| 16264 | HOSE, WATER BY-PASS, NO.2 | 16264-21060 · 16264-37021 · 16264-37022 · 16264-37041 · 16264-37042 |
| 16264A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.2 | 90467-13054 · 96136-41501 · 96137-41501 |
| 16264G | HOSE, WATER BY-PASS, NO.3 | 16264-21090 |
| 16264H | Clamp (for No. 3 water bypass hose) | 90467-15022 · 96136-42101 · 96136-52101 |
| 16267 | HOSE, WATER BY-PASS, NO.3 | 16267-21020 · 16267-21060 · 16267-21070 · 16267-21080 · 16267-37010 |
| 16267A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.3 | 90467-13054 · 96136-41501 · 96136-42501 |
| 16267C | HOSE, WATER BY-PASS, NO.4 | 16267-21030 · 16267-21040 |
| 16267D | CLIP, WATER BY-PASS HOSE NO.4 | 90467-15022 |
| 16268 | PIPE, WATER BY-PASS, NO.1 | 16268-21050 · 16268-21120 · 16268-37020 · 16268-37021 · 16268-37060 |
| 16268G | Gasket (for water bypass pipe) | 16258-21020 · 16258-21021 |
| 16281 | HOSE, WATER BY-PASS, NO.4 | 16281-21020 |
| 16281A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.4 | 90467-13054 · 96136-41501 |
| 16281F | HOSE, WATER BY-PASS, NO.5 | 16281-21030 · 16281-22080 · 16281-37040 |
| 16281G | CLIP, WATER BY-PASS HOSE NO.5 | 90467-17013 · 96136-41901 · 96136-51901 |
| 16282 | HOSE, WATER BY-PASS, NO.5 | 16260-37010 |
| 16282A | Clip or clip (for No. 5 water bypass hose) | 96134-41900 · 96136-42501 |
| 16283 | HOSE, WATER BY-PASS, NO.6 | 16283-21010 · 16283-21011 |
| 16283A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.6 | 90467-13054 · 96136-41501 |
| 16321 | water inlet | 16321-21020 · 16321-37010 |
| 16323 | HOUSING, WATER INLET | 16323-37020 · 16323-37021 · 16323-37040 |
| 16325 | GASKET, WATER INLET HOUSING, NO.1 | 16325-28010 · 16325-62010 |
| 16326 | GASKET, WATER INLET HOUSING, NO.2 | 16326-37010 · 16326-37030 |
| 16331A | thermostat | 90916-03126 · 90916-03129 · 90916-03142 · 90916-03144 · 90916-03148 |
| 16351 | water bypass outlet | 16351-21010 |
| 16361 | Fan | 16361-22100 |
| 16363 | cooling fan motor | 16363-22120 |
| 16381 | Fan belt adjustment lever | 16381-21040 · 16381-37010 |
| 16385 | Fan belt adjustment slider | 16385-37010 |
| 16400 | Radiator assembly | 16400-22160 |
| 16400B | Radiator drain switch screw plug | 16417-21280 |
| 16400F | Seal (for radiator drain switch) | 16492-21050 |
| 16442 | O-ring (for radiator tank) | 16442-22200 |
| 16462 | O-ring (for radiator lower tank) | 16442-22200 |
| 16470 | Radiator reservoir assembly | 16480-22080 |
| 16471B | Reservoir tank cover | 16475-28120 · 16475-37010 · 16475-37011 · 16475-51010 |
| 16523A | Radiator bracket cushion | 16523-21060 |
| 16535 | Radiator lower support | 16535-74230 |
| 16561 | Seal No. 1 (radiator to bracket) | 16561-22030 |
| 16571A | Hose clamp or clip (for radiator water inlet) | 96136-43901 · 96136-44301 |
| 16571C | Radiator hose No. 1 | 16571-21110 · 16571-22190 |
| 16572A | Hose clamp or clip (for radiator outlet No. 1) | 96136-43901 · 96136-44301 |
| 16572D | Radiator hose No. 2 | 16572-21080 · 16572-22130 |
| 16573B | Radiator hose No. 3 | 16573-21030 · 16573-22020 · 16573-37040 |
| 16573C | No. 3 radiator hose clamp or clip | 90466-35001 · 96136-44301 |
| 16575B | No. 2 water hose clamp bracket | 16575-21020 |
| 16575C | No. 1 water hose clamp bracket | 16575-21031 · 16575-21040 · 16575-22020 · 16575-37020 |
| 16577C | radiator pipe | 16577-21020 · 16577-22020 · 16577-37030 |
| 16581 | Hose clamp (for water hose) | 16581-21020 · 16581-21030 · 16581-21060 · 16581-21070 · 16581-21080 |
| 16581B | Hose clamp (for radiator hose) | 16581-22110 · 16581-22120 |
| 16589A | Radiator hose clamp bracket | 16575-22020 · 16575-37020 |
| 16711 | fan cover | 16711-22140 |
| 16712 | No. 2 fan cover | 16712-22040 · 16712-22041 |
