Toyota COROLLA Crankshaft & Piston — Figure 1301

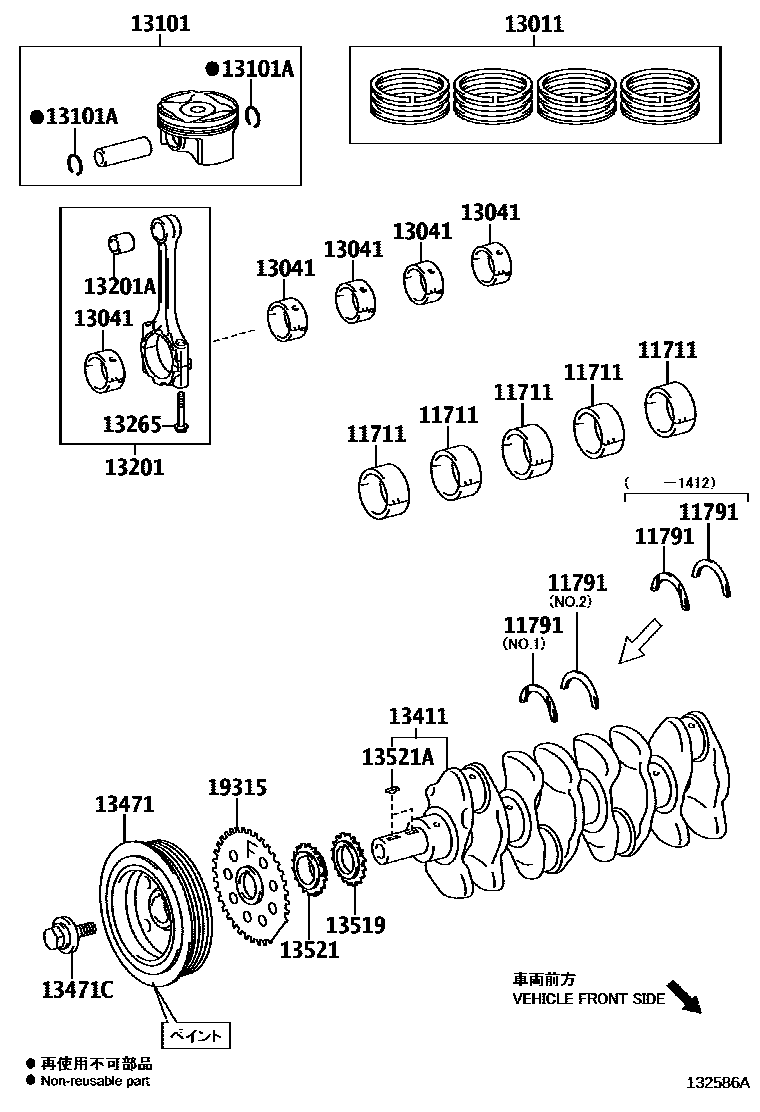

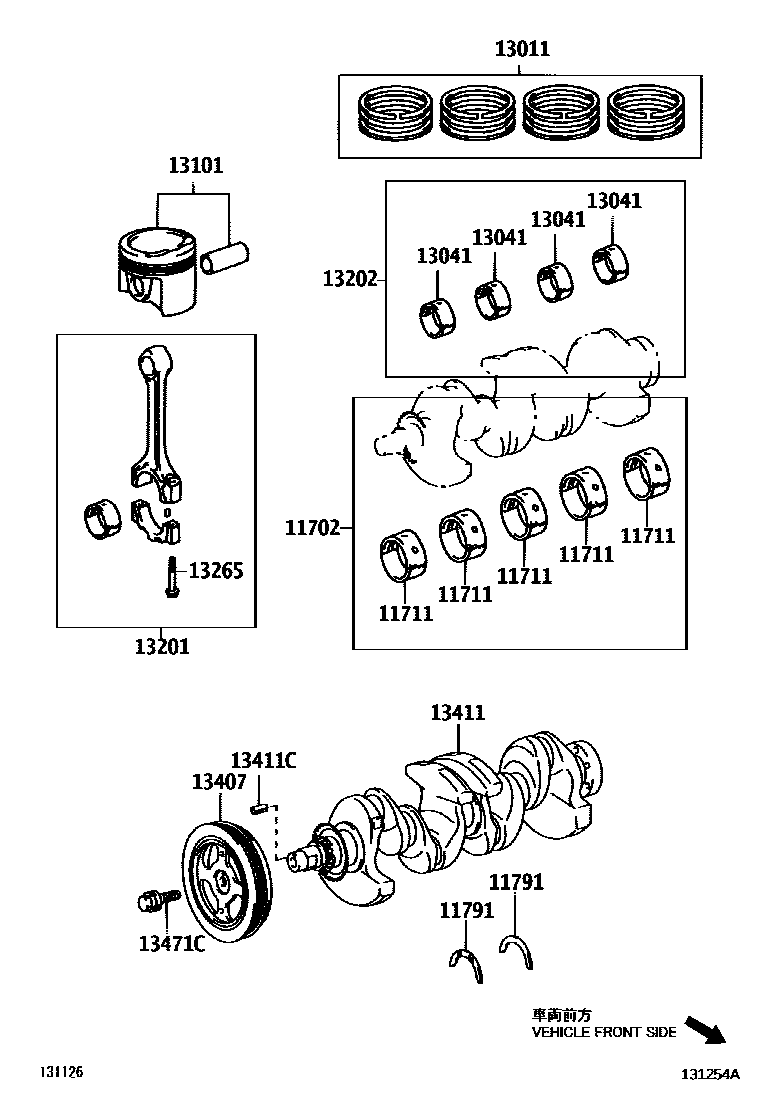

Toyota COROLLA EPC diagram 1301, Crankshaft & Piston, with 2 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11702 | crankshaft bearing assembly | 11704-21031 · 11704-21032 · 11704-21033 |
| 11791 | Thrust washer on crankshaft | 11791-22020 · 11791-37010 · 11792-22020 · 11792-37010 · 11793-22020 · 11793-37010 |
| 13011 | Piston ring assembly | 13011-21090 · 13011-21091 · 13011-37090 · 13011-37180 · 13011-37300 |
| 13101 | Piston sub-assembly with pin | 13101-21120 · 13101-21140 · 13101-37071 · 13101-37110 · 13101-37300 |
| 13101A | Bore snap ring (for piston pin) | 90520-20064 |
| 13201 | Connecting rod sub-assembly | 13201-09A30 · 13201-29735 · 13201-29736 · 13201-29737 · 13201-39185 |
| 13201A | Bushing (for connecting rod small end) | 90999-73151 |
| 13202 | Connecting rod bearing assembly | 13204-21022 · 13204-21033 |
| 13265 | Connecting rod bolts | 13265-21020 · 13265-22020 |
| 13407 | Crankshaft damper sub-assembly | 13407-21031 · 13407-21032 |
| 13411 | crankshaft | 13401-0T061 · 13401-21020 · 13401-37020 · 13401-37021 |
| 13411C | Direct sales (for crankshaft) | 90254-03025 |
| 13471 | crankshaft pulley | 13470-37020 · 13470-37041 · 13470-37050 |
| 13471C | Bolt (for crankshaft pulley assembly) | 90119-12345 · 90119-14106 · 90119-14175 |
| 13519 | Oil pump driving gear | 13519-37010 |
| 13521 | Crankshaft timing gear or sprocket | 13521-37010 · 13521-37011 |
| 13521A | Key (for crankshaft timing gear) | 90280-04003 |
| 19315 | No. 1 crankshaft angle signal plate | 19315-37010 · 19315-37020 |
