Toyota COROLLA Engine Mounting — Figure 1107

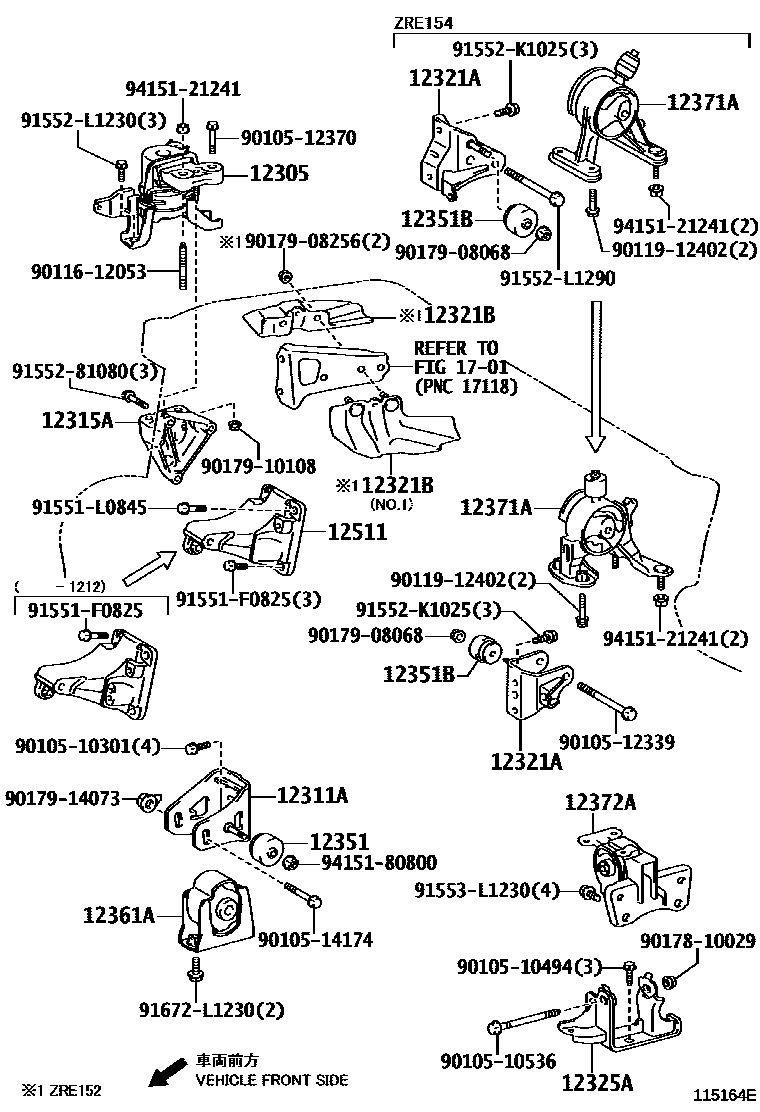

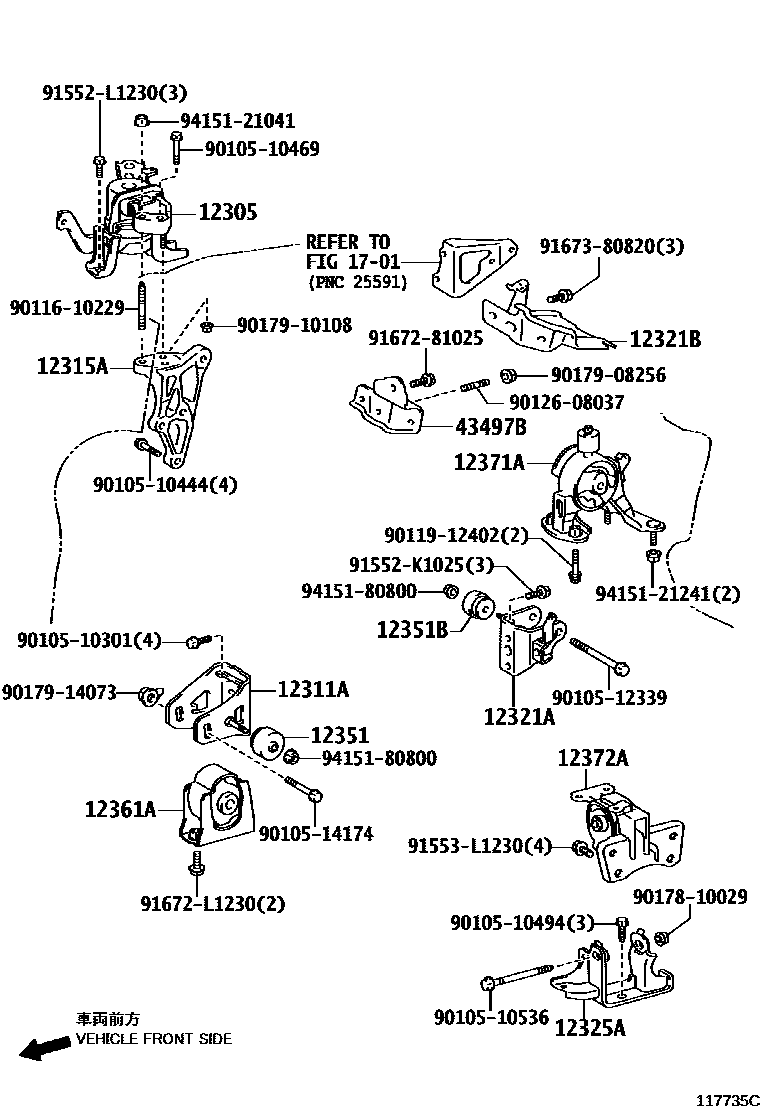

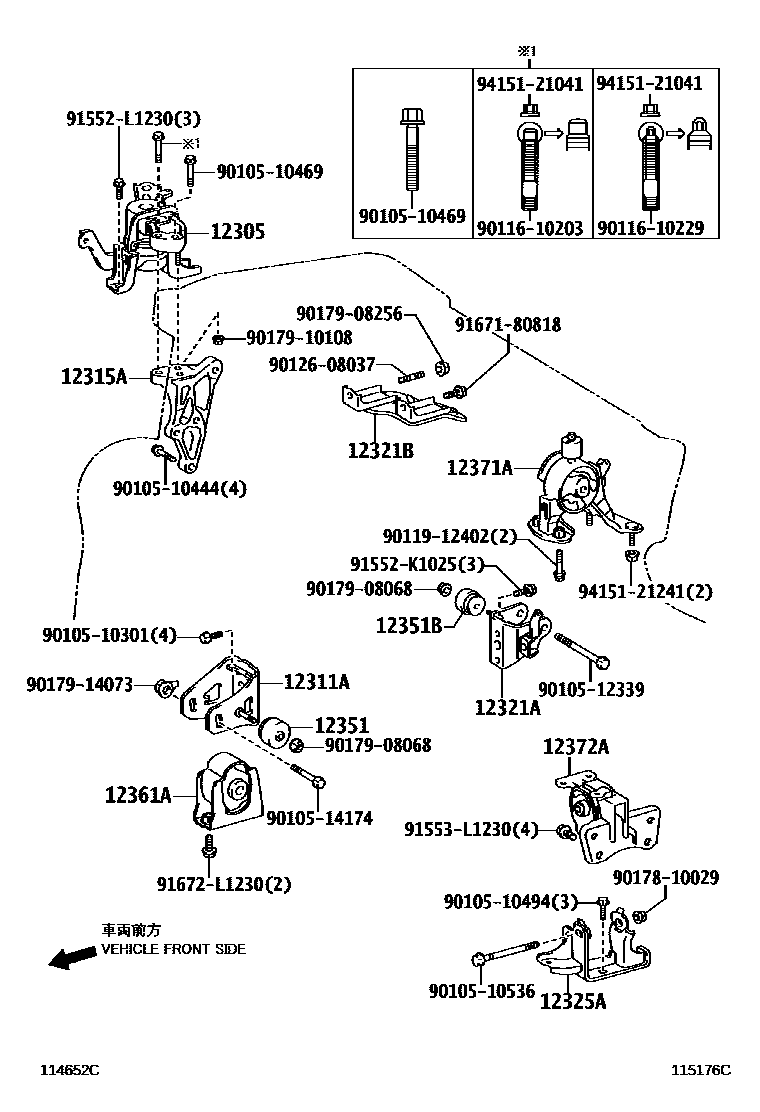

Toyota COROLLA EPC diagram 1107, Engine Mounting, with 3 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12305 | Engine right side mounting vibration isolation pad sub-assembly | 12305-22361 · 12305-22370 · 12305-33090 |
| 12311A | Engine front mounting bracket (for transverse engine) | 12311-22240 · 12311-22250 |
| 12315A | Engine right side mounting bracket (for transversely mounted engine) | 12315-21041 · 12315-21042 · 12315-21043 · 12315-21044 · 12315-37030 |
| 12321A | Rear engine mounting bracket (for transverse engine) | 12321-22210 · 12321-22220 · 12321-37140 |
| 12321B | Drive shaft heat insulation pad sub-assembly | 43409-12060 · 43409-12080 · 43409-52020 · 43498-12051 |
| 12325A | Engine left side mounting bracket (for transversely mounted engine) | 12325-22300 |
| 12351 | engine mount shock absorber | 12351-27050 · 12351-37120 |
| 12351B | engine mount shock absorber | 12351-27050 · 12351-37120 |
| 12361A | Engine front mounting vibration isolation pad (for transversely mounted engine) | 12361-28240 |
| 12371A | Engine rear mount vibration isolation pad | 12371-22230 · 12371-28220 |
| 12372A | Engine left-side mounting vibration isolation pad (for transversely mounted engines) | 12372-22161 · 12372-22171 |
| 12511 | No. 1 generator bracket | 12501-37010 · 12511-37010 |
| 43497B | Driveshaft insulation pad bracket | 43497-12030 |
