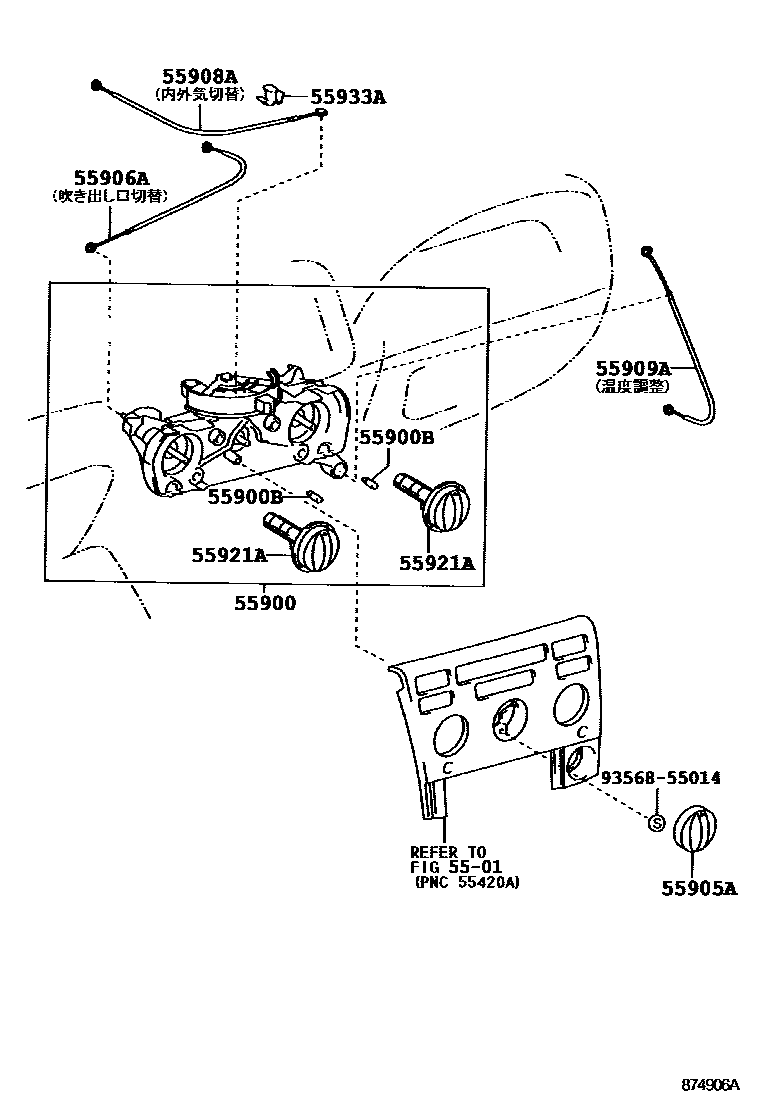

Toyota COROLLA 暖风和空调系统 - 控制器和风管 — Figure 8715
Toyota COROLLA EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 5 images and 32 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

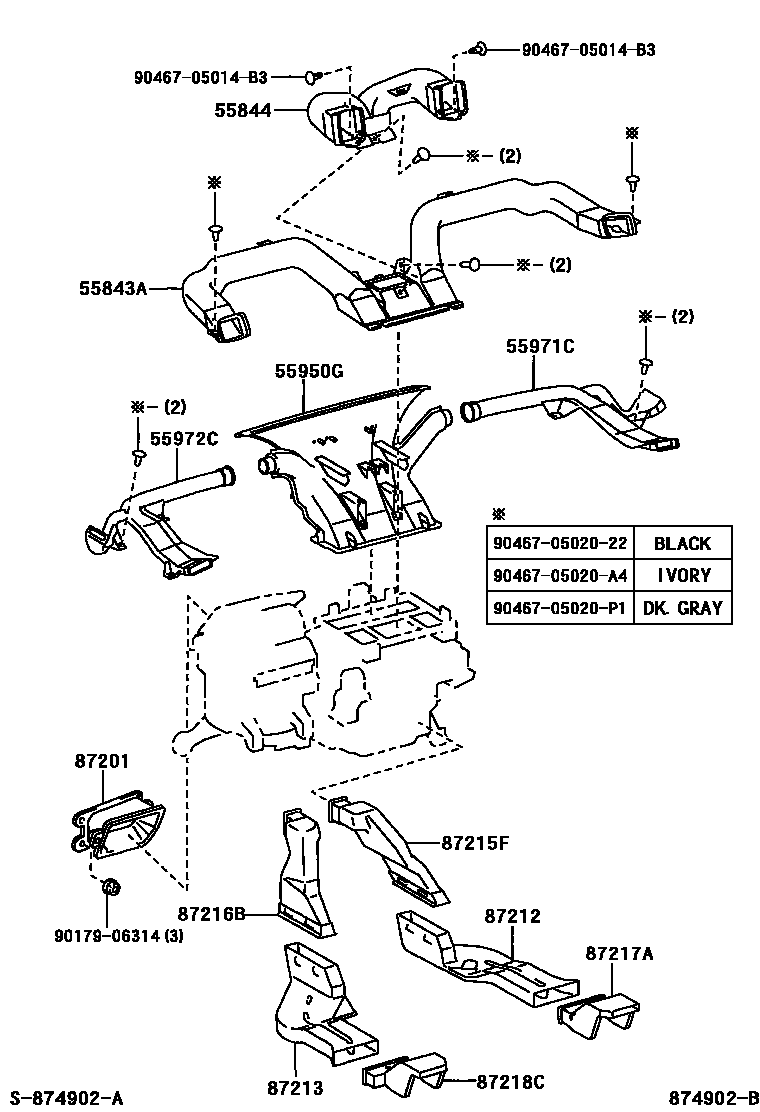

| 55843A | Air duct No. 1 from heater to air register | 55843-13020 |
| 55844 | Air duct No. 2 from heater to air regulator | 55844-13020 |
| 55900B | air conditioning control light bulb | 90981-11040 |

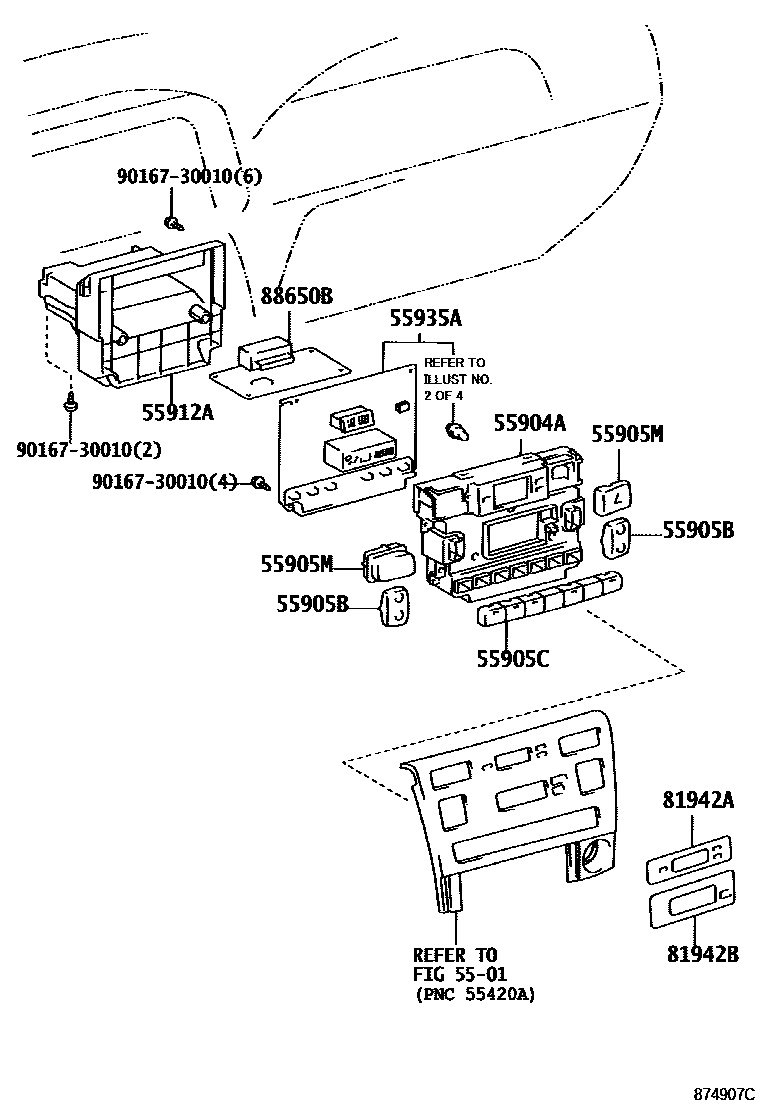

| 55904A | Heater control housing sub-assembly | 55904-12010 |
| 55905B | Heater control button 2 | 55905-12670 · 55905-12680 |
| 55905C | Heater control button No. 3 | 55905-12690 |
| 55905M | Control button sub-assembly | 55905-12650 · 55905-12660 |
| 55906A | Defroster damper control cable sub-assembly | 55906-13020 |
| 55908A | Intake air valve control cable sub-assembly | 55908-13020 |
| 55909A | Air mix damper control cable sub-assembly | 55909-13020 |
| 55912A | heater control housing | 55912-12060 |
| 55921A | Heater Controller Fixing | 55921-12120 |
| 55933A | Heater control cable clip | 55933-52010 |
| 55935A | Central instrument cluster module circuit | 55935-13010 |

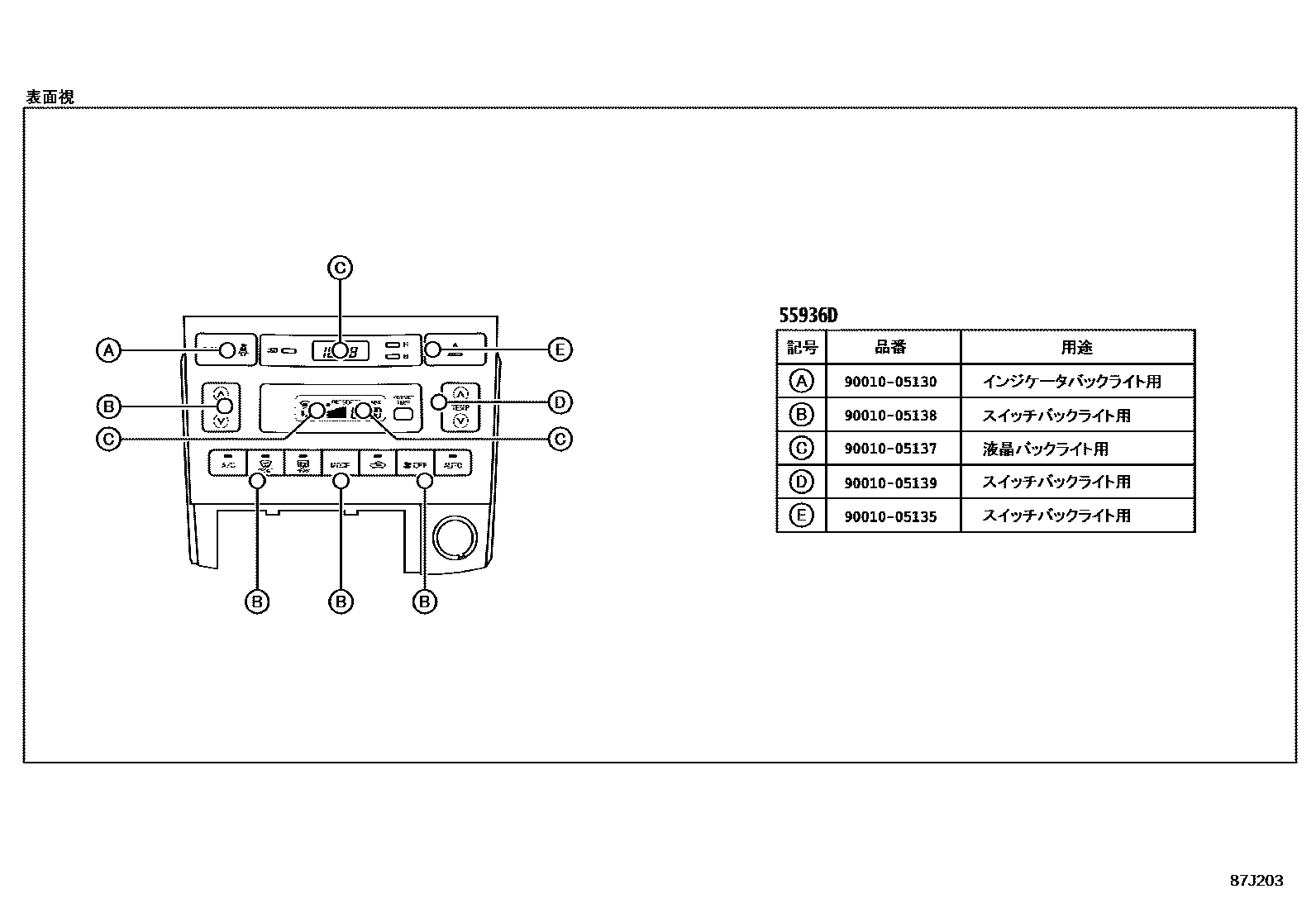

| 55936D | Center instrument cluster module switch bulb | 90010-05130 · 90010-05135 · 90010-05137 · 90010-05138 · 90010-05139 |
| 55950G | Defroster nozzle assembly | 55950-13020 · 55950-13040 |
| 55971C | Side defroster No. 1 nozzle air duct | 55971-13020 |
| 55972C | Side defroster No. 2 nozzle air duct | 55972-13020 |
| 81942A | Heater No. 1 control nameplate | 81942-13040 |
| 81942B | Heater No. 2 control nameplate | 81942-12650 |
| 87201 | No. 1 air duct sub-assembly | 87201-13020 |
| 87212 | No. 1 rear air duct | 87212-12110 · 87212-12120 |
| 87213 | No. 2 rear air duct | 87213-12080 |
| 87215F | No. 3 rear air duct | 87215-12040 |
| 87216B | No. 4 rear air duct | 87216-12020 |
| 87217A | No. 6 rear air duct | 87217-13020 · 87217-13030 |
| 87218C | No. 6 rear air duct | 87218-13040 |

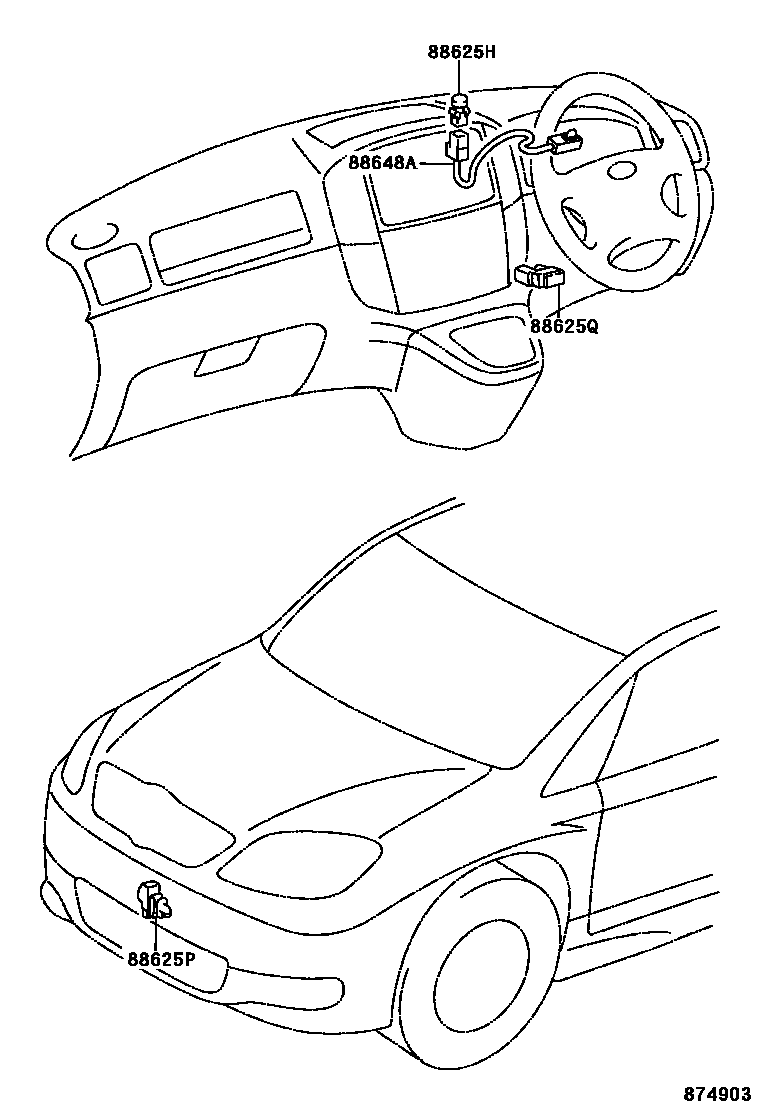

| 88625H | Cooler thermistor (sunlight sensor) | 88625-47031 |
| 88625P | Cooler thermistor (ambient temperature sensor) | 88790-22130 · 88790-22131 |
| 88625Q | Cooler thermistor (interior temperature sensor) | 88625-47021 |
| 88648A | Cooler wiring harness | 88648-13020 |
| 88650B | Air conditioning amplifier assembly | 88650-1E470 · 88650-1E471 |
