Toyota COROLLA 倒车影像和摄像头 — Figure 8606

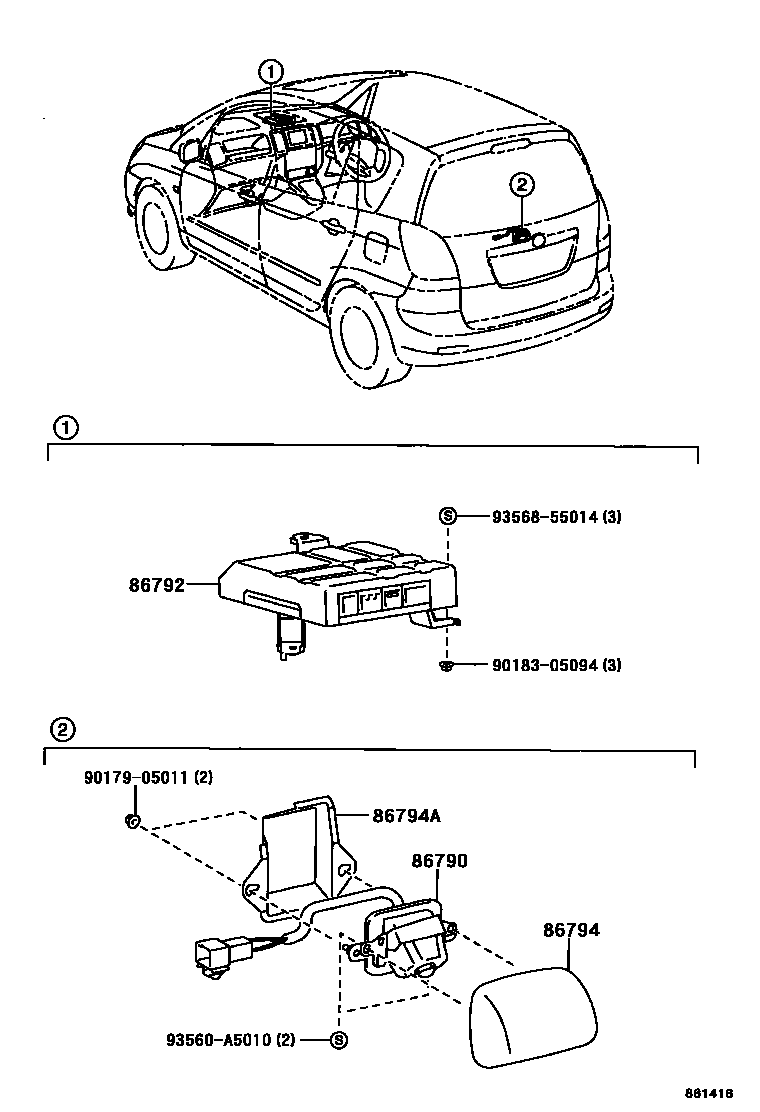

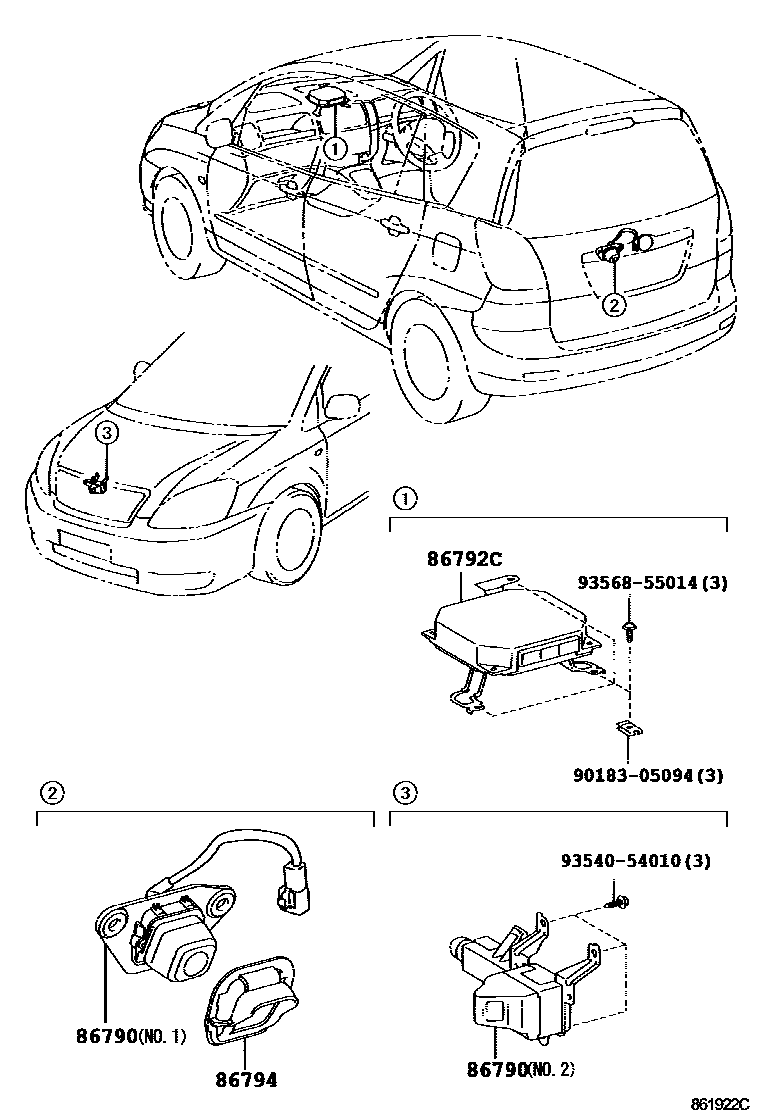

Toyota COROLLA EPC diagram 8606, 倒车影像和摄像头, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86790 | Reversing image camera assembly | 86790-13020 · 86790-13040 |
| 86792 | Reversing camera controller | 86792-13020 · 86792-13030 |
| 86792C | Parking assist ECU | 86792-13080 · 86792-13081 · 86792-13090 · 86792-13091 |
| 86794 | Reversing camera wiring harness cover | 86794-13030 |
| 86794A | No. 2 reversing image camera wiring harness cover | 86795-13010 |
