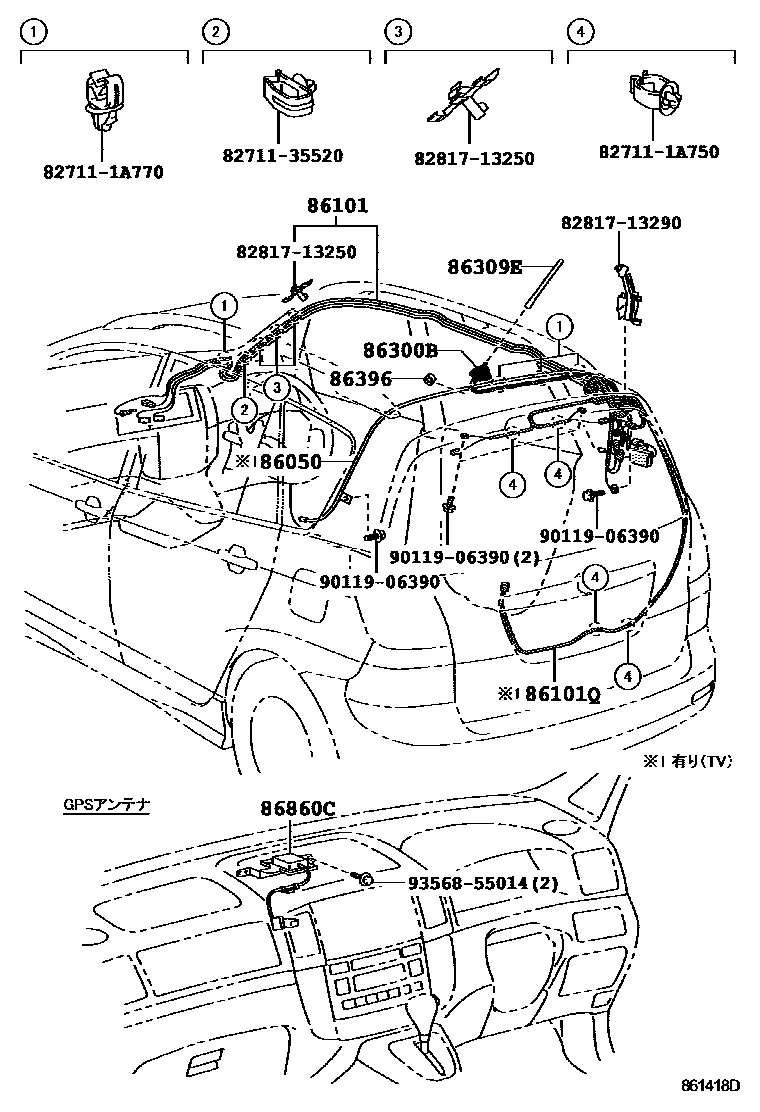

Toyota COROLLA antenna — Figure 8604
Toyota COROLLA EPC diagram 8604, antenna, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86050 | Monitor antenna assembly | 86050-13050 · 86050-13070 · 86050-13080 |
| 86101 | Antenna wire sub-assembly | 86101-13050 · 86101-13051 |
| 86101Q | No. 4 antenna wire sub-assembly | 86101-13060 · 86101-13070 · 86101-13120 |
| 86300B | Amplifier antenna assembly | 86300-13020 · 86300-13040 |
| 86309E | Roof antenna sub-assembly | 86309-12150 · 86309-20310 |
| 86396 | Antenna nut | 86396-12030 · 86396-20040 |
| 86860C | Navigation antenna assembly | 86860-13020 · 86860-13040 · 86860-13050 |
