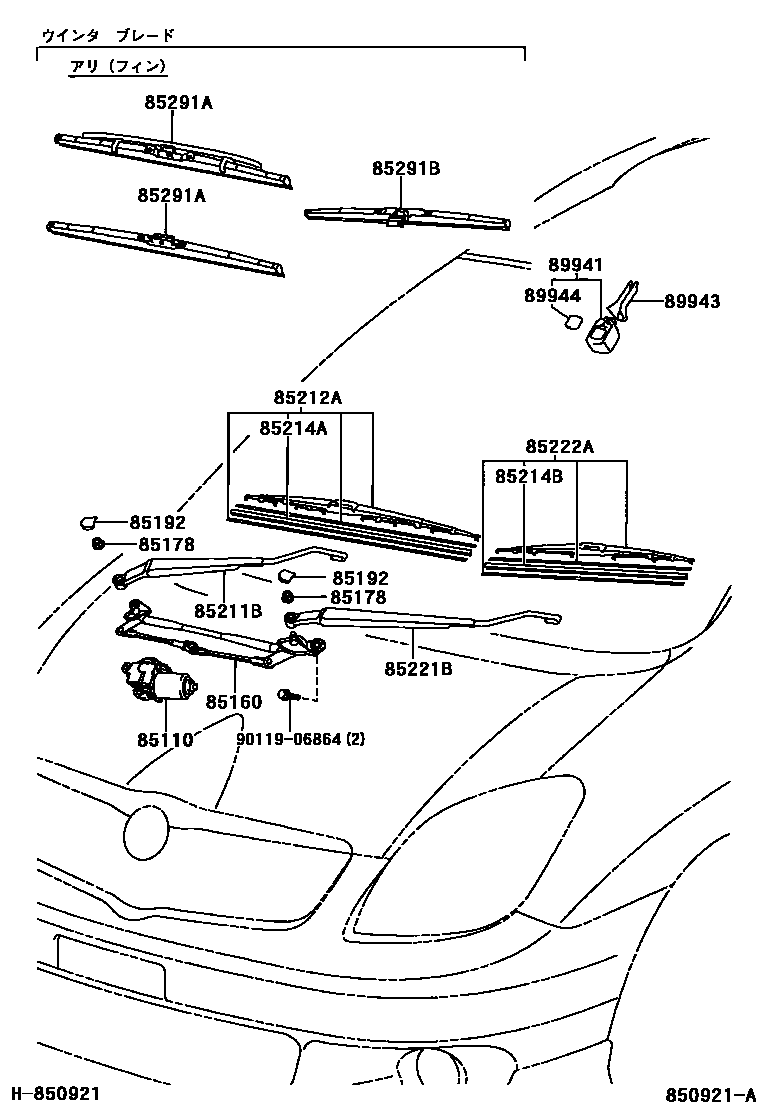

Toyota COROLLA 挡风玻璃刮水器 — Figure 8501
Toyota COROLLA EPC diagram 8501, 挡风玻璃刮水器, with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85110 | Windshield wiper motor assembly | 85110-13080 · 85110-13110 |
| 85160 | Windshield wiper connecting rod assembly | 85150-13070 |
| 85178 | Nut (for securing front wiper arm) | 90179-10223 |
| 85192 | windshield wiper arm cover | 85292-13010 |
| 85211B | Right front wiper arm | 85211-13030 · 85211-13060 |
| 85212A | Right front wiper blade | 85212-13020 · 85212-48080 |
| 85214A | Right wiper rubber strip | 85214-44070 · 85214-44130 · 85214-44140 |
| 85214B | Left wiper rubber strip | 85214-44020 · 85214-50060 · 85214-50061 · 85214-50130 |
| 85221B | Left front wiper arm | 85221-13040 · 85221-13070 |
| 85222A | Left front wiper blade | 85222-13040 · 85222-13041 · 85222-52040 |
| 85291A | Right front wiper blade for winter use | 85291-44060 · 85291-44070 · 85291-44090 |
| 85291B | Left front wiper blade for winter use | 85291-44080 |
| 89941 | rain sensor | 89941-33010 |
| 89943 | Rain sensor cover | 89943-13010 |
| 89944 | Rain sensor tape | 89944-33010 |
