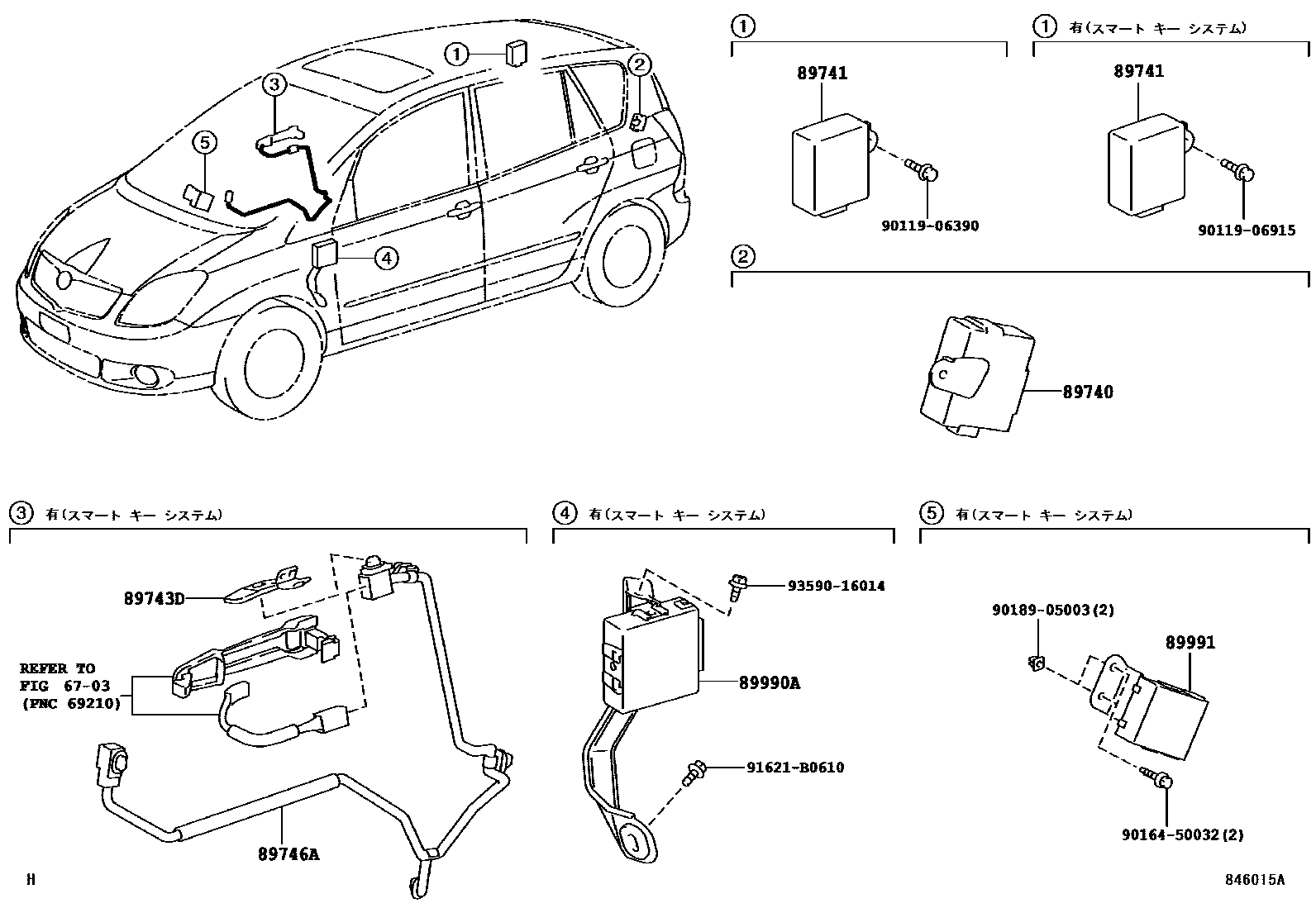

Toyota COROLLA 遥控门锁 — Figure 8420
Toyota COROLLA EPC diagram 8420, 遥控门锁, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89740 | Door control ECU assembly with receiver | 89740-13020 |
| 89741 | door control receiver | 89740-13020 · 89741-13050 |
| 89743D | Electronic key harness bracket | 89743-13010 |
| 89746A | Electronic key wiring harness | 89746-12010 · 89746-13010 |
| 89990A | Smart key ECU assembly | 89990-13010 · 89990-13020 |
| 89991 | Door electronic key oscillator | 89991-12010 · 89991-13010 |
