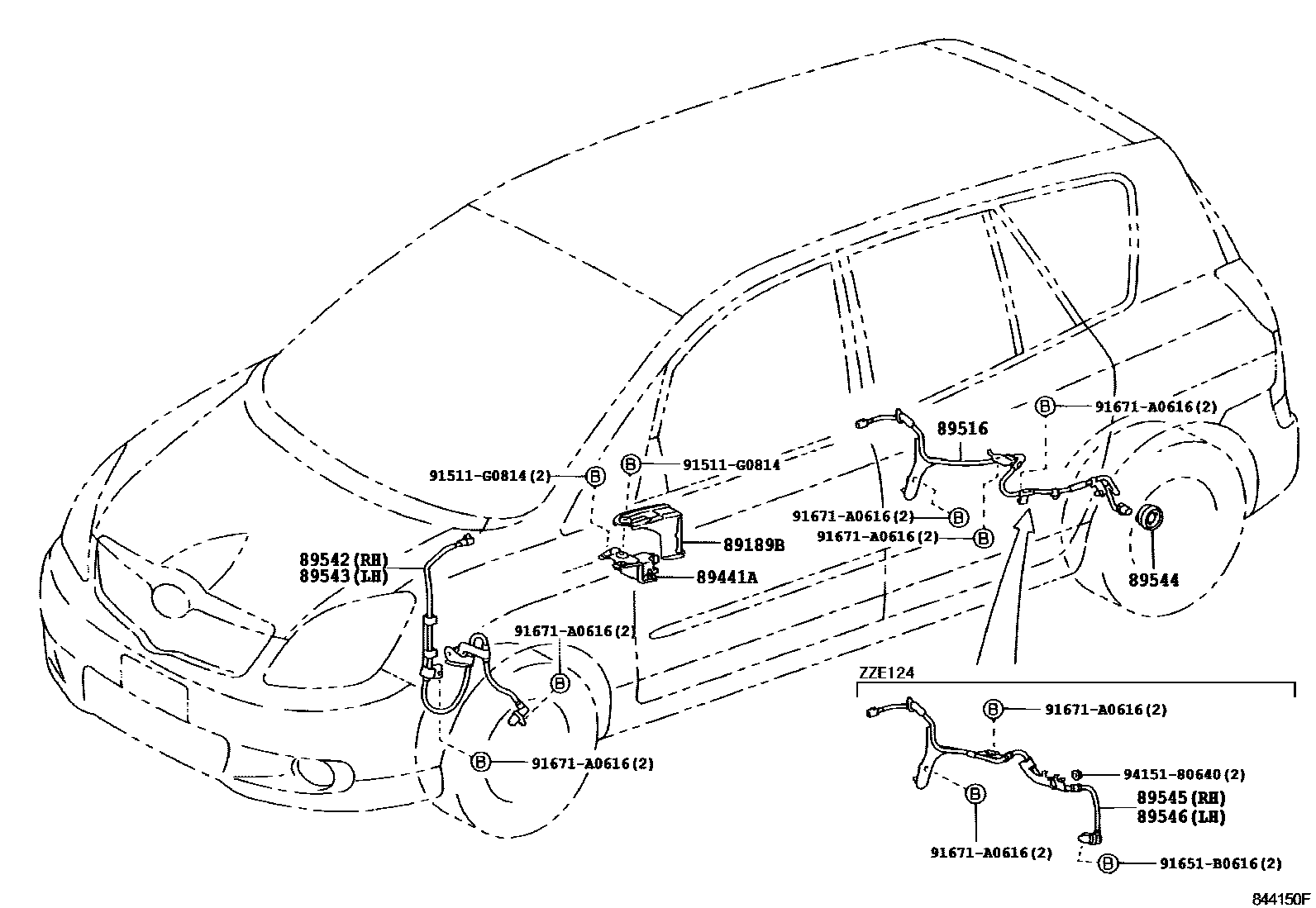

Toyota COROLLA ABS 和 VSC — Figure 8414
Toyota COROLLA EPC diagram 8414, ABS 和 VSC, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89189B | Yaw rate sensor bracket | 89189-12020 |
| 89441A | deceleration sensor | 89440-12080 |
| 89516 | Anti-skid control sensor wiring harness | 89516-12010 · 89516-12020 |
| 89542 | Right front wheel speed sensor | 89542-12070 |
| 89543 | Left front wheel speed sensor | 89543-12070 |
| 89544 | Anti-skid control sensor | 89544-20010 · 89544-32030 |
| 89545 | Right rear wheel speed sensor | 89545-12070 · 89545-13030 |
| 89546 | Left rear wheel speed sensor | 89546-12070 · 89546-12080 · 89546-13030 |
