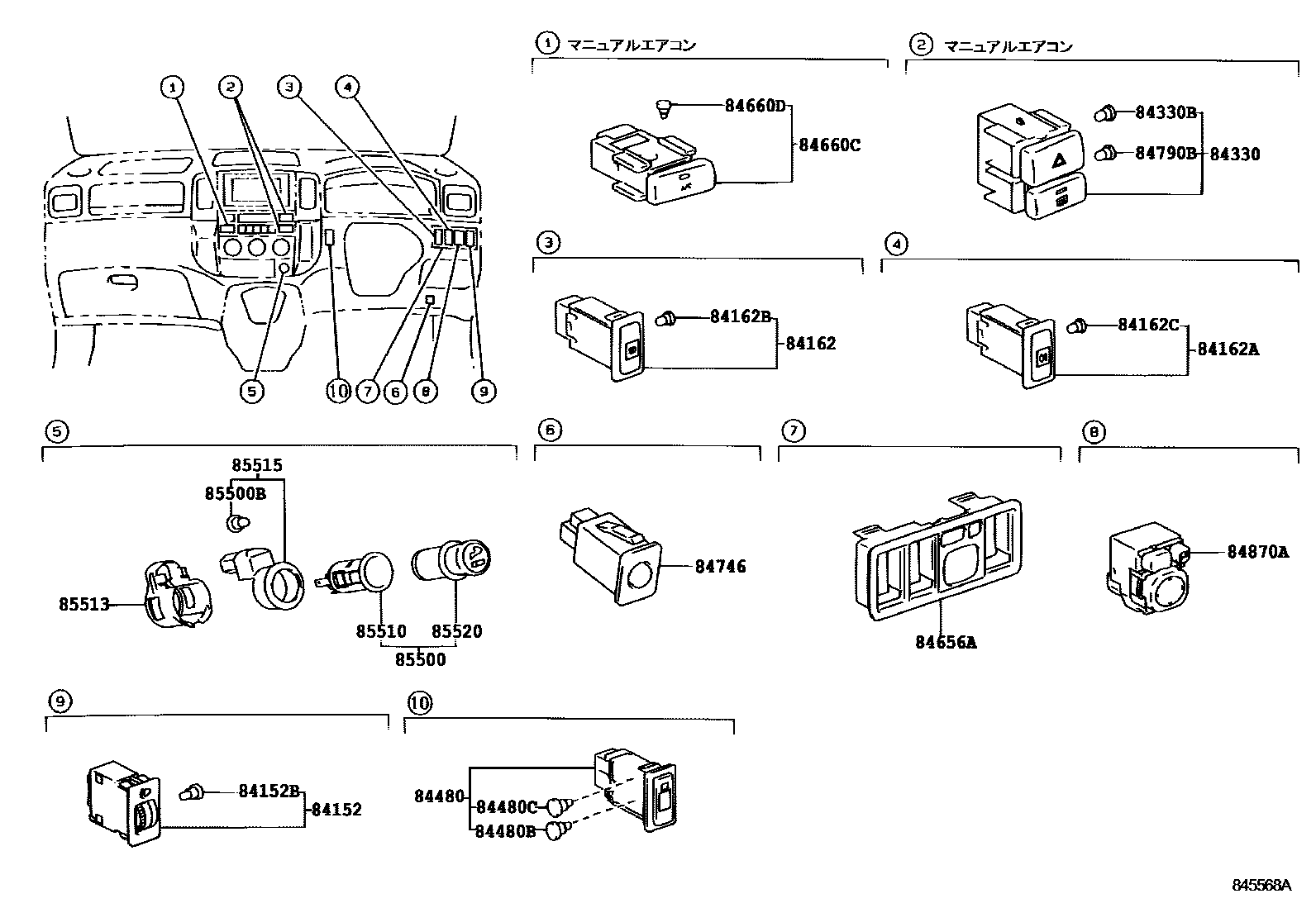

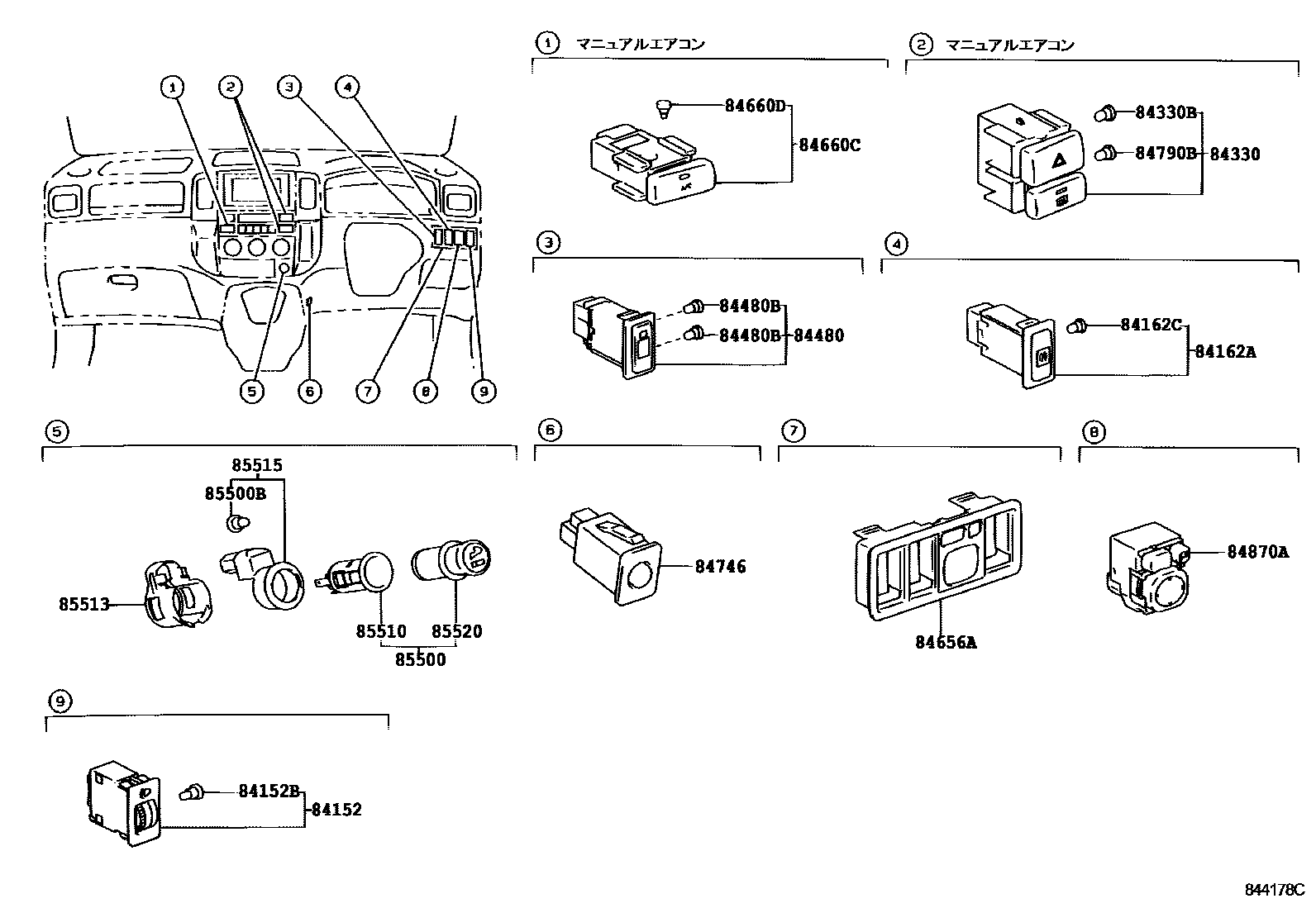

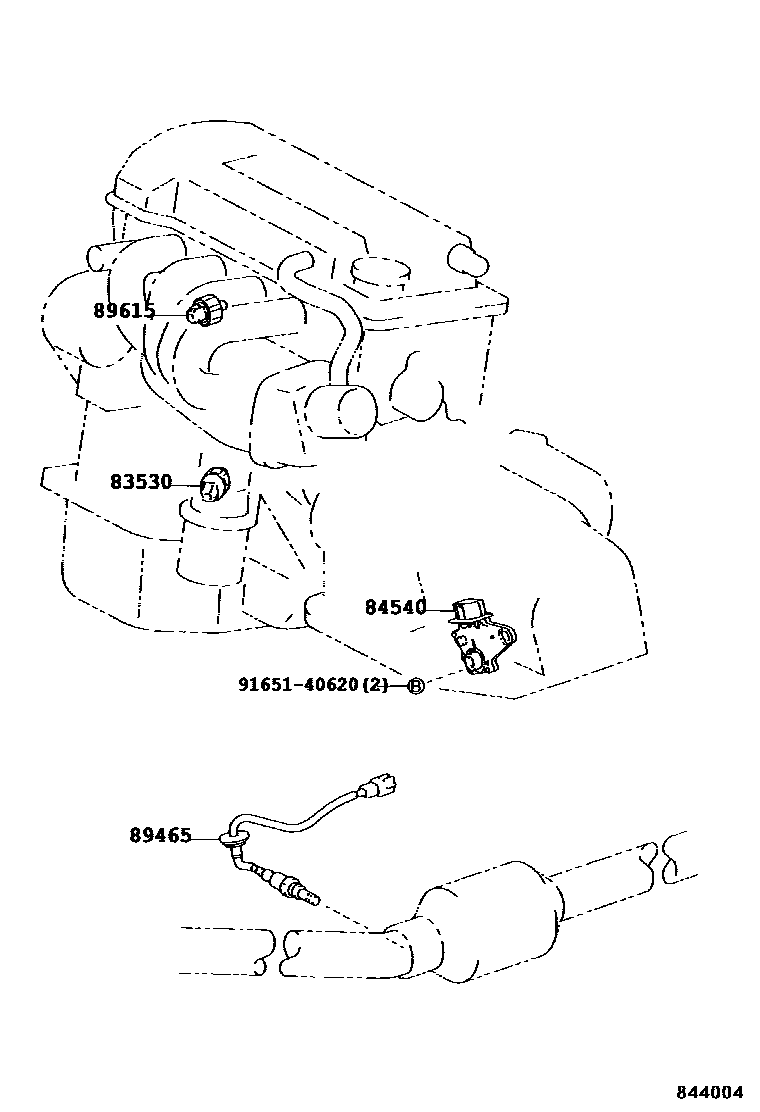

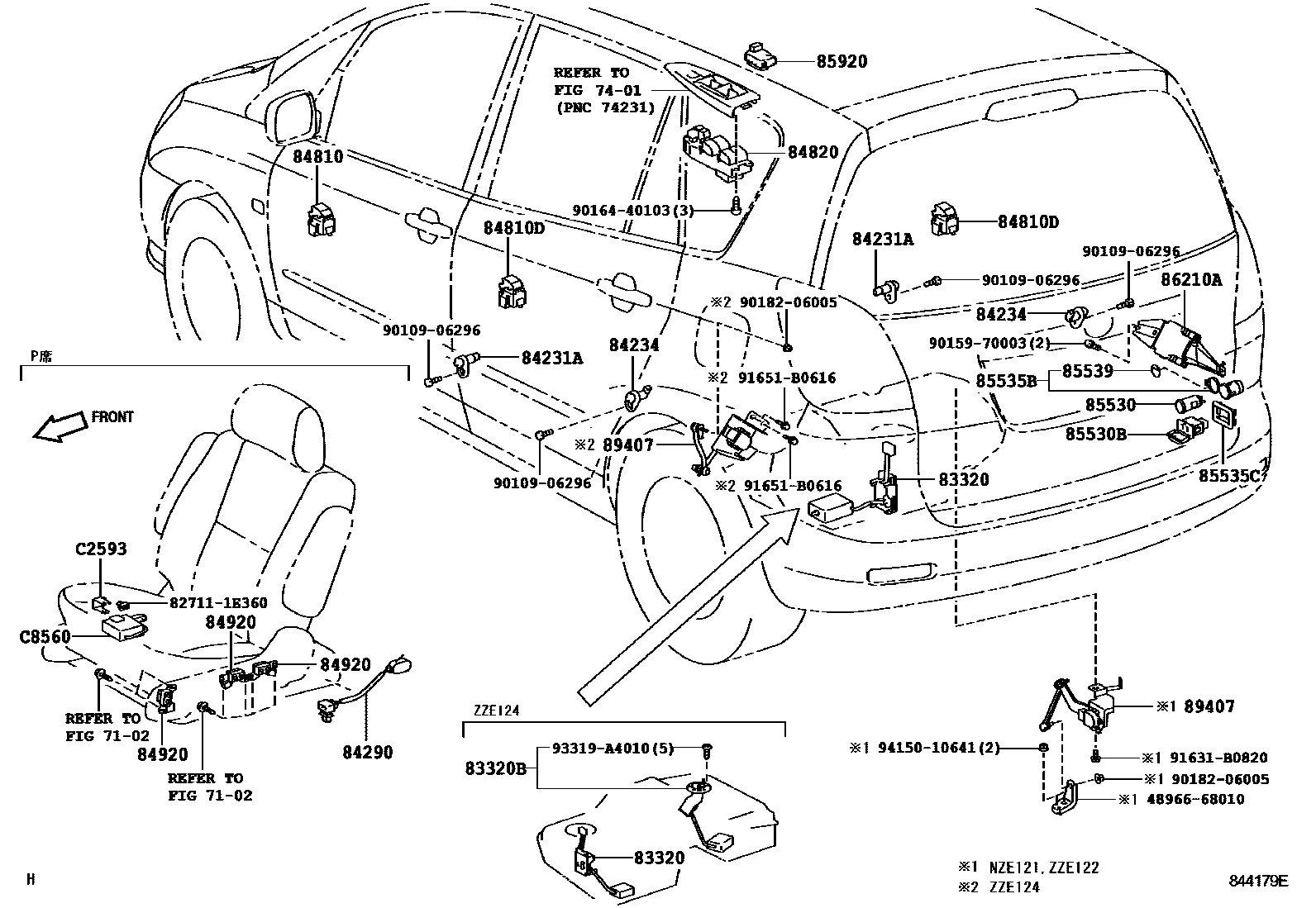

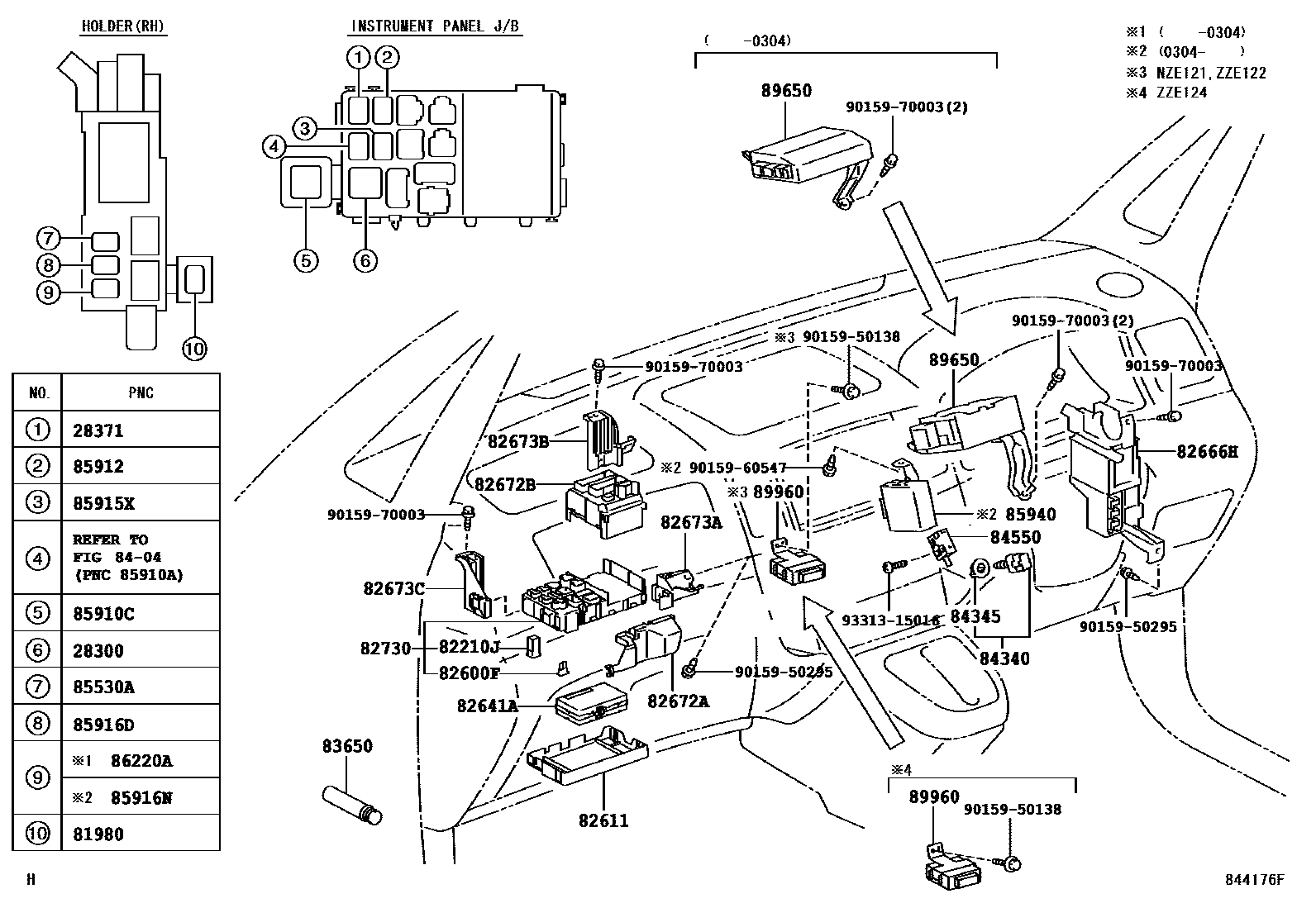

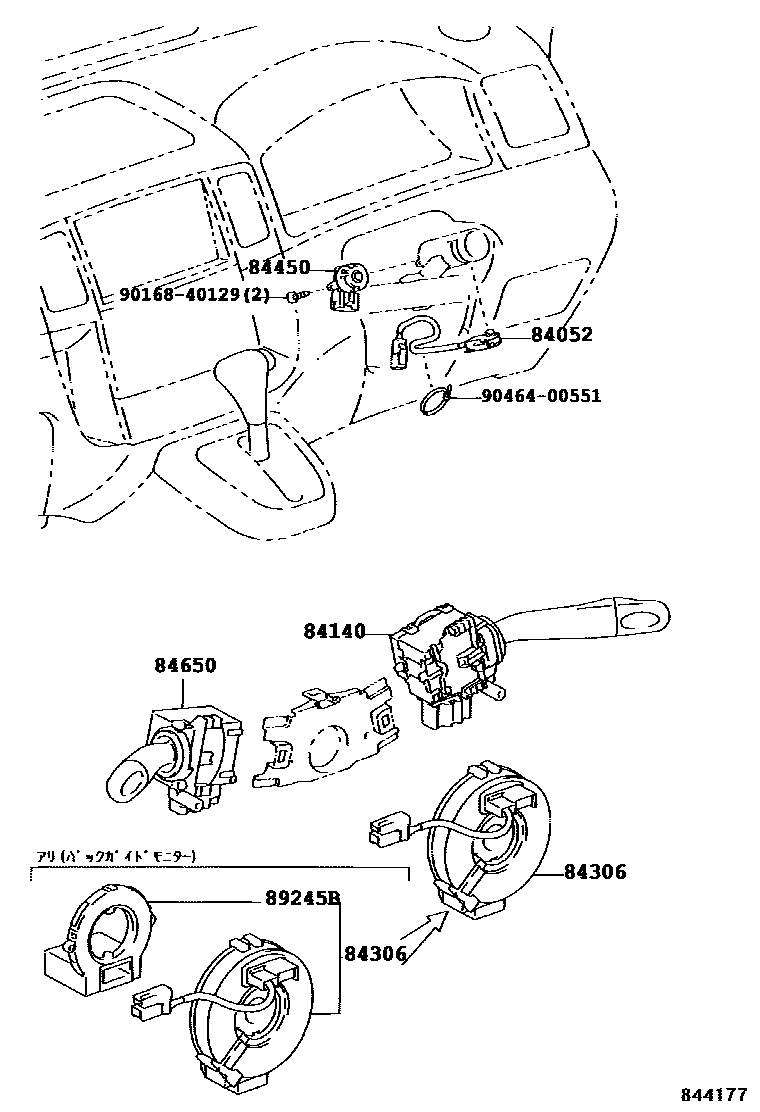

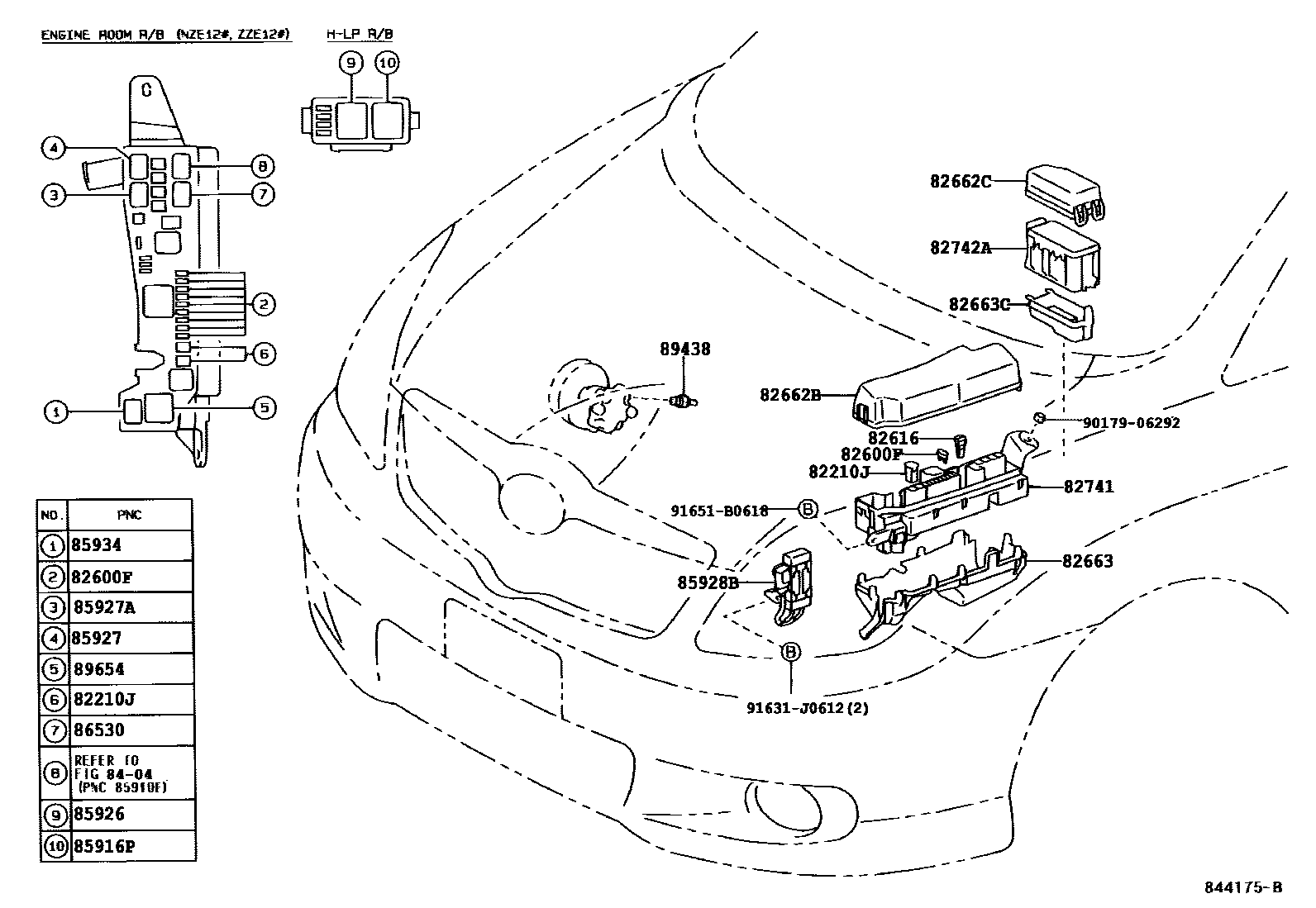

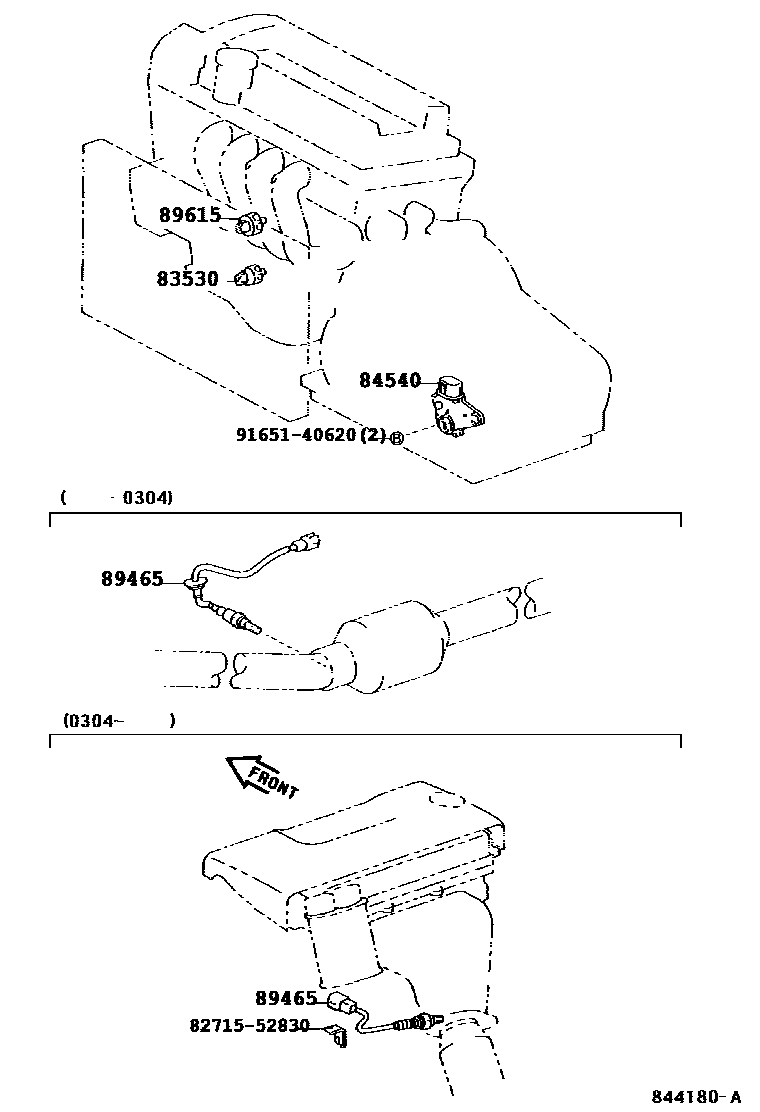

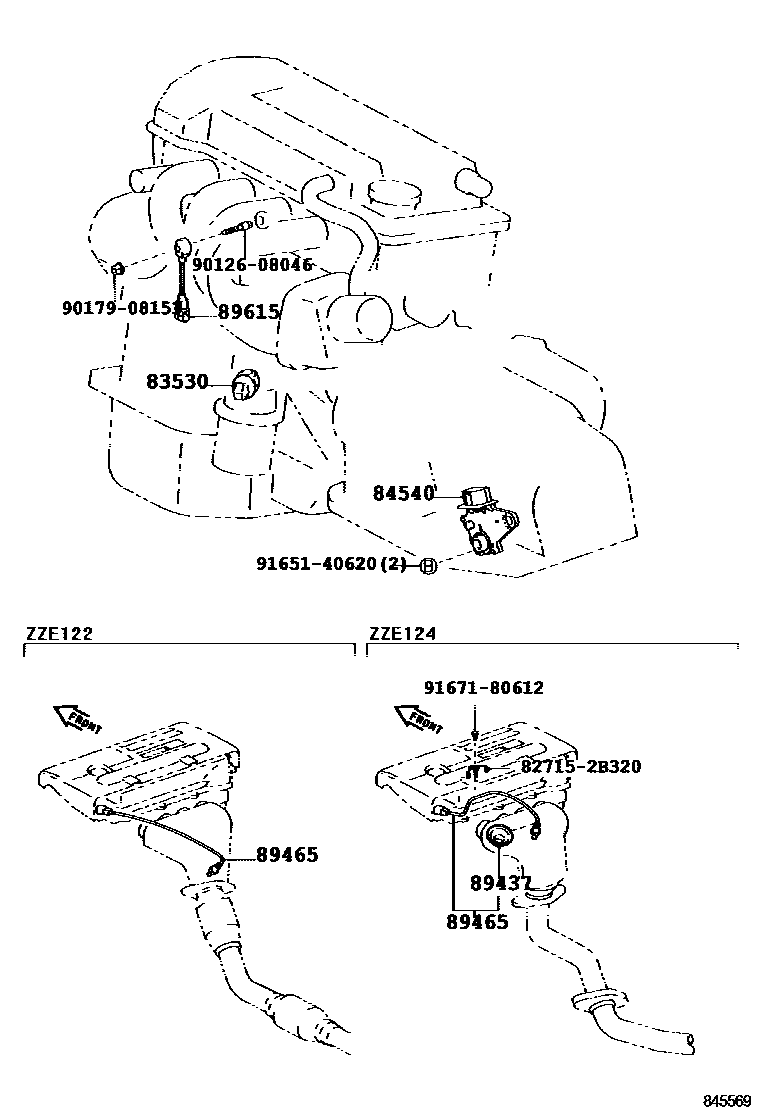

Toyota COROLLA 开关和继电器和ECU — Figure 8401
Toyota COROLLA EPC diagram 8401, 开关和继电器和ECU, with 9 images and 93 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28300 | Starter relay assembly | 28300-10020 |
| 28371 | No. 1 ignition relay | 90987-02020 |
| 81980 | Turn signal flasher relay assembly | 81980-50030 |
| 82210J | fuse | 90982-08246 · 90982-08280 · 90982-08281 · 90982-08282 · 90982-08283 · 90982-08284 · 90982-09007 |
| 82600F | Spare fuse | 90982-09007 · 90982-09008 · 90982-09009 · 90982-09010 · 90982-09012 · 90982-09013 |
| 82611 | fuse box cover | 82611-12120 |
| 82616 | fuse puller | 82616-20010 |
| 82641A | Integrated relay with door control | 82641-13030 · 82641-13060 · 82641-13070 |
| 82662B | No. 2 relay box upper cover | 82662-13020 · 82662-13030 |
| 82662C | No. 3 relay box upper cover | 82662-13040 · 82662-13041 |
| 82663 | Relay box lower cover | 82663-12010 |
| 82663C | No. 4 relay box lower cover | 82663-12040 |
| 82666H | Connector holder No. 2 | 82666-13060 |
| 82672A | Junction box cover | 82672-12400 · 82672-13050 |
| 82672B | Junction box cover | 82672-12410 |
| 82673A | Junction box bracket | 82673-13030 |
| 82673B | Junction box bracket | 82673-13020 |
| 82673C | Junction box bracket | 82673-12070 |
| 82730 | Instrument panel junction box assembly | 82730-13020 |
| 82741 | Engine room relay box | 82741-12020 |
| 82742A | Engine room No. 5 relay box | 82741-12050 |
| 83320 | Fuel gauge sensor assembly | 83320-12640 · 83320-12650 |
| 83320B | Fuel gauge No. 2 sensor assembly | 83320-80388 |
| 83530 | Oil pressure switch assembly (for engine) | 83530-28020 · 83530-60020 |
| 83650 | fuse | 90986-01005 |
| 84052 | Unlock warning switch assembly | 84052-32030 |
| 84140 | Headlight dimmer switch assembly | 84140-12520 · 84140-12530 · 84140-32240 · 84140-32250 |
| 84152 | Headlight beam height adjustment switch | 84152-12050 · 84152-12051 |
| 84152B | Bulb (for headlight beam height adjustment switch) | 90010-08103 |
| 84162 | front fog light switch | 84160-13010 |
| 84162A | Rear fog light switch | 84165-13010 |
| 84162B | fog light switch bulb | 84999-10320 |
| 84162C | Bulb (for rear fog light switch) | 90010-09014 |
| 84231A | door control light switch | 84231-60070 |
| 84234 | Door control light switch assembly (for rear door) | 84231-53010 |
| 84290 | Limit switch assembly | 84290-D1080 |
| 84306 | Spiral cable sub-assembly | 84306-52020 · 84306-52041 · 84307-12010 · 84307-12020 |
| 84330 | Hazard warning signal switch assembly | 84332-12480 · 84332-12490 |
| 84330B | Hazard warning signal switch light bulb | 84999-10310 |
| 84340 | brake light switch assembly | 84340-19015 · 84340-69035 |
| 84345 | Brake light switch base adjuster | 84345-51010 |
| 84450 | Ignition or starter switch assembly | 84450-52010 |
| 84480 | Main switch assembly | 84480-13010 · 84480-13020 |
| 84480B | Main switch assembly light bulb | 84999-10310 · 84999-10320 · 90010-01039 |
| 84480C | Main switch assembly bulb cover | 90010-01043 · 90010-01108 |
| 84540 | Neutral start switch assembly | 84540-52010 · 84540-52050 |
| 84550 | Parking brake switch assembly | 84550-30080 |
| 84650 | Windshield wiper switch assembly | 84652-13030 · 84652-2G410 · 84652-42090 · 84652-42100 |
| 84660C | Cooler switch | 84660-12210 |
| 84660D | Light bulb (for cooler switch) | 90010-03059 |
| 84746 | tire pressure warning switch | 84746-12010 |
| 84790B | Bulb (for rear window defogger switch) | 90010-01079 |
| 84810 | Electric window lift switch assembly | 84030-13010 · 84810-12080 |
| 84810D | Rear electric window lift switch assembly | 84030-13010 · 84810-12080 |
| 84820 | Electric window lift main switch assembly | 84040-13010 · 84820-13080 |
| 84870A | Exterior rearview mirror switch assembly | 84872-52030 · 84872-52040 |
| 84920 | Electric seat switch assembly | 84920-D1010 · 84920-D1020 |
| 85500 | Cigarette lighter assembly | 85500-12240 |
| 85500B | Cigarette lighter bulb | 90010-01015 |
| 85510 | Cigarette lighter socket and fixing bracket assembly | 85510-16040 |
| 85513 | Cigarette lighter cover | 85513-12020 |
| 85515 | Cigarette lighter frame bracket | 85515-47010 |
| 85520 | Cigarette lighter button and cigarette lighter core assembly | 85520-28010 |
| 85530 | No. 1 power socket assembly | 85530-33020 |
| 85530A | power outlet relay | 90987-02009 · 90987-02012 |
| 85530B | No. 1 rear power socket assembly | 85530-41020 |
| 85539 | Power socket attention labels | 85539-60010 |
| 85910C | Relay assembly (for heater blower motor) | 90987-04010 |
| 85912 | defogger relay | 90080-87008 · 90987-02012 |
| 85915X | Power control relay | 90987-02020 |
| 85916D | fog light relay | 90987-02020 · 90987-02027 |
| 85916N | Tail light relay | 90987-02020 · 90987-02027 |
| 85916P | headlight relay | 90987-02016 · 90987-02025 |
| 85926 | Headlight dimmer relay | 90987-04006 · 90987-04010 |
| 85927 | cooling fan relay | 90987-02012 |
| 85927A | Cooling fan relay No. 2 | 90987-04004 |
| 85928B | Cooling fan resistor | 85928-12010 |
| 85934 | Electromagnetic clutch relay | 90987-02022 · 90987-02028 |
| 85940 | Windshield wiper relay assembly | 85940-12140 |
| 86210A | Voltage inverter assembly | 86210-13010 |
| 86220A | Inverter relay | 90987-02020 |
| 86530 | Speaker relay assembly | 90987-02020 |
| 89245B | steering sensor | 89245-12010 |
| 89407 | Right rear height control sensor sub-assembly | 89407-12010 · 89407-12020 |
| 89437 | sensor cover | 89437-12080 |
| 89438 | Power steering oil pressure switch | 89438-33010 |
| 89465 | oxygen sensor | 89465-12600 · 89465-12610 · 89465-12710 · 89465-13030 · 89465-20810 |
| 89615 | knock control sensor | 89615-12120 · 89615-20090 · 89615-52030 · 89615-52040 |
| 89650 | Power steering ECU assembly | 89650-13010 · 89650-13011 · 89650-13020 · 89650-13031 |
| 89654 | power steering relay | 90987-02016 · 90987-02025 |
| 89960 | Headlight beam height adjustment ECU assembly | 89960-13010 · 89960-13020 |
| C2593 | Front remote control box bracket | C2593-D1060 |
| C8560 | Lifter relay assembly | C8560-18030 · C8560-D1050 |
