Toyota COROLLA 后组合灯 — Figure 8111

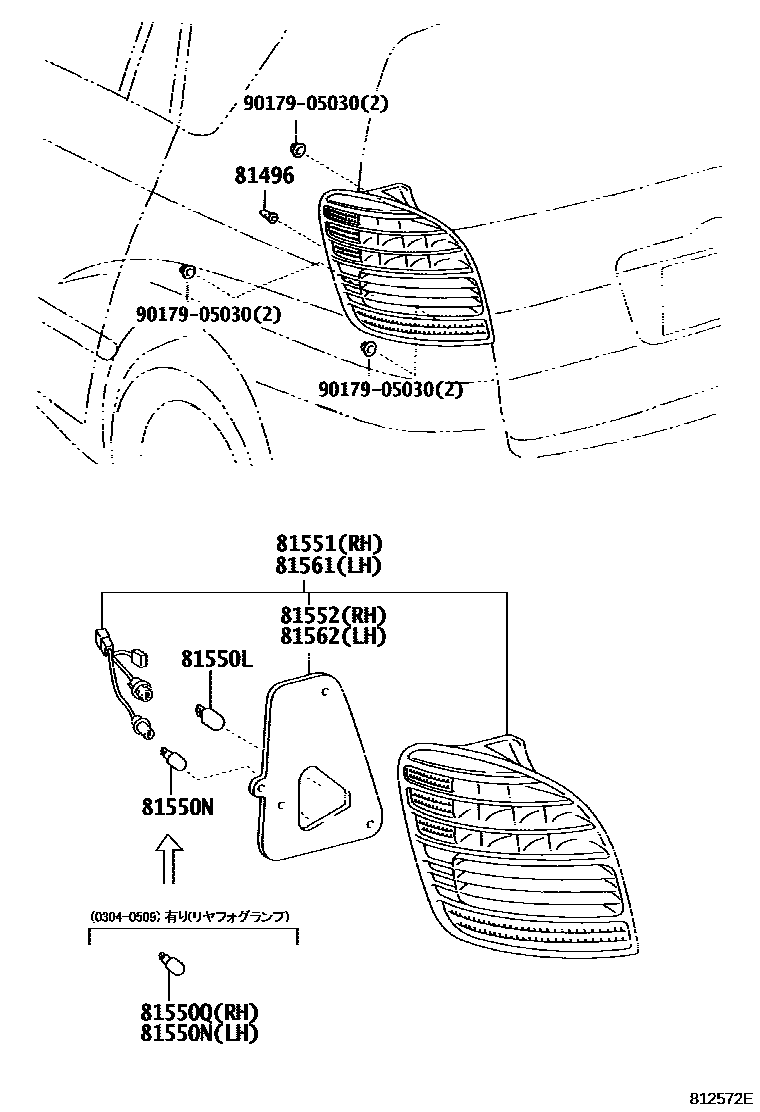

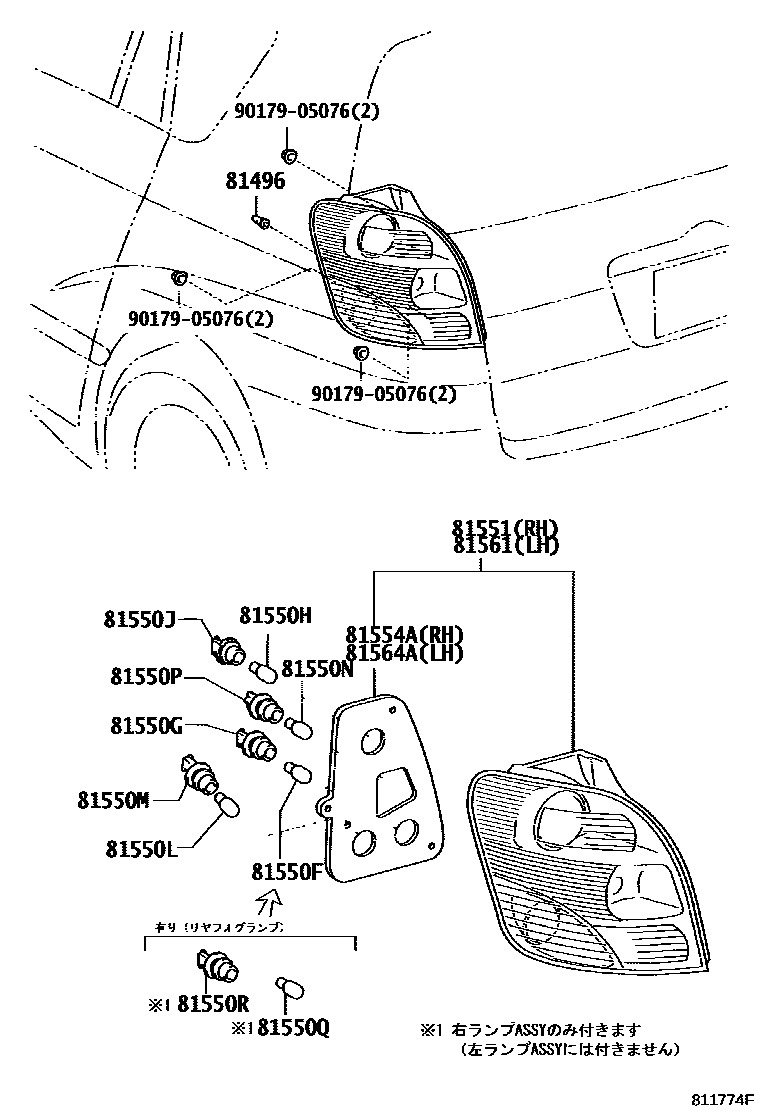

Toyota COROLLA EPC diagram 8111, 后组合灯, with 2 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81496 | Rear combination light guide block | 81496-12020 |
| 81550F | tail light bulb | 90981-11048 |
| 81550G | Tail light lamp holder | 81555-13510 |
| 81550H | Tail and brake light bulbs | 90981-11048 |
| 81550J | Tail and brake light holders | 81555-13510 |
| 81550L | Rear turn signal light bulb | 90981-11059 · 90981-13043 |
| 81550M | Rear turn signal lamp holder | 81555-13520 |
| 81550N | reversing light bulb | 90981-11059 · 90981-13043 |
| 81550P | Reversing light lamp holder | 81555-13530 |
| 81550Q | Rear fog light bulb No. 1 | 90981-11048 · 90981-11059 |
| 81550R | Rear fog light lamp holder | 81555-13510 |
| 81551 | Right rear combination lamp shade | 81551-13510 · 81551-13520 · 81551-13620 · 81551-13630 · 81551-13640 |
| 81552 | Right rear combination lamp shade gasket | 81554-13630 |
| 81554A | No. 1 right rear combination lamp body gasket | 81554-13510 |
| 81561 | Left rear combination lamp shade | 81561-13510 · 81561-13520 · 81561-13590 · 81561-13600 |
| 81562 | Left rear combination lamp shade gasket | 81554-13630 |
| 81564A | No. 1 left rear combination light lamp body gasket | 81554-13510 |
