Toyota COROLLA Fog Lamp — Figure 8102

Toyota COROLLA EPC diagram 8102, Fog Lamp, with 2 images and 7 PNC and OE references.

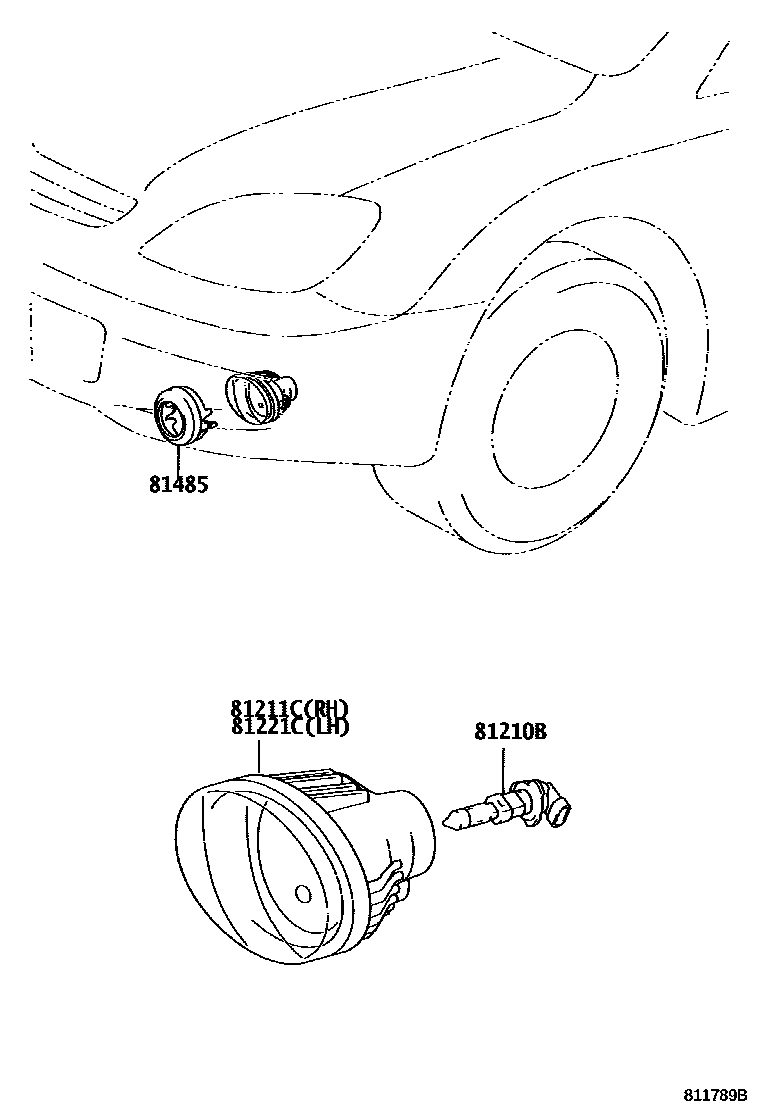

Toyota COROLLA Fog Lamp EPC diagram — 811789B
Fog Lamp — 811789B (200105 – 200304)

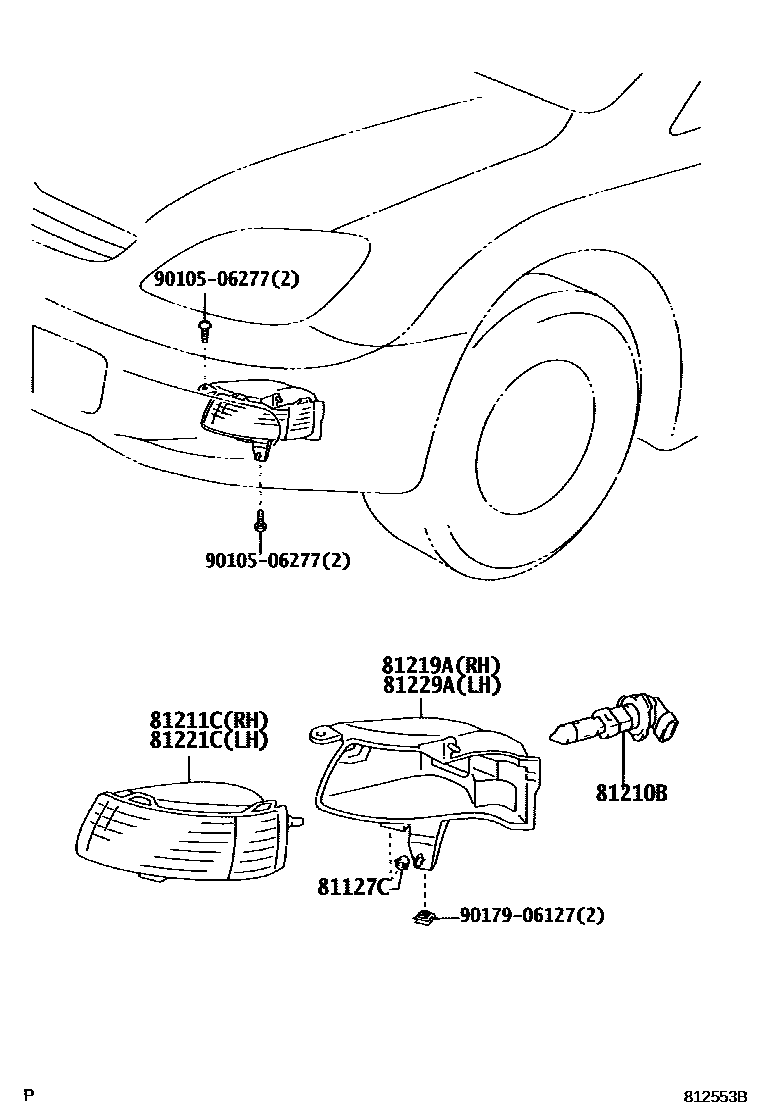

Toyota COROLLA Fog Lamp EPC diagram — 812553B
Fog Lamp — 812553B (200304 – 999999)

PNC and OE references

PNCPart nameOE numbers
81127CFog light support90075-10811
81210Bfog light bulb90080-81040 · 90981-13047
81211CRight fog light assembly81211-12180 · 81211-52050
81219ARight fog light bracket81219-13100
81221CLeft fog light assembly81221-12180 · 81221-52050
81229ALeft fog light bracket81229-13100
81485Fog light guard insert81485-13010
