Toyota COROLLA Headlamp — Figure 8101

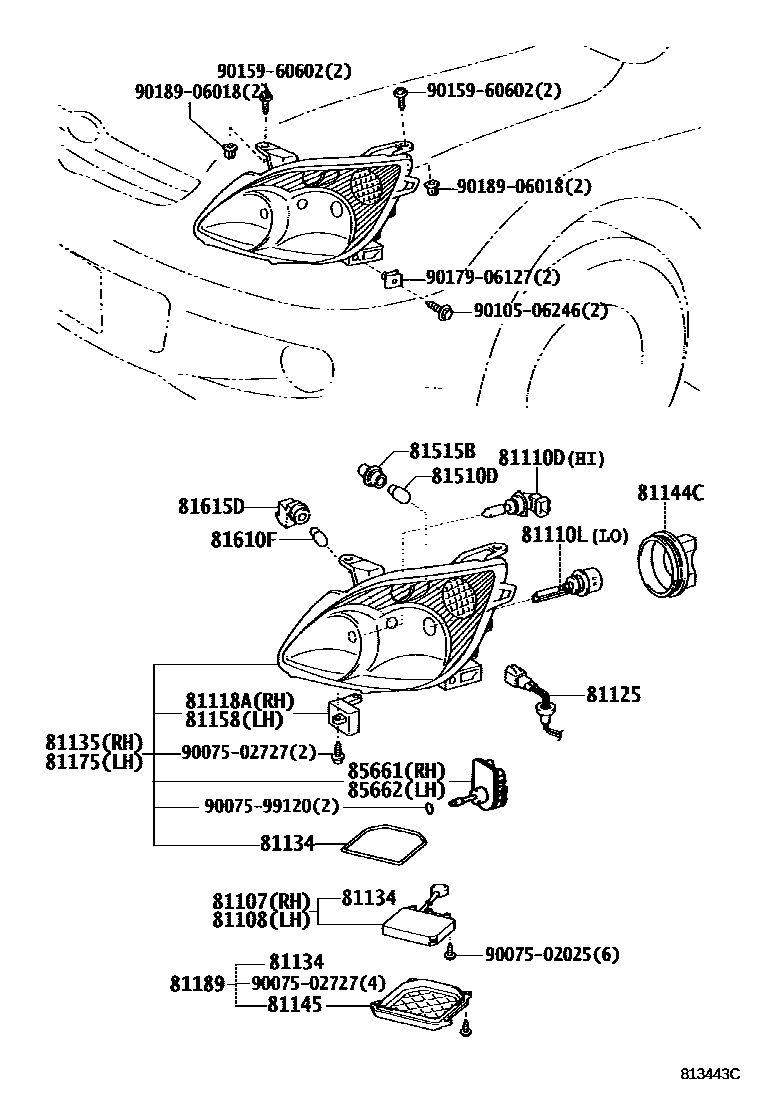

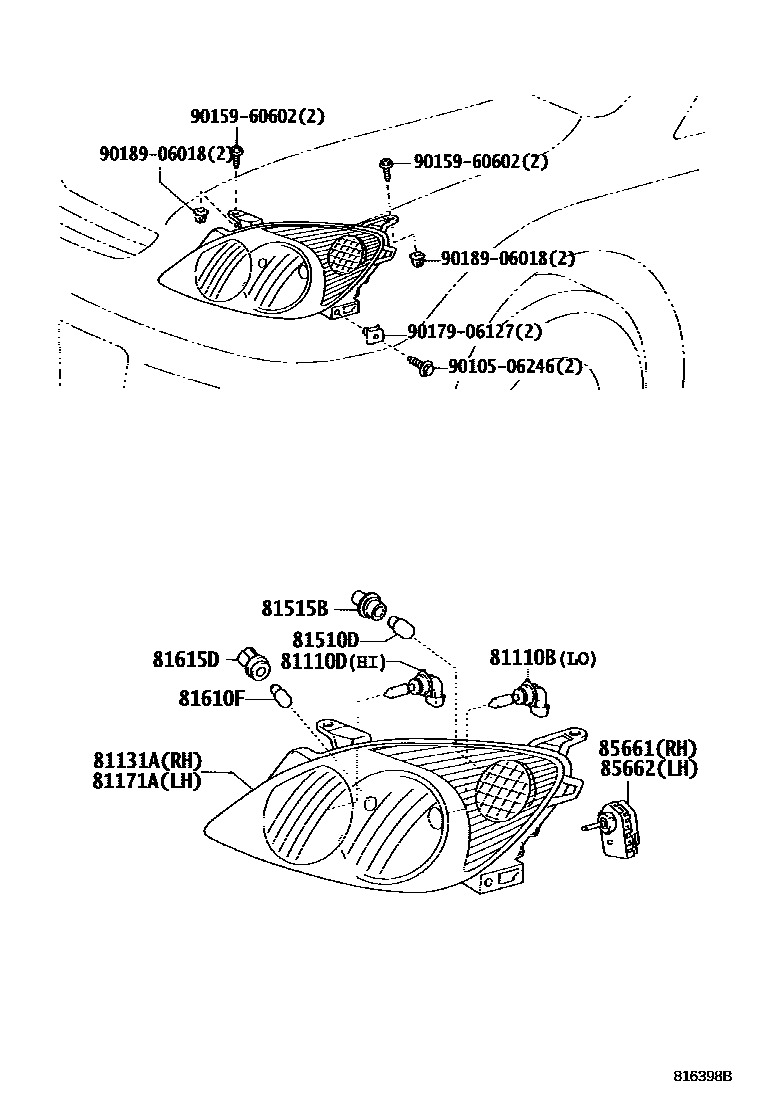

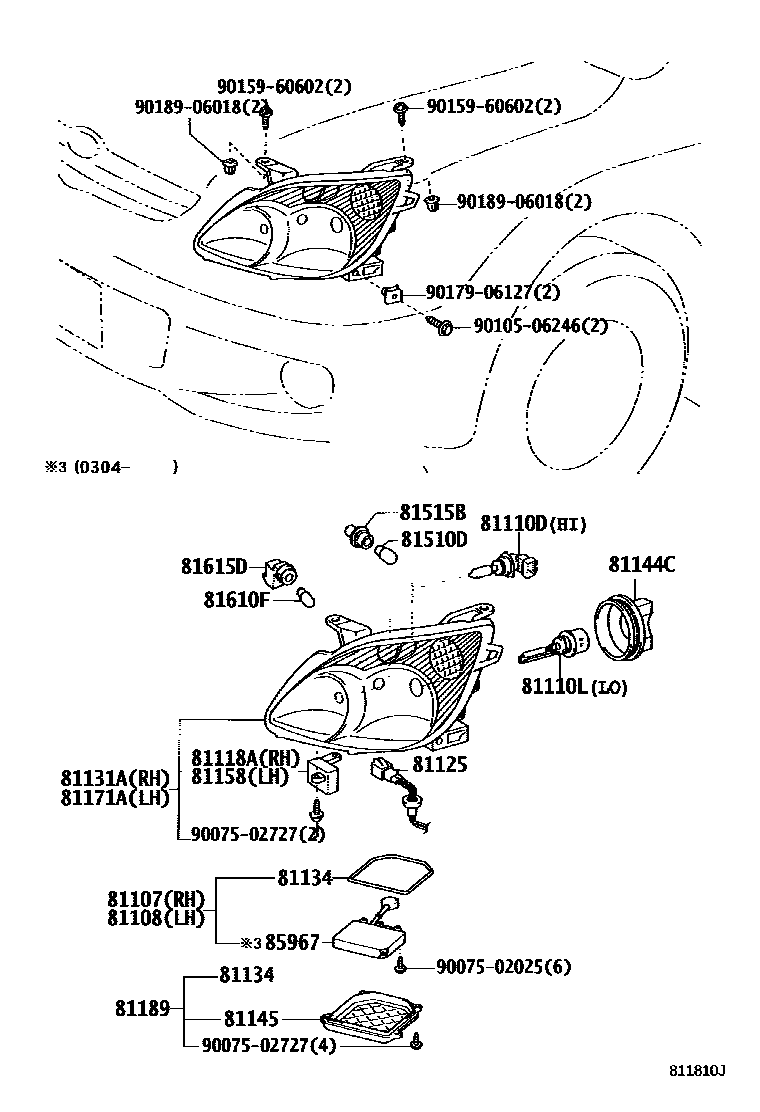

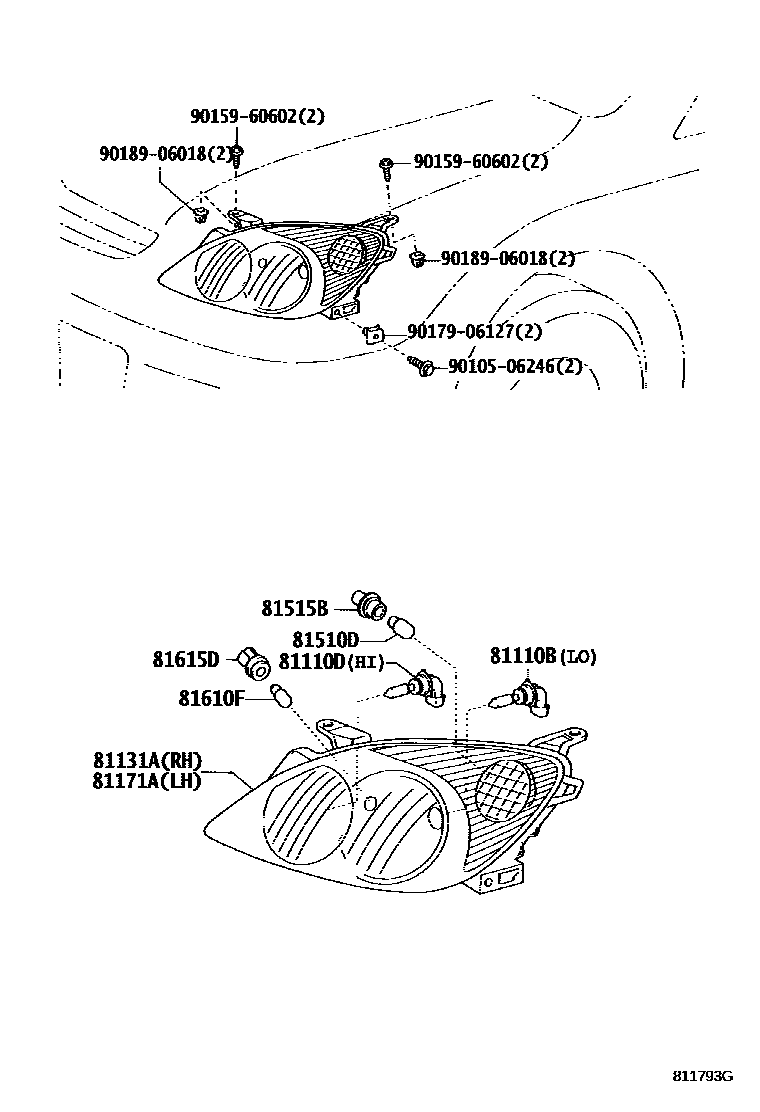

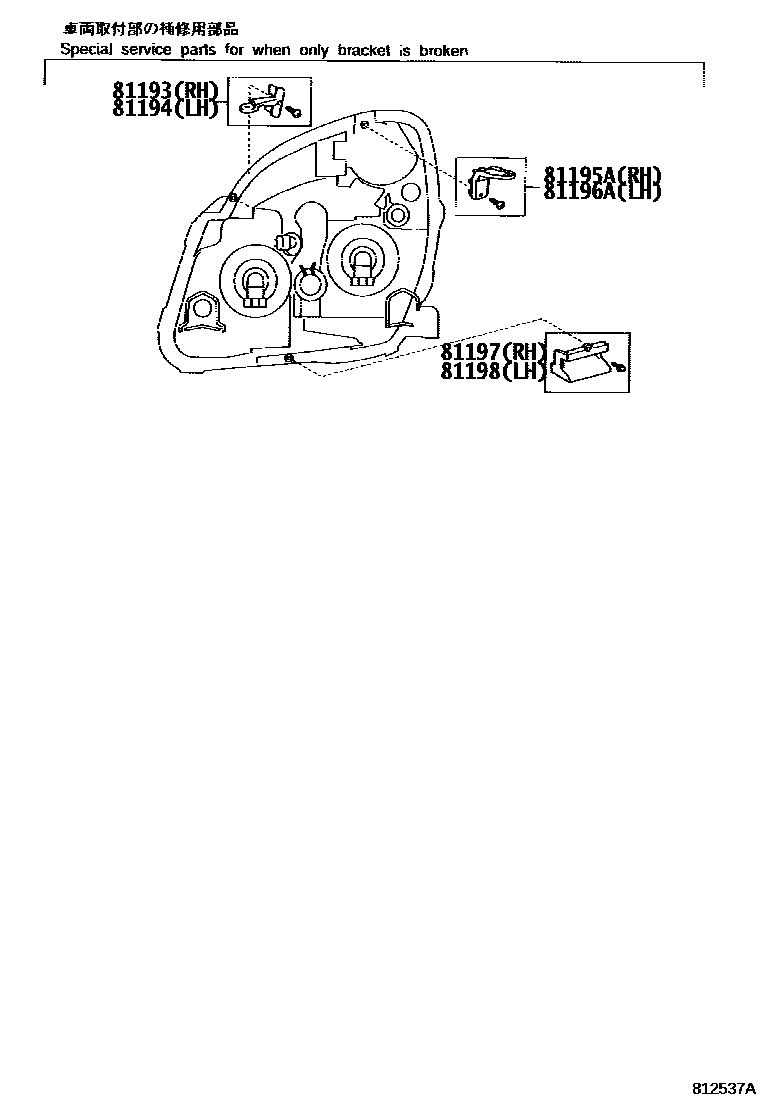

Toyota COROLLA EPC diagram 8101, Headlamp, with 5 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81107 | Right headlight control ECU sub-assembly | 81107-13270 |
| 81108 | Left headlight control ECU sub-assembly | 81107-13270 |
| 81110B | Bulb (for headlight No. 1) | 90080-81040 · 90981-13047 |
| 81110D | Bulb (for headlight No. 2) | 90080-81041 · 90981-13046 |
| 81110L | Discharge headlight bulb | 90981-20007 |
| 81118A | Right headlight bracket | 81118-13270 |
| 81125 | headlight wire | 81125-13270 |
| 81131A | Right headlight assembly assembly | 81130-13230 · 81130-13270 · 81130-13320 · 81130-13370 |
| 81134 | headlight gasket | 90075-99137 |
| 81135 | Right headlight assembly | 81145-13380 |
| 81144C | Headlight lamp holder cover | 81135-13270 |
| 81145 | No. 2 headlight cover | 90075-99136 |
| 81158 | Left headlight bracket | 81158-13270 |
| 81171A | Left headlight assembly assembly | 81170-13230 · 81170-13270 · 81170-13320 · 81170-13370 |
| 81175 | Left headlight assembly | 81185-13380 |
| 81189 | headlight cover | 90075-67002 |
| 81193 | Right headlight upper protective ring | 81193-13010 |
| 81194 | Left headlight upper protective ring | 81194-13010 |
| 81195A | Right headlight lower protection ring | 81196-13010 |
| 81196A | Left headlight lower protection ring | 81196-13010 |
| 81197 | Right headlight lower bracket | 81195-13010 |
| 81198 | Left headlight lower bracket | 81195-13010 |
| 81510D | front turn signal light bulb | 90981-15011 |
| 81515B | Front turn signal lamp holder | 90075-60028 |
| 81610F | Light bulb (for width indicator light) | 99132-12050 |
| 81615D | Width light lamp holder | 90075-60001 · 90075-60005 |
| 85661 | Right headlight beam height adjustment motor | 85661-12010 · 85661-12020 |
| 85662 | Left headlight beam height adjustment motor | 85661-12010 · 85661-12020 |
| 85967 | Light control ECU | 85967-53020 |
